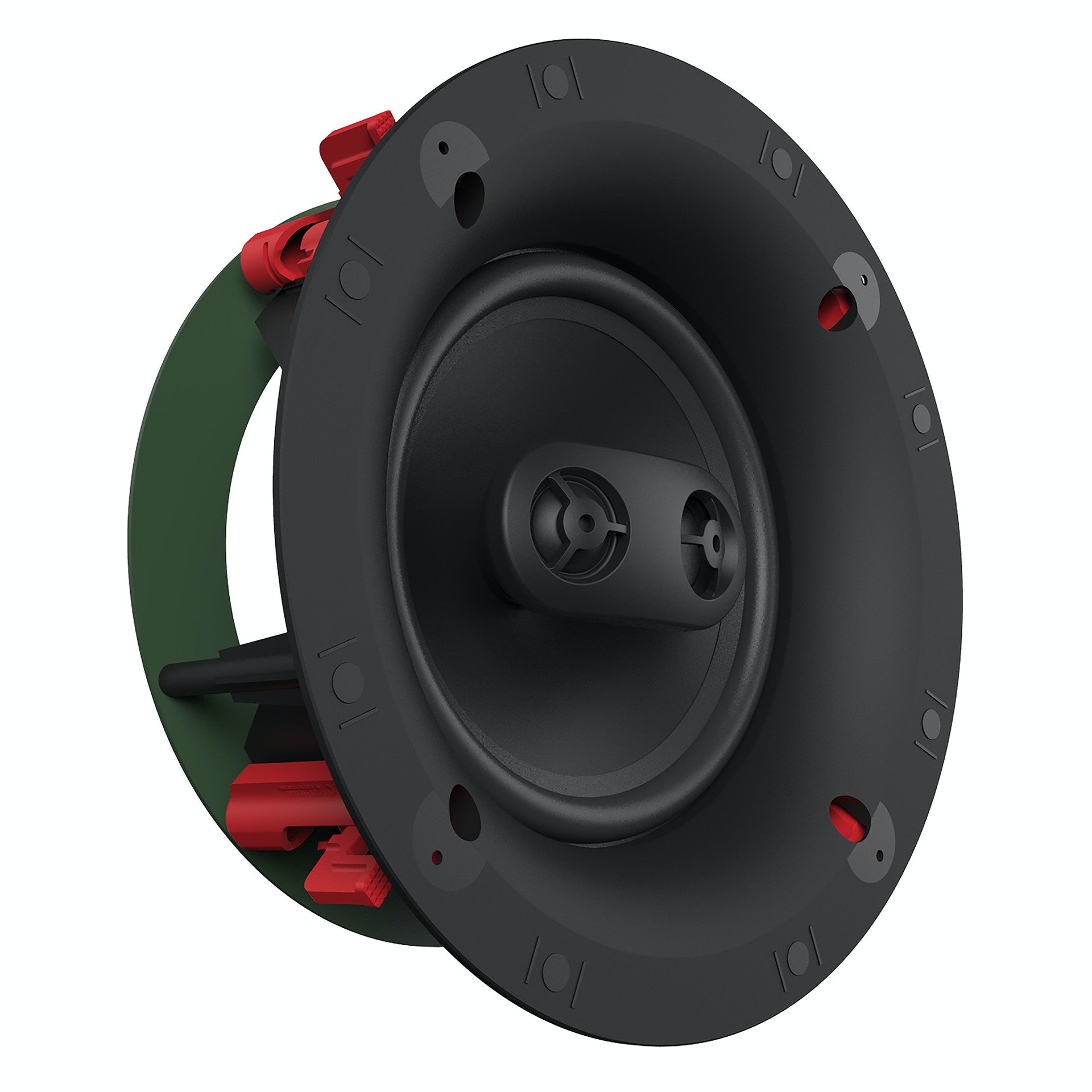

Get the Klipsch Signature Horn-Loaded performance at an incredible value. The DS-160CSM features a 6.5” Polypropylene woofer and dual 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
- 6.5” Polypropylene woofer
- Dual 1” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
SKY HOOK® TOOL-FREE INSTALLATION SYSTEM
The exclusive Sky Hook® patented Cinch by Swarm Installation System engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.

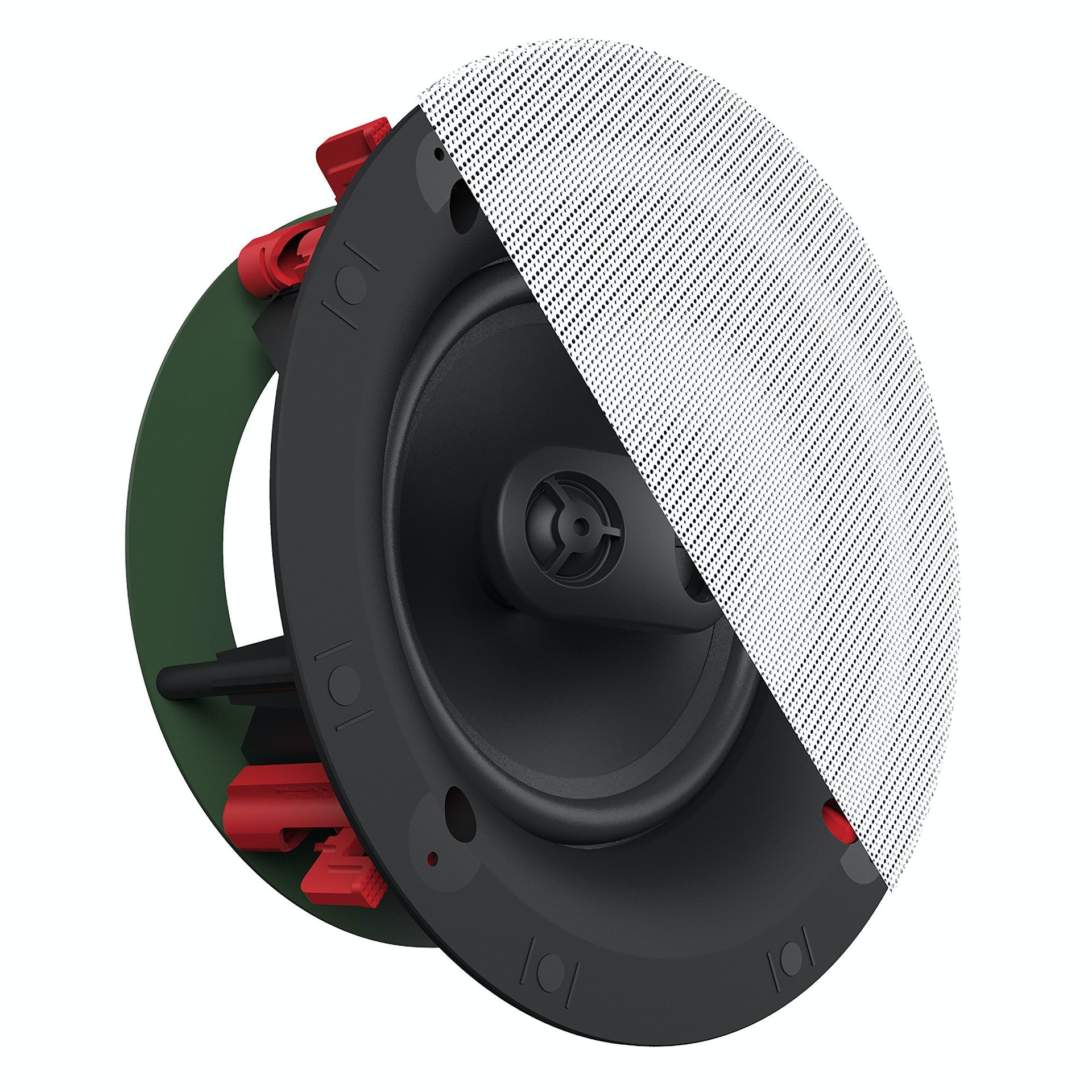

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
|Frequency Response||77Hz - 20kHz +/- 3dB|
|High Frequency Driver||Dual .75" (1.9cm) Silk Dome Tweeters|
|Low Frequency Driver||6.5” (16.51cm) Dual Voice Coil Polypropylene Woofer|
|Sensitivity||91 dB @ 2.83V / 1m|
|Power Handling||50W RMS / 200W RMS|
|Impedance||8 Ohm Compatible|
|Enclosure Type||ABS/Infinite Baffle|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Product Dimensions||9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)|
|Mounting Depth||4.34” (11.03cm)|
|Cutout Dimensions||8.3” (21.1cm)|
|Product Weight||7 lbs (3.18kg)|
|Included||Flat Paintable Magnetic Grille|
|Installation Kit||IK-650-C II (Sold Separately)|
|Fire Rated Enclosure||ME-650-C (Sold Separately)|
