Grandview Motorised Smart Screens


This product is not available for online purchase. Please contact us via phone on +61262474844 or email to arrange purchase.

Key Features

  • Projection fabric with 50mm black side borders
  • White aluminium designer casing, Plana R fabric gain 1.0
  • IP control for third party or on board web server
  • Cable for dry contact and RS232 provided
  • 12V trigger using 2.5mm output to screen and 3.5mm on projector end
  • IR remote control with fine adjustments buttons External IR cable provided
  • As standard is supplied with IP Control, IR Remote, 12V Trigger, Close Contact, and a manual override switch.
  • Simple mechanical limit setting adjustments via the motor.
  • Install is simplified with multi fit brackets that can be installed anywhere along the length of the casing allowing for mounting to wall stud positions.
  • Brackets suit wall, ceiling or suspended installation.
  • Projection surface is Plana R.
  • Casing is extruded aluminium, finished in white.

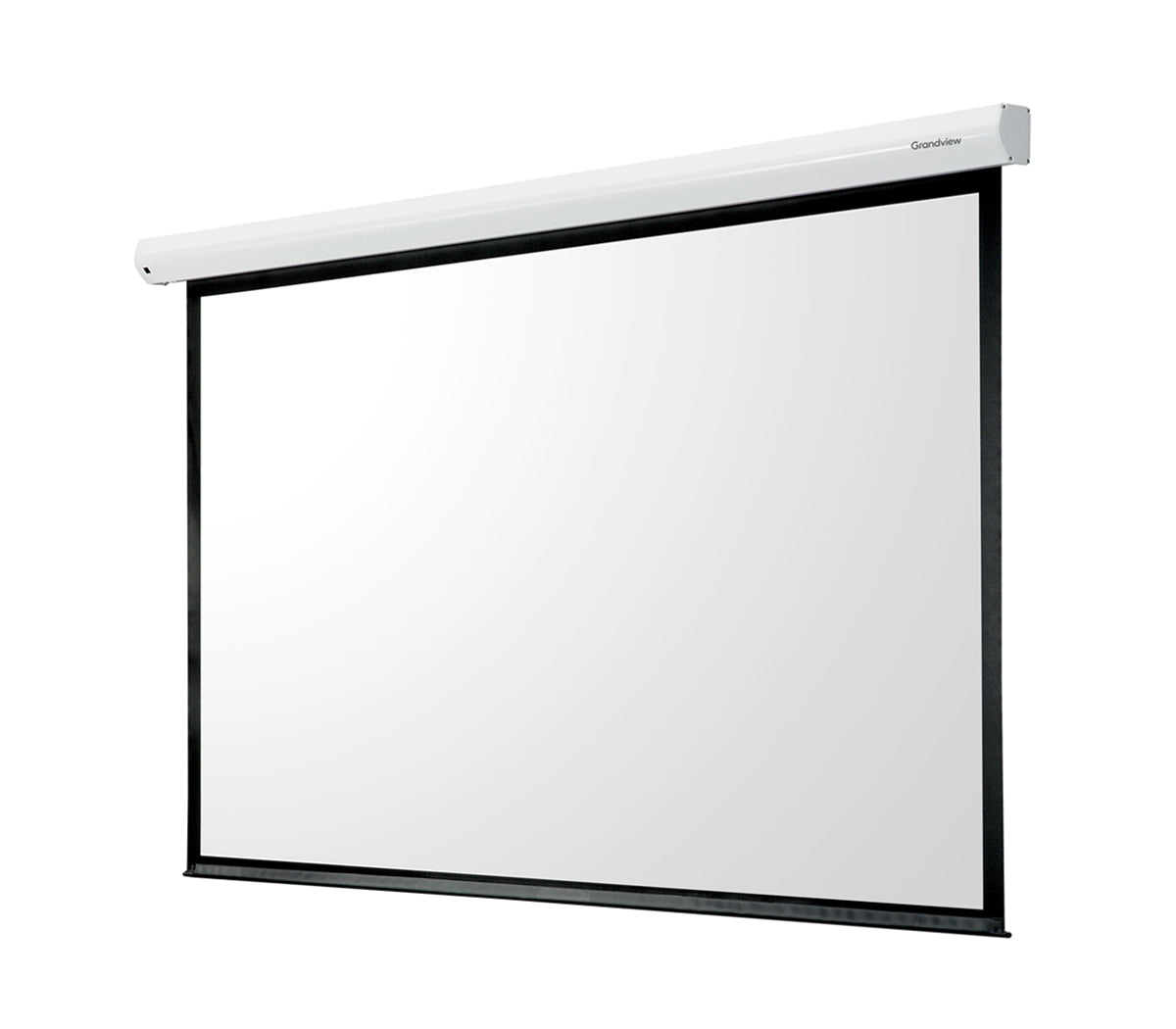

Grandview Large IP Control Motorised Smart Projection Screens


Grandview Large IP Control Motorised Projector Smart-Screen

With all the popular and easy install features of the original IP Smart-Screen, but with a larger casing, the Large Smart-Screen series gives you screen options up to 4500mm wide. Available in 4:3, 16:9 and 16:10 aspect ratios.

The screens are fully equipped with integration options - IP Control, IR remote, 12V trigger from your projector, relay control or RS232 commands.

Smart Features

  • IP control
  • 12V Trigger Using 1.5mm output on screen and 3.5 on the projector end.
  • External IR Cable with Jack plug 3.5mm with receiver eye.
  • Close Contact Cable Provided in the box.
  • RS232 control
  • Manual Switch located on the bottom of the casing (Push button), close to the Power cable outlet.


Image size
(Diagonal) inch

Aspect Ratio Image size
(W x H) mm


16:9 1880 x 1060mm


16:9 2030 x 1145mm


16:9 2260 x 1270mm


16:9 2480 x 1395mm


16:9 2655 x 1495mm
130" 16:9 2880 x 1620mm
140" 16:9 3100 x 1745mm
150" 16:9 3320 x 1865mm
160" 16:9 3542 x 1992mm
180" 16:9 3985 x 2240mm
200" 16:9 4430 x 2490mm
