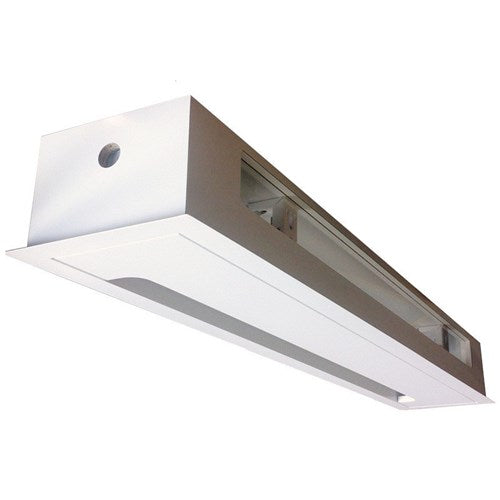

Grandview Hideaway Boxes

$1,059

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

Key Features

 Stapled and glued construction

 Site friendly particle board backing box

 Made from ecologically sustainable timbers

 Control and power exit holes

 100% Australian made

Grendview HideAway Boxes to suit Smart-Screens

* projection screen sold separately



HideAway Boxes to suit Grandview Smart-Screens

If you would like to get your Grandview Motorised Smart Screen above the
ceiling and out of sight, we recommend a Hills HideAway Box. The Hills HideAway Box has been designed to be a direct replacment for the Grandview version, with a few improvements

The above ceiling pre-installation box can be fitted into the ceiling (either plaster or suspended) either at the time of construction or into an existing ceiling. The screen then is mounted inside the box using the same brackets that you would have used in the ceiling or wall installation (these are pre installed)

The result is a clean ceiling line.

The table below shows the product code of the HideAway and the size and aspect ratio of the screen that will fit inside it.

Grendview HideAway Boxes fitted with Grandview or LP Morgan projection screen

Specifications:

HH Model Old Model (Discontinued) HideAway
Box Length
To Suit Grandview To Suit LP Morgan
HH3 HER30HID256 2560mm

GRSE084V, GRSE100V, GRSF085H, GRSF092H, GRSG094C, GRSG103C

90V, 100V, 82H, 92H, 85W, 94W

HH4 HER30HID298 2975mm

GRSE120V, GRSF102H, GRSF112H, GRSG110C, GRSG103C

120V, 100H, 110H, 100CS, 105CS, 103W, 113W

HH5 HER30HID336 3360mm

GRSB120H, GRSB120C, GRSB130H, GRSG130C

120W, 130W, 140W

HH6 HER30HID375 3750mm

GRSB140H, GRSB150H, GRSA150V, GRSG140C, GRSG150C

N/A

HH7 HER30HID500 5000mm

GRSA180V, GRSA200V, GRSB160H, GRSB180H, GRSB200H, GRSB180C, GRSB200C, GRSG160C, GRSG180C, GRSG200C

N/A
