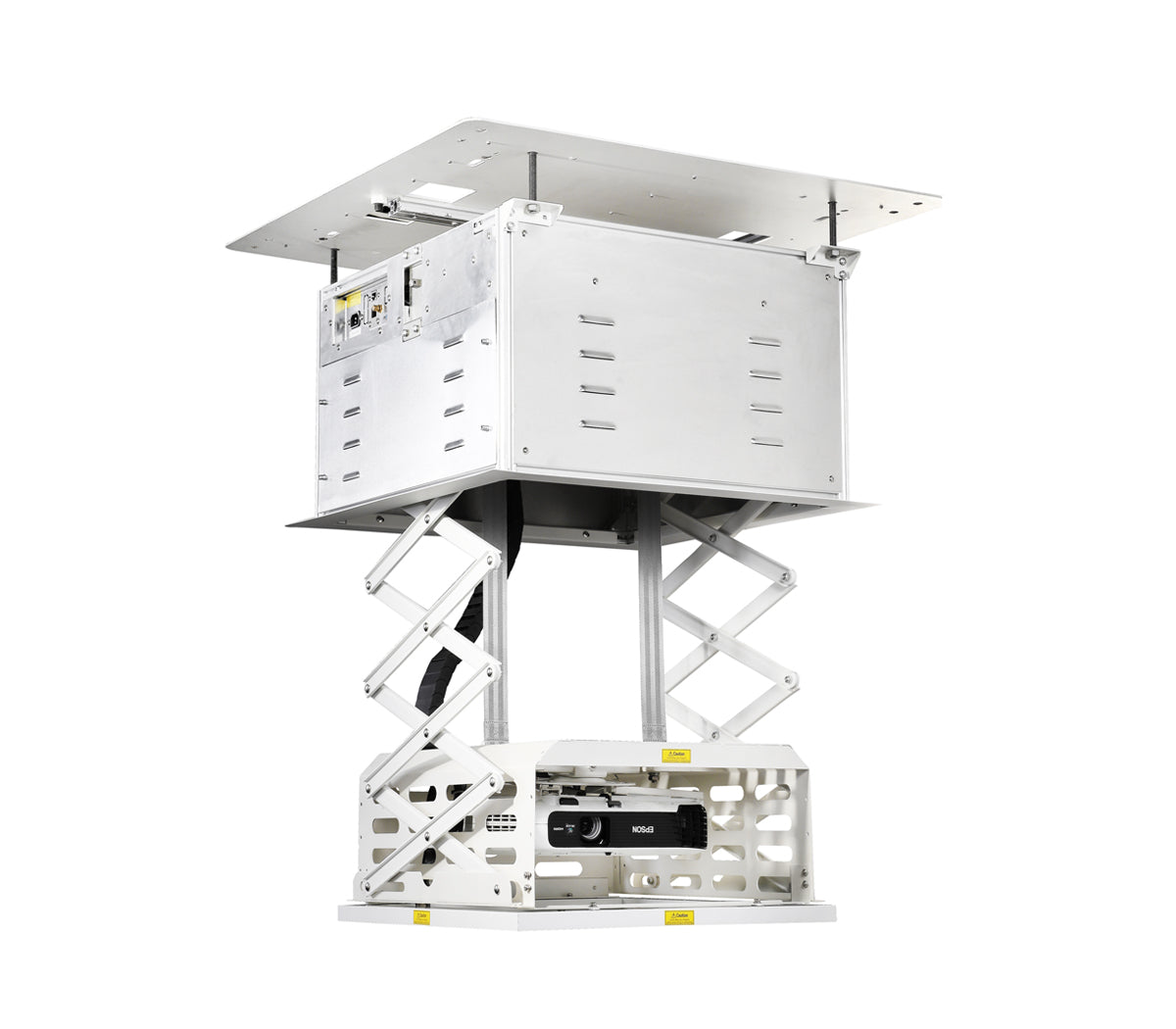

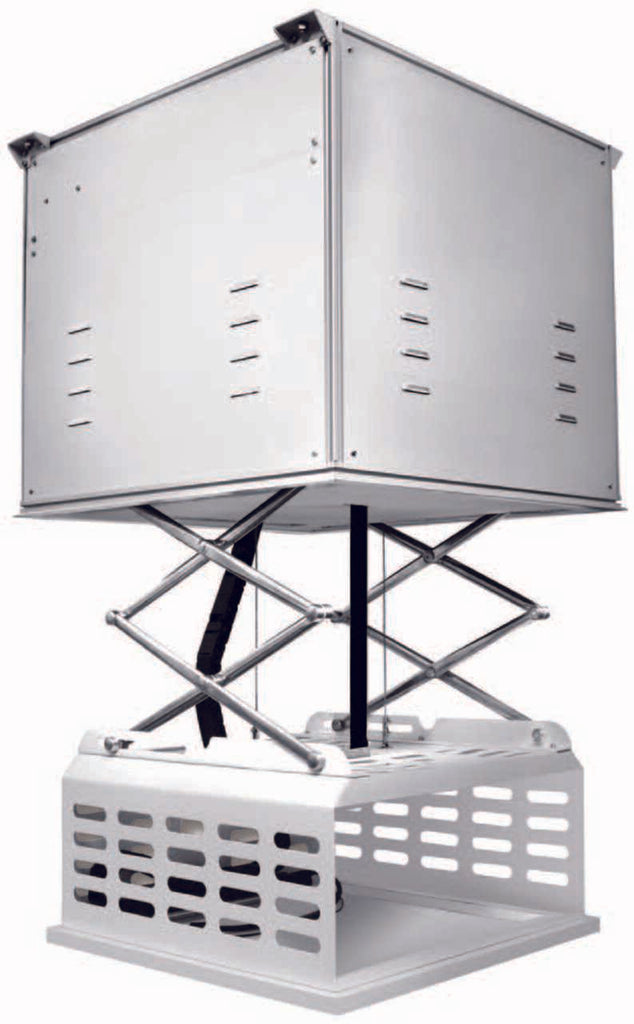

Grandview GRPL Series Motorised Projector Lift

$1,729

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

Key Features

 Maximum Weight Capacity: 15kg

 Automatic balancing mechanism

 Double Positioning

 Integrated cable management

 Complete protection & safety brake mechanism

 IR remote control included



Grandview GRPL Series Recessed Ceiling Mount Motorised Projector Lift

Dual Positioning System

Dual Positioning System provides safety and convenience to users. The motor’s safety positioning is factory-set, and the height of operation can be adjusted automatically by electric positioning.

Dual Positioning System



Automatic Balancing Mechanism

Automatic Balancing Mechanism ensures the dragline and suspending cage remain vertical when extending or retracting, avoiding any digression or noise caused by the slant of the dragline.

Automatic Balancing Mechanism



Brake Mechanism

The Brake Mechanism ensures that if the dragline is broken, the motor brake is out of control or the steel cable disconcerts accidentally, the safety device will operate automatically, preventing the case falling and improving the security in high-ceiling conditions.

Brake Mechanism



High-Strength Aluminium Linkage

High-Strength Aluminium Linkage is die-cast, has excellent texture, is high-strength and rustproof. It is very light, thereby reducing the lift-weight and maintaining balance.

High-Strength Aluminium Linkage



Complete Protection

Complete Protection prevents the projection equipment against the impact of the external environment.

Complete Protection



Hatch Baffle

Hatch Baffle matches prefectly with different types of ceiling. When extending the case, it may completely cover the hatch that results.

* Optional Extra

Hatch Baffle



Cable Management

Cable Management, which is allocated for the users to put Power cord, VGA, RGB or HDMI cables inside, easily bends and stretches. Customised sizes are available.

Cable Management



Multi-Control Systems

Multiple control options are available: RF Remote control, Contact closer, Wall-switch, RS232/485 and control cable pass through for projector (CAT6).

Multi-Control Systems



Scope For Installation (installation hole of projector)

Note: Connect the installation arms to the projector conversely for different installation holes of projectors.

Scope for installation



Specifications

No Drop From Ceiling
(mm)
Suitable Projector Size
(HxWxD)
Max weight
1. 0~930 147 400 400 15 kg
2. 0~1600 180 530 470
3. 0~1600 200 530 570
4. 0~2700 180 530 470
5. 0~2700 200 530 570
6. 0~4600 200 630 570
