Future Automation UBL Under Bed TV Lift
TV UNDER BED LIFT

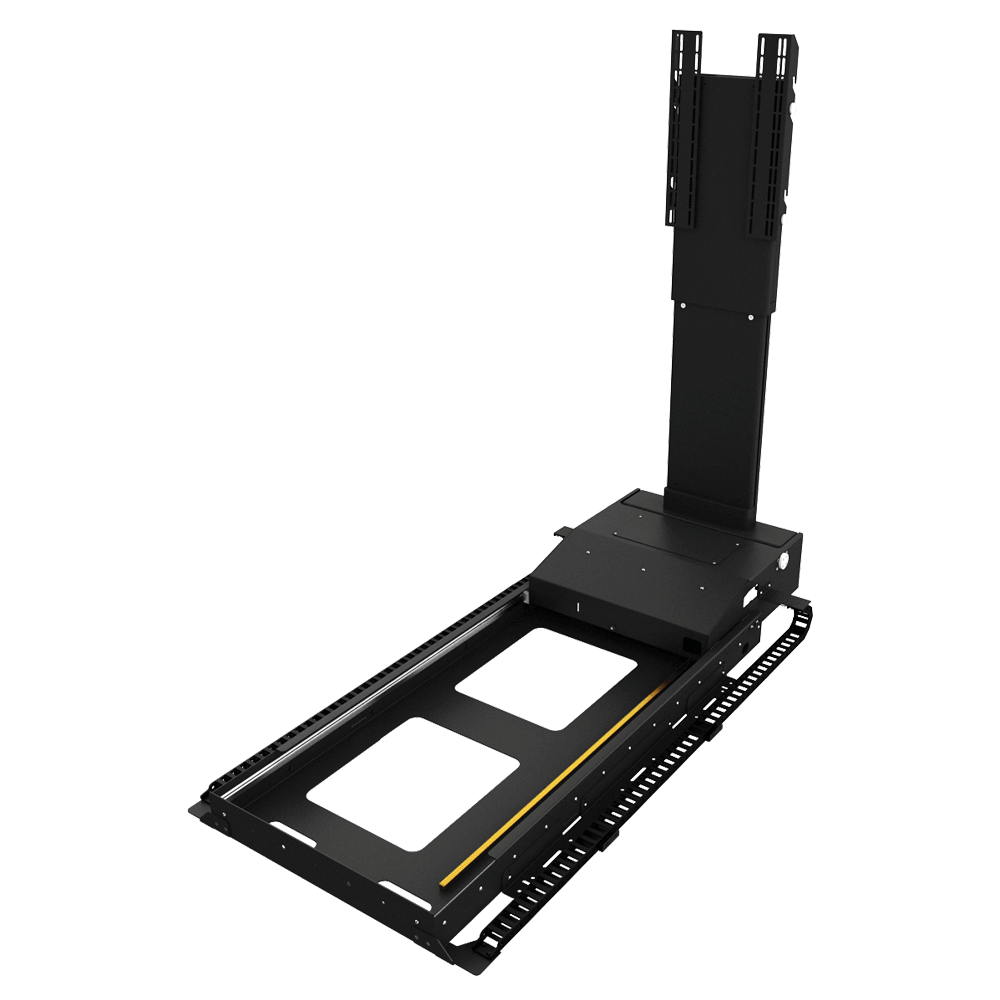

The Under Bed TV Lift is a unique and impressive mechanism that stores a flat screen under a bed, negating the need for cabinetry at the foot of the bed.
Compact and sleek in design, the Under Bed TV Lift offers an alternative to traditional flat screen TV lifts and with its pop up design, helps create a different dimension to the interior design of a room.
The Under Bed Lift is available in the UBL-EBF form with a motorised flap which opens before the screen is revealed and closes after it is concealed.
- Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
- In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
- Supplied as a fully built unit the UBL ships ready to be integrated with no self-assembly required
- When closed the screen and mechanism are completely hidden under the bed, removing the need for furniture or a visible screen when not in use
|CONTROL OPTIONS||RS232 / IR||RS232 / IR|
|FINISH (CUSTOM AVAILABLE)||BLACK PAINT - RAL 9005||BLACK PAINT - RAL 9005|
|FLAP TYPE||NONE||MOTORISED FLAP UNIT|
|MAX SCREEN SIZE (H X W X D)||800 X 1250 X 70MM (31.49 X 49.21 X 2.75")||800 X 1250 X 70MM (31.49 X 49.21 X 2.75")|
|MAX WEIGHT||40KG (88LBS)||40KG (88LBS)|
|MIN HEIGHT REQUIRED||255MM (10.03")||320MM (12.59")|
|MIN LENGTH REQUIRED||1800MM (70.86")||1800MM (70.86")|
|POWER CONSUMPTION||MAX 100W||MAX 100W|
|POWER CONSUMPTION (STANDBY)||1.5W||1.5W|
