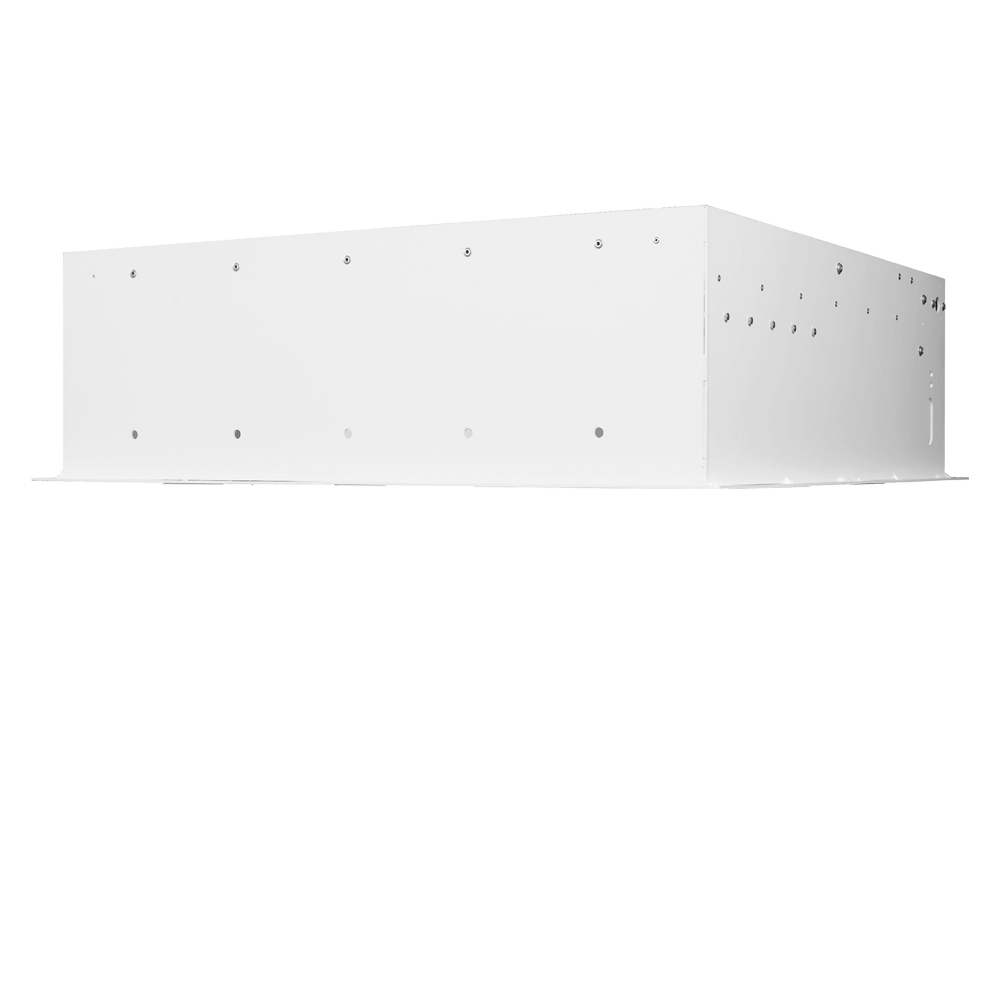

Future Automation PD PROJECTOR DROP

$6,599

Description

PD

PROJECTOR LIFT

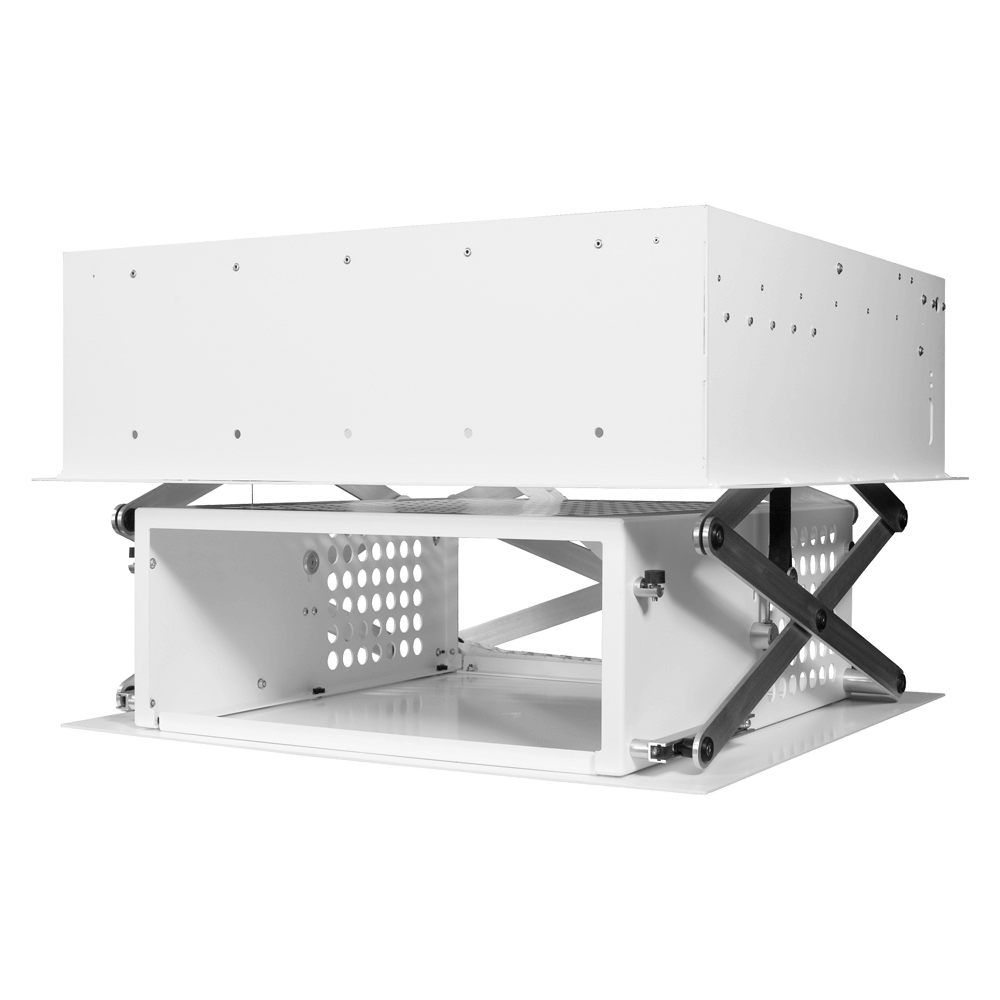

The Future Automation PD Projector Drop mechanism is the leading automated projector lift solution for home cinema installations. Its height efficient design, coupled with its adjustable drop distance makes the PD mechanism a favourite for leading audio visual installers around the world.

  • Range of drop distances available to suit varying ceiling heights
  • Three standard sizes with customisable sizing available
  • Supplied with IR, Contract Control, and RS232 control options
  • Made in house, in our dedicated facilities located in Great Britain and the USA
  • Slotted mounting system for universal projector mounting

COMPACT DESIGN

MAXIMUM EFFECT

Three standard sizes of PD Projector Drop mechanism cover most common sizes of home cinema projector, while customisable nature of the PD’s design allows for resizing to suit large units. All PD mechanisms are fitted with lid fall arrest cables as standard and feature tilt adjustment on the main carriage to adjust the pitch of the projector when the mechanism is open. Drop distance is easily adjustable once installed to allow exact positioning of the project and the mechanisms precision engineering means the unit will hit the same stop point every time.

The PD Projector Drop mechanism is the perfect solution for transforming any living space into a home cinema.

Specifications:

PRODUCT CODE PD1 PD2.5 PD3.5 PD-CUSTOM
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)
RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)
RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)
RS232 / CONTACT CLOSURE / IR
(RF AVAILABLE)
DECIBEL RATING 46DB 46DB 59DB VARIABLE
DEPTH WITHIN CEILING 210MM (8.26") 211MM (8.30") 261MM (10.27") REQUIRED HEIGHT
FINISH (CUSTOM AVAILABLE) WHITE PAINT - RAL9910 WHITE PAINT - RAL9910 WHITE PAINT - RAL9910 CUSTOM FINISH
MAX PROJECTOR SIZE (WXDXH) 400 X 460 X 190MM
(15.74 X 18.11 X 7.48")
505 X 560 X 195MM
(19.88 X 22.04 X 7.67")
560 X 650 X 235MM
(22.04 X 25.59 X 9.25")
REQUIRED PROJECTOR SIZE
MAX WEIGHT 15KG (33LBS) 15KG (33LBS) 45KG (99LBS) REQUIRED WEIGHT
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED
POWER CONSUMPTION 110W 110W 110W N/A
POWER SUPPLY 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V
TILT UP TO 10° UP TO 10° N/A REQUIRED TILT
TRAVEL FROM CEILING 400MM (15.74") - STANDARD
700MM (27.55") - AVAILABLE
940MM (37.00") - AVAILABLE
400MM (15.74") - STANDARD
700MM (27.55") - AVAILABLE
940MM (37.00") - AVAILABLE
740MM (29.13") - STANDARD
1200MM (47.24") - AVAILABLE
REQUIRED TRAVEL
