Future Automation PL

$6,599

Description

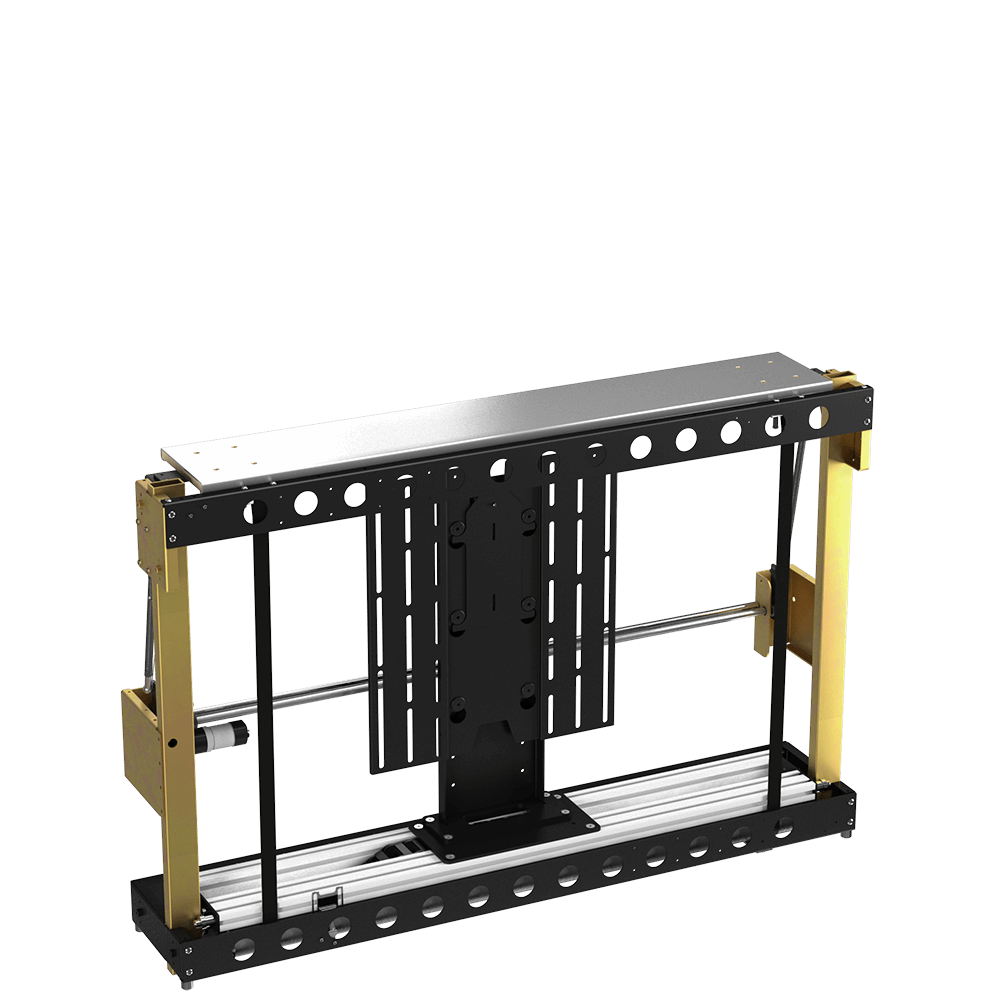

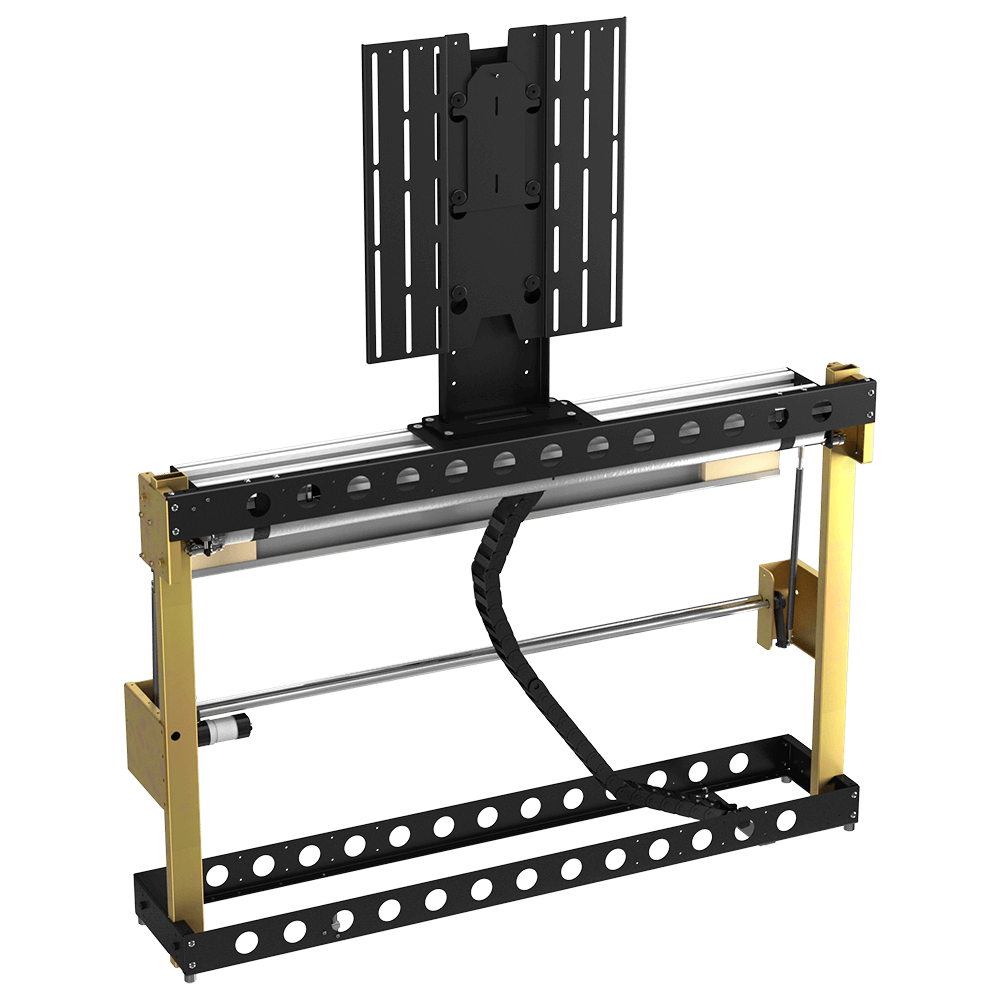

PL

TV LIFT 32"-60"

Bespoke sized to suit any screen from 32” to 60”, the PL TV Lift from Future Automation is among the best of the best when it comes to screen concealment solutions.



Featuring our unique “Drop and Roll” lid system, the PL TV Lift allows users to raise their screen out of a cabinet or joinery housing for viewing, then stow it discreetly out of view when not in use.

  • Unique "Drop and Roll" lid mechanism
  • Built In Cable Management
  • Custom sized to suit exact size of screen
  • Made in house, in our dedicated facilities located in Great Britain and the USA

ULTIMATE

LUXURY

By custom sizing each of our PL and ML family of TV Lift Mechanisms, we are able to offer integrators lifting solutions that not only perfectly fit their specified screens, but are also as size efficient as possible.

Every PL and ML mechanism features our unique “Drop and Roll” lid system, which allows the top flap of the mechanism to be safely lowered into the cabinetry before rotating 90° behind the screen. Utilising this drop and roll function allows the mechanism lid system to be completely hidden from view, meaning an clean cabinet finish can be achieved every time.

Specification:

PRODUCT CODE PL
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING 59DB
MAX SCREEN DEPTH 155MM (6.10")
MAX WEIGHT 50KG (110LBS)
MOVEMENT TYPE MOTORISED
POWER CONSUMPTION 250 - 500W
POWER SUPPLY 240V OR 110V
