Future Automation PICSPLIT

$6,499

Description

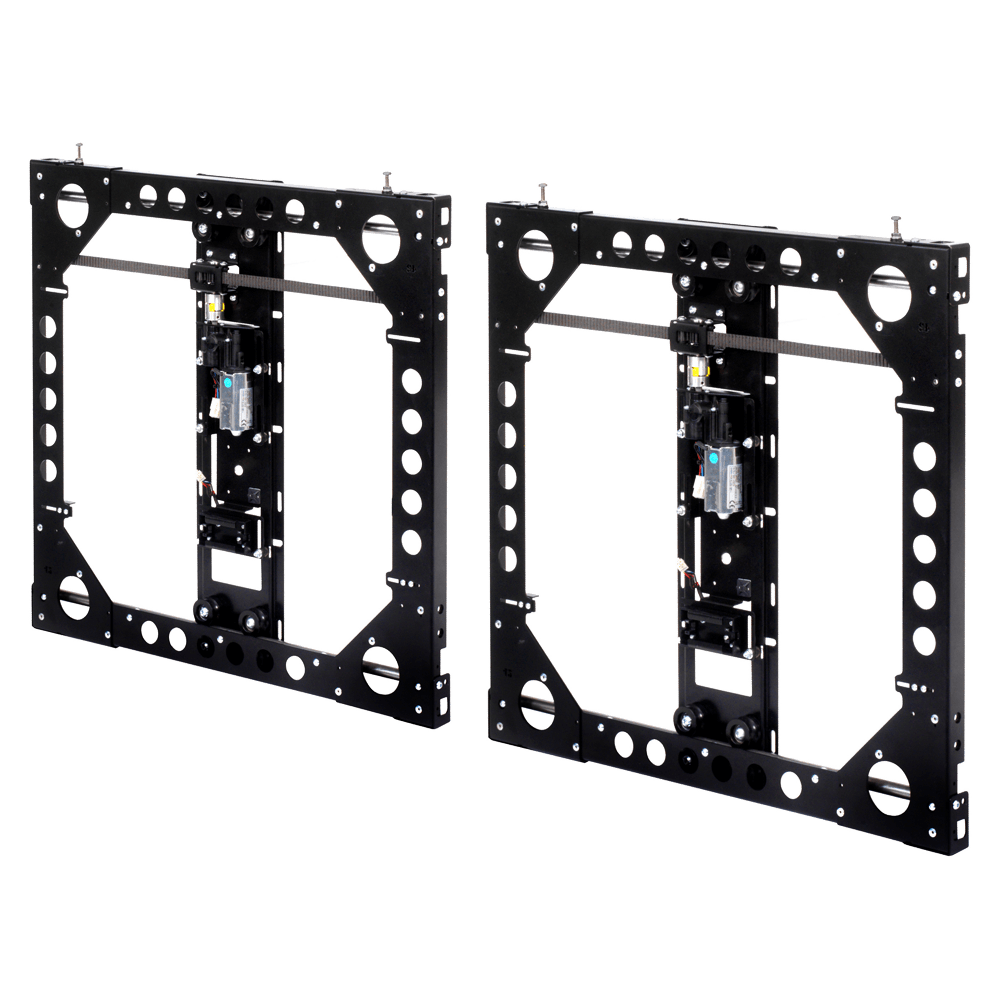

PICSPLIT

PICTURE SPLIT MECHANISM

Our PIC-SPLIT Picture Split Mechanism allows a recessed screen to be concealed behind a pair of artwork panels and is an ideal alternative to our standard Picture Lift mechanism when vertical height is at a minimum.

The inbuilt motors quickly and quietly move the artwork panels apart to reveal the recessed screen behind while the intelligent control system keeps the movement of each panel synchronised at all times.

Our PIC-SPLIT mechanisms can be fitted with existing artwork or can be ordered with bespoke stretched canvases as part of our Canvas Printing Service

  • Quiet and smooth action with a 'ramped' start and finish motion profile
  • Surface mounted design for simplified installation
  • Vibration isolated components
  • Easy adjustment of mechanism end stops
  • Sophisticated electronics help prevent 'finger trapping' between panels
  • Intelligent electronics keep mechanisms synchronised at all times

CONCEAL

& REVEAL

Available in three standard sizes, our PIC-SPLIT Picture Split Mechanisms feature built in vibration isolating, which when combined their already smooth motion of the motors and a ramped start and finish speed, enable an elegant and seamless transition from artwork to television. The sophisticated electronics help prevent ‘finger trapping’ between panels, making the PIC-SPLIT suitable not only for corporate or commercial environments, but also residential installs. Bespoke size mechanisms are available for larger screens and our in house Canvas Printing Service is available to all dealers, offering bespoke made stretch canvases suitable for all our Moving Picture Mechanisms.

Specifications:

PRODUCT CODE PICSPLIT1 PICSPLIT2 PICSPLIT3 PICSPLIT4 PICSPLIT-BESPOKE
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING 47DB 47DB 47DB 47DB VARIABLE
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
MAX RECESS WIDTH 1150MM (45.3") 1400MM (55.1") 1650MM (65") 1800MM (74.8") VARIABLE
MAX WEIGHT OF PANEL 15KG (33LBS) 15KG (33LBS) 15KG (33LBS) 15KG (33LBS) 15KG (33LBS)
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED MOTORISED
POWER CONSUMPTION 110W 110W 110W 110W VARIABLE
POWER CONSUMPTION (STANDBY) 3W 3W 3W 3W VARIABLE
POWER SUPPLY 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V
