Future Automation PICSIDE PICTURE SIDE MECHANISM

$7,799

Description

PICSIDE

PICTURE SIDE LIFT MECHANISM

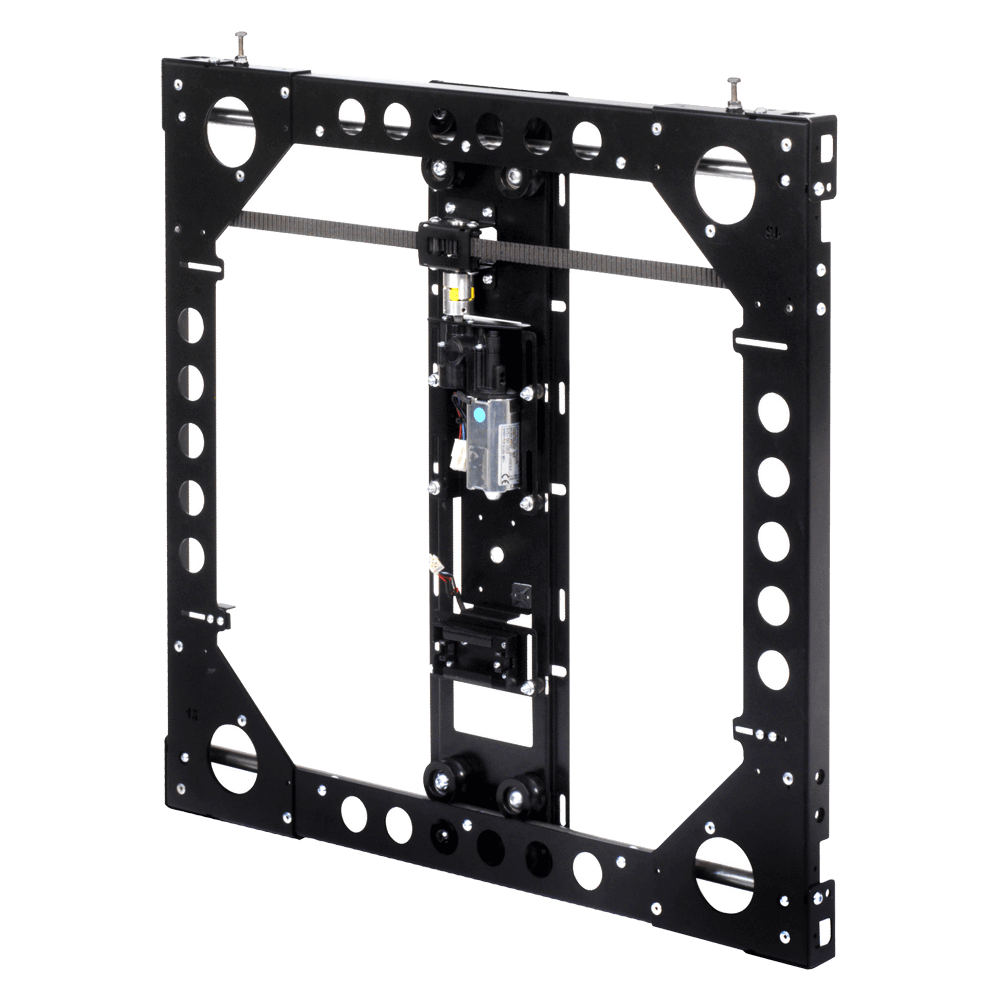

The Picture Side Mechanism is a horizontal moving panel mechanism that conceals a flat screen TV behind a picture or panel.

Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen.

  • Quiet and smooth action with a 'ramped' start and finish motion profile
  • Surface mounted design for simplified installation
  • Vibration isolated components
  • Easy adjustment of mechanism end stops

Specifications:

PRODUCT CODE PICSIDE1 PICSIDE2 PICSIDE3 PICSIDE-BESPOKE
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING 47DB 47DB 47DB VARIABLE
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
MAX TRAVEL OF PANEL 1184MM (46.61") 1435MM (56.49") 1690MM (66.53") REQUIRED DISTANCE
MAX WEIGHT OF PANEL 10KG (22LBS) 10KG (22LBS) 10KG (22LBS) REQUIRED WEIGHT
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED
POWER CONSUMPTION 110W 110W 110W VARIABLE
POWER CONSUMPTION (STANDBY) 3W 3W 3W VARIABLE
POWER SUPPLY 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V
