Future Automation LSL TV LIFT
Description
LSL
TV LIFT 19"-40"
The Lift System Light is a compact but versatile TV lift, ideal for screens ranging from 19” – 40”. Designed to cater for screens at the smaller end of the spectrum, the Lift System Light is supplied with three different styles of lid to cater for a growing variety of residential and commercial applications.
The Lift System range also features the LSM - Lift System Medium for screens 42” – 65” and the Lift System Heavy for screens 65”+.
CONCEAL
REVEAL

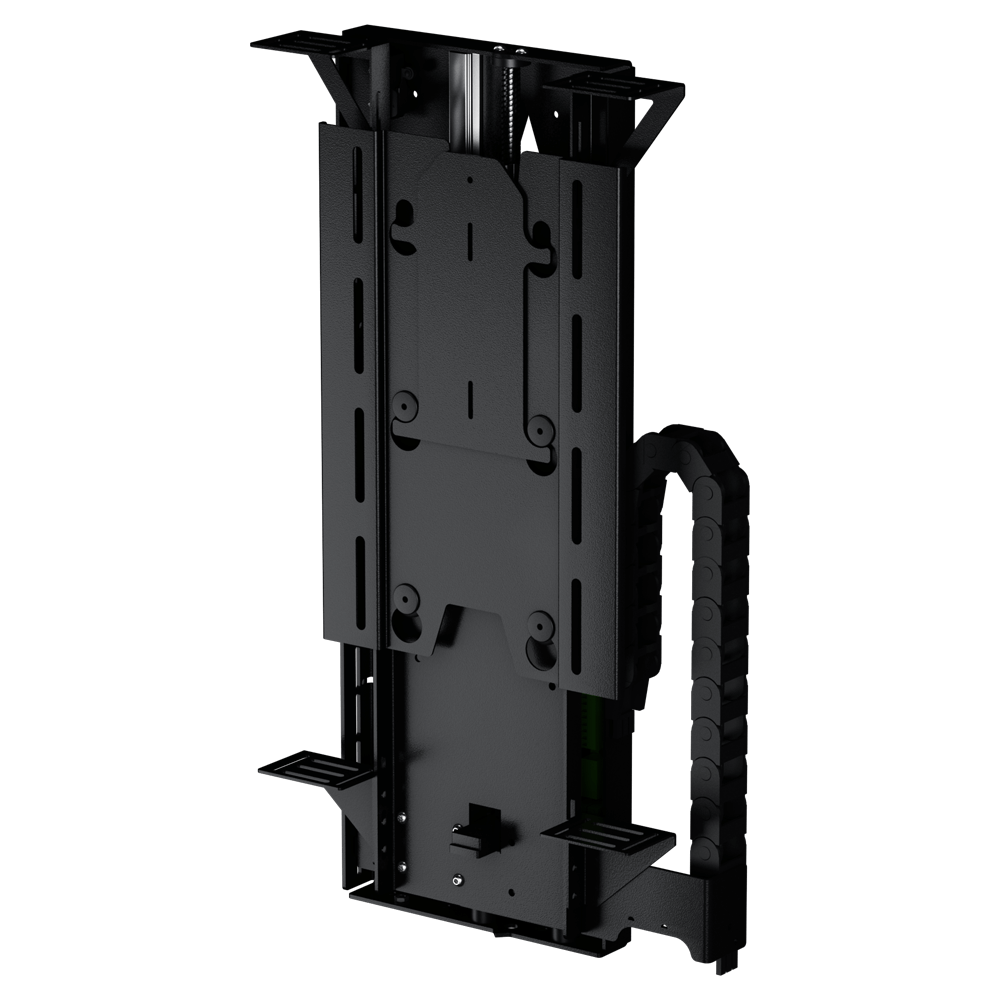

Designed and engineered in-house, our Lift System Light is the smallest mechanism in our lift system range and is ideal for concealing and raising smaller TVs in areas such as kitchen islands, home offices or commercial boardrooms. The option to choose between the BE Fixed Lid, PF Push Up Lid or EFA Electric Lid gives installers and end user the freedom to integrate the Light System Light into their environment any way they wish.
Installation and control of the Lift System Range is easy as all Lift System Range mechanisms are supplied ready to install, with no self-assembly required, and feature IR, Contact Closure and RS232 control options as standard.
Technical Specifications:
| PRODUCT CODE | LSL1 | LSL2 | LSL3 |
|---|---|---|---|
| CONTROL BOX DIMENSIONS | 150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 58DB | 58DB | 58DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| INTERNAL CABINET HEIGHT | 580MM (22.83") | 694MM (27.32") | 769MM (30.27") |
| LID TYPE | BOX ENCLOSURE & FIXED LID OPTIONS SUPPLIED | BOX ENCLOSURE & FIXED LID OPTIONS SUPPLIED | BOX ENCLOSURE & FIXED LID OPTIONS SUPPLIED |
| MAX LIFTING CAPACITY | 25KG (55LBS) | 25KG (55LBS) | 25KG (55LBS) |
| MAX LIFTING CAPACITY (MARINE) | 16KG (35LBS) | 16KG (35LBS) | 16KG (35LBS) |
| MAX SCREEN HEIGHT | 410MM (16.14") | 524MM (20.62") | 599MM (23.58") |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED |
| OUTPUT POWER SUPPLY | YES(12V) | YES(12V) | YES(12V) |
| POWER CONSUMPTION | 250 - 500W | 250 - 500W | 250 - 500W |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| SCREEN SIZES (APPROX) | 19-32" | 32-40" | 40" |
