Future Automation I-LSM INVERTED LIFT SYSTEM MEDIUM

$6,699

Description

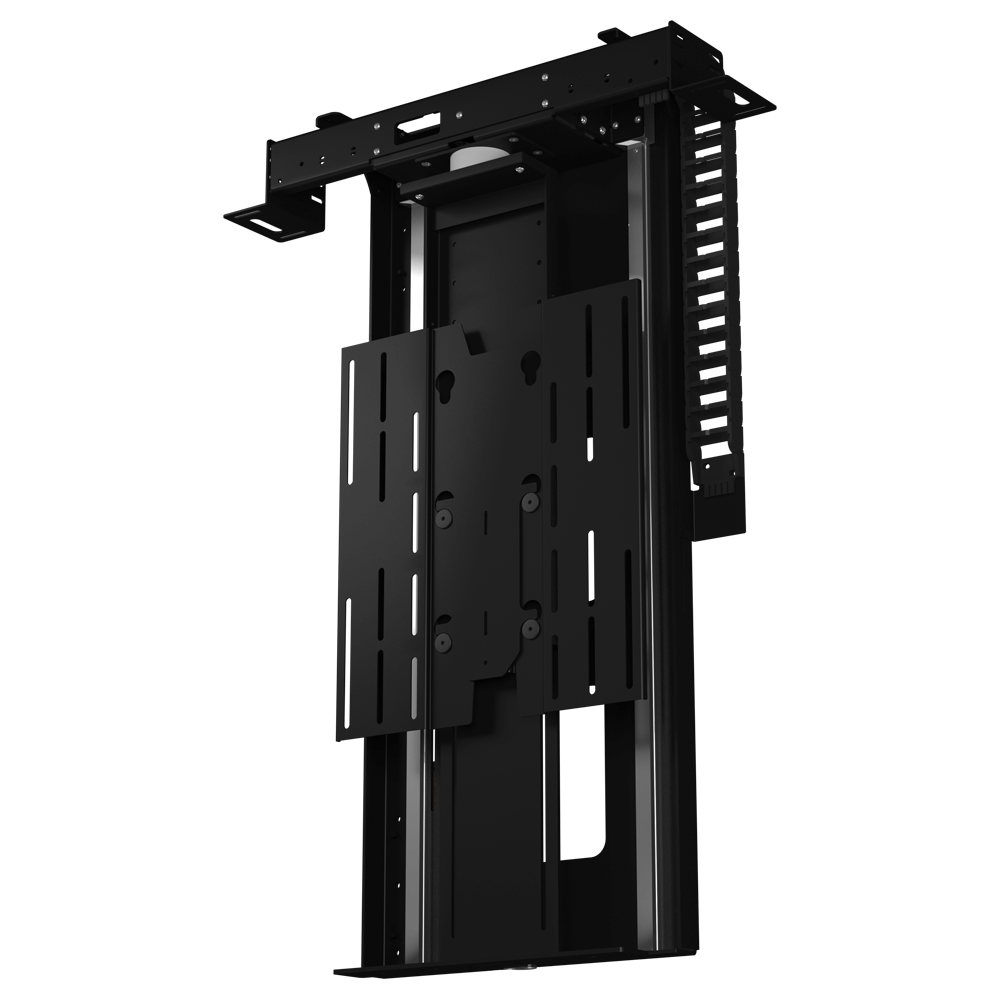

I-LSM

INVERTED TV LIFT 42"-65"

The I-LSM inverted TV lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing. Ideal for use when there is no space available in the room itself for a permanent screen position, the I-LSM allows a screen to be hidden in what would normally be unusable due to access, and motorised down into the room to a perfect viewing position when required.

Specifications:

PRODUCT CODE I-LSM4 I-LSM5 I-LSM6 I-LSM7
CONTROL BOX DIMENSIONS 150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
150 X 210 X 50MM
(5.9 X 8.26 X 1.96")
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)
DECIBEL RATING 52DB 52DB 52DB 52DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005 BLACK PAINT - RAL 9005
LID TYPE BOX ENCLOSURE BOX ENCLOSURE BOX ENCLOSURE BOX ENCLOSURE
MAX LIFTING CAPACITY 50KG (110LBS) 50KG (110LBS) 50KG (110LBS) 50KG (110LBS)
MAX LIFTING CAPACITY (MARINE) 30KG (66LBS) 30KG (66LBS) 30KG (66LBS) 30KG (66LBS)
MAX SCREEN HEIGHT 675MM (26.67") 735MM (28.93") 805MM (31.69") 915MM (36.02")
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED
OUTPUT POWER SUPPLY YES(12V) YES(12V) YES(12V) YES(12V)
POWER CONSUMPTION 250W - 500W 250W - 500W 250W - 500W 250W - 500W
POWER SUPPLY 240V OR 110V 240V OR 110V 240V OR 110V 240V OR 110V
SCREEN SIZES (APPROX) 42-50" 50-55" 55-60" 60-65"
