Future Automation I-LSL INVERTED LIFT SYSTEM LIGHT
$4,199
Description
I-LSL
INVERTED TV LIFT 29"-40"

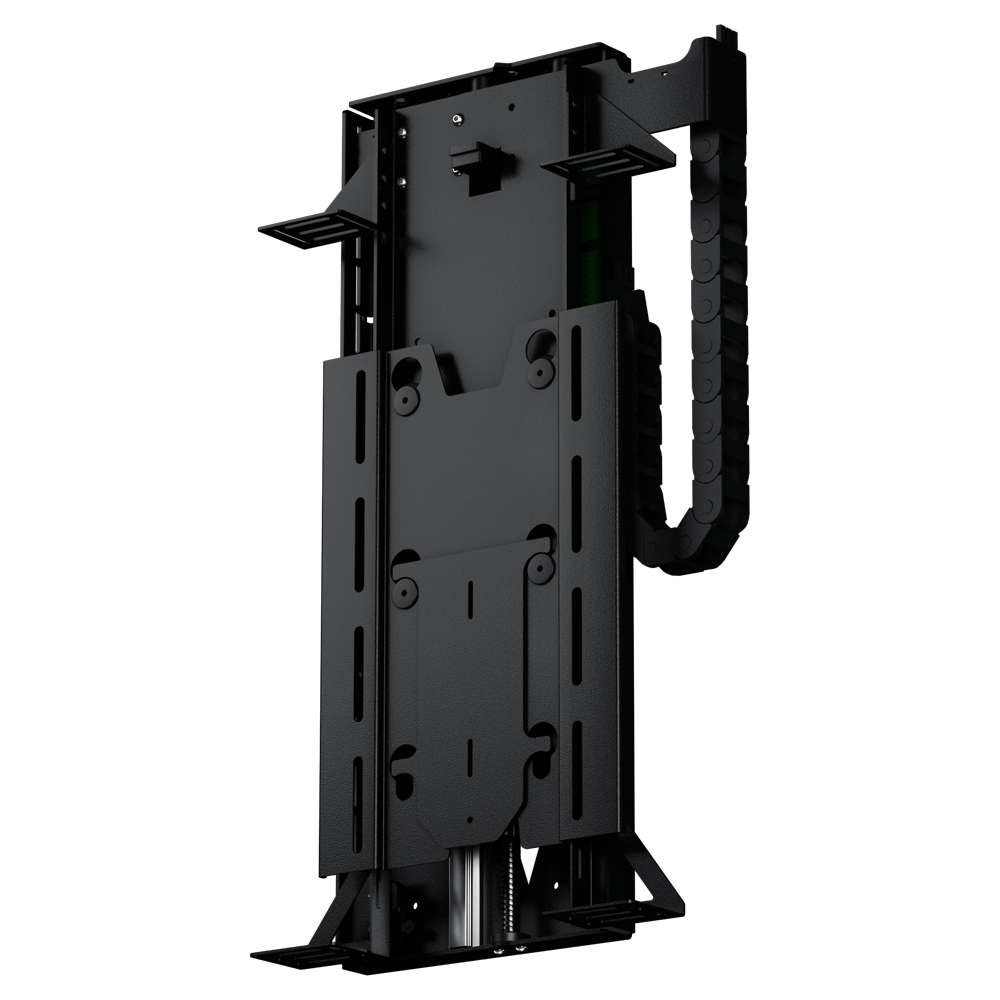

The I-LSL inverted TV lift is a vertical ceiling lift that allows a Flat Screen Television to be concealed in a ceiling void and dropped down for viewing. Ideal for use when there is no space available in the room itself for a permanent screen position, the I-LSL allows a screen to be hidden in what would normally be unusable due to access, and motorised down into the room to a perfect viewing position when required.
- Quiet and Smooth Action
- Full Cable Management
- Wide Range of Mounting Options
- 24V DC motor - suitable for direct DC supply
- Marine Suitable Robust Beam
Technical Specifications:
| PRODUCT CODE | I-LSL1 | I-LSL2 | I-LSL3 |
|---|---|---|---|
| CONTROL BOX DIMENSIONS | 150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
150 X 210 X 50MM (5.9 X 8.26 X 1.96") |
| CONTROL OPTIONS | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) | RS232 / CONTACT CLOSURE / IR (RF AVAILABLE) |
| DECIBEL RATING | 58DB | 58DB | 58DB |
| FINISH (CUSTOM AVAILABLE) | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 | BLACK PAINT - RAL 9005 |
| LID TYPES AVAILABLE | LSL-BE - BOX ENCLOSURE LSL-EFA - ELECTRIC FLAP |
LSL-BE - BOX ENCLOSURE LSL-EFA - ELECTRIC FLAP |
LSL-BE - BOX ENCLOSURE LSL-EFA - ELECTRIC FLAP |
| MAX LIFTING CAPACITY | 25KG (55LBS) | 25KG (55LBS) | 25KG (55LBS) |
| MAX LIFTING CAPACITY (MARINE) | 16KG (35LBS) | 16KG (35LBS) | 16KG (35LBS) |
| MAX SCREEN HEIGHT | 410MM (16.14") | 524MM (20.62") | 599MM (23.58") |
| MOVEMENT TYPE | MOTORISED | MOTORISED | MOTORISED |
| OUTPUT POWER SUPPLY | YES(12V) | YES(12V) | YES(12V) |
| POWER CONSUMPTION | 250 - 500W | 250 - 500W | 250 - 500W |
| POWER SUPPLY | 240V OR 110V | 240V OR 110V | 240V OR 110V |
| SCREEN SIZES (APPROX) | 19-32" | 32-40" | 40" |
