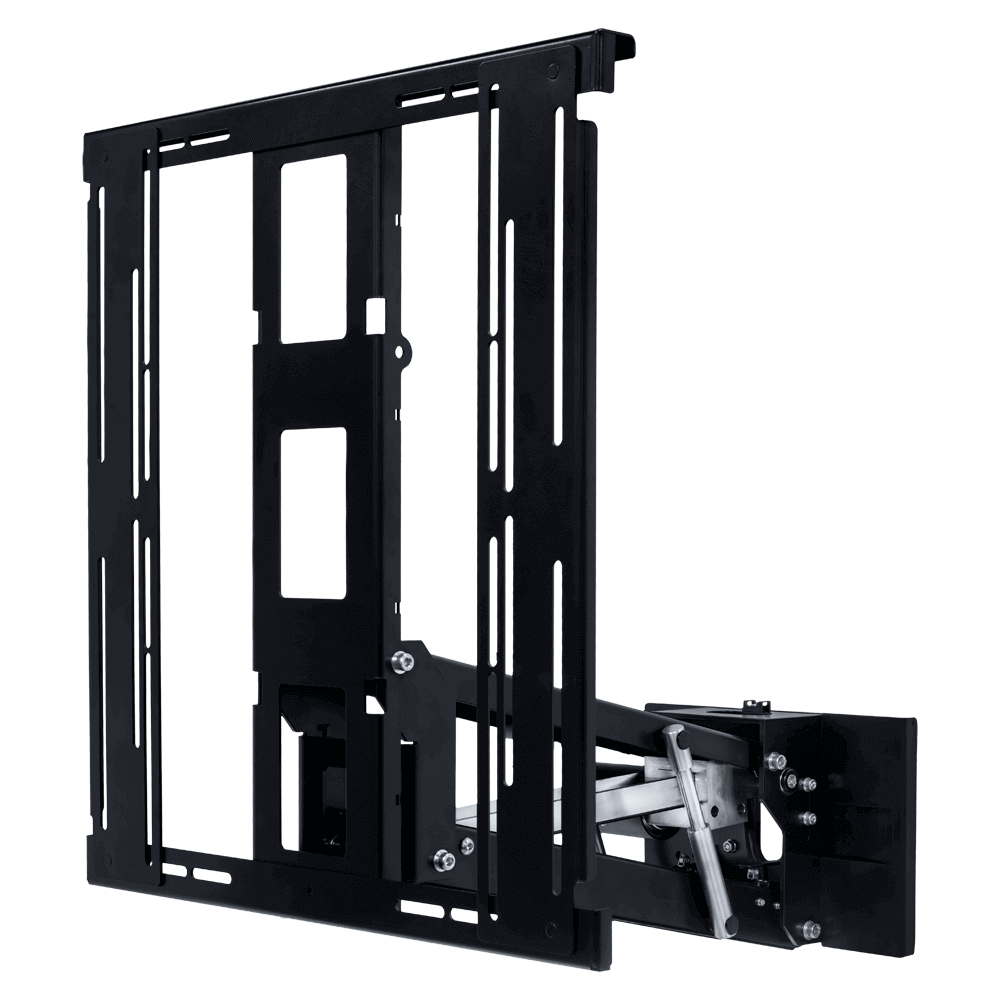

Future Automation EAL ELECTRIC ADVANCE & LIFT TV WALL MOUNT
Formed using the principles generated from our research and development on the original Electronic Advance and Drop mechanism. The inverted solution offers users the ability to place their display below, or within low-level cabinetry, creating more versatility for display placement within the home.
The EAL advances away from the wall, pivoting upwards to a more suitable viewing height. The screw threaded central column, combined with the soft open and close function offers a consistent and natural movement, giving the user confidence during operation.
- Unique Forward and Up (Out and Up) Motion
- Removable Magnetic Covers to Create a Neat Finish
- Full Cable Management
- Smooth quiet motion
|BOLT PATTERN (VESA)||VESA200 UP TO 600 X 500|
|CONTROL OPTIONS||RS232 / CONTACT CLOSURE / IR (RF AVAILABLE)|
|DEPTH FROM WALL||140MM (5.5")|
|FINISH (CUSTOM AVAILABLE)||BLACK PAINT - RAL 9005|
|MAX EXTENSION FROM WALL||557MM (21.9")|
|MAX LIFT FROM IN POSITION||537MM (21.1")|
|MAX WEIGHT||60KG (132LBS)|
|SCREEN SIZES (APPROX)||50"-80"|
