Future Automation CHRS TV CEILING HINGE & SWIVEL

$23,899

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

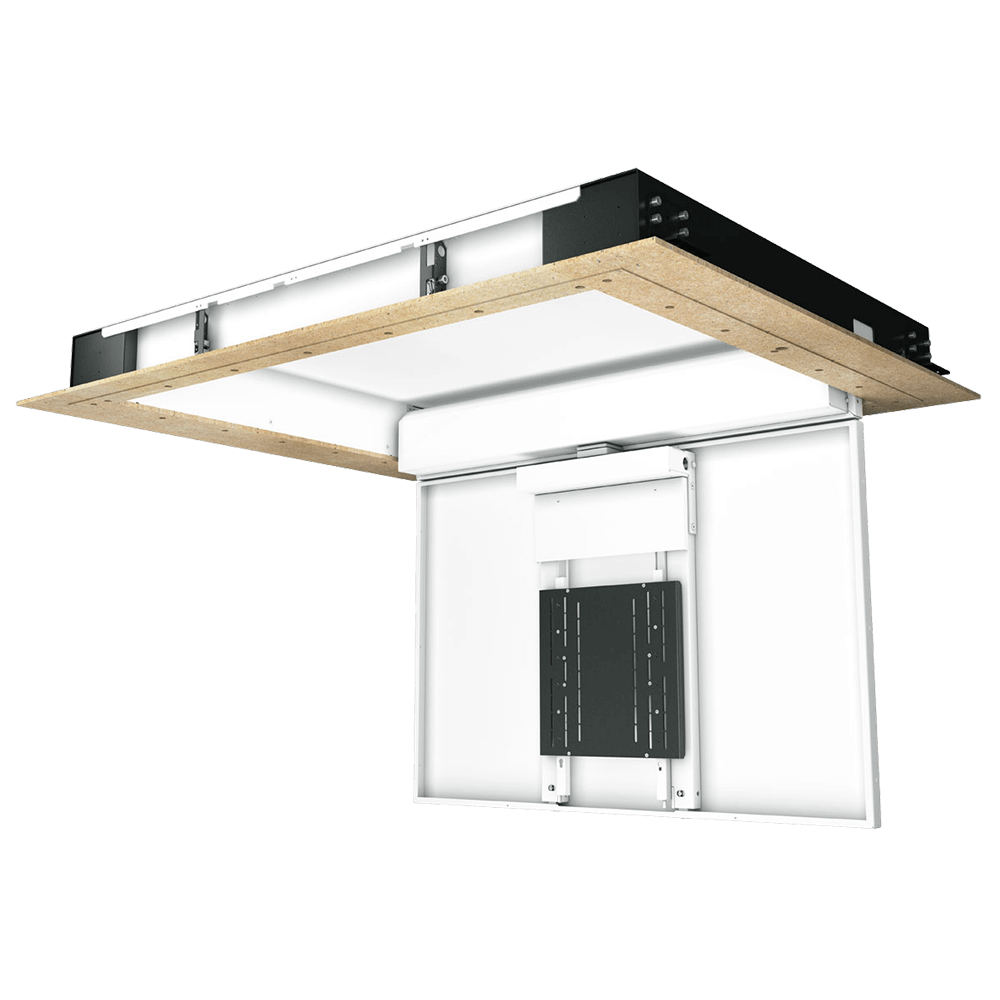

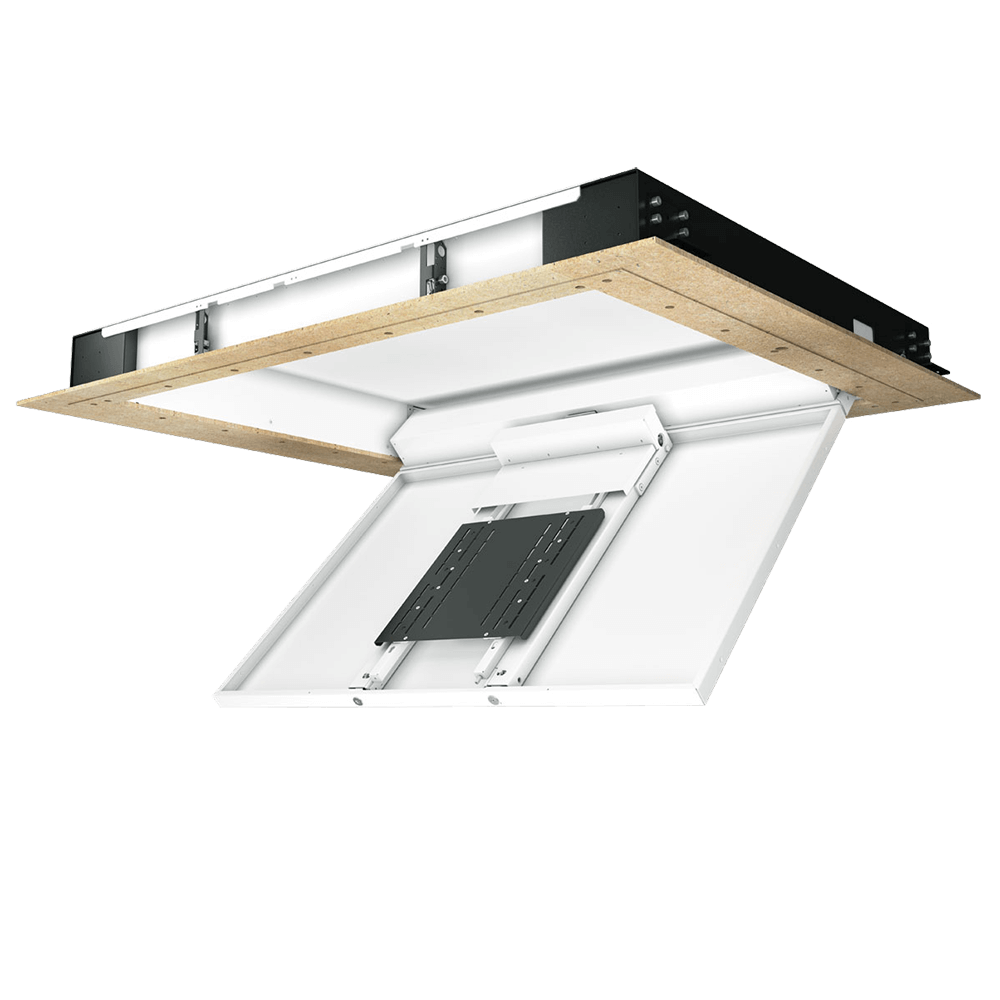

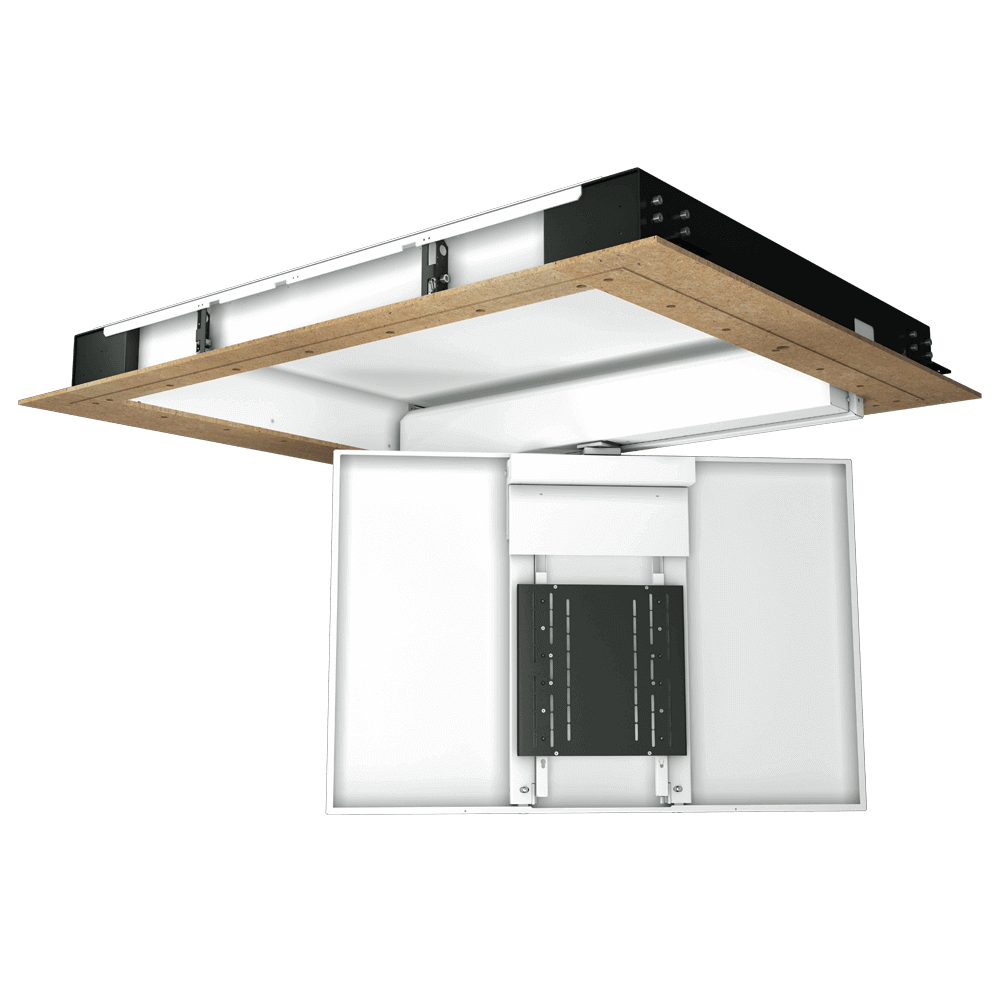

The CHR Range is our latest generation of TV Ceiling Hinge with Swivel mechanisms, suitable for hinging screens from 40” to 86” up to 90° out of a ceiling before swivelling them up to 180° left or right. Fully concealable within the ceiling cavity thanks to its Plaster In Edge, the CHR Range is also available without swivel function (CHR), with a standalone telescope function (CHRT) or a combined swivel and telescope (CHRST).

  • Self adjusting limit switches in the closed position means that product set up is now even quicker and easier than ever before

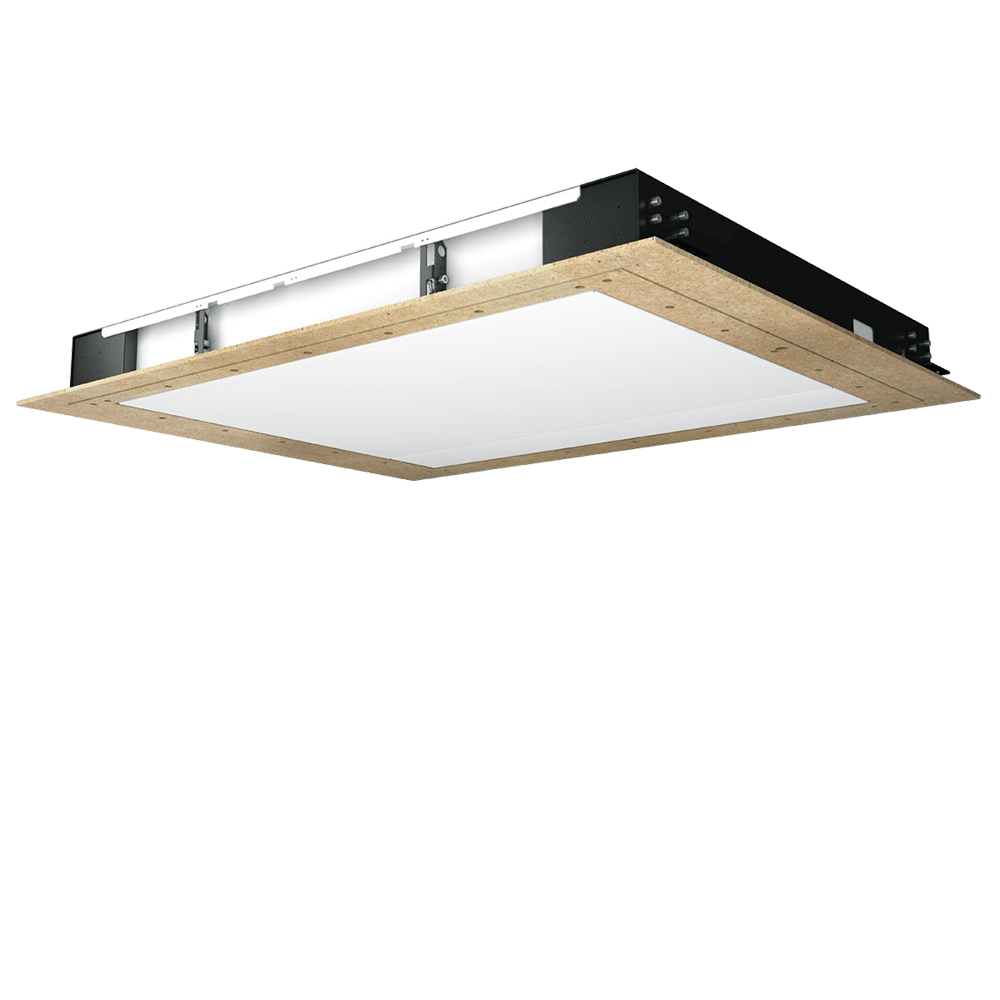

  • An MDF "Plaster In Edge" allows for a neat installation into the ceiling, eliminating any visible on ceiling flange around the mechanism, with only the smallest of shadow gaps around the lid when closed
  • The CHR units are delivered ready to install as one whole unit, reducing the chance of errors upon installation and streamlining the fitting procedure
  • Shipped with both mechanical and electrical recovery options, ensuring that in the event of a 3rd party control issue the system can be safely accessed.

ELEGANT

PRACTICALITY

"We value installer experience and have taken feedback on previous models to redesign the Ceiling Hinge range from the ground up. We designed the CHR to be quick and simple for the installer, while exceeding the customers expectations; providing a near silent solution that is both practical and elegant."

Sam Barnes Designer of the CHR Range

The CHR range ships with both mechanical and electrical recovery options, ensuring that in the event of a 3rd party control or power failure the system can safely be accessed with ease.

Control Board

Specifications:

PRODUCT CODE CHRS4 CHRS5 CHRS6 CHRS7 CHRS8
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR RS232 / CONTACT CLOSURE / IR RS232 / CONTACT CLOSURE / IR RS232 / CONTACT CLOSURE / IR RS232 / CONTACT CLOSURE / IR
FINISH (CUSTOM AVAILABLE) WHITE PAINT - RAL9910 WHITE PAINT - RAL9910 WHITE PAINT - RAL9910 WHITE PAINT - RAL9910 WHITE PAINT - RAL9910
HEIGHT WITHIN CEILING 210MM(8.3") 210MM(8.3") 210MM(8.3") 220MM (8.7") 270MM (10.6")
MAX SCREEN DIMENSIONS (HXWXD) 680 X 1130 X 100MM (26.8 X 44.5 X 3.9") 800 X 1330 X 100MM (31.5 X 52.4 X 3.9") 920 X 1530 X 100MM (36.2 X 60.2 X 3.9") 970 X 1730 X 100MM (38.1 X 68.1 X 3.9") 1090 X 1980 X 150MM (42.9 X 78 X 5.9")
MAX SCREEN WEIGHT 45KG (99LBS) 35KG (77LBS) 80KG (176LBS) 65KG (143LBS) 115KG (254LBS)
MECHANISM WEIGHT (APPROX) 130KG (286LBS) 150KG (331LBS) 170KG (375LBS) 205KG (452LBS) 255KG (562LBS)
MOVEMENT TYPE MOTORISED MOTORISED MOTORISED MOTORISED MOTORISED
