Future Automation AL 965

$4,399

Description

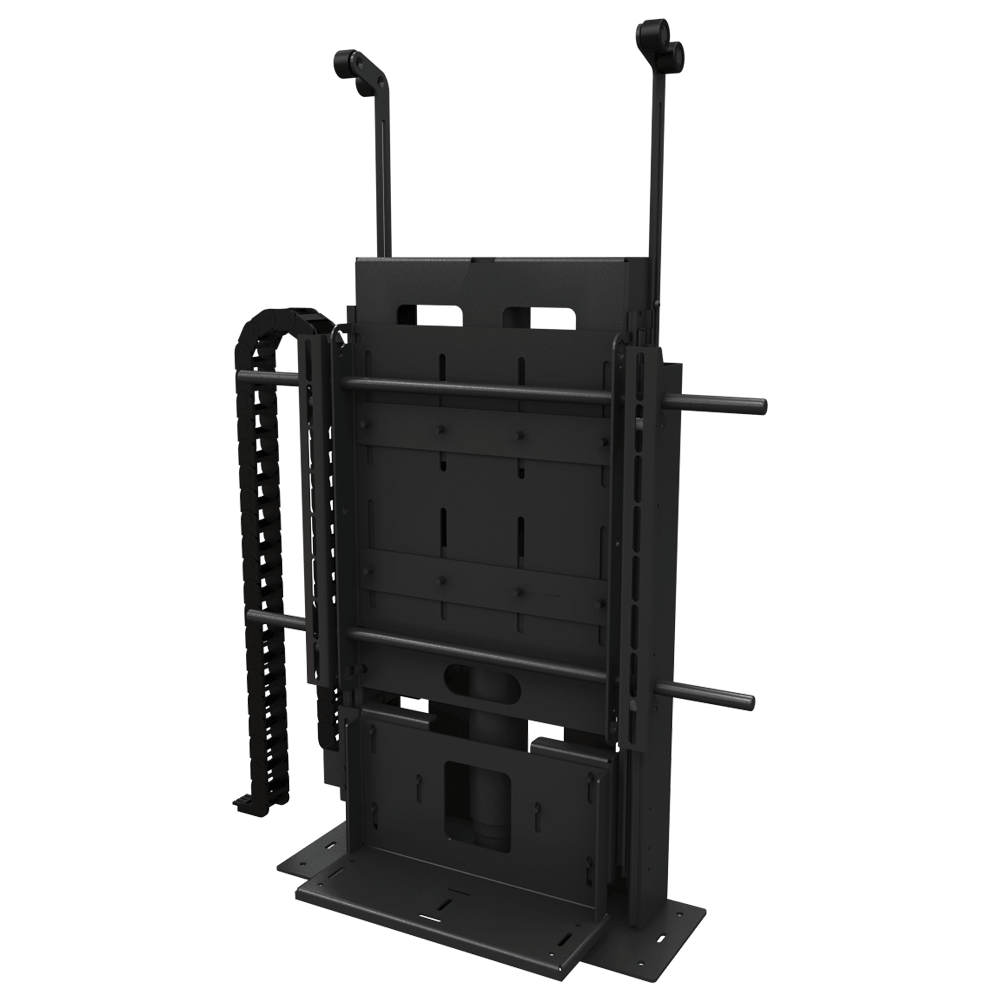

AL965

TELESCOPIC TV LIFT FOR 50"-65" SCREENS

The AL965 is the larger of our two TV Actuator Lift Mechanisms and shares the same great features as the smaller AL675. Suitable for screens from 50” to 65”, the near silent motor makes this lift ideal for both residential and commercial installations. The AL965 mechanism is shipped as a fully built unit, with no self-assembly required, making installation quick and simple. As with all Future Automation automated mechanisms, IR, Contact Closure, and RS232 control options as supplied standard.

  • Supplied as a fully built unit the AL965 ships ready to be integrated with no self-assembly required
  • In built cable management chain ensures cables are securely stowed for safe mechanism operation and a neat finish
  • Smooth and efficient movement, combined with a near silent motor, make this lift ideal for residential installation
  • A telescopic actuator motor enables height efficient cabinet design, requiring only 75mm (2.95”) of height above the screen
  • Push flap as standard, with optional fixed lid mounts supplied upon request to allow for a flexible install, as well as base joinery panel mounting brackets to enable a complete cabinet finish
  • Supplied with IR, Contact Closure, & RS232 control options as standard (RF version available)

COMPACT DESIGN

MAXIMUM EFFECT

The AL965 combines clever engineering with high quality manufacturing to provide consumers with an amazing product that performs flawlessly time after time. Popularity for this product has rocketed due to the unit shipped ready to install with no self-assembly required, helping to reduce installer time on site.

The AL965’s base panel joinery mounting bracket ensures there is no gap at the top of the cabinet under the TV when it is extended and in use, giving the product a seamless, safe and professional finish. The unit can be ordered with either the standard Push Up Lid or an option Fixed Lid system, enabling installers to offer their customers multiple cabinet styles.

The AL965’s functionality can further be enhanced by using it alongside other Future Automation products such as the USM (Universal Speaker Mount), or the SAC-U1 or SAC-U2 Smart Airflow Control units which can be connected to the lift cabinetry to aid the natural convection inside the space.

Specifications:

PRODUCT CODE AL965
CONTROL BOX DIMENSIONS 150 X 210 X 50MM (5.9 X 8.26 X 1.96")
CONTROL OPTIONS RS232 / CONTACT CLOSURE / IR (RF VERSION AVAILABLE)
DECIBEL RATING 50DB
FINISH (CUSTOM AVAILABLE) BLACK PAINT - RAL 9005
LID TYPES AVAILABLE STANDARD - PUSH FLAP
OPTIONAL - FIXED LID (SUPPLIED UPON REQUEST)
MAX SCREEN HEIGHT 930MM (36.51")
MAX WEIGHT 40KG (88LBS)
MOVEMENT TYPE MOTORISED
OUTPUT POWER SUPPLY YES(12V)
POWER CONSUMPTION MAX 200W
POWER CONSUMPTION (STANDBY) 3W
POWER SUPPLY 240V OR 110V
SCREEN SIZES (APPROX) 50-65" (APPROX)
