Amplifier
-
Power Amplifier Rated output & THD (8ohm) 100 W+100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
-
Power Amplifier Rated output & THD (4ohm) 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%)
-
Frequency Response 20 Hz to 20 kHz : ±1.5 dB
-
Connected loudspeaker Impedance 4 – 16 Ω/ohms
Audio Inputs / Outputs
-

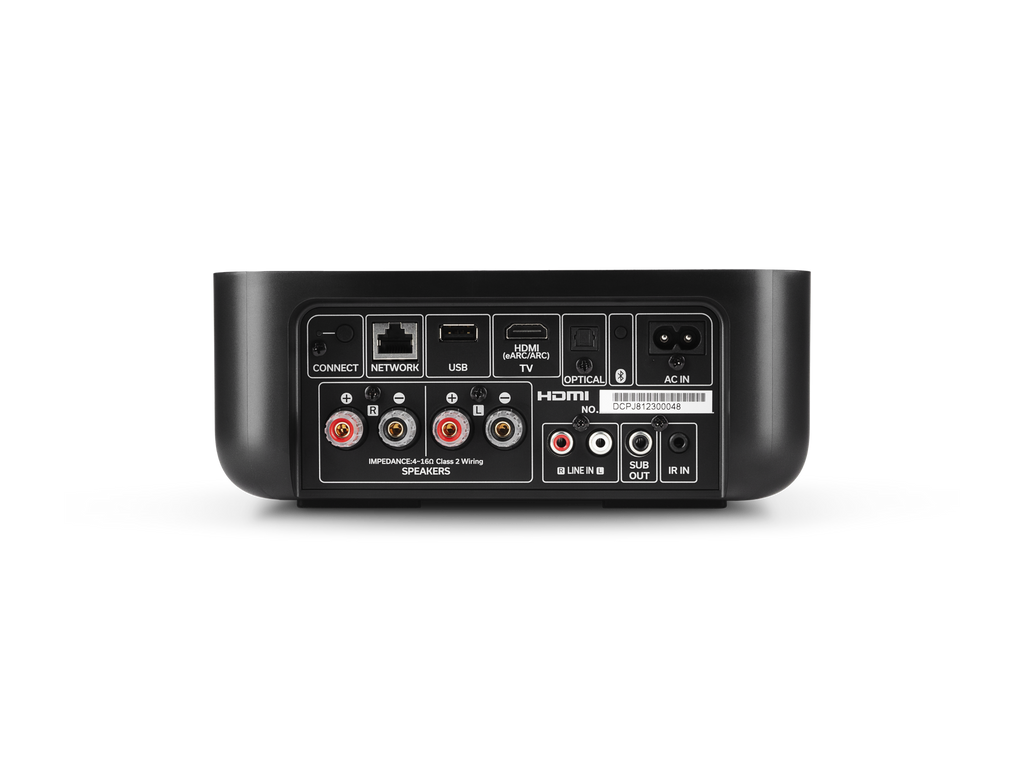

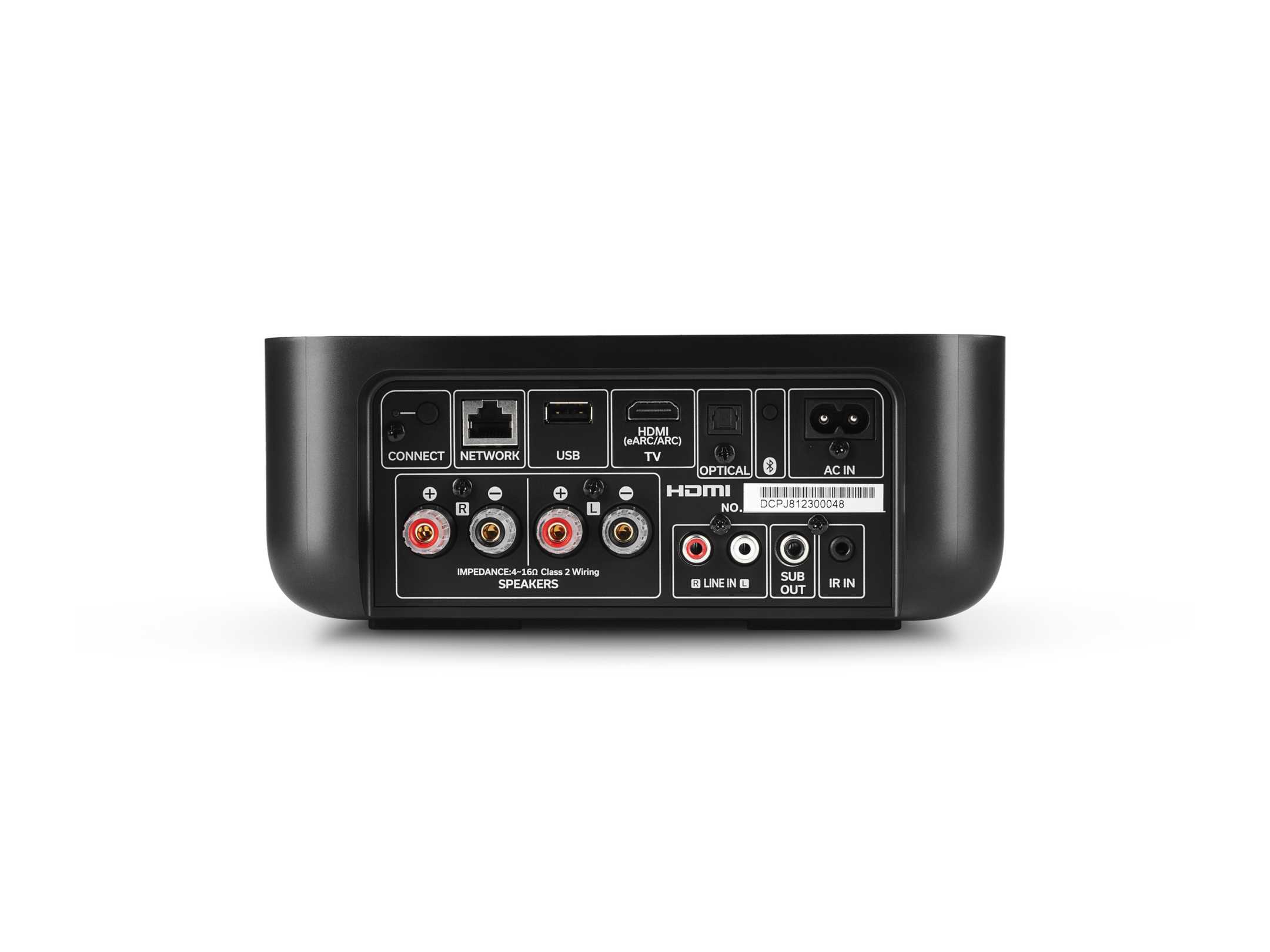

Loudspeaker Binding Posts 4-way binding posts
-
Digital Inputs HDMI (eARC), TOSLINK
-
Analog Inputs RCA L/R
-
Subwoofer Out RCA Mono
Audio Options
-
Channel Assignments Stereo (Default), Dual Mono
-
Volume Limit 80-100%
-
Balance -15dB to +15dB
-
Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
-
EQBass, Treble -5dB to +5dB
-
Sound Modes Stereo, Direct, Virtual, Denon Dialog Enhancer, Night Mode
-
TV Sound Grouping Yes
Audio Format Support
-
Decoding Dolby Digital +, Dolby Digital, LPCM, DSD
-
Stereo PCM / Multi-channel PCM Yes / Yes
-
Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps AAC & MP3: up to and including 320 kbps WAV, ALAC, FLAC: up to and including 24-bit/192kHz DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
-
Bluetooth Receive BT 4.2
-
AirPlay Airplay 2
-
Spotify Spotify Connect
Music Services and Sources
-
Music Services Supported (HEOS, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
-
Music stored on mobile deviceYes (iOS, Android or Kindle Fire)
-
NAS (Network Attached Storage)Network share, DLNA
-
USB Storage Device PlaybackYes (FAT32, NTFS formatted drives)
Networking & Control
-
Wired Connectivity Ethernet
-
Wireless Connectivity Dual band, 802.11 a/b/g/n/ac
-
IR Input 3.5mm
-
IR Learning Yes
-
Control System Compatibility via TCP/IP Crestron, Control4, AMX
-
HEOS App iOS, Android, Kindle Fire
General
-
Product Color Black
-
User Interface Volume up/down, Play / Pause, Quick Select 1/2/3, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
-
Dimensions (H x W x D) mm 86.2 x 217 x 234mm
-
Weight (kg) 2 KG
