Denon AVC-X3800H Multi Channel AV Receiver

$2,499
By Denon

Description


AVC-X3800H

8K video and 3D audio experience from a 9.4 channel receiver

With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

  • Enveloping 3D audio
    Feel like you're in the center of the action with enveloping 3D sound.
  • Expert ready
    You'll be amazed at the available configuration options to best fit your space.
  • Geared for 8K
    Enjoy amazing video quality from the latest 8K technology available.
  • Optimize for your room
    Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional upgrade available with future SW update).

High performance nine-channel amplifier

Discrete high-current amplifiers deliver up to 105W per channel (at 8 ohms, 20- 20kHz, THD 0.08%)—enough power to drive any speaker.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility

AVC-X3800H offers many setup options and flexibility to adjust your home theater to meet your needs. Supports 11.4 channel processing capability, Pre- Amplifier mode, and optional Dirac Live upgradability (with fee, coming soon in 2023).

Advanced 8K home theater

8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.


Specifications:

Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
DTS Neo:X, DTS Neural:X No, Yes
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Auro 3D Yes
360 Reality Audio / MPEG H Yes, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 11.4
Sound Enhancements
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Audyssey LFC Yes
Dirac Live Upgradability Yes
Compressed Audio Restorer Yes
Network
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Pandora Yes
SiriusXM* Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back, Front 6, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
DSD Audio Capability Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes
Multi-room CI
Multi-Room Zones 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
Zone HDMI Output from HDMI Source Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Out Yes, Yes
DC Trigger Output 1
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 1-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

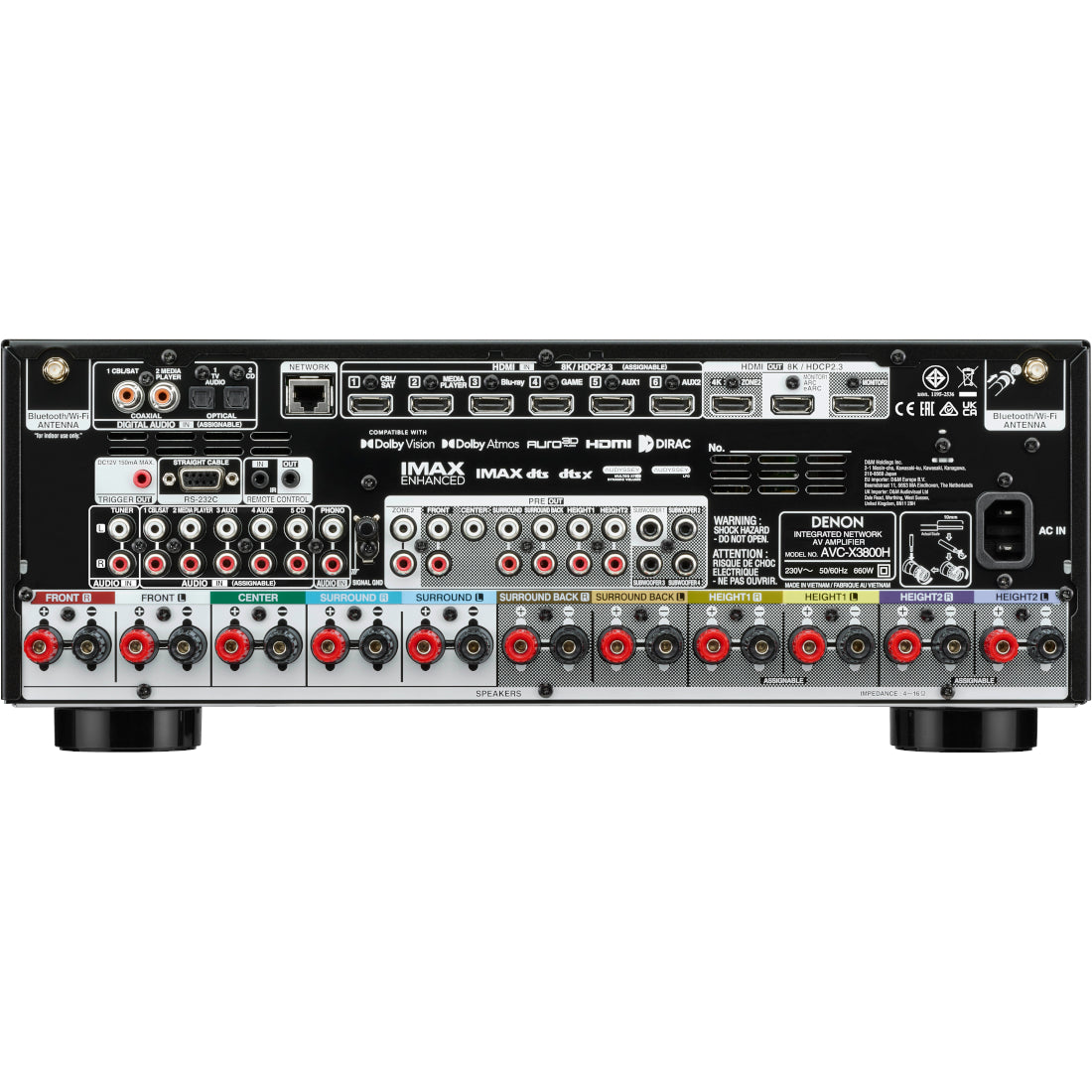

Inputs Outputs
HDMI In, Out 6, 3
Multi-Room Video Out: Video, HDMI No, Yes
Analog In, Out 5, No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2, 2
Multi-Room Out: Analog, Digital 1, No
Multichannel Preout Yes (11.4)
Subwoofer Out 4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of Speaker Terminals 11
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes
Specifications
Number of Power Amps 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 105W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 135W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 215W
General
System Remote Control RC-1253
Pre-Programmed, Learnable, LCD Display No, No, No
Power Consumption in W 660W
Power Consumption No-Sound (ECO On / Off) in W 60W/100W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in cm
43.4 x 38.9 x 16.8
Weight in kg 12.5
Weight in kg (Packaging) 15.1
