cocktailAudio X35 Integrated Amplifier, Network Streamer, CD Ripper & Music Player (EX-DEMO)
Description
cocktailAudio X35
All-In-One Music Player, CD Ripper, Music Server, Network Streamer, Digital Recorder
- Features of Hardware and Engineering
- Equipped with high-performance Dual Core ARM Cortex A9 processor running at 1.0Ghz
- ESS ES9018K2M Sabre³² Reference DAC built-in
- Combined with two(2) separate high-performance Class D Amplifiers for left and right with total 200 watts
- Isolated power source circuit design for digital and analogue parts
- Toroidal transformer to minimize idle noise
- High speed optical disk drive for quick CD ripping
- 7 inch TFT LCD(1024 x 600 pixels) screen for intuitive GUI
- DAB+/FM Tuner built-in
- Giga Fast Ethernet(10/100/1000Mbps) built-in
- Support up to 8TB(Tera Bytes) storage like 3.5"/2.5" hard disk or SSD
- Rugged chassis construction with 13mm thickness aluminum front and knobs with CNC cutting
- HDMI Out connector for using an external screen like TV as its GUI screen
- Features of functions and usage
- Support various file formats like DSD(64/128/256), DXD(24Bit/352.8Khz), PCM signal up to 32Bit/384Khz including 24Bit/192Khz WAV/FLAC and full range hi-res audio file formats
- Breathtaking sound quality delivered by ES9018K2M Sabre³² Reference DAC
- CD Ripping with professional CD metadata and album cover art provided by Gracenote
- Phono Input(Moving Magnet) for Turntable. Play LP directly and record it
- Recording function with hi-res sampling rate 192Khz
- High Connectivity
- Versatile network functions
- Major Music Streaming Services(TIDAL, Deezer, Qobuz) and Internet Radio available
- Customized Remote Control App, NOVATRON MusicX for iOS and Android
- Provides customized WebInterface(WebUI) for remote control and MusicDB management by PC
- Support 'Roon Ready', which is the famous Music Player for Music Lovers
What is the Cocktail Audio X35?
The X35 is the most innovative all-in-one HiFi system, which is featured by CD Ripper, Music Server, Network Streamer, Music Recorder, total 200 watts powerful amplifier built-in, and more. Just connect speakers to experience true high fidelity sound and great features
Just add speakers
Just add speakers, you will get a great hifi systems with versatile functions immediately. The X35 will deliver audiophile level sound quality to you.
Breathtaking Sound Quality delivered by qualified components and circuit design technology
Equipped with qualified components like ESS SABRE³² Reference DAC ES9018K2M, two(2) high performance digital amplifiers, TCXO oscillator and high quality Toroidal Transformer including isolated power source circuit design technology and in-house R&D know-how for circuit designing, the X35 will deliver wonderful sound experience to you
High Performance System Resources and custom-designed software
Based on Dual Core ARM Cortex A9 processor running at 1.0GHz and custom-designed software, the X35 got everything ready for delivering powerful operation performance, plenty of features and functions powered by advanced software developed in-house.
High performance two(2) Digital Amplifiers for Left and Right with dynamic total 200 watts and low harmonic distortion
The X35 has two(2) digital amplifiers built-in seperately for left and right to create powerful sound with extremely low harmonic distortion
Support various Hi-Res audio formats
DSD64, DSD128, DSD256, DXD(24Bit/352.8KHz), up to 32Bit/384KHz PCM signal including HD FLAC(24Bit/192KHz), HD WAV(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, Ogg Vorbis, PCM, M3U, PLS, etc
CD Ripping with Gracenote CD metadata and album cover art
Load all your CDs onto the Music Database of X35 in FLAC, ALAC, WAV or MP3 file format with CD metadata and album cover art from Gracenote
Music Database function
The X35 has a well-organized Music Database built-in, which offers very nice and convenient functions like SEARCH, Display by text or cover art, SORT, etc
Phono Input for your turntable
Just connect turntable to the X35 directly. You can enjoy your precious LP music with great sound, and record it to the X35 in digital file. Of course, the X30 offers very smart and convenient auto cutting function to edit the recorded music with easy
Recording with 192Khz hi-res sampling rate
The X35 offers a recording function for internet radio, DAB+/FM Radio, Analog In, Phono In, AUX In and Digital In. You can make your own digital music collection with high quality sound
Auto/Manual Cutting for the recorded files
Very smart auto/manual cutting function to edit the recorded files is available at the X35. You can easily edit the recorded files and make a nice music collection
Versatile Networking and Remote Control with a Customized App
Connect the X35 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customized remote control app, NOVATRON MusicX or WebInterface
Control remotely by mobile devices with Customized Remote Control App, MusicX
Control remotely by PC with WebInterface
You can control the X35 by your PC thanks to its WebInterface function
Support various network protocols like UPnP Server/Client/Renderer, Samba Server/Client
You can stream songs to and from other compatible devices in the same network
AirPlay and Spotify Connect
You can play songs from iOS devices and musics from Spotify on the X35 wirelessly
Major Music Streaming Services integrated
You can access tens of thousands of internet radio stations and online music services like TIDAL, Deezer and Qobuz

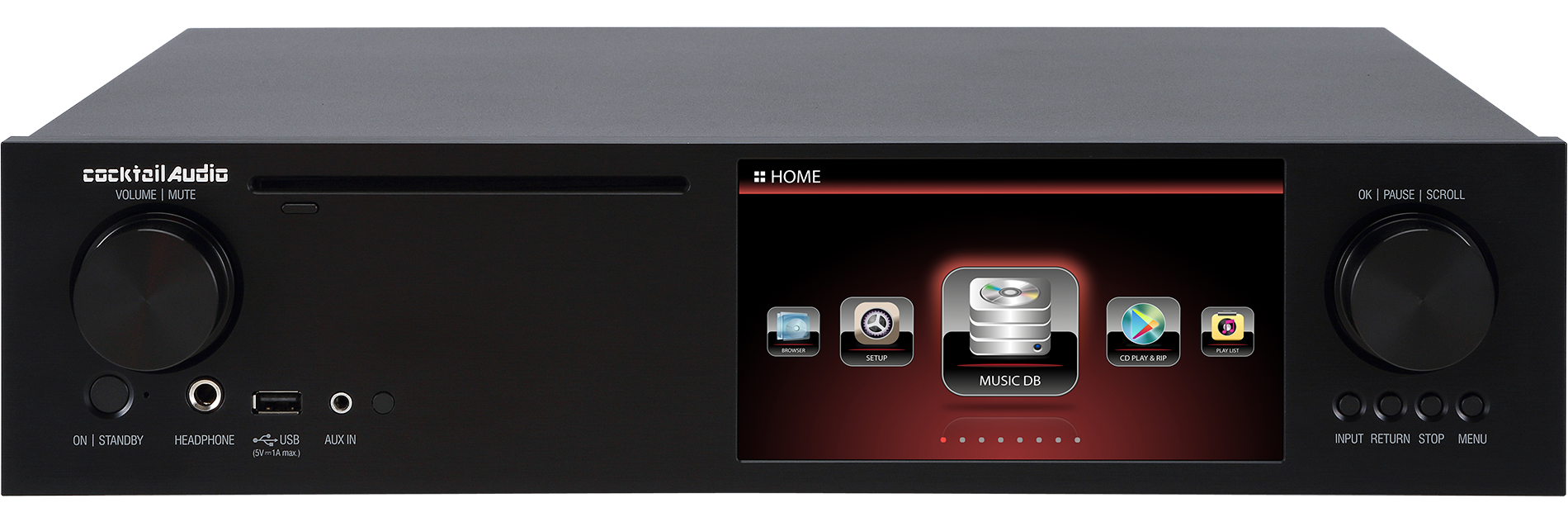

7 inch TFT LCD Screen for Intuitive GUI and HDMI Out for external screen
7 inch big screen will let you control the X35 easily with intuitive GUI, and connect it to your TV or external screen to view bigger GUI or a slideshow of photos while listening to your music collection
DAB+/FM Radio Tuner built-in
Enjoy high quality digital radio via DAB+ Tuner, and record any song or broadcast with high quality sound
High Connectivity

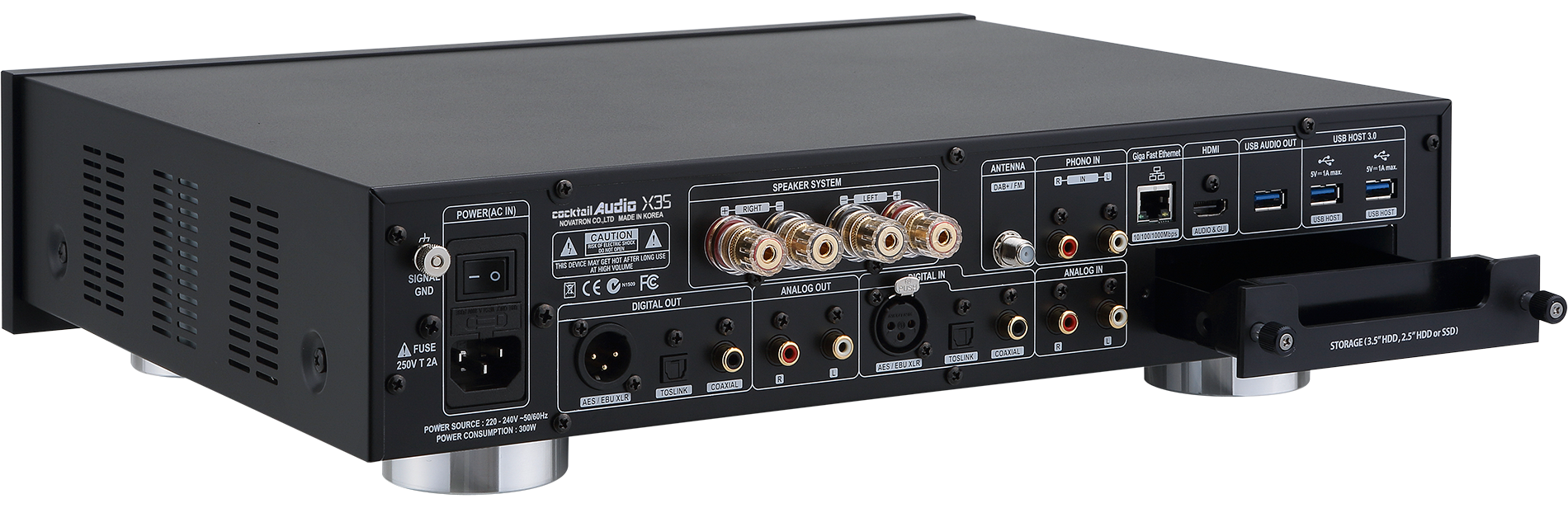

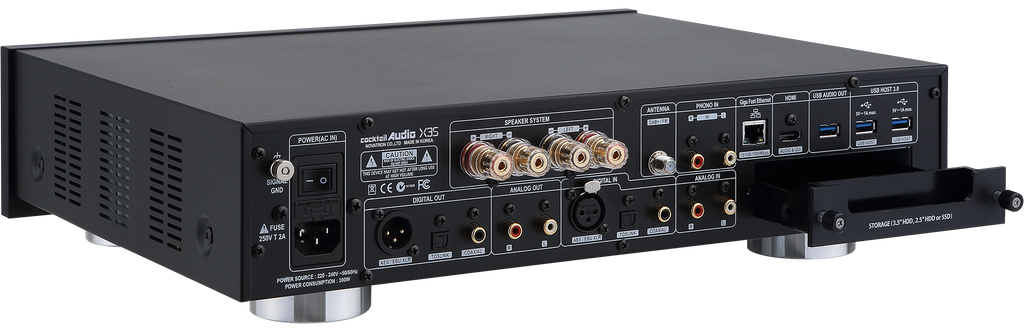

The X35 offers 2xUSB3.0 host, 1xUSB2.0 host, GigaFast Ethernet LAN and HDMI Out for external screen
Multiple inputs and outputs for various external devices
• USB Audio Class 2.0 Output
• Digital Out(Coaxial, Toslink, AES/EBU, HDMI)
• Digital In
• Analog Out/Input
• Phono Input
• And more. . . . .
Rugged and durable casing
The X35 front panel is based on 13mm thickness aluminum with CNC cutting and total metal chassis.
The die-cast aluminum feet provide rigidity along with additional resistance from external vibration.
Storage for Music Server
3.5"/2.5" SATA hard disk and Solid State Drive(SSD) is accepted to the X35, which supports up to 8TB capacity. You can install a storage easily thanks to a customized storage drive bay(drawer)
| Model name | cocktailAudio X35 | |||
|---|---|---|---|---|
| Host CPU & Memory | CPU: Dual Core ARM Cortex A9 running at 1.0GHz | |||
| Main Memory: DDR-1066 1GByte | ||||
| EMMC 8GByte | ||||
| CD Player | Type | Front Loading | ||
| Supported media | CD, CD-DA, CD-R, CD-RW, DVD-R/RW | |||
| Display | 7.0" TFT LCD(1,024 x 600pixels)(* able to connect to ext. screen via HDMI out) | |||
| Interface | Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices, Web Interface |
|||
| Amplifier (Speaker Out) | Rated output : 100W + 100W @ 1Khz, 8ohm, 0.1% THD(Total 200 watts) (Dual Digital Amplifiers built-in separately for left and right) |
|||
| Analog Out (Sabre³² ES9018K2M DAC) |
PRE-OUT (L&R RCA) | L&R RCA, Dynamic Range: 127dB(Max 2Vrms, Stereo) THD+N: 0.0004% | ||
| Headphone Out | 6.35mm Jack, 100mW+100mW@1Khz, 600ohm, 0.1% THD | |||
| Digital out (Variable/Fixed) | COAXIAL x 1 | S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz | ||
| TOSLINK x 1 | S/PDIF, Sample rate: up to 24bit/192KHz | |||
| AES/EBU/XRL x 1 | 110ohm, Sample rate: up to 24bit/192KHz | |||
| USB Audio x 1 | USB Audio Class 2.0 Output | |||
| HDMI Out x 1 | HDMI Audio Out(*Shared with HDMI Out for external screen) | |||
| Analog Input (Sensitivity) | LINE In x 1 | L&R RCA at the rear, default 2Vrms(controllable 1~4Vrms) | ||
| Aux In x 1 | 3.5mm Phone Jack on the front, default 1Vrms(controllable 0.5~2Vrms) | |||
| Phono In x 1 | MM Input, default 7.5mVrms(controllable 3.75~15mVrms) | |||
| Digital Input | COAXIAL x 1 | Sample Rate: up to 24bit/192Khz | ||
| TOSLINK x 1 | Sample Rate: up to 24bit/192Khz | |||
| AES/EBU/XLR x 1 | Sample Rate: up to 24bit/192Khz | |||
| Supported Storage | Hard Disk | 2.5" SATA, up to 2TB | * Bigger capacity of storage will be supported by firmware update when available in the market | |
| 3.5" SATA, up to 8TB | ||||
| SSD | 2.5" SATA, up to 2TB | |||
| TUNER | DAB+/FM Radio | Selectable for DAB/DAB+ or FM Radio | ||
| Connectivity | USB Host | USB3.0(5V/1A) x 3 at rear (One is shared for USB Audio Out) | ||
| USB2.0(5V/1A) x 1 at front | ||||
| Network | Wired | Giga Fast Ethernet(10/100/1000Mbs) | ||
| Wireless(Option) | ※ 802.11b/g/n WiFi USB dongle(Option) | |||
| HDMI Out | Connect to external screen(* Shared with HDMI Audio Out) | |||
| Codec & Format supported | DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc | |||
| Network Protocols Supported | UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc | |||
| Internet Services | Internet Radio | Airable | ||
| Online Music Services | TIDAL, Deezer, Qobuz, Spotify Connect | |||
| Supported OSD Languages | English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Korean,(To be added by request) | |||
| Isolated Power Management | Toroidal Transformer | For audio signal management | ||
| 500W internal SMPS | For digital CPU management | |||
| Power Source | 220V area | AC 220V - 240V, 50/60Hz | ||
| 110V area | AC 110V - 120V, 50/60Hz | |||
| Mechanical | Material | Front | 13mm thickness aluminum by CNC cutting | |
| Knob | Aluminum by CNC cutting | |||
| Body | Metal | |||
| Dimension | Without foot | 441mm(W) x 330mm(D) x 100mm(H) | ||
| With foot | 441mm(W) x 330mm(D) x 111mm(H) | |||
| Certificate | CE, FCC, EMI, etc | |||
