Chord Huei phono stage

$2,200

Brand Chord Electronics

Entirely conceived, engineered and manufactured in Great Britain, Huei has been carefully designed to provide turntables with the same high standards of amplification that Chord Electronics has become known for over the past 30 years.

Benefitting from both Moving Magnet and Moving Coil functionality, Huei offers compatibility with a huge range of cartridges thanks to comprehensive gain and impedance-matching options; Huei’s high- and low-gain switching settings are easily accessible via front-panel controls, introducing welcome flexibility.

Huei’s advanced design offers (for the first time in a Chord Electronics phono preamp) ultra-low-noise microprocessor control of its main features, including a convenient memory function. With multiple options for impedance-matching, seven-stage switchable gain and a switchable rumble filter, Huei’s design offers comprehensive compatibility.

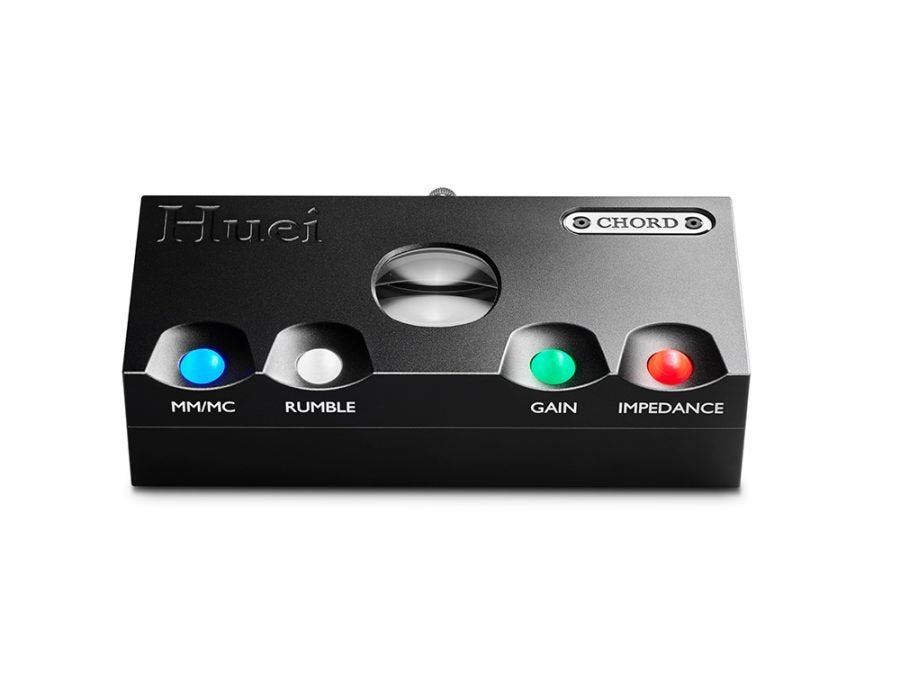

Precision-machined from solid aircraft-grade aluminium billet, Huei has a similar form factor to the company’s Qutest DAC and also offers a top-mounted viewing window into the illuminated electronics within. The design also shares the same polychromatic control spheres the company has become known for in its digital products. The illuminated front-panel spheres offer direct access to Huei’s gain and impedance settings, selection for MM/MC cartridges and access to the on-board rumble filter.

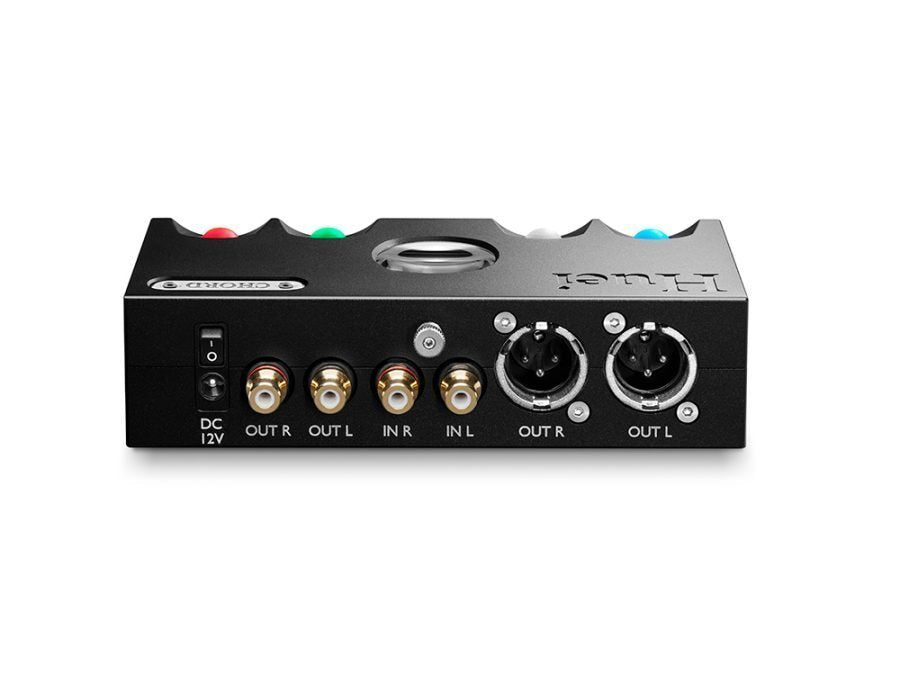

Huei is a stylish, practical and high-performance solution for integrating turntables into Chord Electronics’ (and other) systems and features both unbalanced (RCA) and balanced outputs (XLR) with RCA inputs. A high-quality 12V external power supply is also supplied.

Input Impedance:

Moving magnet: 47,000Ω

Moving coil: 100Ω – 3,700Ω, 12-step user selectable

Gain Range:

Moving magnet: 21dB – 42dB, 8-step user selectable

Moving coil: 49dB – 70dB, 8-step user selectable

Input Noise:

1.1nV/Hz

Max Output Voltage RMS:

20v RMS

Equalisation Response:

RIAA Curve

Equalisation Accuracy:

+/- 0.1dB

Frequency Response:

RIAA Curve = 12Hz to 25kHz

Rumble Filter:

Rausch Slope -24dB per octave below 50Hz

Output Impedance:

520Ω (resistive)

Input Power Supply:

12v – 100v to 240v 50/60Hz PSU

Dimensions:

41mm (H) x 160mm (W), 72mm (D)

Weight:

657g
