Bowers & Wilkins M1 Surround Speaker

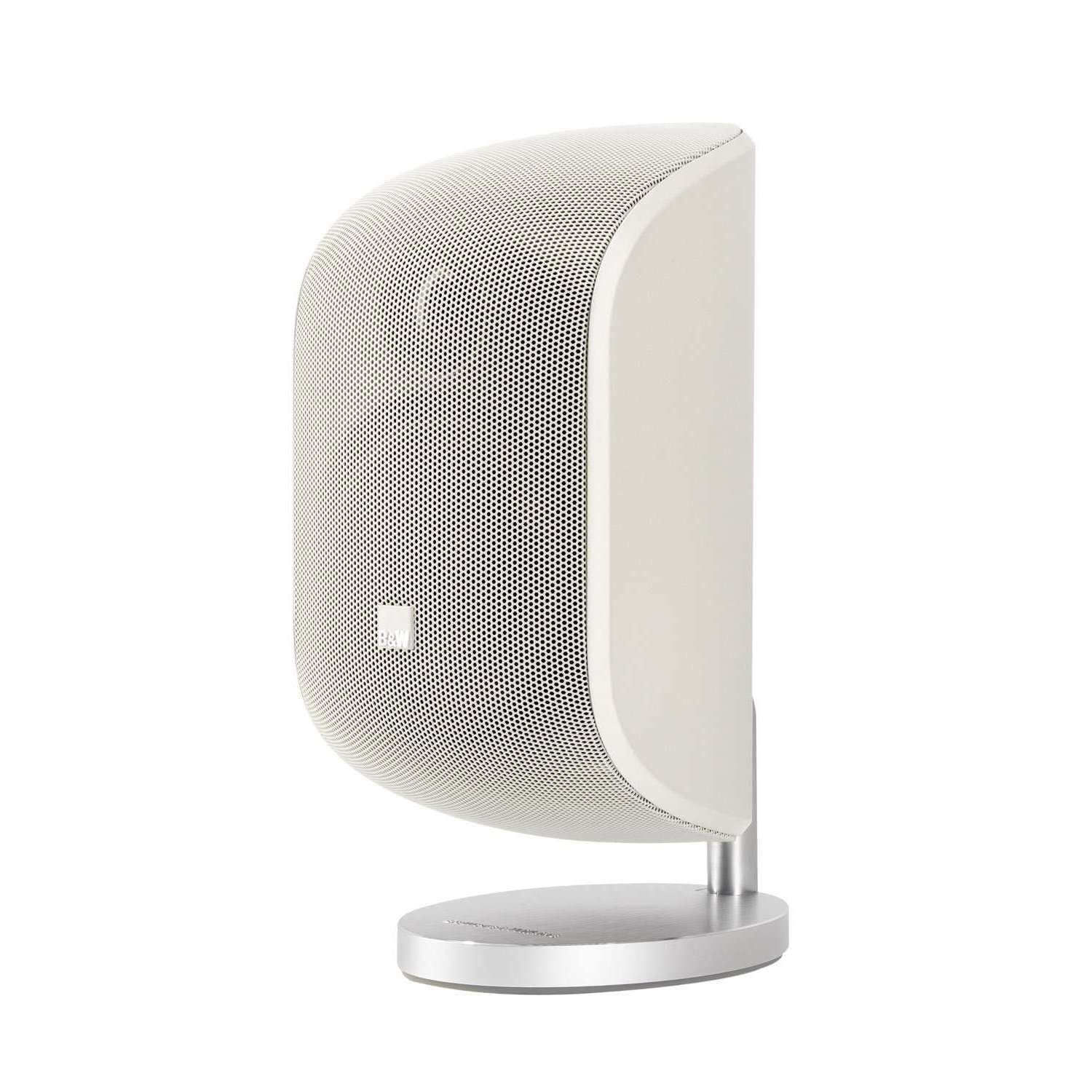

Forming the basis of a completely revised Mini Theatre concept, the new M-1 combines a cleaner aesthetic with dramatically improved performance. Combine it with either the ASW608 or the new PV1D subwoofer to create a home theatre experience with superb integration and impressive power for such a discreet system. Plus, its more extended bass response allows M-1 to be used on its own for two-channel applications. Mount the speaker as shown on a table or shelf. Alternatively, a bracket is included for wall mounting and a floor stand is available as an optional extra.

Technical features

Nautilus™ tube loaded tweeter with aluminium dome, Woven glass fibre cone bass / midrange


2-way vented-box system

Drive units

1x 25mm (1in) aluminium dome high-frequency, 1x 100mm (4in) woven glass fibre cone bass / midrange

Frequency range

-6dB at 55Hz and 50kHz

Frequency response

64Hz - 23kHz ±3dB on reference axis


Within 2dB of reference response,Horizontal: over 60º arc, Vertical: over 10º arc


85dB spl (2.83V, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m), <1% 120Hz - 30kHz

Nominal impedance

8Ω (minimum 4.0Ω)

Crossover frequency


Recommended amplifier power

20W - 100W into 8Ω on unclipped programme

Max. recommended cable impedance



Height: 248mm (9.8in), Width: 114mm (4.5in), Depth: 162mm (6.4in), Mounted on table stand

Net weight

2.3kg (5lb)


Cabinet: Matte Black or Matte White, Grille: Matte Black or Matte White perforated steel to match
