Bowers & Wilkins DB3D Subwoofer



DB Series Subwoofers

Designed to be the best in class. The DB Series sub-woofers aim to be the best-sounding products in their class. Each model combines Aerofoil drive units, powerful amplification, a balanced configuration and a digital pre-amplifier with Dynamic EQ to deliver exceptional precision and authority with both movies and music.

Aerofoil cones for greater precision. All three DB Series sub-woofers use Aerofoil cones identical to those found in the latest 800 Series Diamond loudspeakers.These light, ultra-stiff drive units resist bending and flexing far longer than conventional cones, delivering controlled bass with outstanding precision.

Pristine bass, from a compact package.

When you demand faultless bass but floor space is at a premium, there’s the DB3D. This high-performance subwoofer is capable of delivering space-defying bottom end from a highly compact, incredibly rigid cabinet.

Its dual balanced 8-inch Aerofoil drivers are effortlessly powered by a 1000 Watt Class D amplifier to deliver punchy, deep bass

Balanced design gives cleaner sound. As with the PV1 and the original DB1 the new DB Series uses two bass cones arranged in an opposed configuration. This balanced arrangement greatly reduces cabinet vibration and ensures a cleaner, more precise sound, so you’ll get great bass, free of the colouration that can plague powerful sub-woofers.

Unrivalled ease of use. The all-new digital pre-amplifier and App-based set-up means the DB Series sub-woofers are simple to configure and use.No separate microphone kit is required and the App is availablefor both iOS and Android devices. Dynamic EQ and Room EQensure optimal performance in every circumstance.

Suitable for 700 S2 as well as 800 Series Diamond. Although they match the new 800 Series Diamond models,all three DB Series sub-woofers can also be used with 700 Series loudspeakers. The three finishes on the subwoofers will match to 700 and 800 Series loudspeakers too.

Dynamic EQ
  • All three DB Series subwoofers use a new digital pre-amplifier that features Dynamic EQ with a custom-written algorithm. It is this digital preamplifier that gives the new Series its name: DBnow stands for Digital Bass, with the D suffix at the end of themodel name referring to Dual drive units.
  • The Dynamic EQ creates the ideal response in phase and magnitude of a system behaving flat to 10Hz.
  • The system dynamically adjusts itself to make the best use of its available headroom to deliver optimal results.
  • This is coupled to user-definable DSP presets that
Massive power
  • All three DB Series subwoofers use all-new Class D amplification from Hypex.
  • DB3D uses the Hypex module, this gives 1000W.
Balanced drive unit force clamp
  • All three subwoofers adopt a new central clamping mechanism that grips and rigidly secures each motor system in place.
  • The balanced drive unit mechanism works because the forces that the drive units are generating are equal and in opposite directions. The stiff aluminium structure creates a more ideal mechanical coupling between the two motors and as a result, the balanced drive unit mechanism is even more effective.
  • The aluminium mechanism is rigidly mounted into the cabinet of the subwoofer, which further stiffens the cabinet, rather like the Matrix assembly inside an 800 Series Diamond loudspeaker. The result is a cleaner, tighter sound.
DB Series subwoofers use the Aerofoil cone
  • The 8in Aerofoil cones found in the DB3D use a new sandwich-type dustcap similar in concept to the construction of the main drive unit itself.
  • This increases the frequency of the first break-up.
  • This is coupled to a new voice coil, new spider and new surround.
Decoupling feet
  • DB Series subwoofers introduce new anti-vibration mounts that decouple the mechanical vibration of the subwoofer from the room. These mounts fit into the existing screw-in foot fixings and as an alternative, conventional speaker spikes are also supplied.
  • The existing feet decouple over a certain frequency, but this has been found to be in the middle of the operating band of the subwoofer.
  • The new anti-vibration mounts reduce the decoupling frequency to below the output of the subwoofer (down to 5Hz). The result is a cleaner sound with reduced distortion. As a secondary benefit it reduces transmission of structural-born vibration into neighbouring rooms.
  • The DB Series subwoofers feature an all-new set-up and control App linked to an automatic EQ feature. This is available for both iOS and Android devices.
  • The old OLED display screen, control interface and rotating amplifier plinth are dispensed with, as is the microphone calibration kit. Instead, the set-up App uses your phone’s microphone to capture measurements for the subwoofer’s EQ.
  • Connection is made via BT-LE. The App includes Guides on positioning, set-up and troubleshooting and can be used to provide control over both subwoofer output and audio preset modes. We recommend using the EQ even if your AVR also includes an automatic calibration system such as Audyssey.
  • For stereo use, preset filters are provided for partnering the subwoofer with matching Bowers & Wilkins loudspeakers. These and other settings such as level and phase can be user-definable too.
Technical Specifications
  • 1000w Class D Hypex amplifier
  • 2 x 200mm (8in) Aerofoil-cone drive units in a balanced configuration
  • Digital preamplifier with Dynamic EQ,
  • App-based set-up and BT-LE control Drive units
  • Frequency range (-6dB) 8.5Hz - 500Hz
  • Frequency Response -3dB (centred on level at 100Hz) 10Hz - 350Hz
  • Max power output 1000W
  • Inputs 2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 – 9-pin D connector
  • Dimensions Height: 360mm  Width: 320mm  Depth: 300mm
  • Net weight 25kg

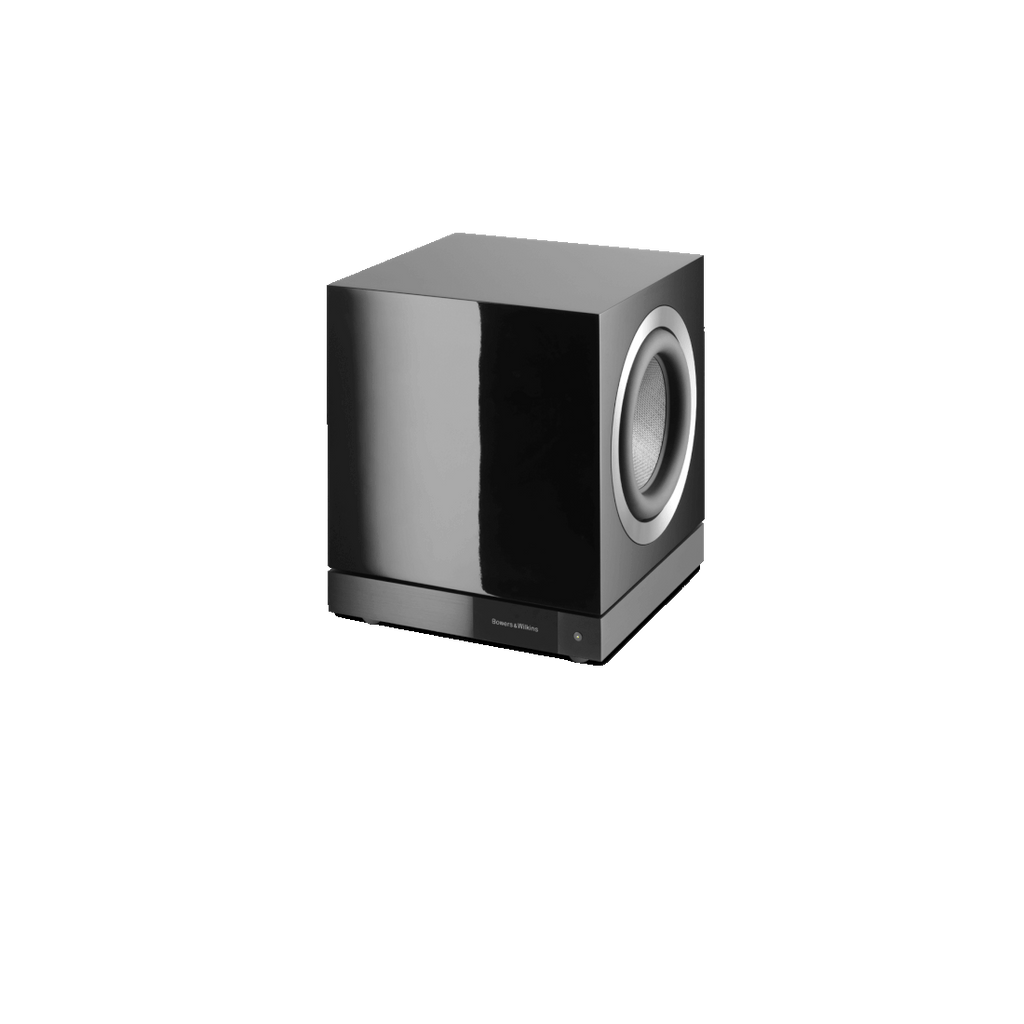

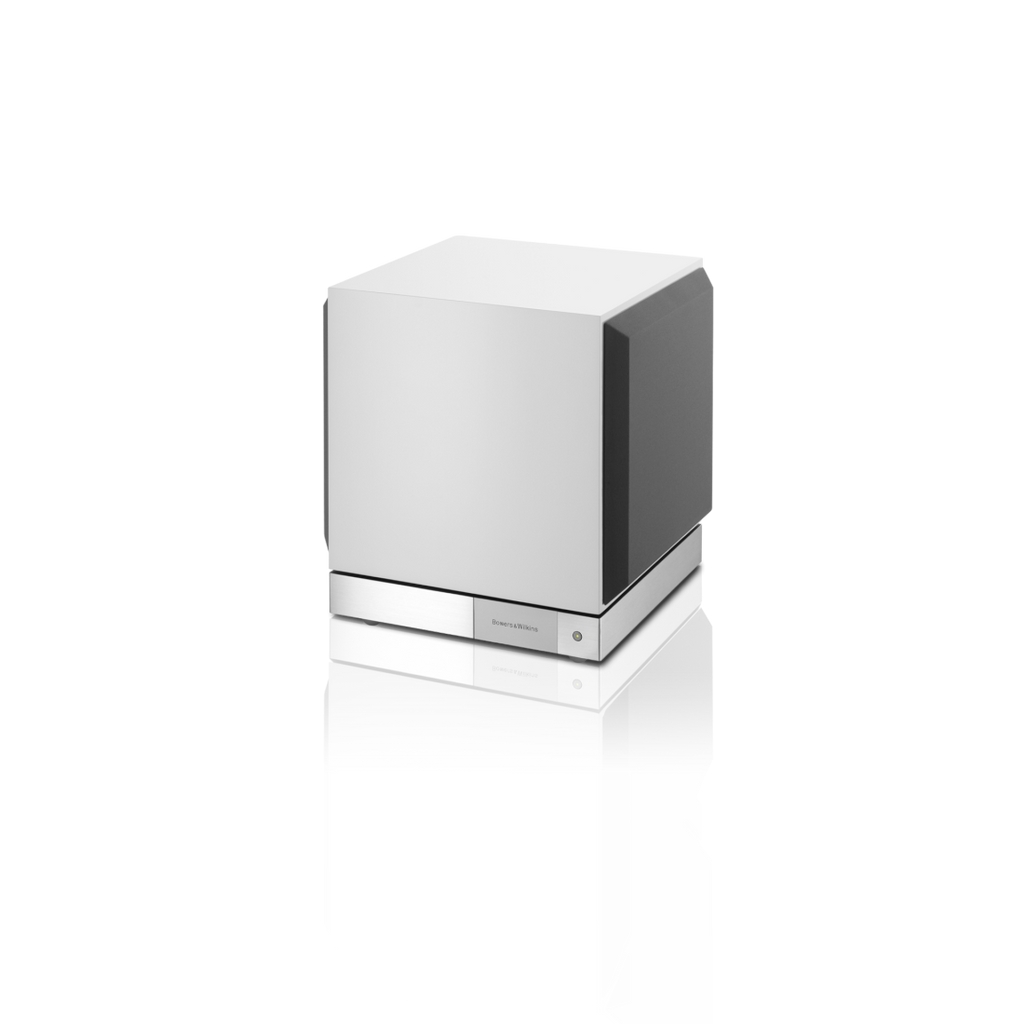

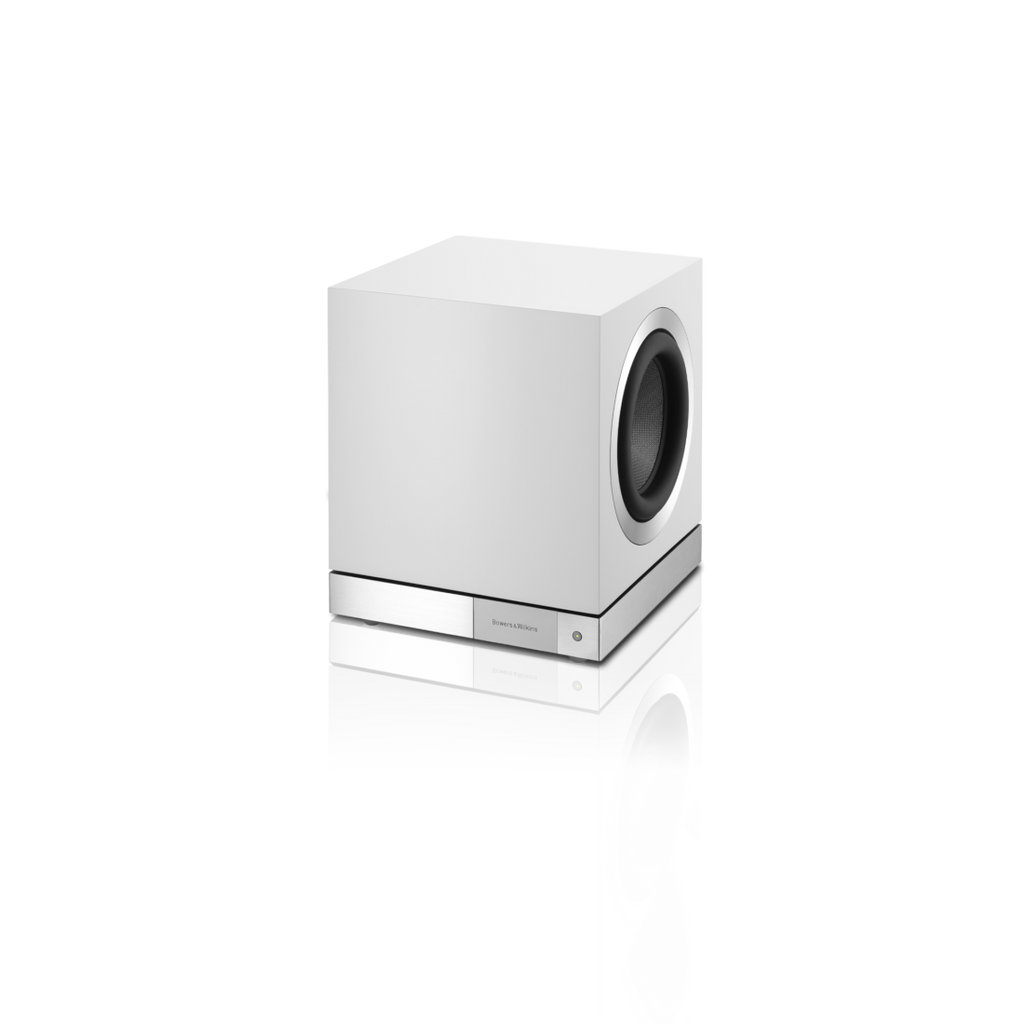

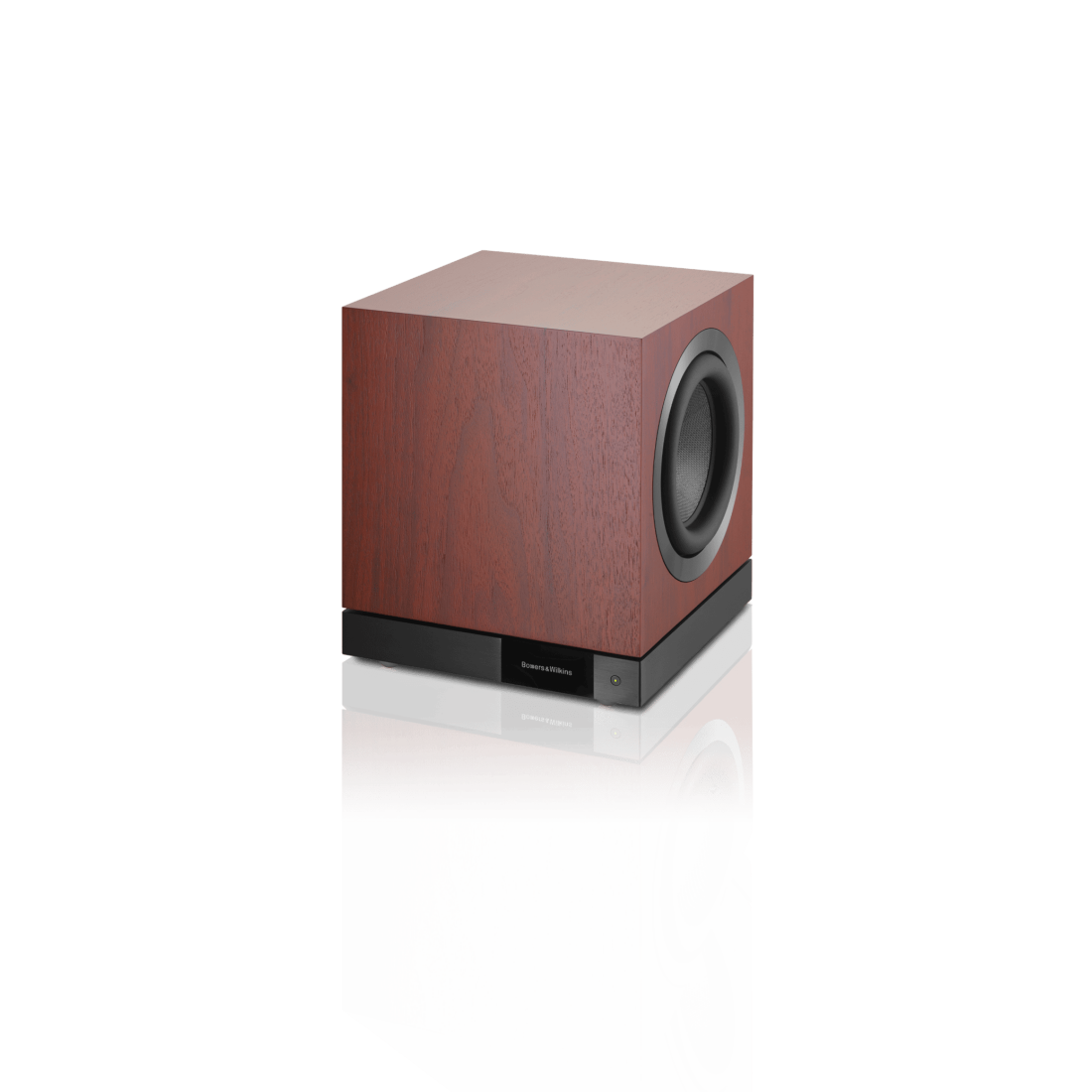

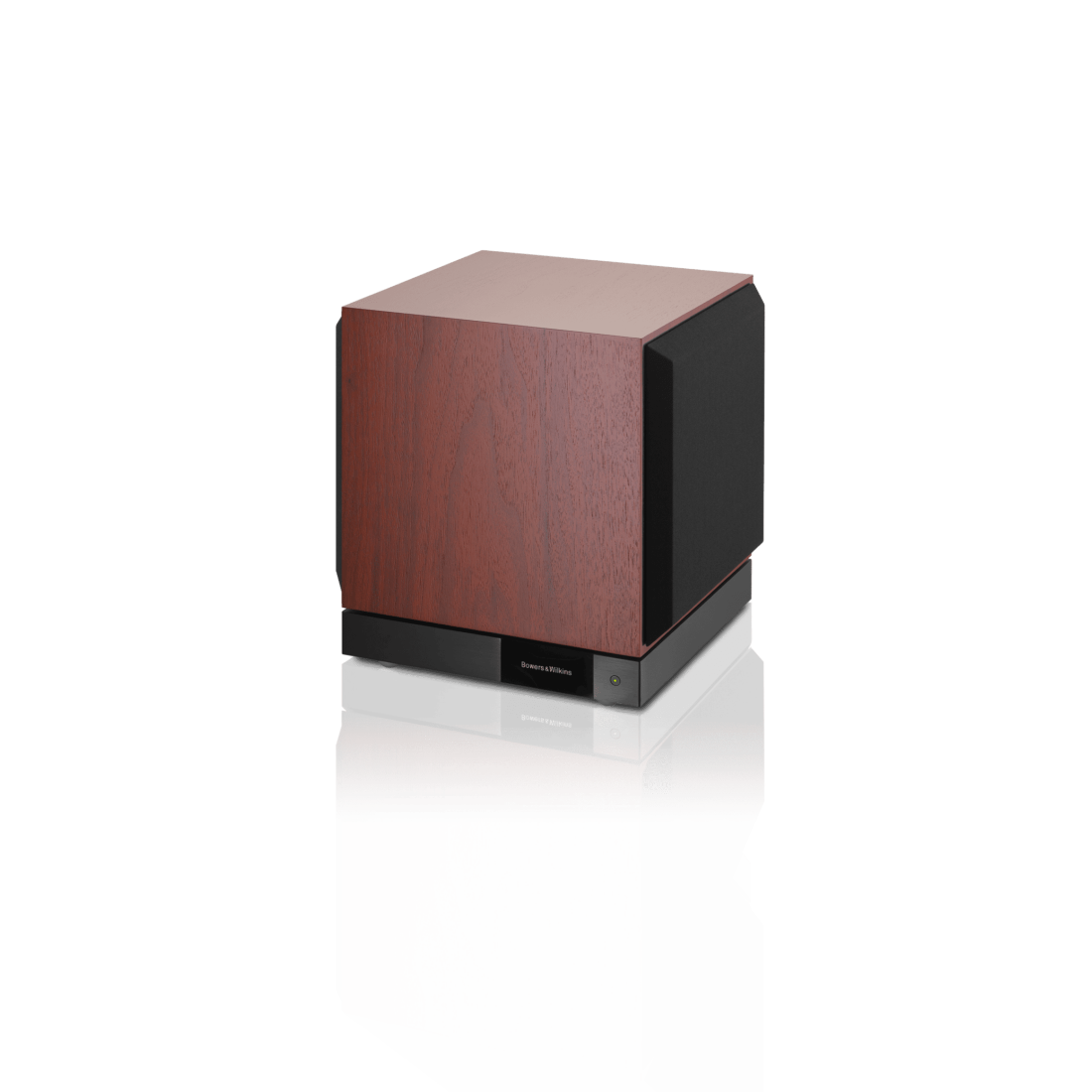

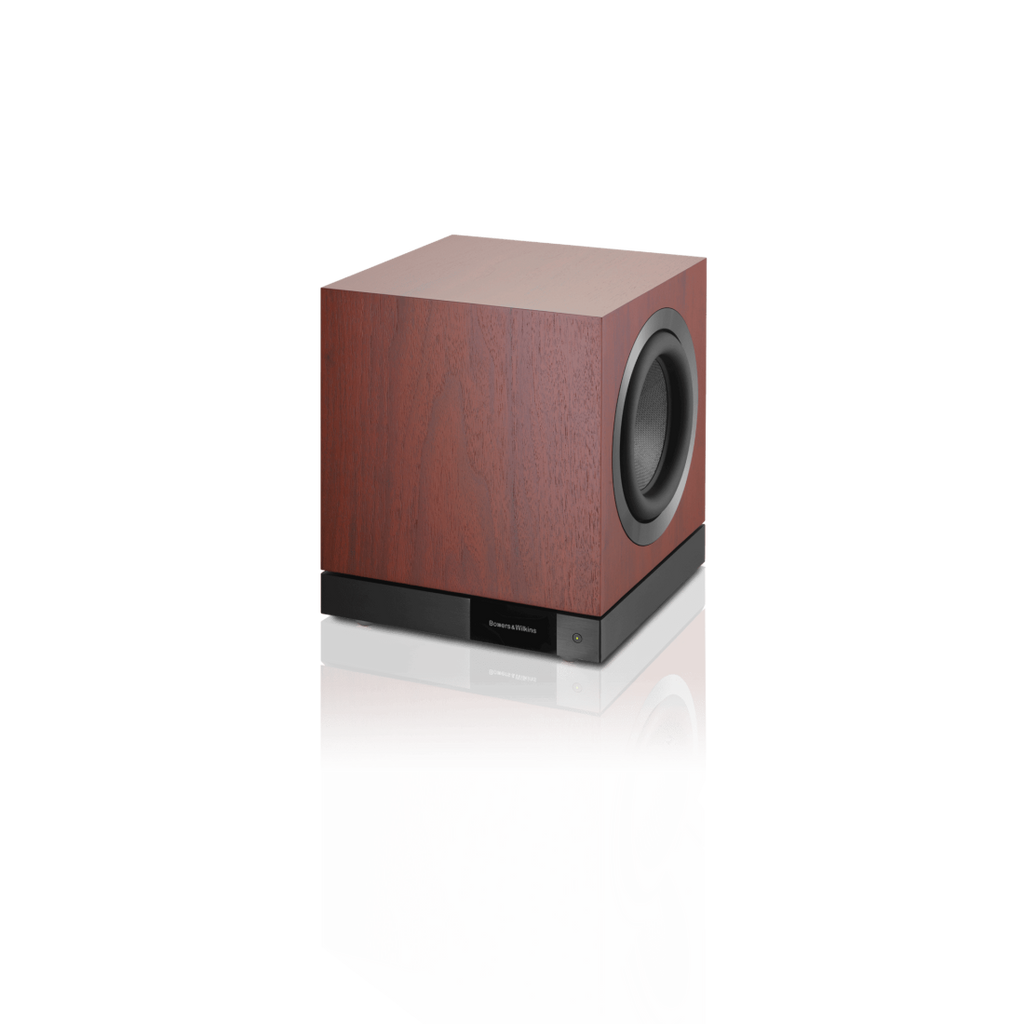

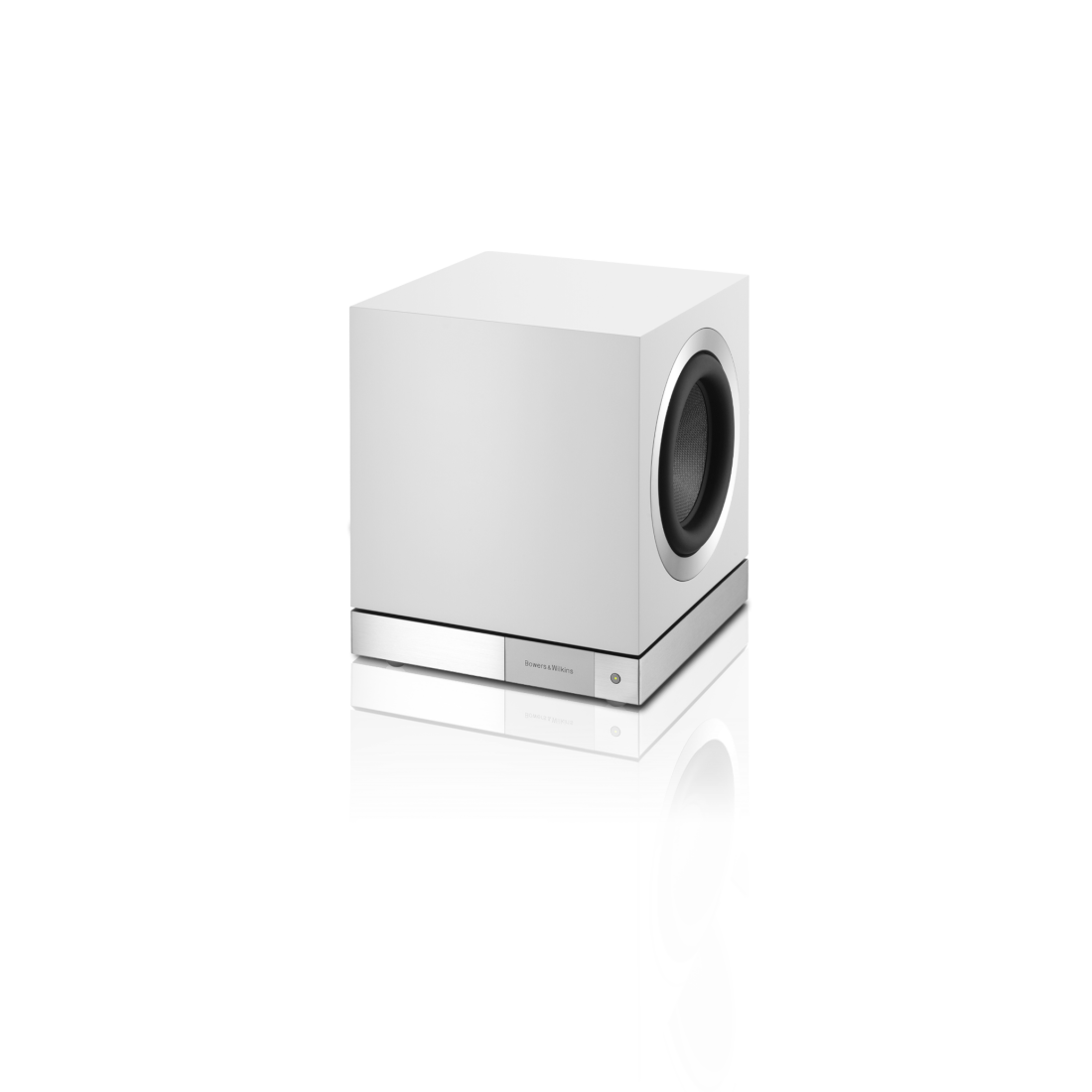

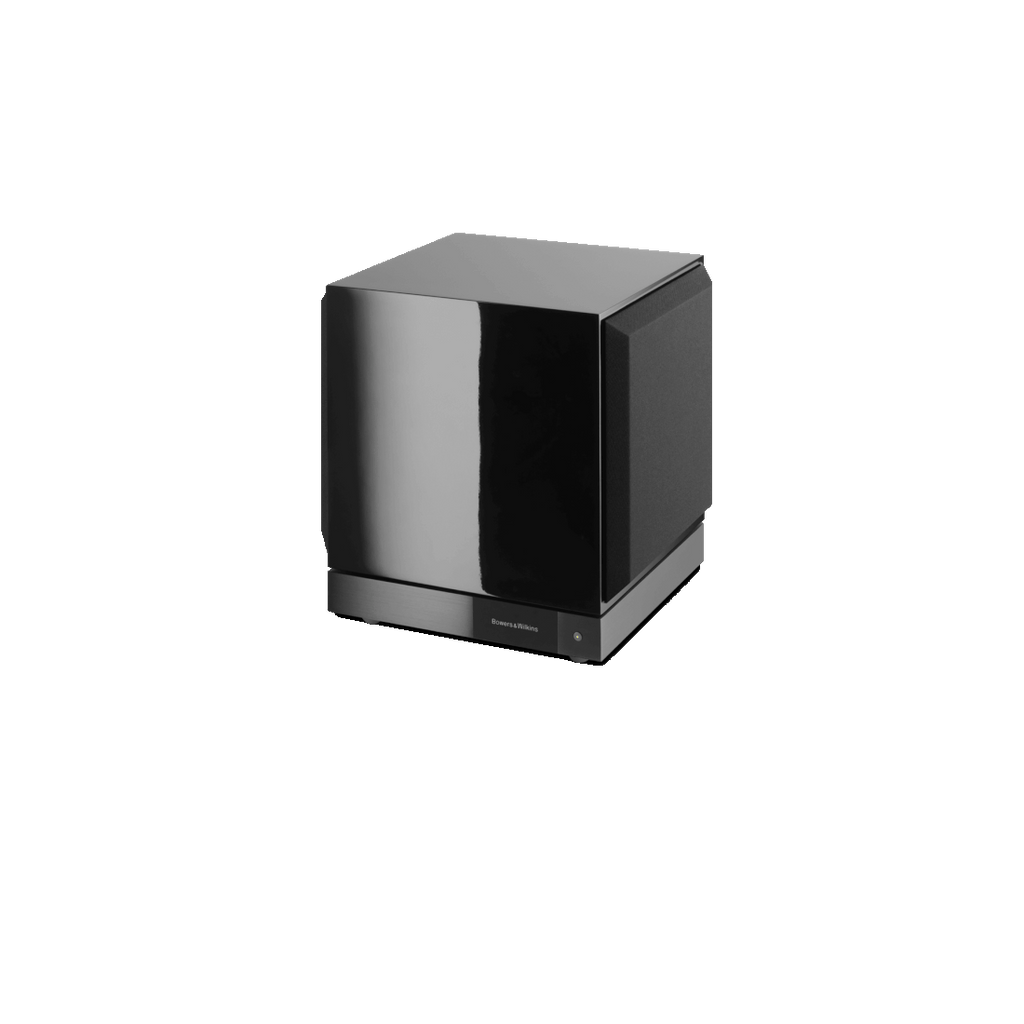

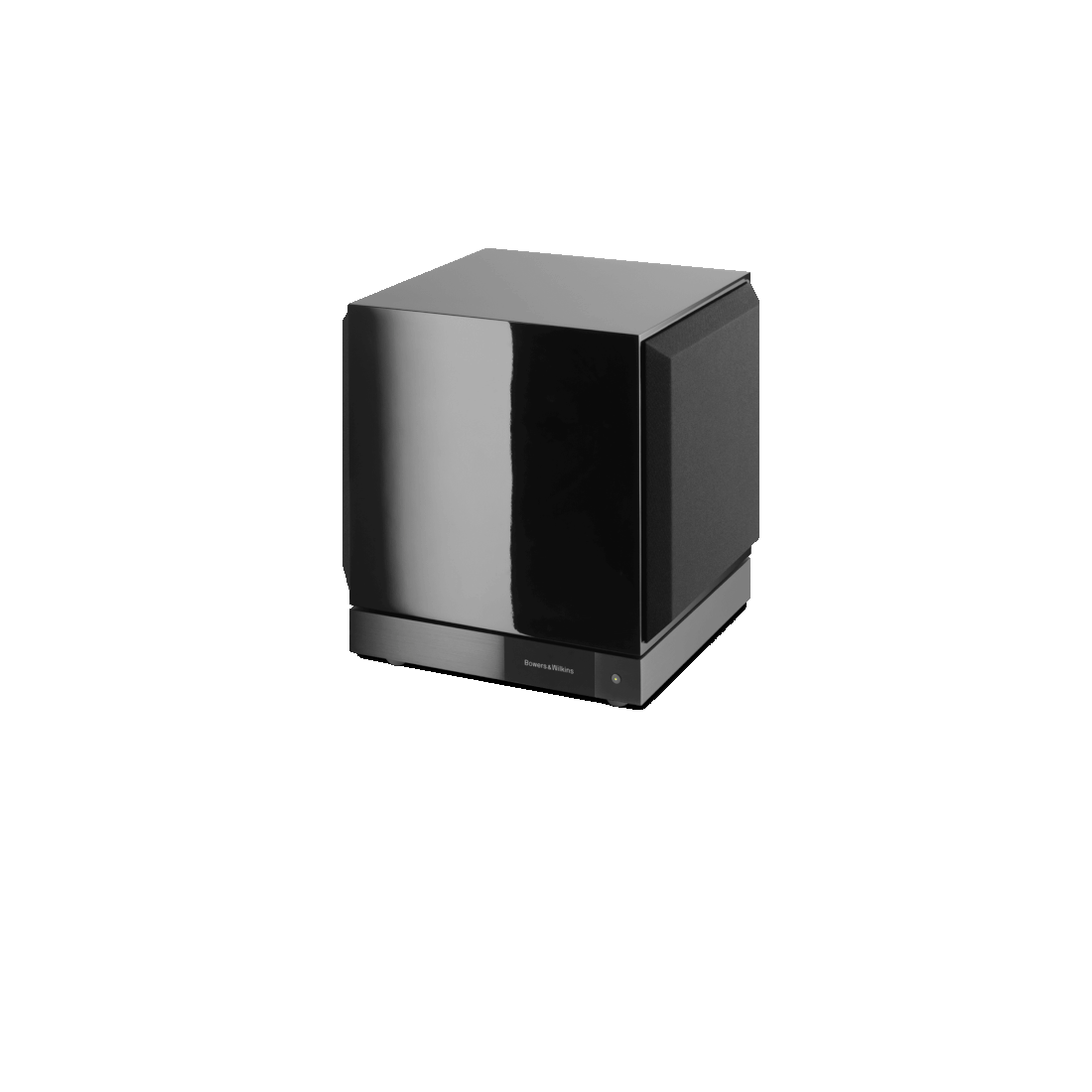

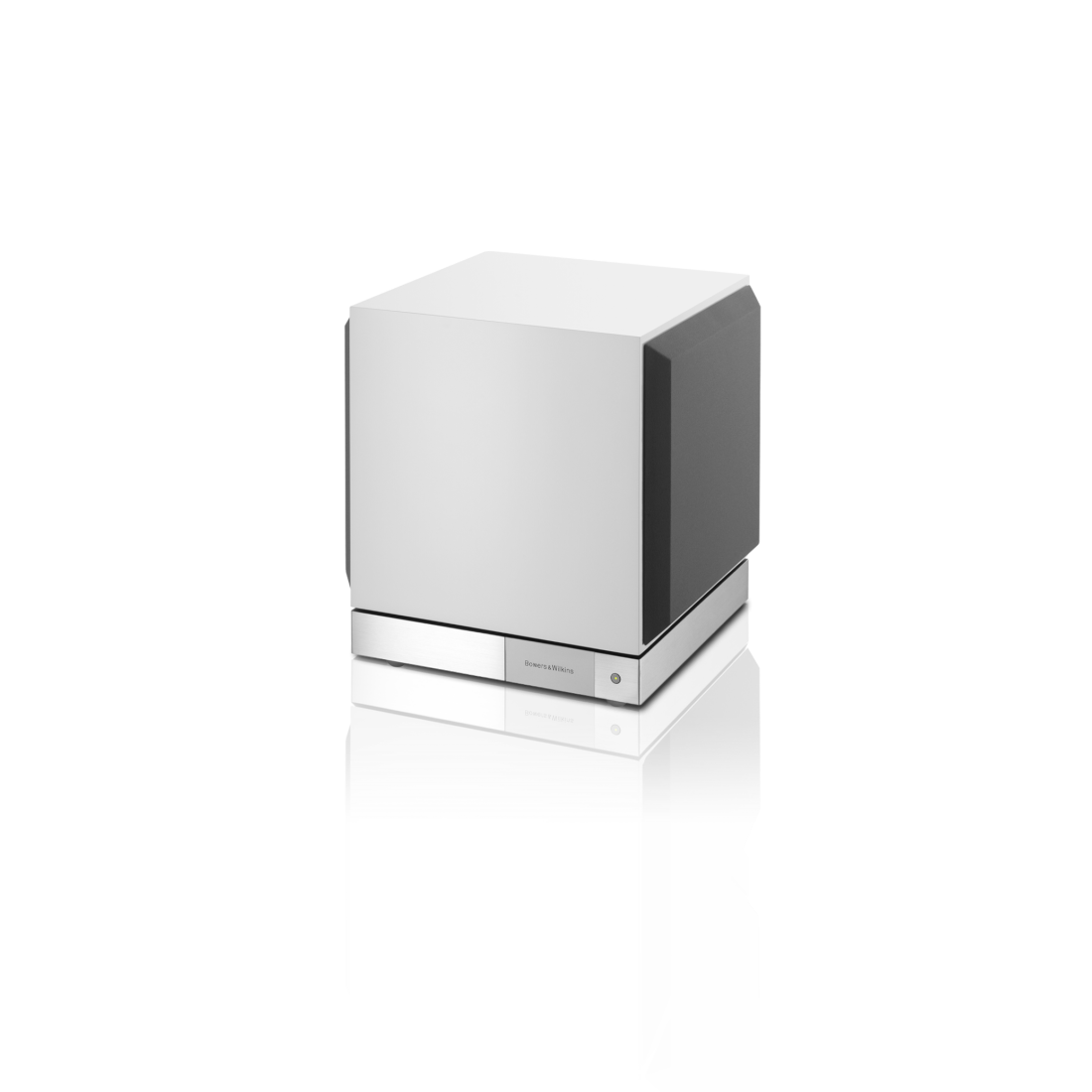

  • Cabinet finish Gloss Black (with black grilles) Rosenut (with black grilles) Satin White (with grey grilles)
