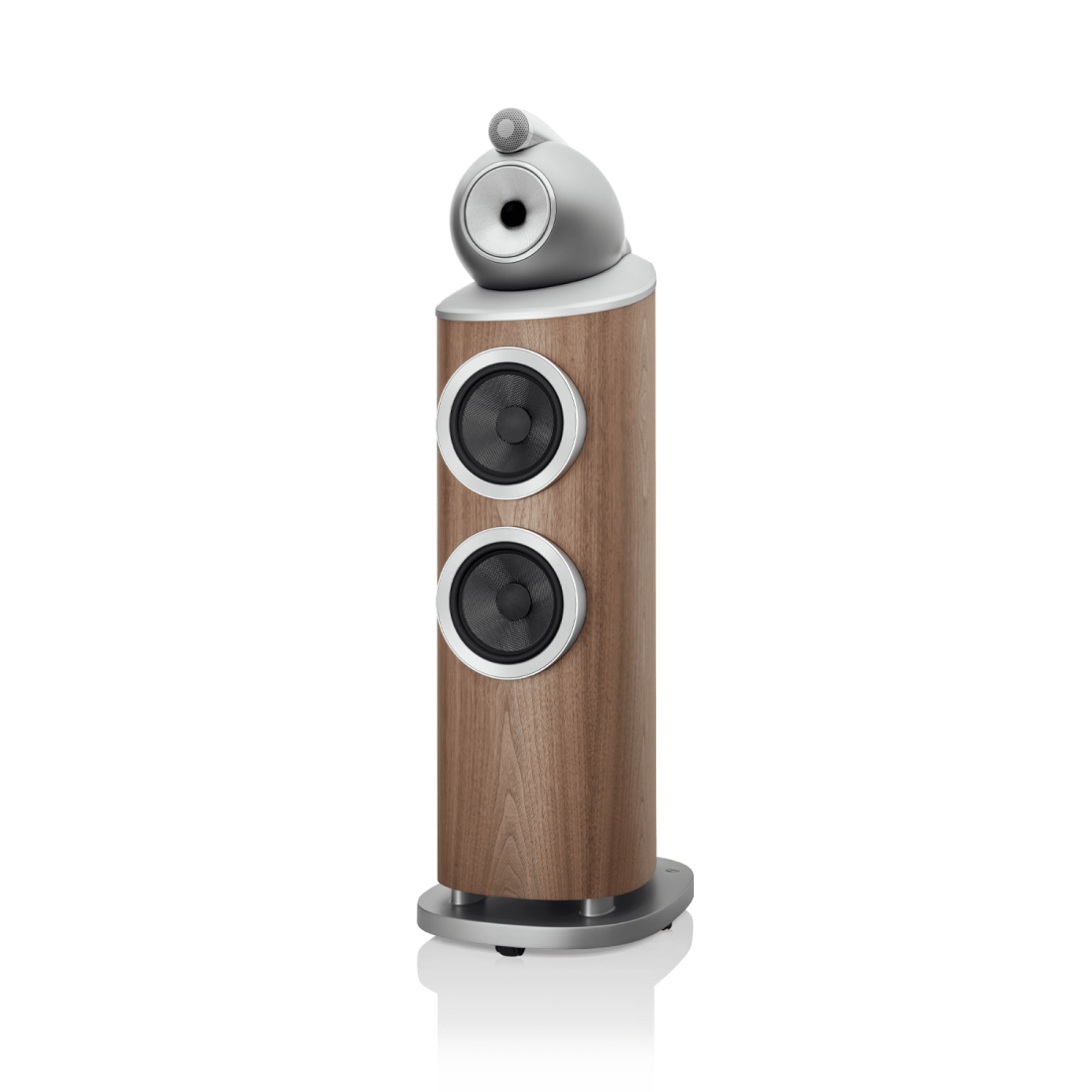

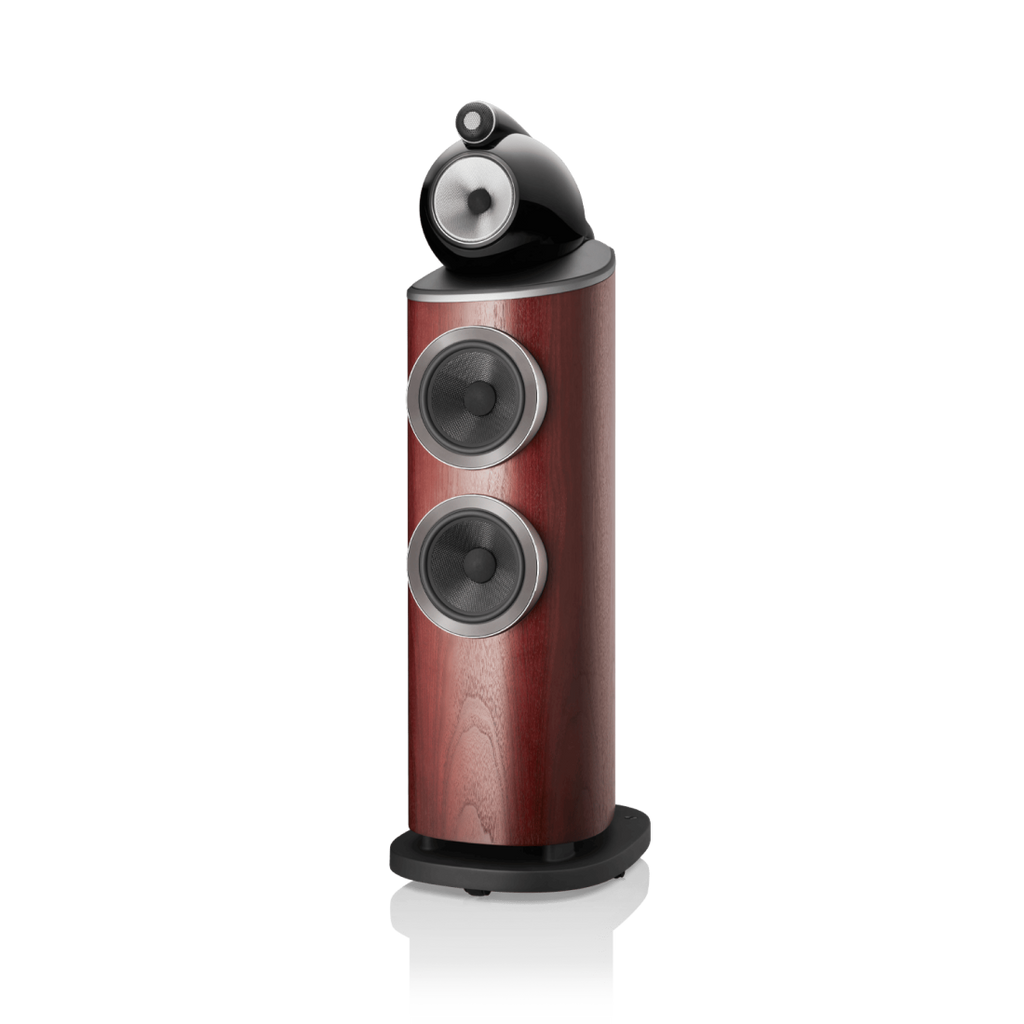

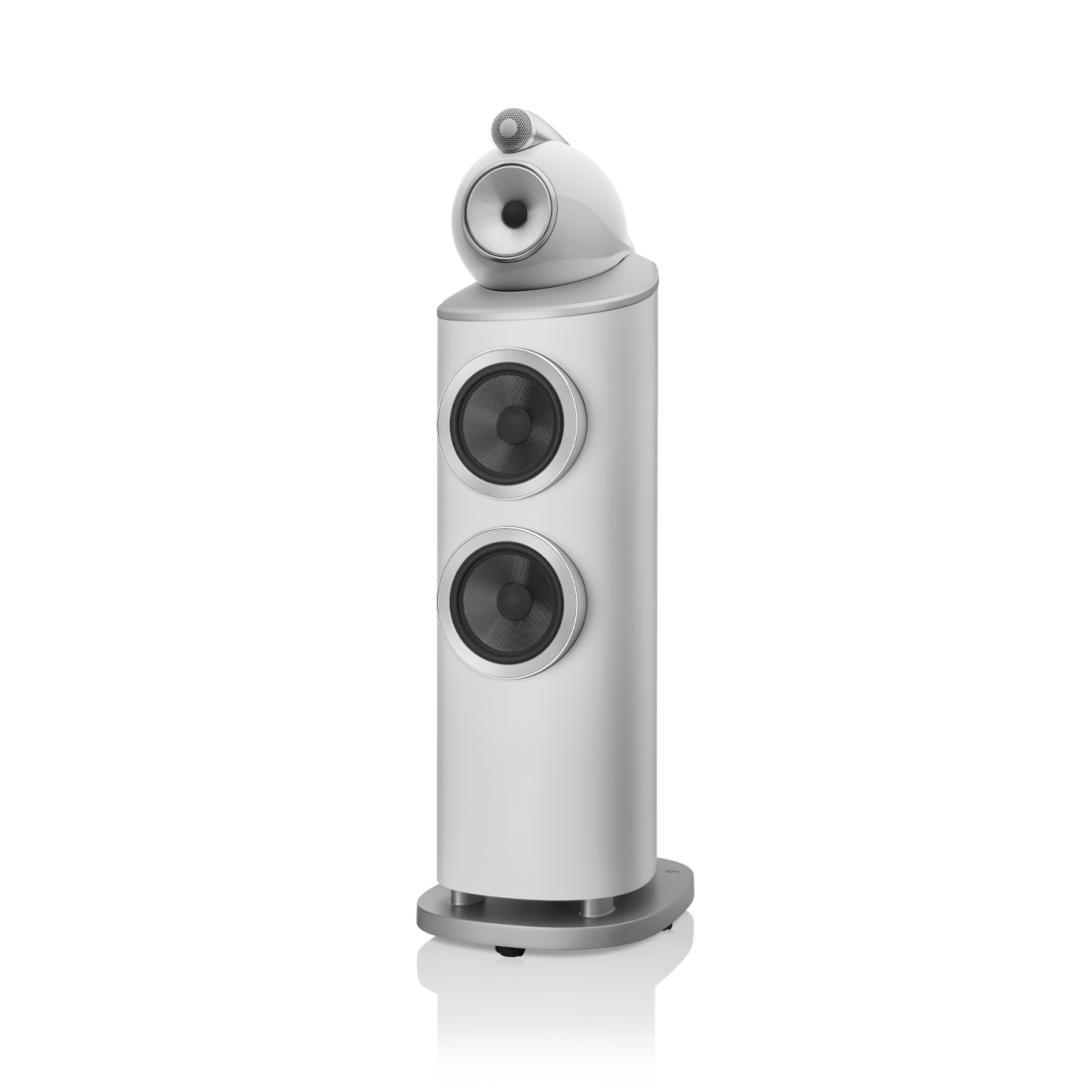

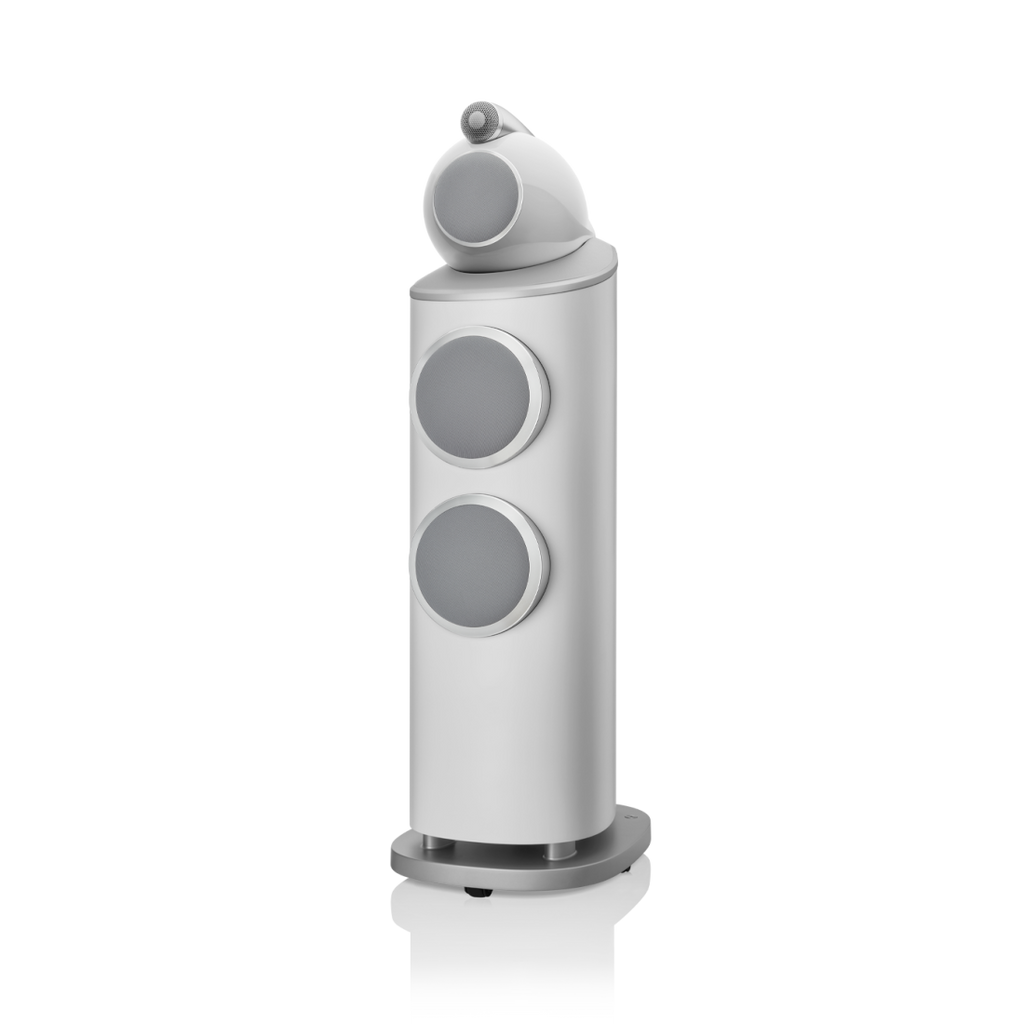

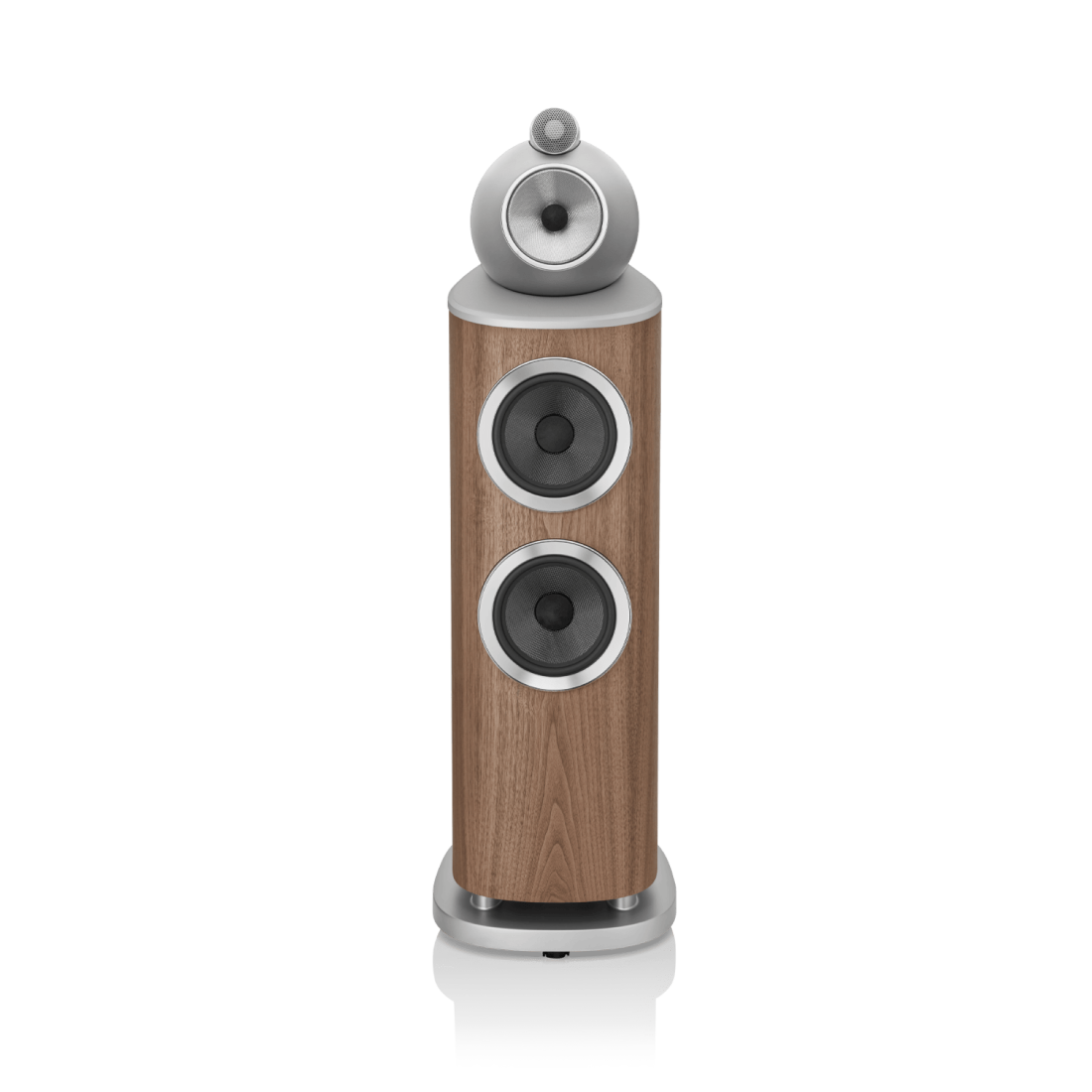

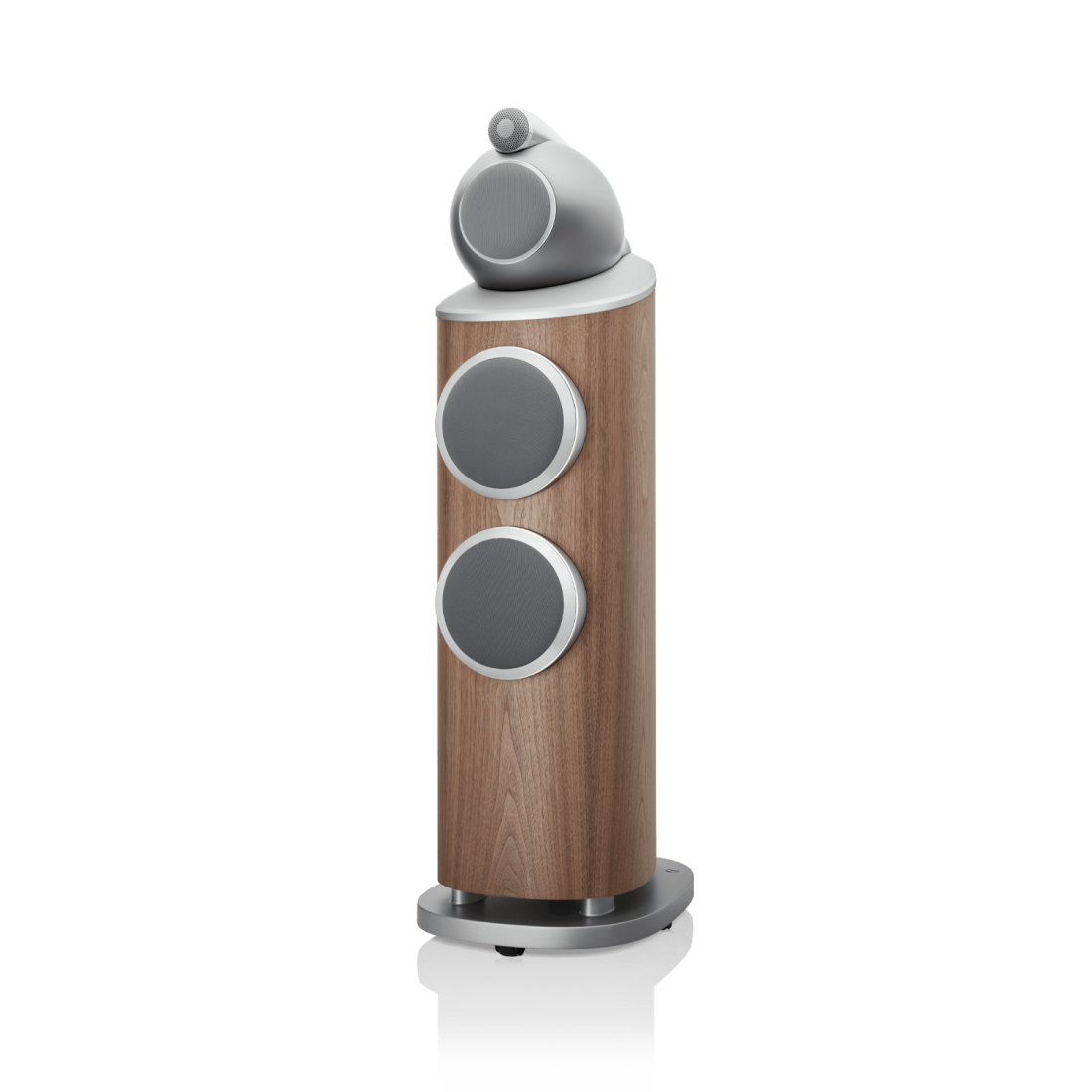

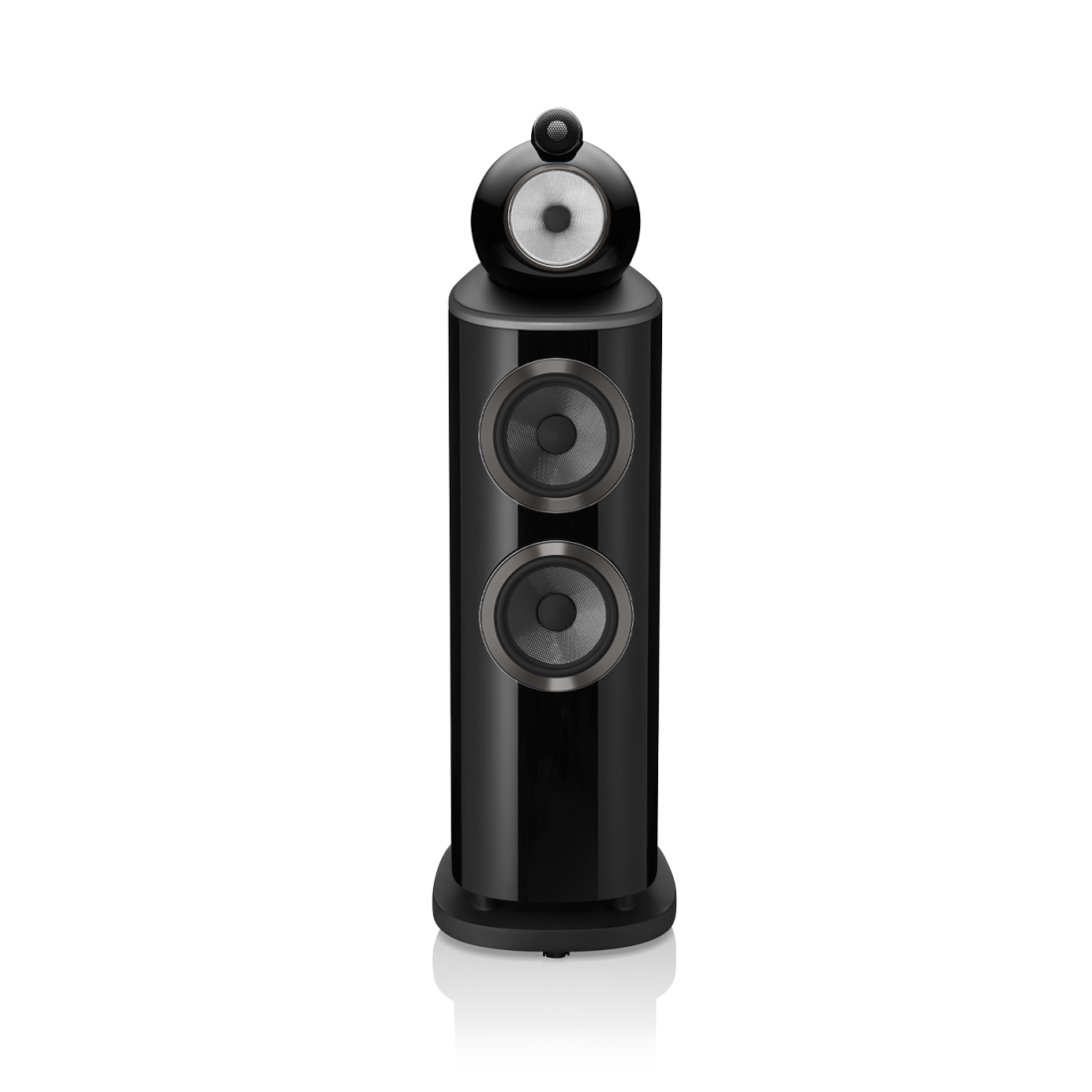

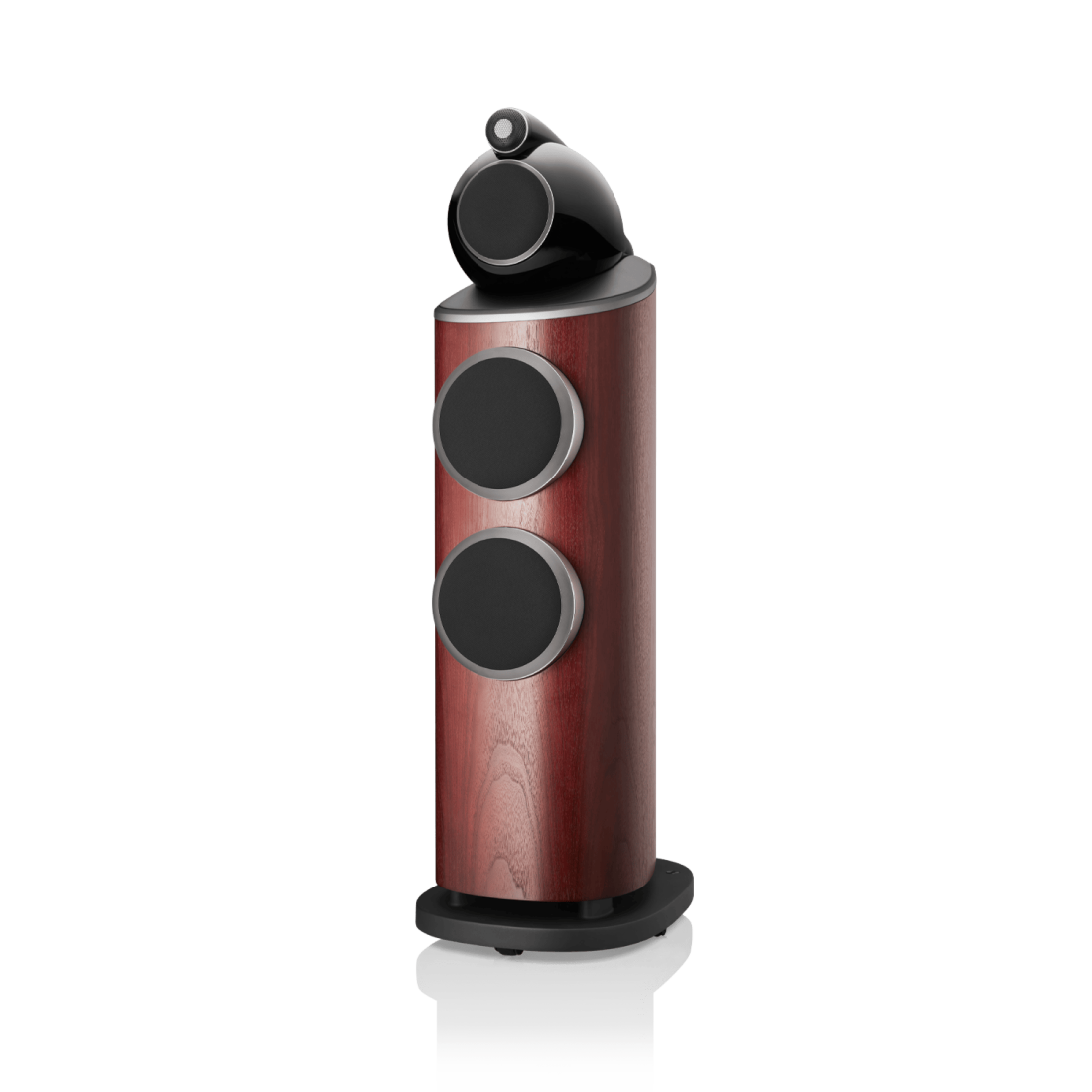

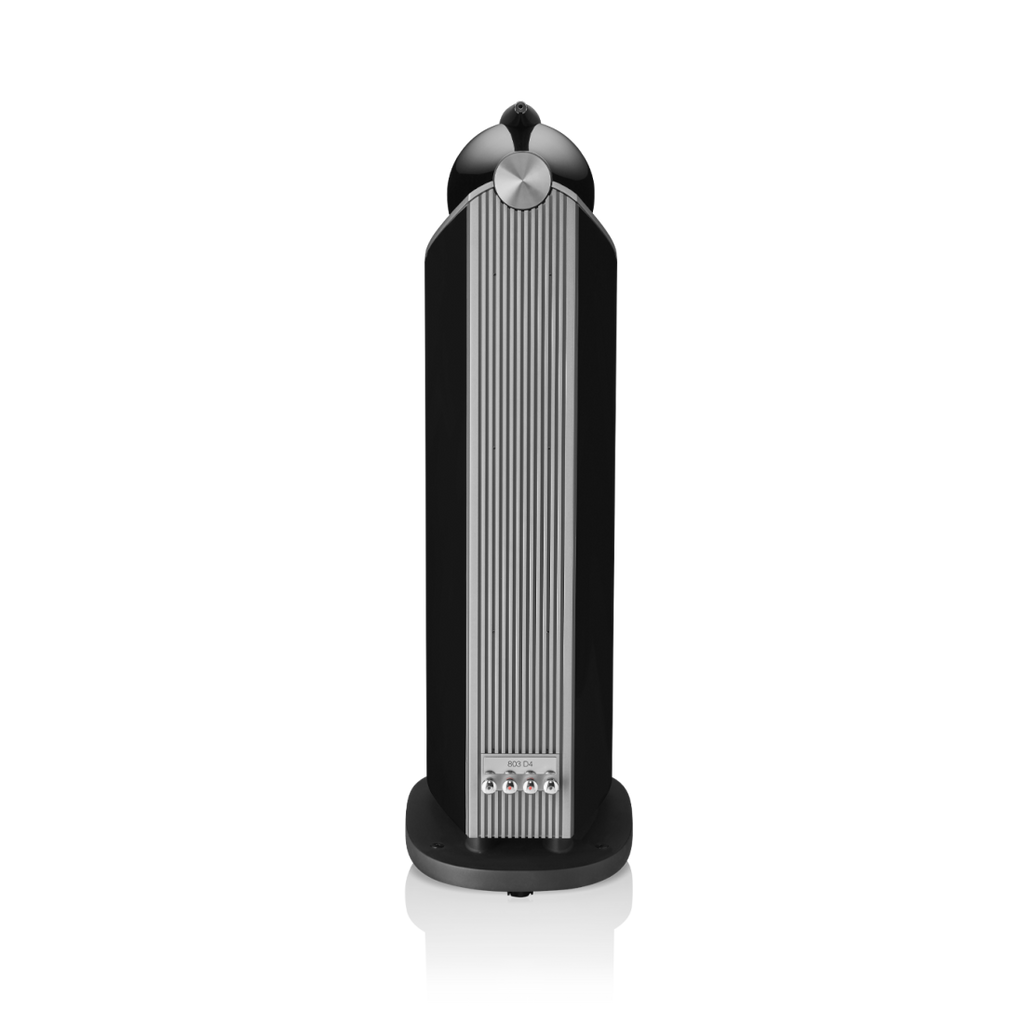

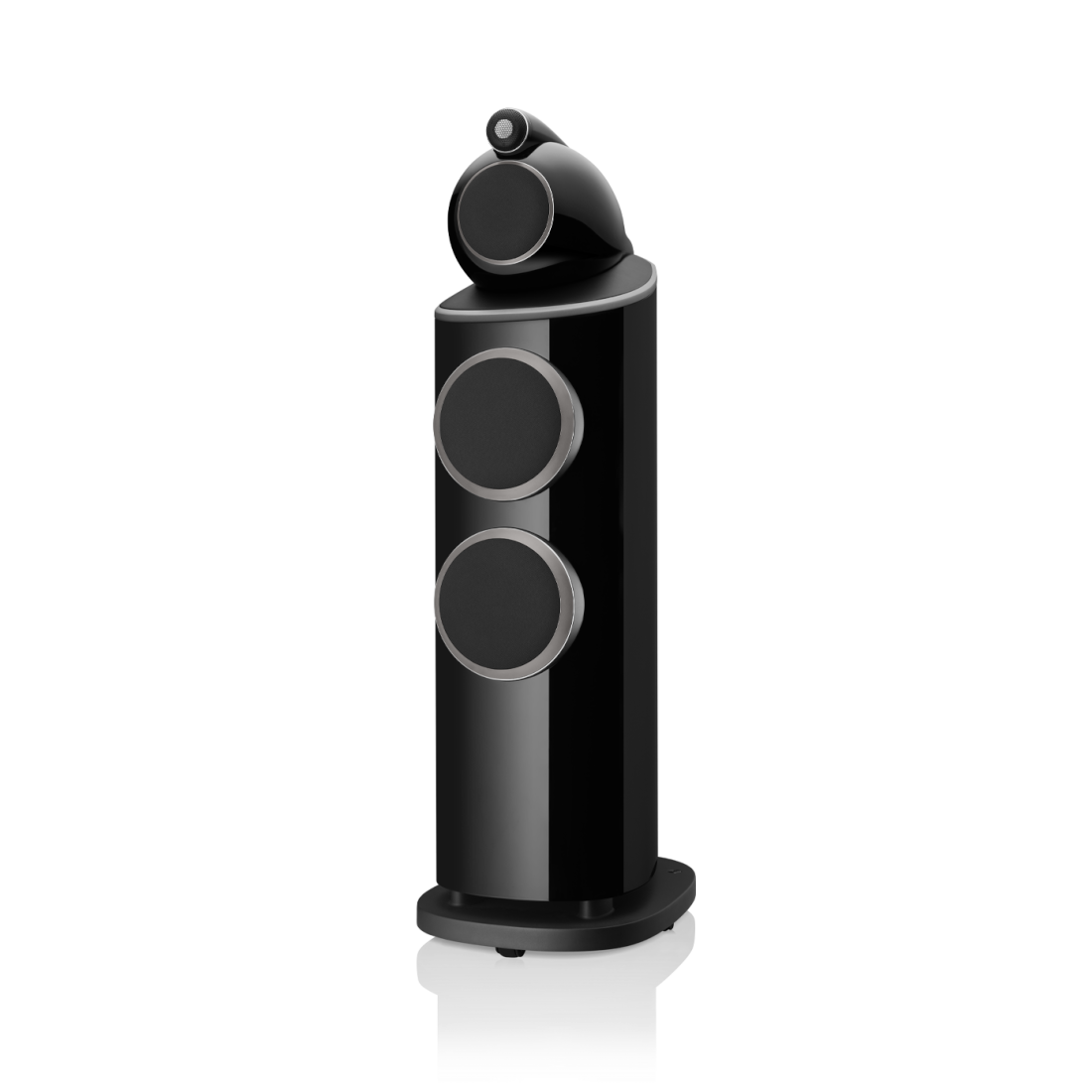

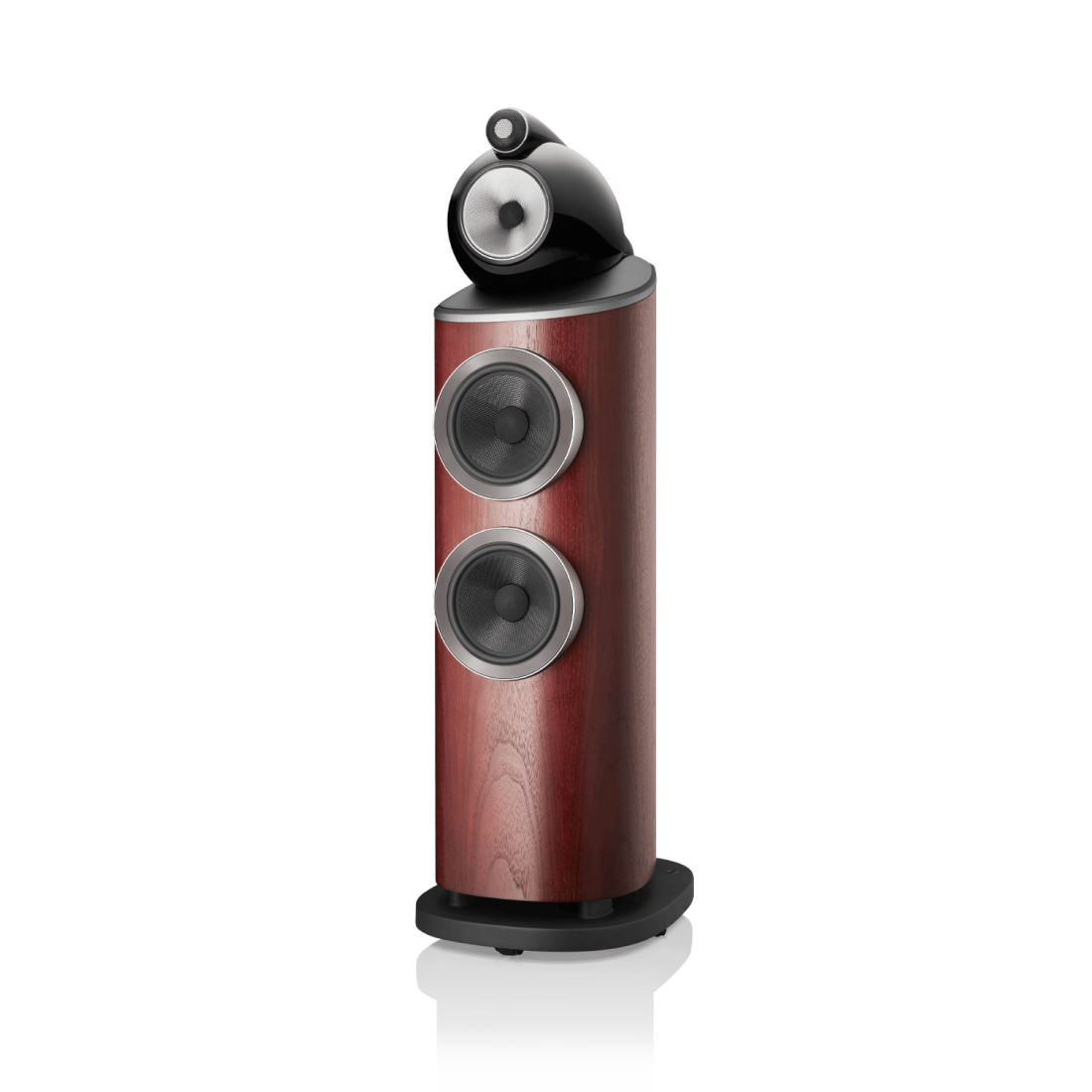

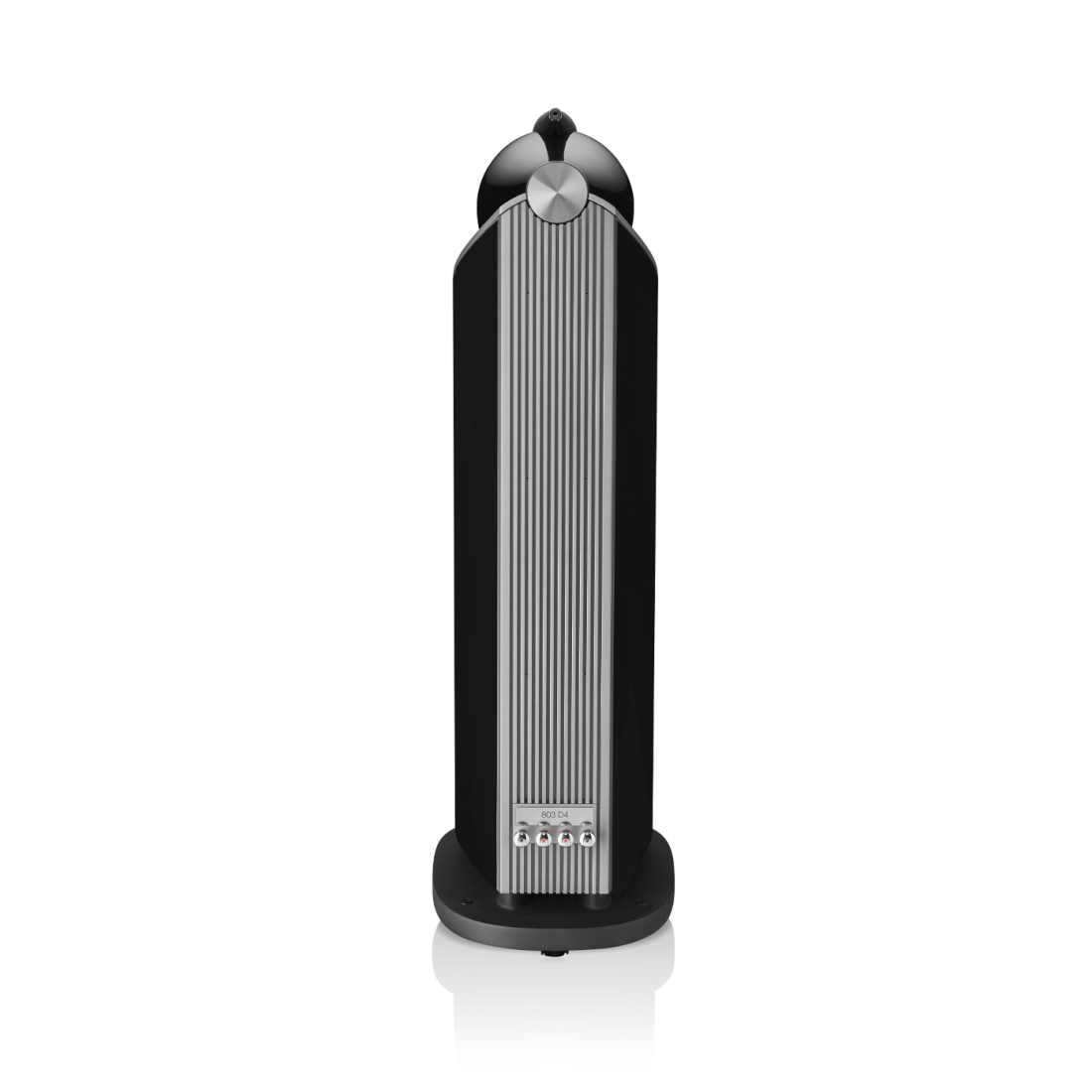

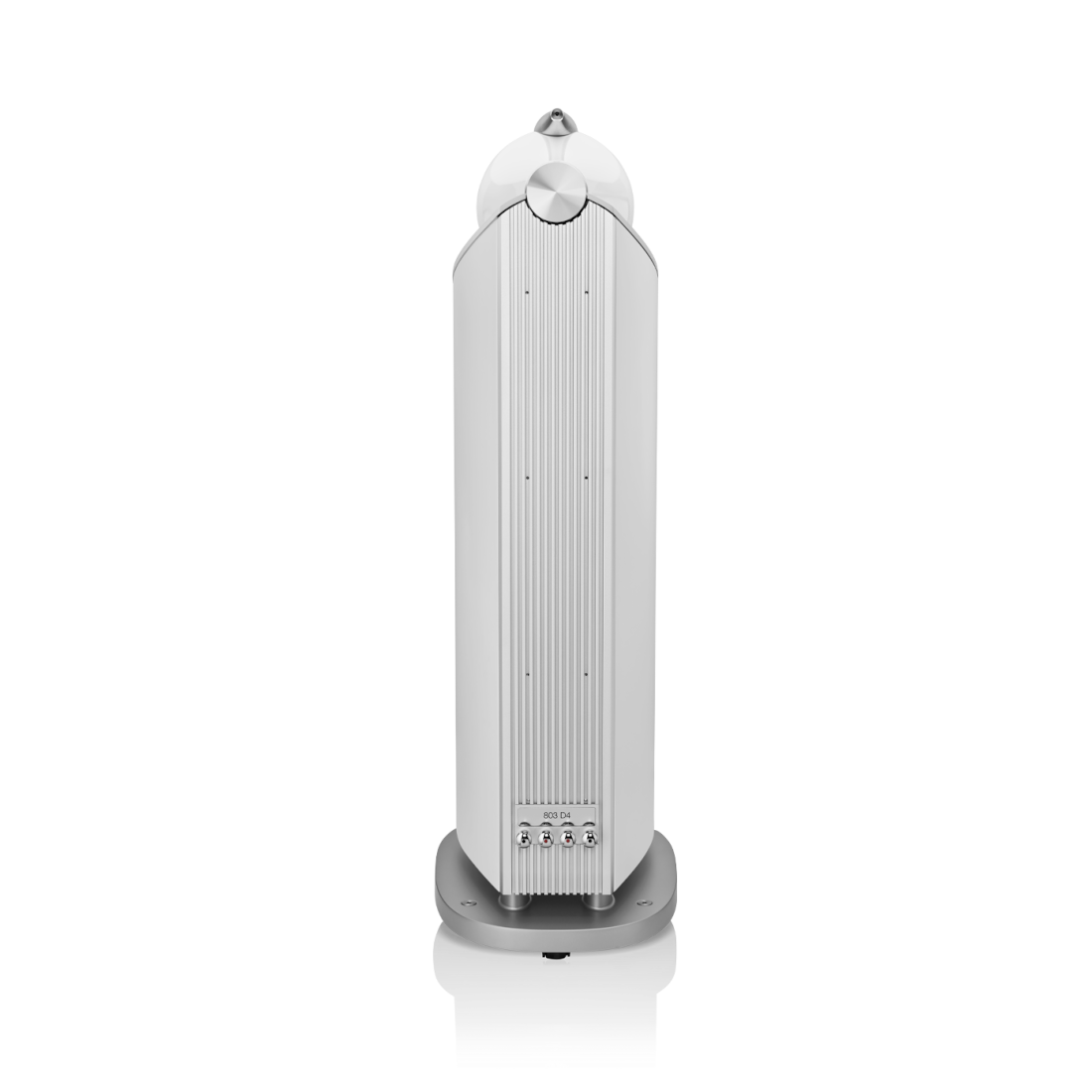

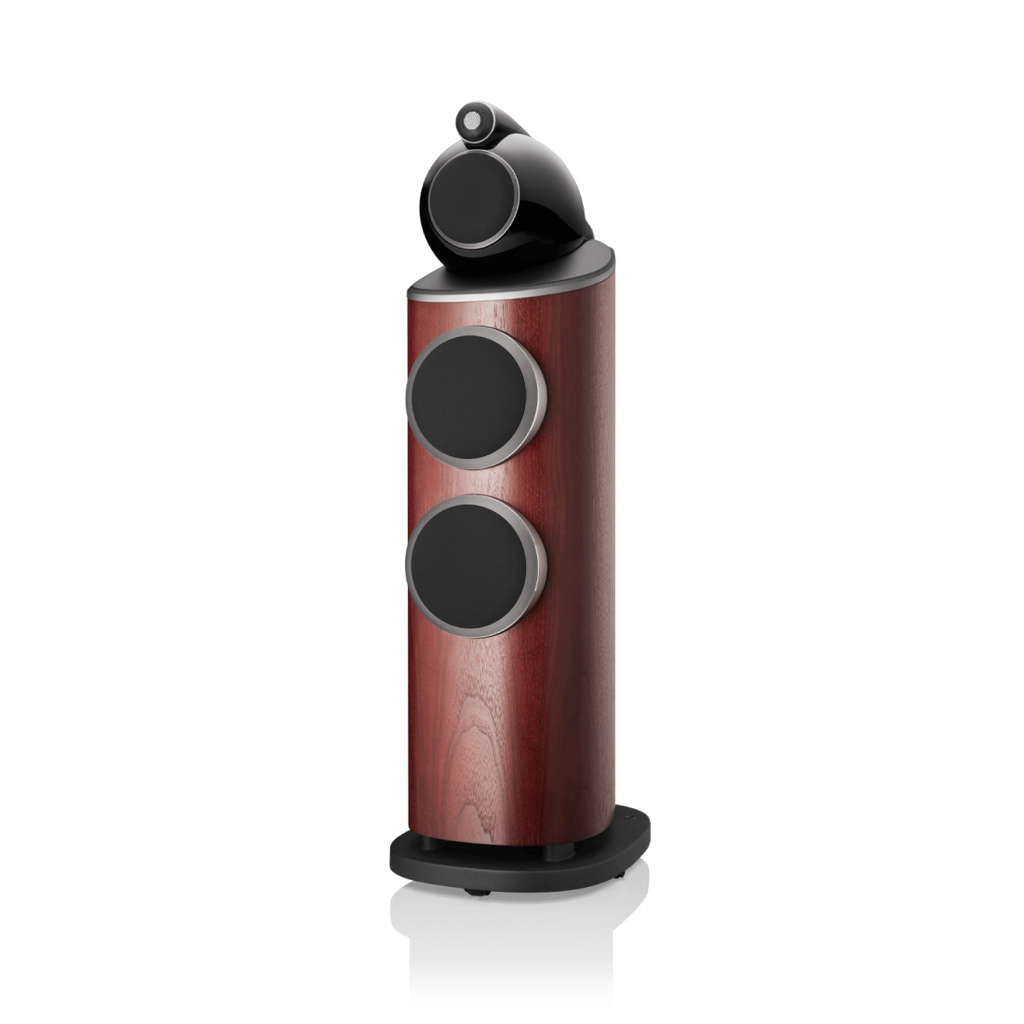

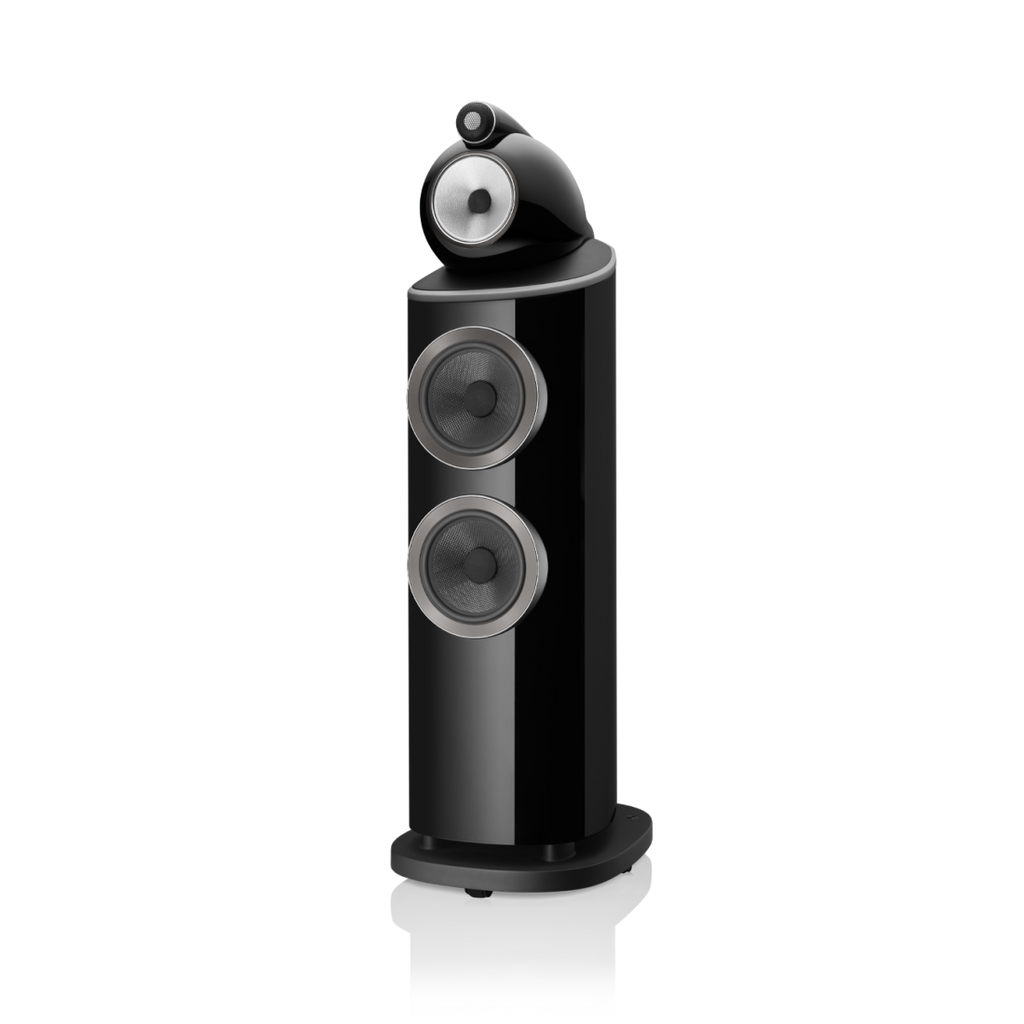

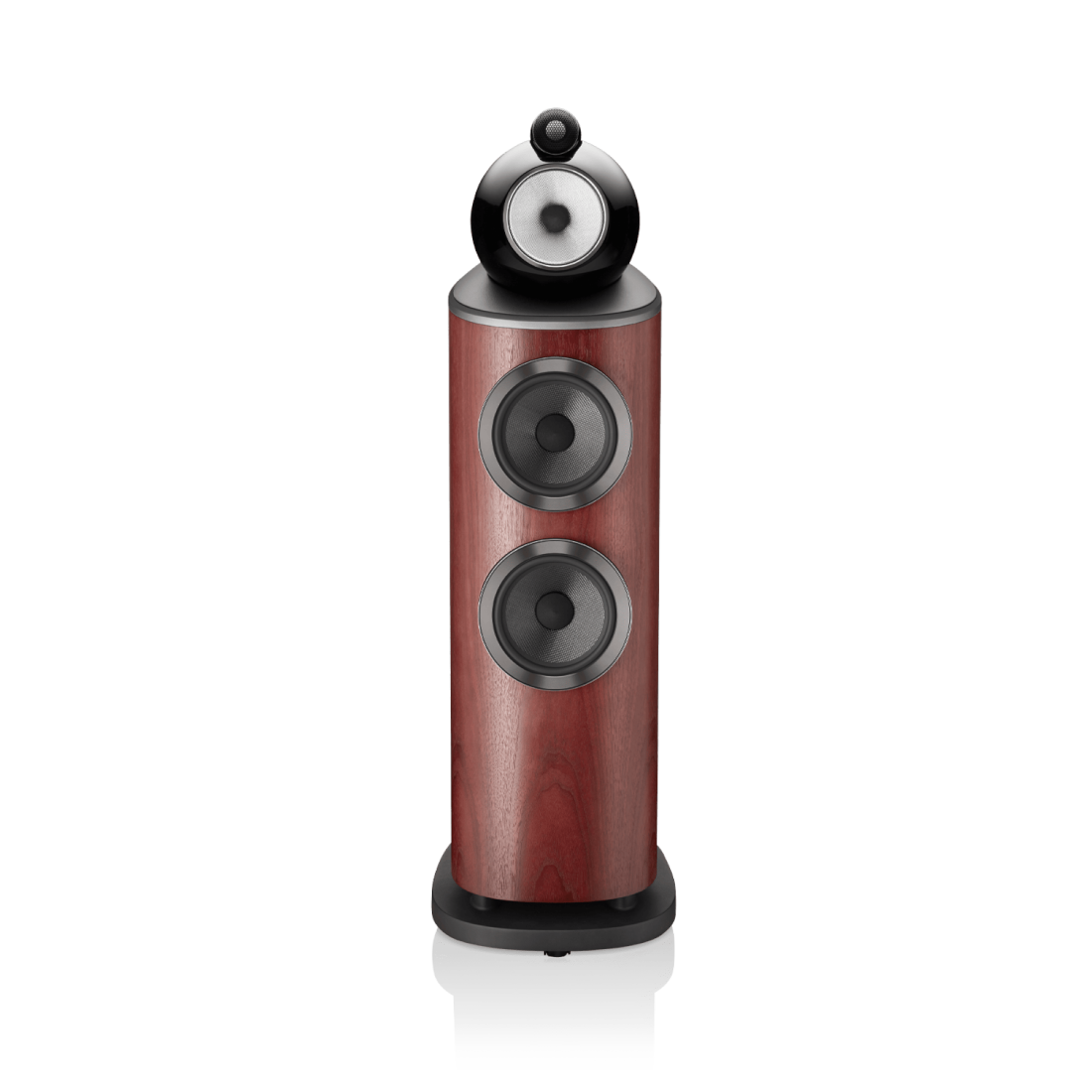

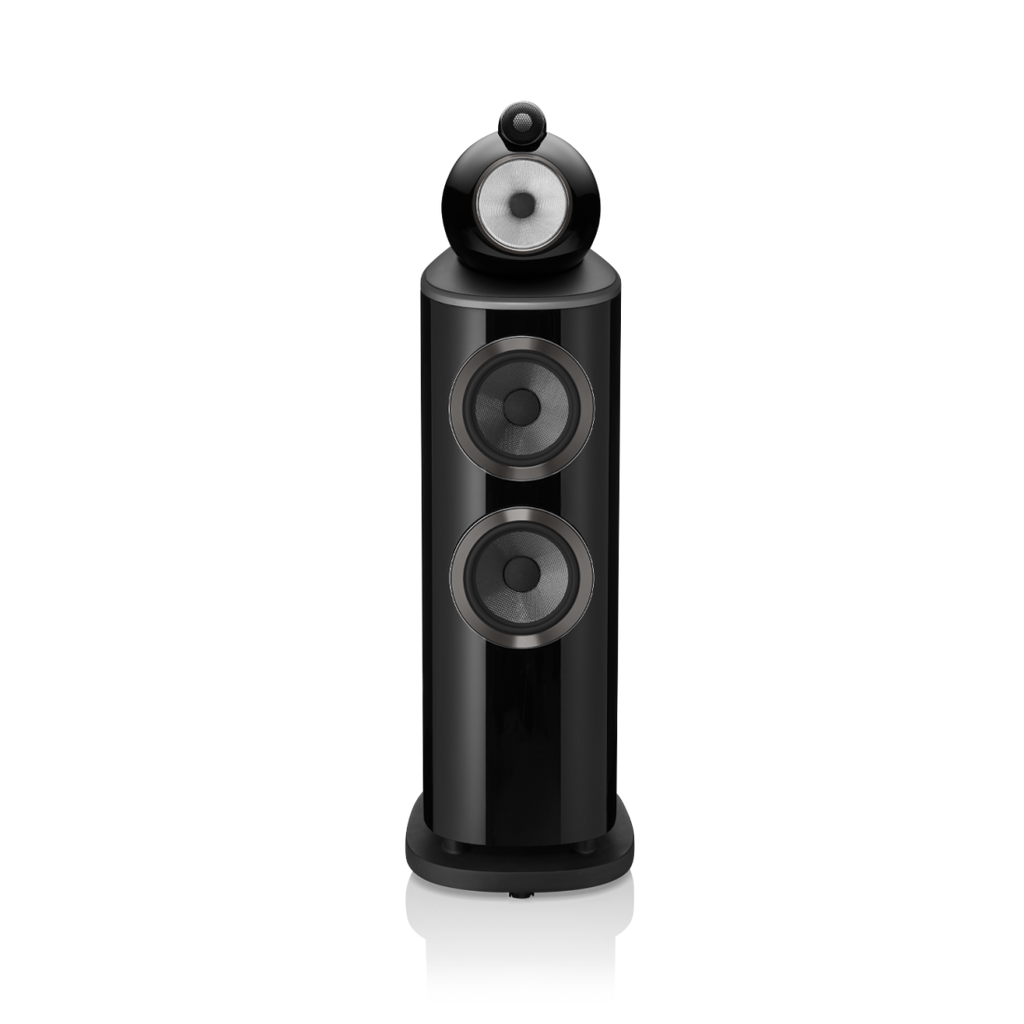

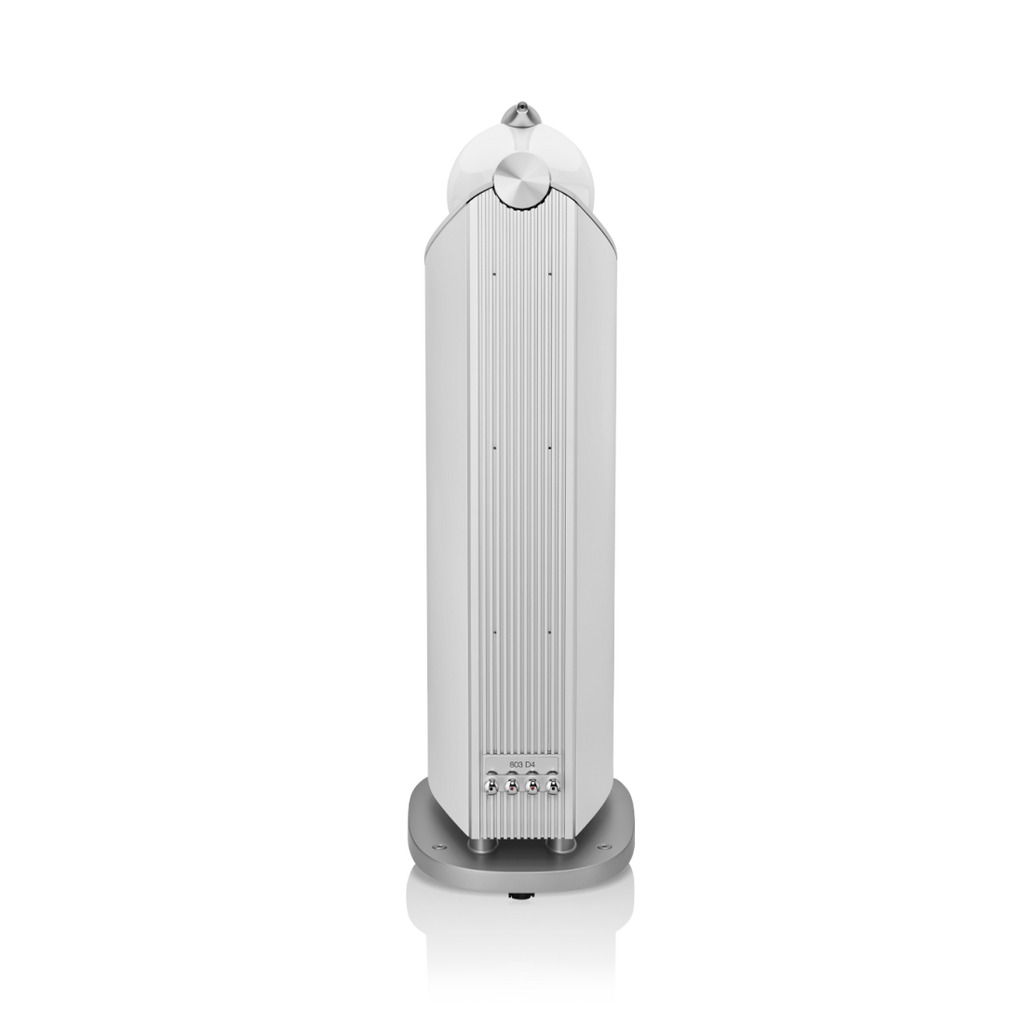

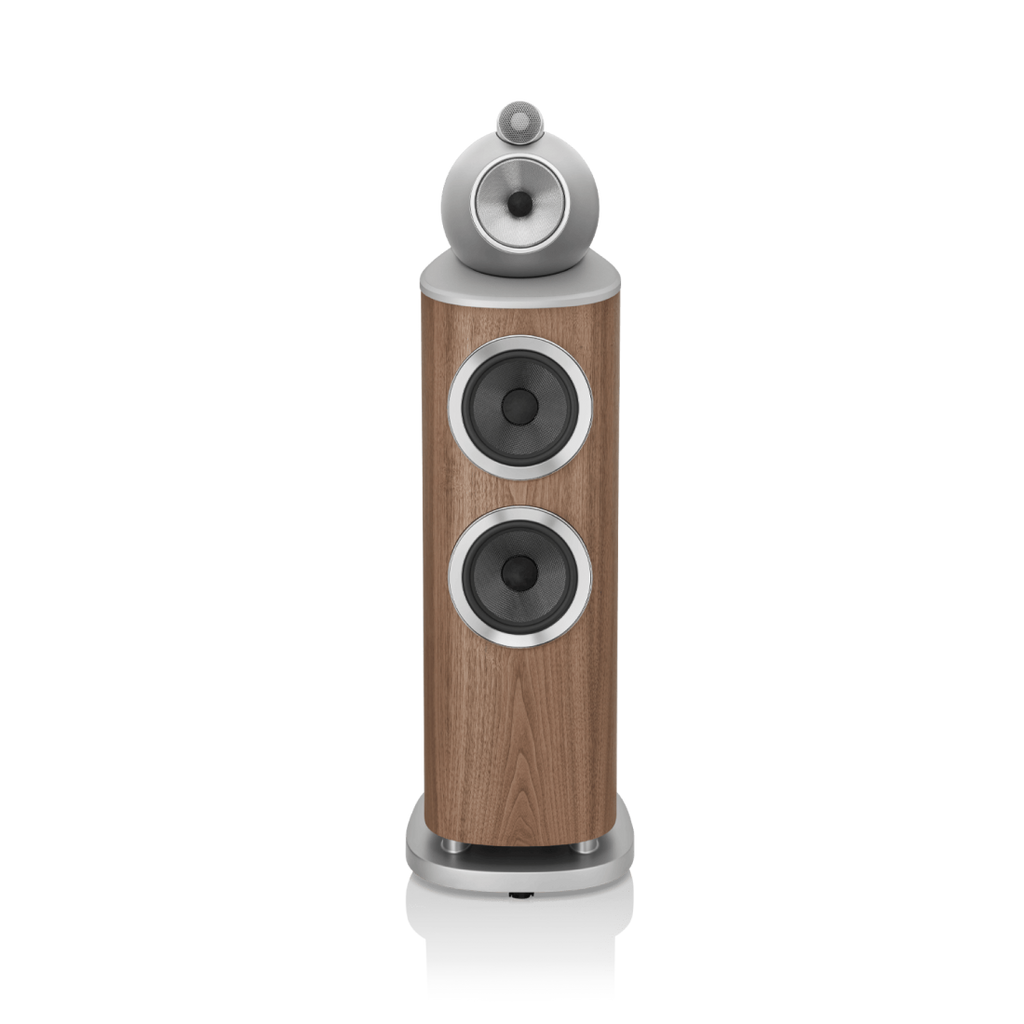

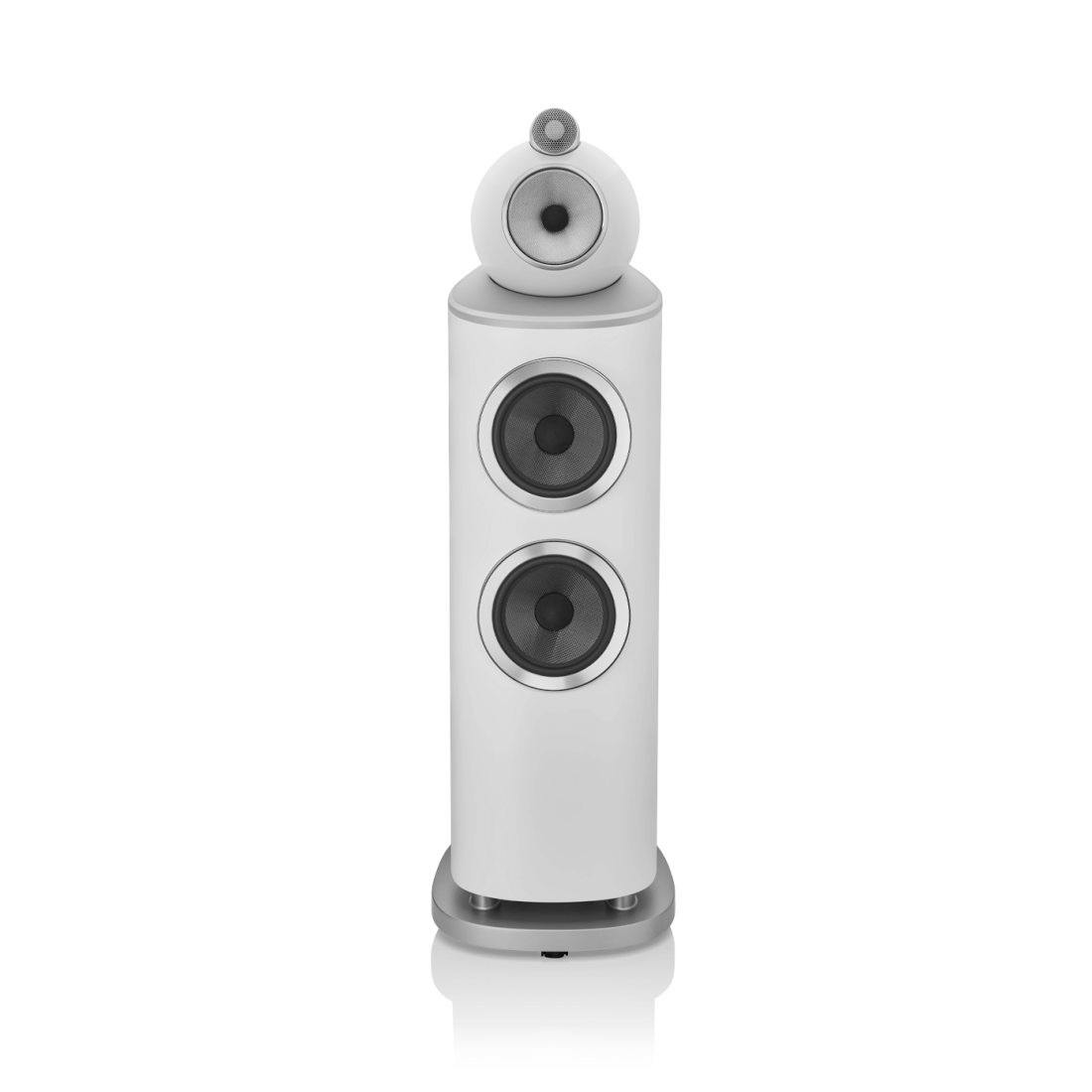

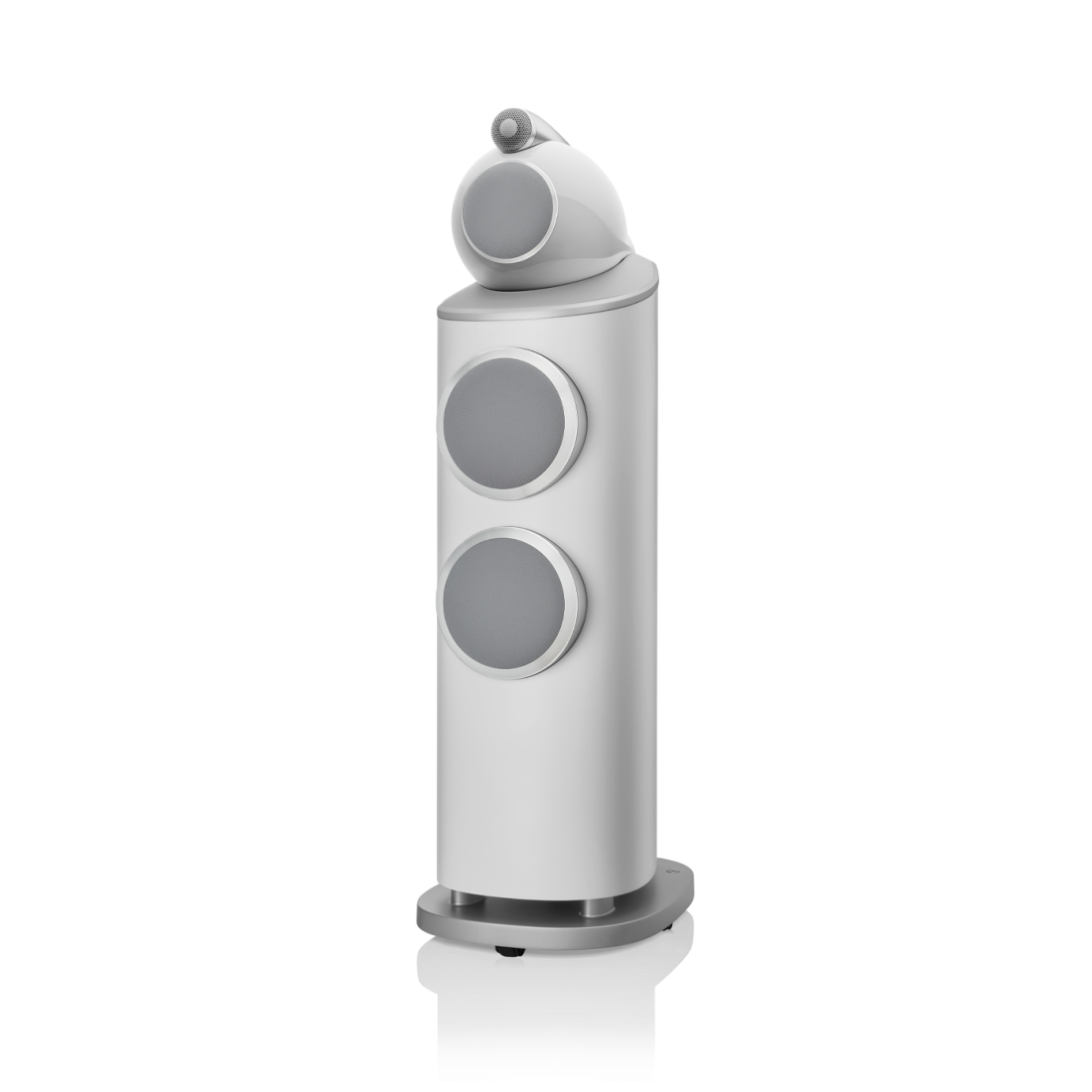

Bowers & Wilkins 803 D4 Floorstanding Speakers Pair
Our most compact headed model brings all the technical advantages of a dedicated midrange enclosure – the Turbine™ Head, with its decoupled midrange cone – to a smaller footprint that’s easily accommodated in any home.
803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5-in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.
Aluminium bass pods
803 D4 mounts two Aerofoil™ bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
Step up for more power
803 D4 features all the most iconic ingredients in the 800 Series Diamond range including, of course, that famous headed enclosure. It is, however, smaller than its other siblings. Step up to the 802 D4, and you’ll get both larger 200mm (8-in) bass cones and a larger 150mm (6-in) midrange driver.
Size & weight
|Height: 1165mm (45.9 in)
Width: 357mm (14.1 in)
Depth: 511mm (20.1 in)
|62.15kg (137 lb)
Solid body Tweeter-on-Top
Continuum™ cone FST
Aerofoil™ cone bass units
|3-way vented-box system
|1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units
|16Hz to 35kHz
|19Hz to 28kHz (+/-3dB from reference axis)
|90dB (on axis at 2.83Vrms at 1m)
|2nd and 3rd harmonics (90dB,1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 20kHz
|8Ω (minimum 3.0Ω)
|Recommended amplifier power
|50W – 500W into 8Ω on unclipped programme
|Max recommended cable impedance
