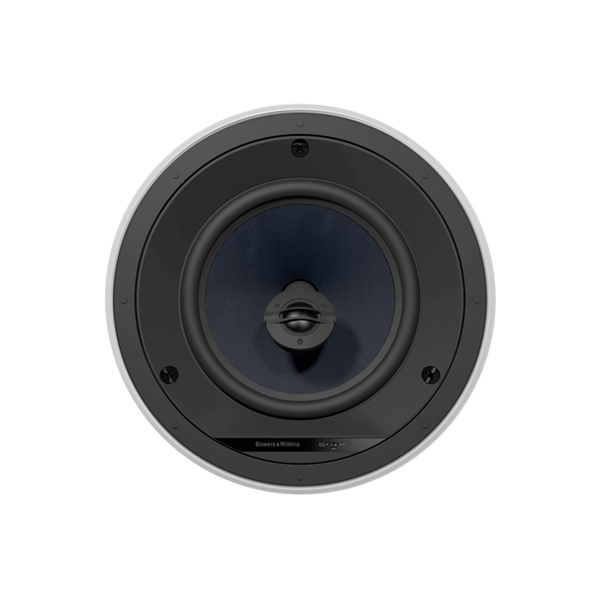

Bowers and Wilkins CCM682 Pair
Brand Bowers & Wilkins
The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Kevlar® cone bass/midrange driver and an aluminium dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality.
The aluminium tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better offaxis response.
The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass.

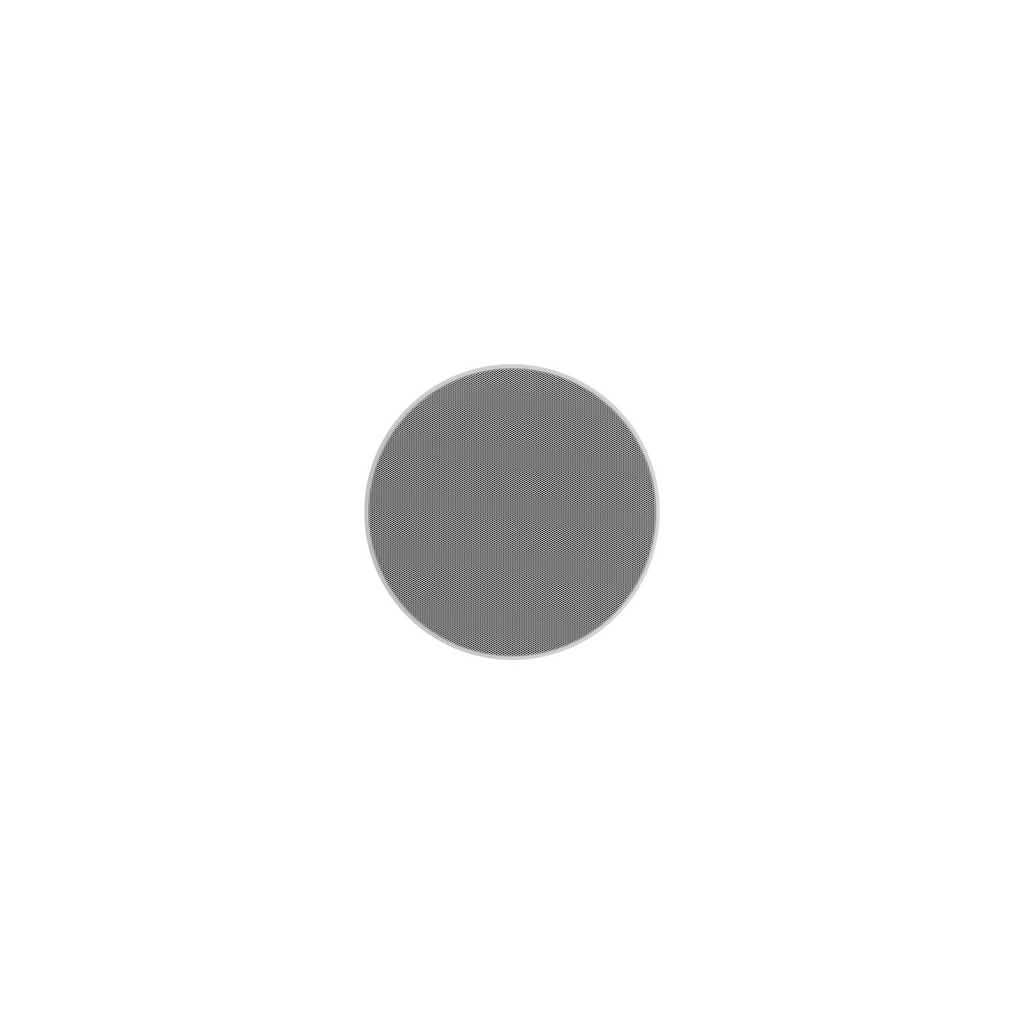

The blue Kevlar® cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
|Description||2-way in-ceiling system|
|Drive Units||1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue Kevlar® cone bass/midrange
|Frequency Range (-6dB)||35Hz – 50kHz|
|Recommended Amp Power||25 – 150w|
|Sensitivity SPL (2.83V, 1m)||88dB|
|Impedance Nominal (min)||8Ω (4.5Ω)|
|Frame diameter||290mm (11.4in)|
|Cut-out diameter||250mm (9.8in)|
|Depth behind surface||133mm (5.2in)|
