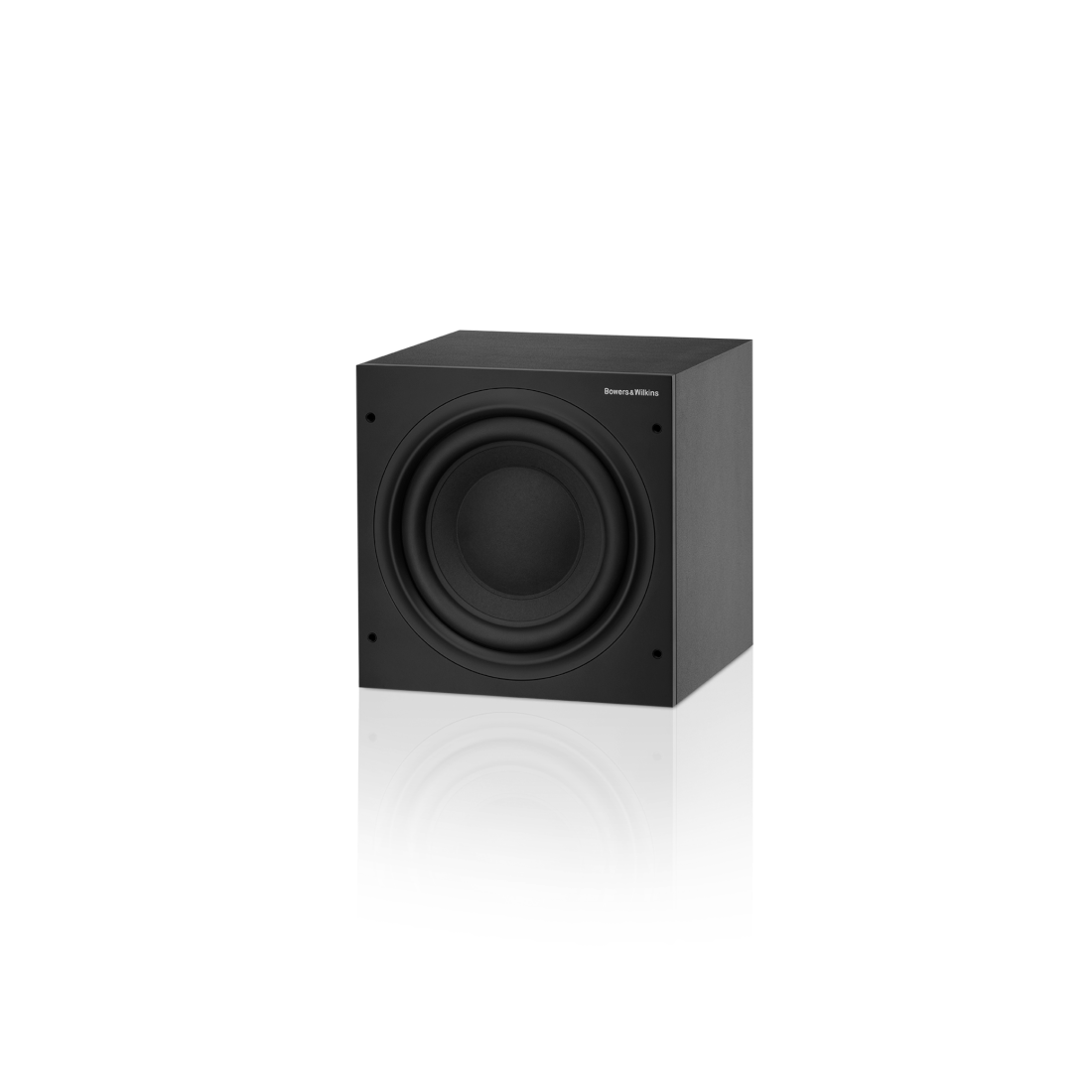

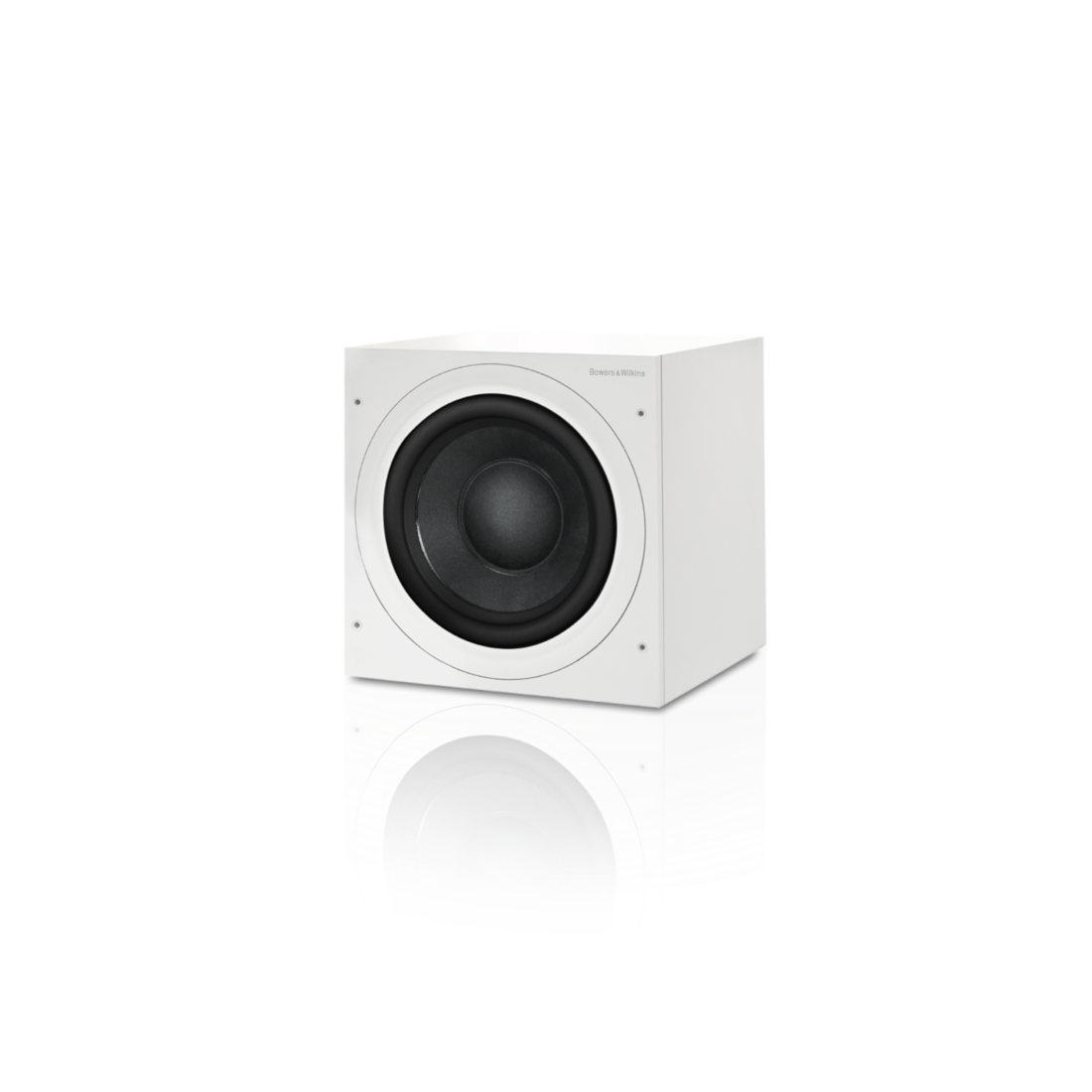

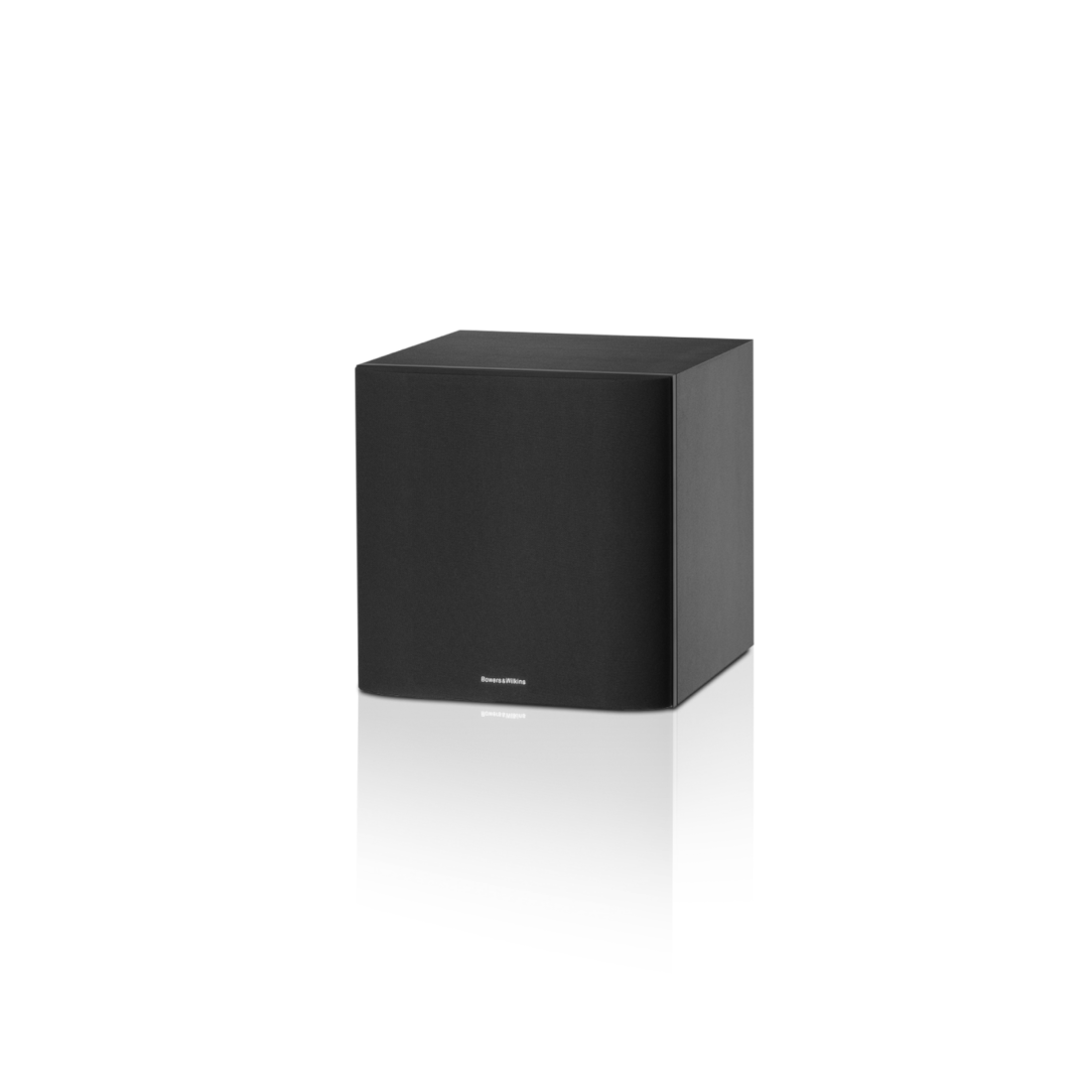

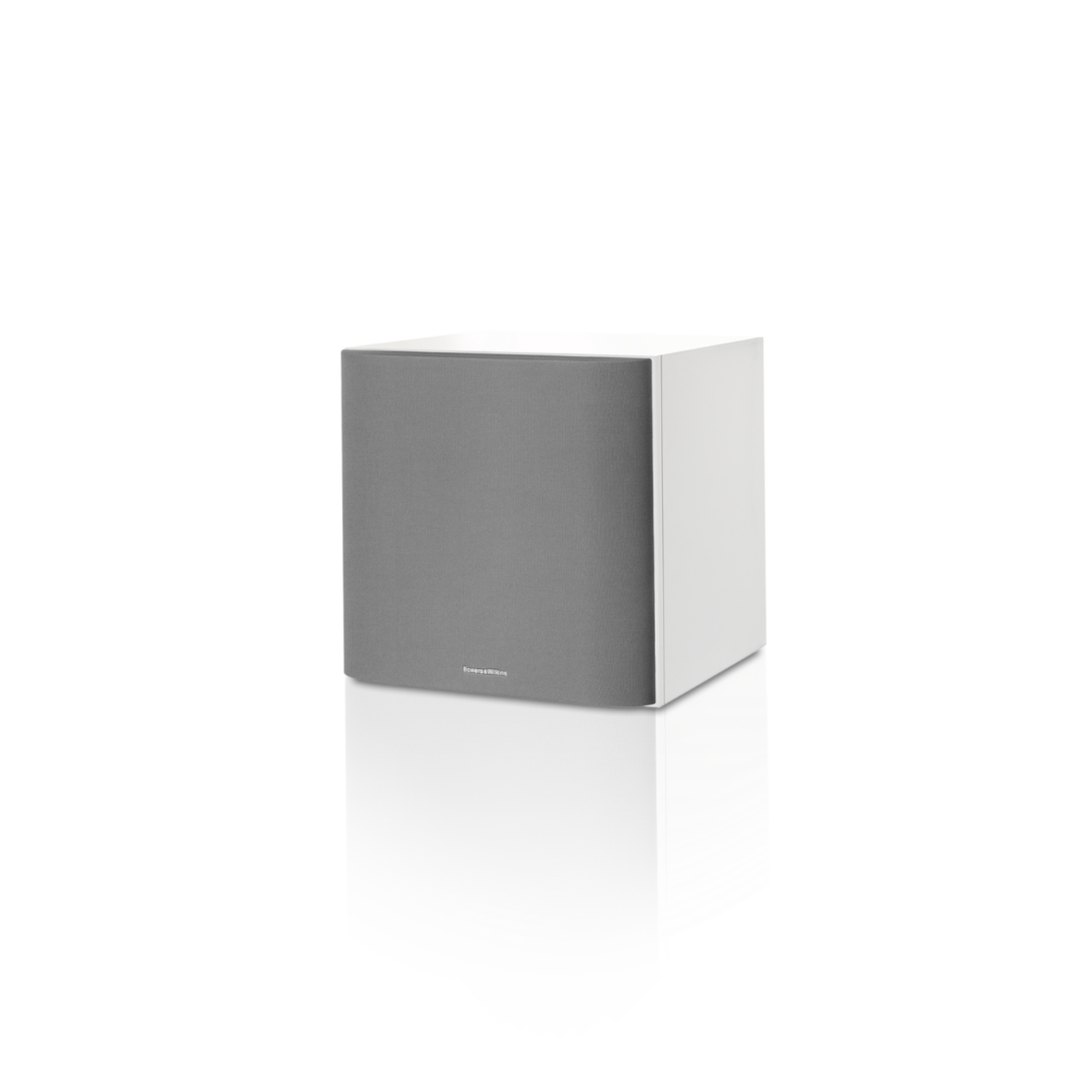

Bowers and Wilkins ASW610 Subwoofer



The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality lowfrequency output, and its audiophile-standard 200W Class D

amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

Drive unit: 250mm (10 in) paper/Kevlar. cone long-throw

Frequency range: -6dB at 20Hz and 25/140Hz adjustable (EQ at A)

Frequency response: Å}3dB 27Hz – 40/140Hz adjustable (EQ at A)

Bass Extension  -6dB at 20Hz (position A)

                          -6dB at 25Hz (position B)

                          -6dB at 30Hz (position C)

Amplifier Power output: 200W

Rated power consumption:

40W/ 0.5W standby

Input impedance: 33kW

Signal / noise: >90dB
