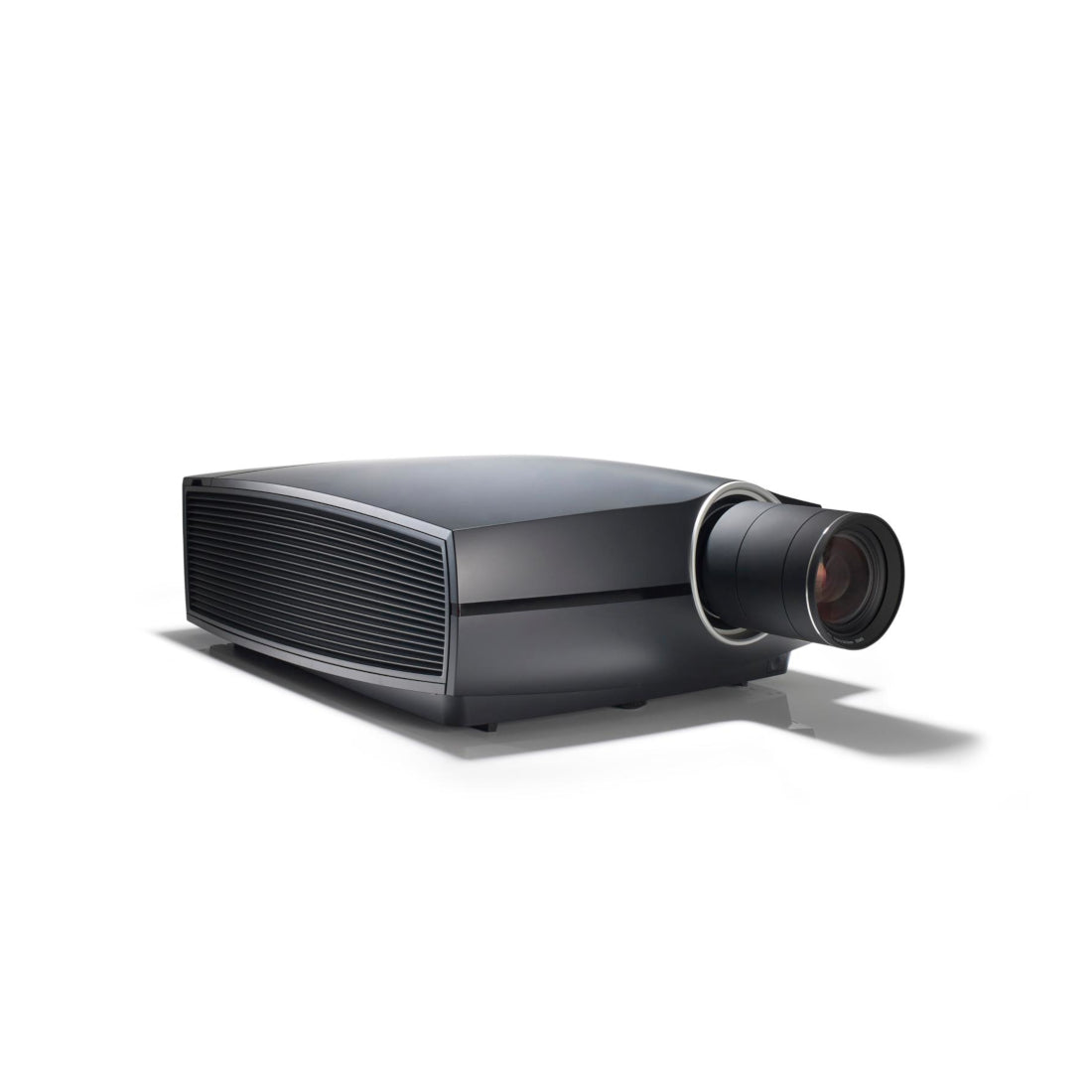

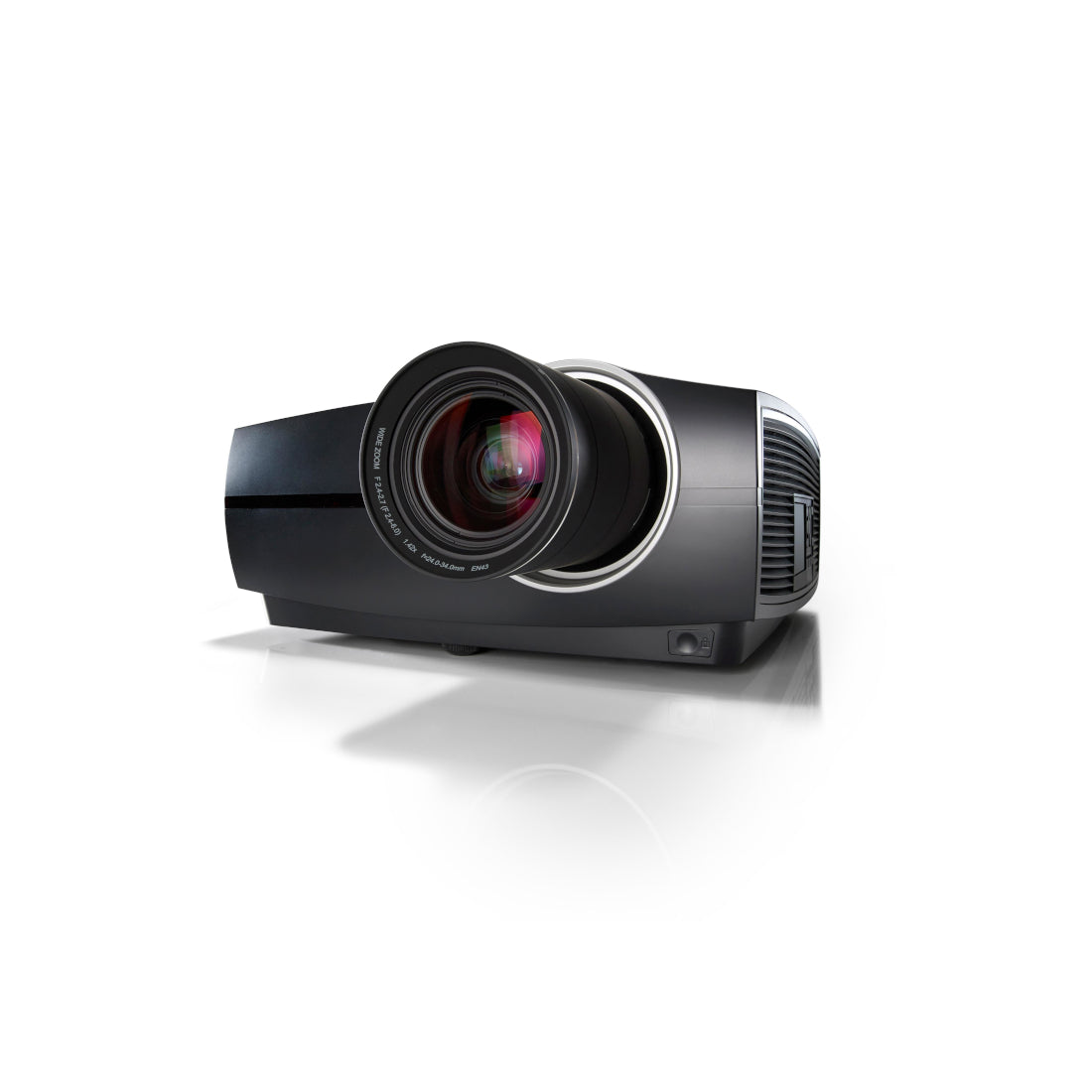

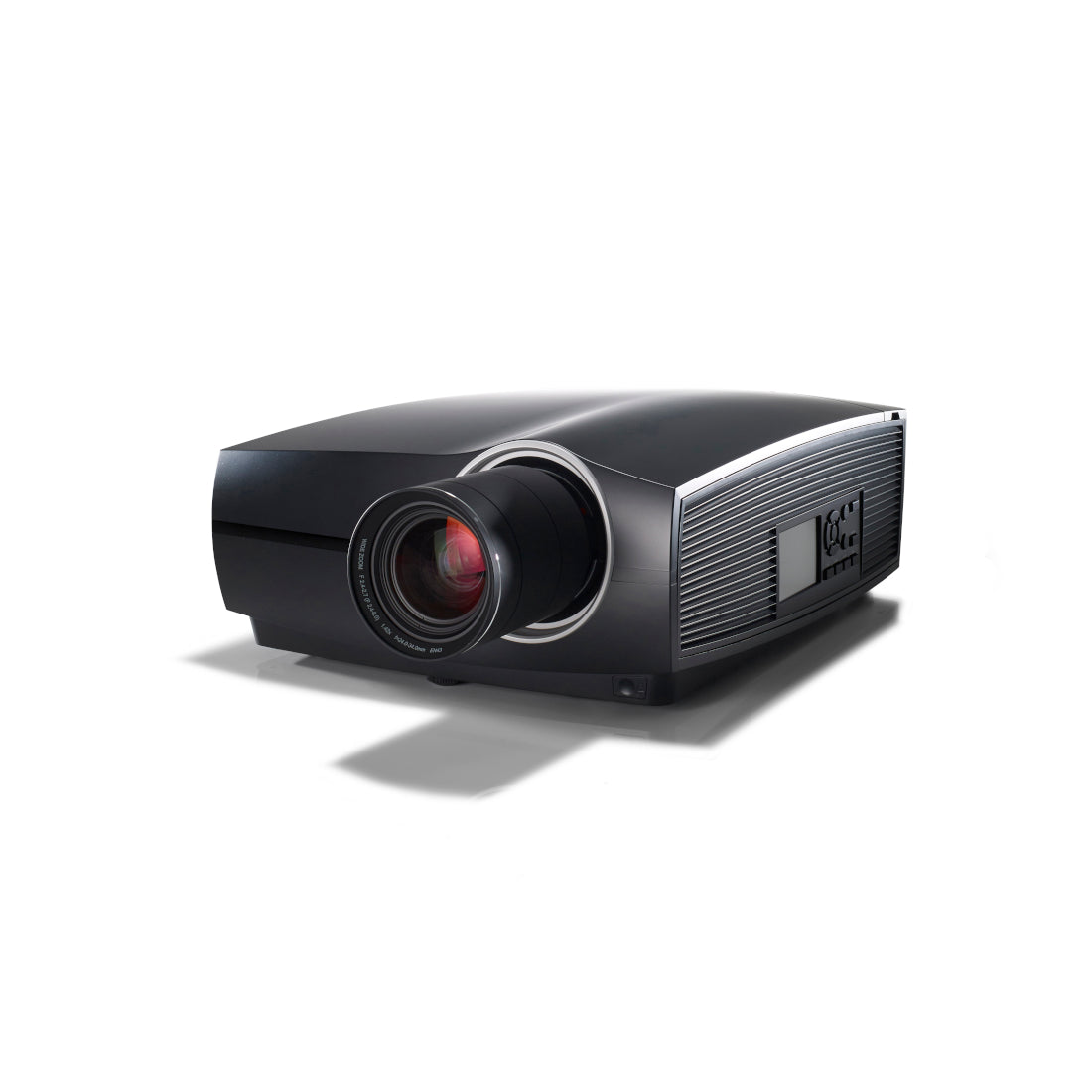

Barco Medea UHD 4K DLP Laser Projector
Just as the mythical Medea flew in a golden chariot driven by dragons, our Medea will bring fantasy to life.
Painstakingly designed, optimised and manufactured in our European design centers, Medea delivers unprecedented performance in small to medium sized media rooms and dedicated home cinemas.
A unique blue laser phosphor light engine developed by Barco.
Blue lasers are selected based on their high density and power efficiency.
Warp to Center
Barco Residential has a unique way to handle aspect ratio's within our 16:9 projectors. This feature is called warp to center. The change between aspect are instant.
Prospector is a lot more than a basic user interface. It offers a full overview of all the features you find inside the projector. It offers monitor options as well as setup options.
Warp and Blend
Warping is the process of digitally manipulating an image to compensate for alignment distortions.
Blending allows multiple projectors to be seamlessly combined to create unique digital canvas solutions.
RealColor is Barco's proprietary color management system, enabling simple and accurate calibration to your desired color gamut or white point.
Low latency is desirable to achieve that smoother gameplay and user experience we all want, without input lag. If latency is >30ms, your gaming experience will be compromised, Barco’s latency is <20ms (including all image processing).
Professional grade optics
State of the art "Pulse" electronics
Our “Pulse” electronics are built on a superior FPGA platform, featuring a dual core processor on the industry’s only 20 nm SoChave, with 96 transceiver lanes delivering 3.3 Tbps of serial bandwidth.
Thanks to our unique single step processing technology (SSPTM), Pulse electronics are designed to process 4K UHD, HDMI 2.0a, HDCP 2.2 and HDR10 signals with extremely low latency. This provides exceptional gaming and movie viewing experiences.
Barco’s RealColor processing enables simple and accurate calibration to your desired color gamut and white point.
Award winning DLP technology
Medea utilises the very latest 0.66" DMD from Texas Instruments which features a 5.4 Micron Micromirror Pitch and a ±17° Micromirror Tilt (Relative to Flat Surface). This technology allows us to display flawless 4K UHD (3,840 × 2,160 px) images.
Laser light source
Light on demand, allows you to adjust light output to match the time of day and/or content you’re viewing. Medea’s long laser lifetime means you can treat it like a TV, whilst still getting the big screen experience. 20,000 hours laser usage equates to 5 hours viewing every day for 11 years.
|Projector type||Single chip DLP
|Resolution||3,840 x 2,160 (4K UHD)
|Aspect ratio||1.78:1 (16:9)
|Light source||Laser phosphor
|Light source lifetime||40,000hrs in Long Life Mode
20,000hrs in Normal Mode
12,000hrs in Silent Mode
12,000hrs in High Brightness Mode
|Light output||Up to 6,500 ANSI lumens
|CLO (constant light output)||Yes|
|Contrast ratio||1,300:1 Sequential
|Lens range||(R98017241) - GLD (0.80 - 1.00:1)
(R98017221) - GLD (1.00 - 1.35:1)
(R98017201) - GLD (1.35 - 2.00:1) *
(R98017191) - GLD (1.35 - 2.00:1) - Manual Zoom & Focus **
(R98017211) - GLD (2.00 - 3.00:1)
NOTE: The below lens options require an EN Series lens adapter (R9801442)
(R9801832) - FLDX UST (0.54:1) - 90° lens
(R9802244) - EN67 (0.86:1)
(R9802243) - EN66 (1.06 - 1.60:1)
(R9802003) - EN76 (1.26 - 1.72:1)
(R9802242) - EN63 (1.58 - 2.25:1)
(R9802241) - EN61 (2.25 - 3.31:1)
(R9801211) - EN44 (3.30 - 6.08:1)
* Standard Lens Option(s) - USA
** Standard Lens Option(s) - Rest of World
|Optical lens shift||GLD Series Lens Options
Up to 60% vertical lens shift & up to 18% horizontal lens shift (depending on lens selection)
EN Series Lens Options
Up to 67% vertical lens shift & up to 18% horizontal lens shift (depending on lens selection)
|Color correction||P7 RealColor™
|Image processing||Embedded Warp & Blend Engine
|WARP||4-Corner Warp & Bow Correction via Warp Engine
|Network connection||10/100 Ethernet via RJ45 connection|
|Integrated web server||Yes|
|Diagnostics||via Prospector web interface
|3D||Active Stereoscopic 3D
Additional hardware required please contact us for details
|Inputs||1 x HDMI 2.0 (HDCP 2.2)
1 x HDBaseT (HDCP 1.4 - 9Gbps only)
2 x Dual Link DVI-D
2 x Display Port (1.2)
1 x RJ45 Ethernet
1 x RS232
1 x Remote Control (RC)
3 x USB (2 x Rear, 1 x Front)
DMX (1 x Input, 1 x Output)
|Input resolutions||From VGA up to 4K UHD (3,840 x 2,160) @ 60Hz
or up to 2,560 x 1,600 @ 120Hz
|Control||IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant
NOTE: 12v Trigger(s) do not follow standard functionality and require an IP command to enable / disable them.
Download our integration guide for more information.
|Power requirements||100 - 240V / 50 - 60Hz
US Requires: 20A Service (NEMA 5-20P Plug Type)
|Power consumption||850 W maximum|
|BTU per hour||2,900 BTU/h maximum
|Noise level (typical at 25°C/77°F)||35 dB(A)
|Operating temperature||10 to 45 °C at Sea Level
Optimal Set Point: 20 °C
|Operating humidity||20 to 80% (relative humidity)|
Air Inlet (from Rear w/Feet Down): Left Side
|Exhaust airflow||221 ft3/min @ 22.9 °C
375 m3/hour @ 22.9 °C
|Dimensions (WxLxH)||Excluding Lens
481 x 680 x 239 mm
18.9 x 26.8 x 9.4 in.
25.5 kg / 56.2 lbs
|Shipping dimensions (WxLxH)||Excluding Lens
920 x 700 x 700 mm
36 x 27 x 27 in.
|Shipping weight||Excluding Lens
42 kg / 92 lbs
|Accessories||Power Cord, Remote Control|
|Certifications||CE, FCC Class A and cCSAus|
This projector is Risk Group 2 (RG2) according to IEC EN 62471-5.
This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 3.5 is installed.<\p> Refer to the installation manual for further information.
|Warranty||Limited 3 years parts and labor
Extendable up to 5 years
Please contact us for details
