Anthem STR Power Amplifier

$10,499
By Anthem

Description

Two-Channel Revolution.

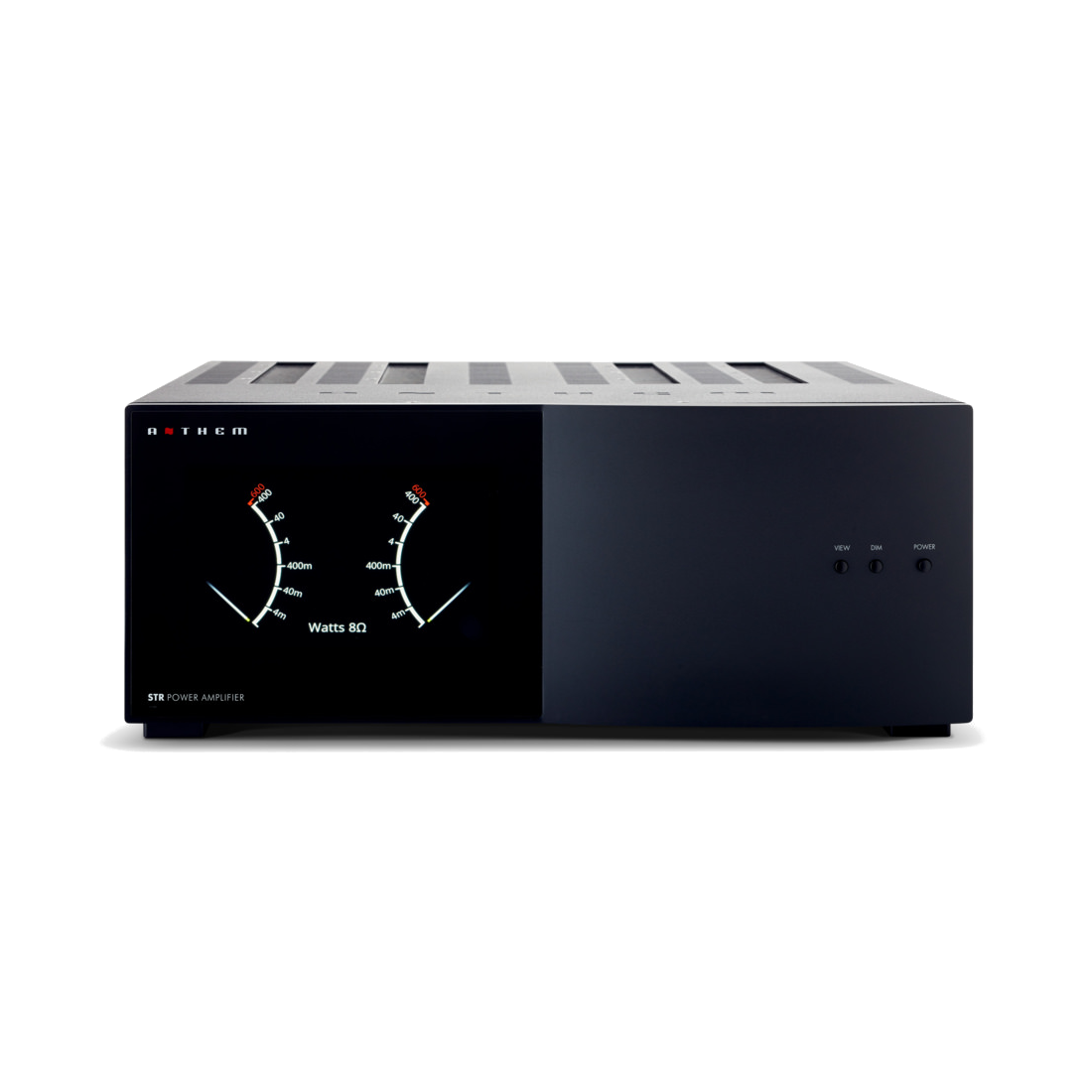

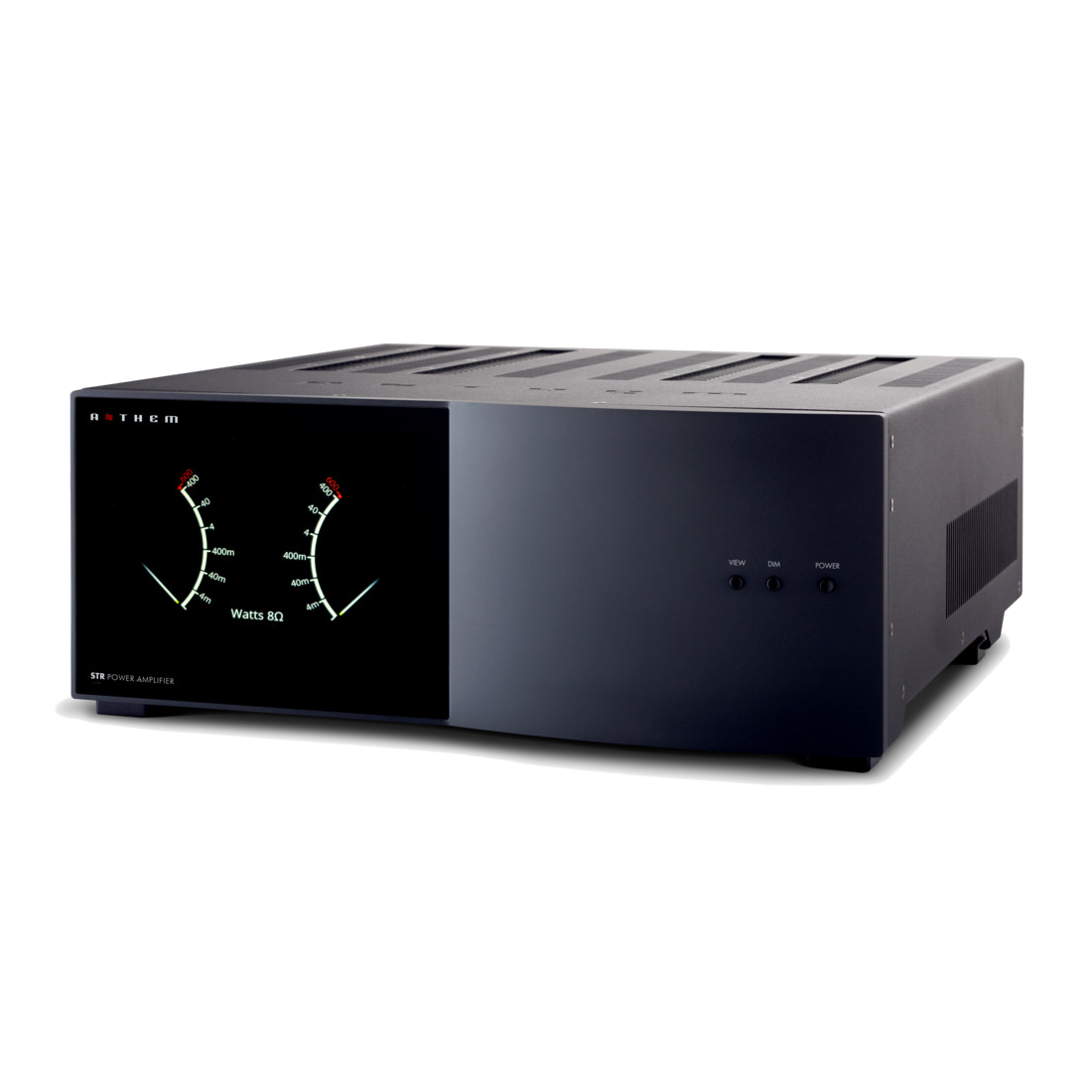

The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component.

Designed, engineered, and Crafted in Canada, the STR Power Amplifier delivers 400 Watts/channel into 8 ohms with both channels driven, a massive 600 Watts/channel into 4 ohms (both channels driven) and 800W in 2 ohms, for true no-holds-barred performance.

Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, highly conductive audiophile connectors provide a perfect match to the STR Preamplifier.

STR Power Amplifier pictured with STR Preamplifier (sold separately). Both models available in black or silver finishes.

STR Power Amplifier Features and Functions

  • 400W/600W/800W into 8/4/2 ohms
  • Cascoded complementary feedback input stage
  • Sixteen bipolar output devices per channel
  • Dual Mono Design
  • Massive toroidal transformers
  • Soft turn-on
  • Four power on/off options
  • No rail fuses
  • Advanced Load Monitoring™ Technology
  • Graphic front panel display for the power meter, status, and easy setup navigation

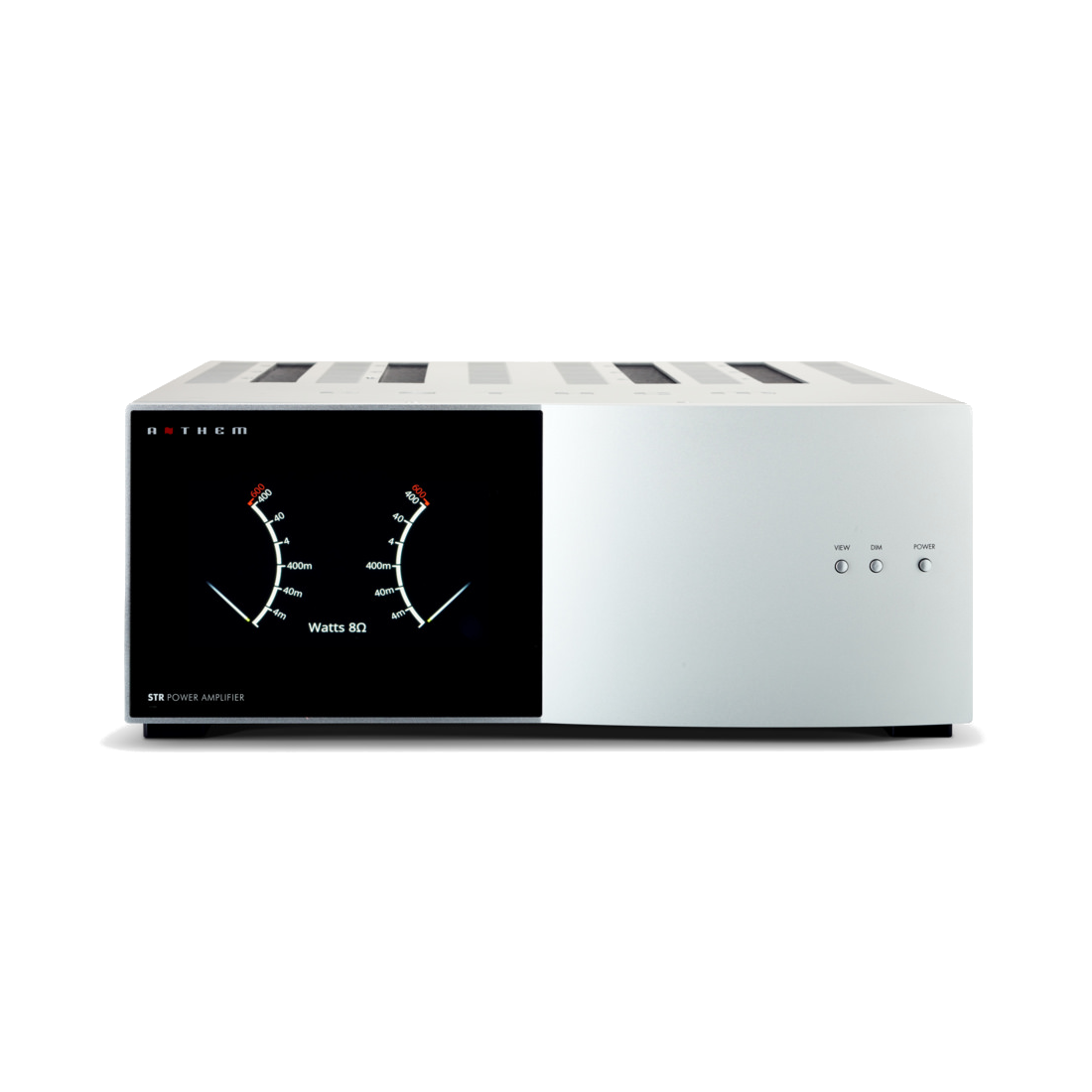

  • Available in Silver and Black Finishes
  • Crafted in Canada

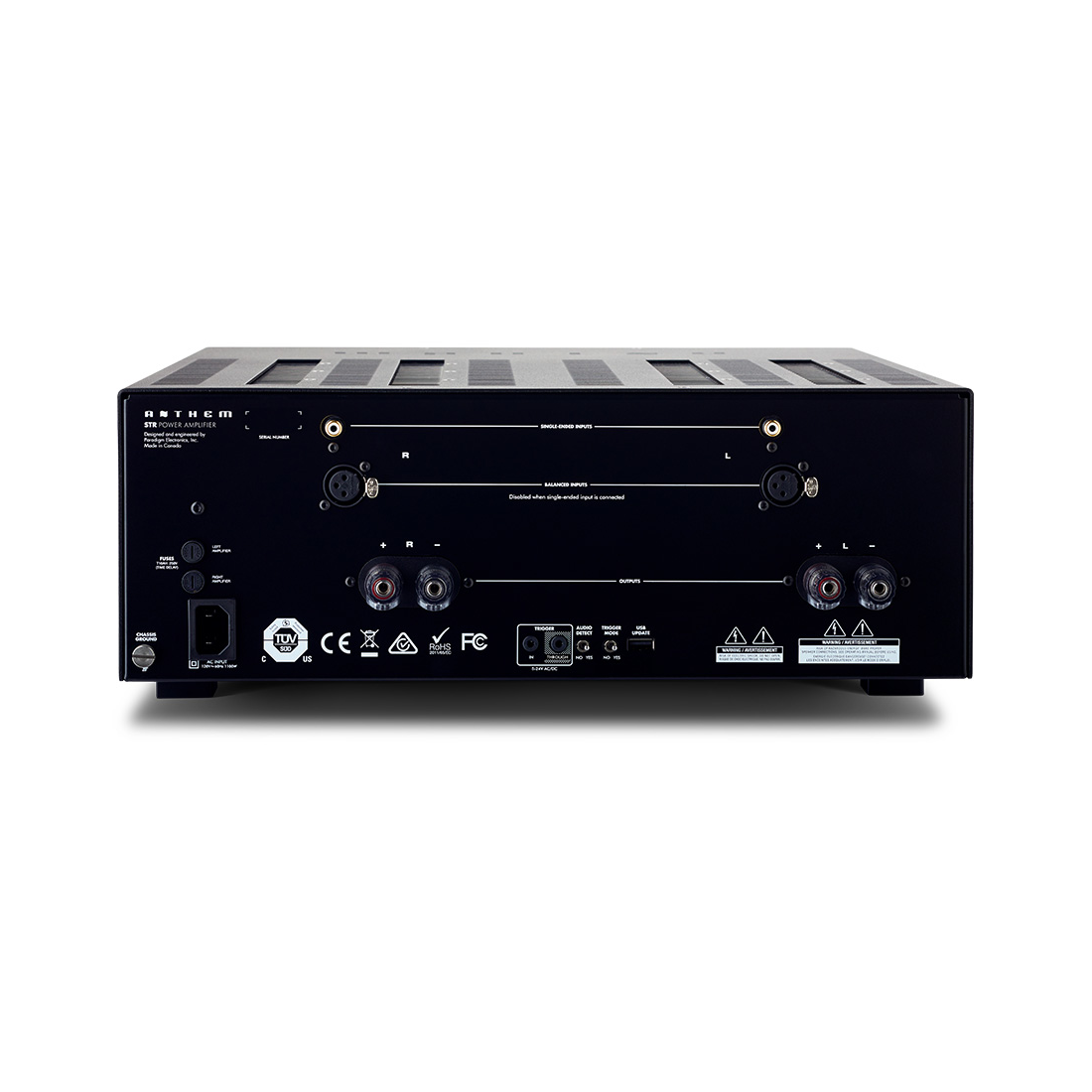

STR Power Amplifier - Rear View

Massive Power.

Cascoded Complementary Feedback Input Stage

The STR Power Amplifier benefits from our proprietary input topology—a unique departure from the classic differential input stage. Eight low-noise bipolar input devices are configured in a complementary active-load cascoded feedback arrangement for reduced distortion, exceptionally linear response and superior bandwidth. Transistors in critical stages are hand-selected and matched for lowest possible distortion.

Sixteen Bipolar Output Devices Per Channel

Anthem engineers incorporated sixteen bipolar output devices per channel, resulting in peak production that is effortless and instantaneous, cinching even the most challenging material. The use of multiple bipolar output devices in class AB configuration also dramatically reduces distortion while ensuring extreme linearity, extensive bandwidth, and stress-free reliability.

Experience the immense dynamics of up to 800 clean watts delivered into demanding 2-ohm loads, or 400W into 8 ohms/600W into 4 ohms continuously and with both channels driven.

Massive Toroidal Transformers

Conservatively rated, in a low-profile design shaped to minimize hum, the low-impedance toroidal power transformers — one for each channel — make no sacrifices when it comes to delivering a continuous supply of pure, clean, low noise power. As well, both the power supply impedance and internal cabling inductance are minimized to deliver a clear path for maximum power.

The amplifier channels are thus able to deliver stable, continuous power at maximum output without affecting one another, even when driving the lowest impedances. While some amplifiers oscillate or run out of power when driving lower impedance loads, the STR Power Amplifier remains perfectly stable under all conditions.

Soft Turn-On

A sequence-controlled soft turn-on significantly reduces power line transients and in-rush current during start up, thereby preventing accidental tripping of circuit breakers.

No Rail Fuses

The amplifier sections are Direct Connected to the power supply capacitor bank. This keeps output impedance remarkably low while making more power available to the amplifier. Even when driving lower or complex impedance loads, the result is audibly superior performance.

Power On/Off Options

In addition to the traditional options for power-on, the STR Power Amplifier allows trigger mode and audio signal sensing to be combined so you would never need to think about turning the amplifier on or off manually. This can be useful when using a preamp with Home Theater Bypass mode together with a surround sound processor in the same system.

ALM™ - Advanced Load Monitoring™ Technology

Exclusive ALM™ technology monitors internal temperature, current and voltage to ensure safe and uninterrupted long-term operation. ALM is not in the signal path, so it never gets in the way. Instead, ALM engages instantly, but only in the most extreme circumstances, to protect your amplifier and speakers from damage, while lowering the chance of a line fuse blowing during an over-current condition. The front panel display confirms status at all times.


Specifications:

POWER AMPLIFIER
Impedance
Power Output (per channel)
(Continuous, 20 Hz - 20 kHz, <1% THD)
400 W 600 W 800 W*
* Maximum 3 seconds due to high current draw.
THD (400 W) 0.0007% (1 kHz), 0.004% (20 kHz)
IMD (300 W)
ITU-R (19 kHz + 20 kHz) 0.0006%
SMPTE (60 Hz + 7 kHz) 0.0016%
SNR (IEC-A, ref. 400 W) 121 dB
Frequency Response (20 Hz - 20 kHz) ± 0.1 dB
Power Bandwidth (-3 dB at 400 W into 8 ohms) 91 kHz
Slew Rate 30 V/μs
Damping Factor (20 Hz - 1 kHz) 360
Channel Separation 101 dB (100 Hz), 98 dB (10 kHz)
Input Impedance 10kΩ (RCA), 15kΩ (XLR)
Input Sensitivity (for 400W into 8Ω) 2.1 Vrms
Voltage Gain 29 dB
POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
POWER CONSUMPTION
Standby 310 mW
Idle 65 W
Typical Playback Levels 150 W - 300 W
High Playback Levels 600 W - 1100 W
DIMENSIONS
Height 6-3/4” (17.2 cm)
Width 17” (43.2 cm)
Depth (not including power cord) 18-1/2” (47 cm)
Weight (unpacked) 60 lb (27.3 kg)
