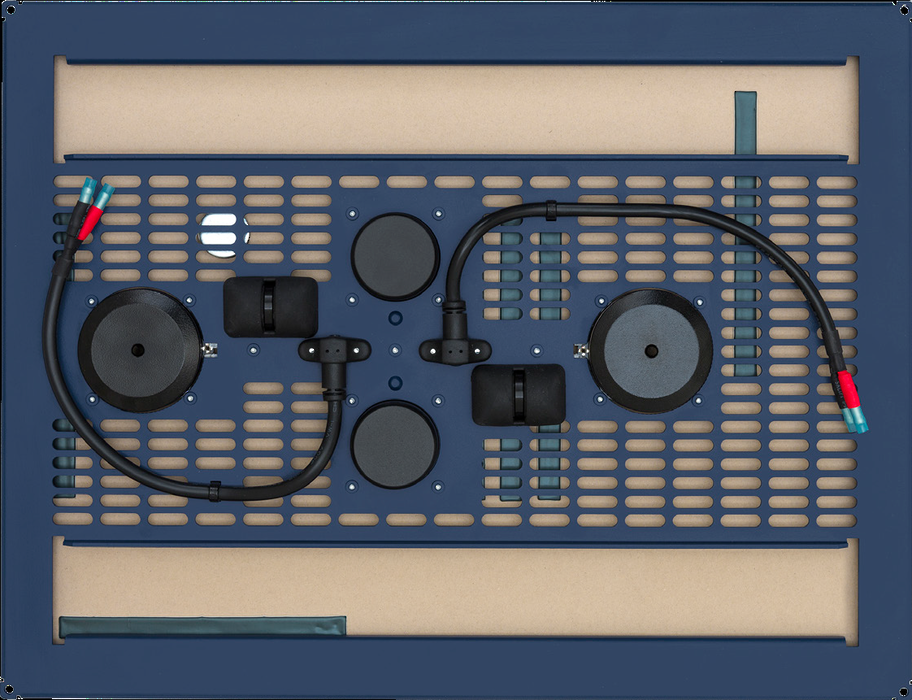

Amina Mobius 7i In Wall Speaker

By Amina


Building upon 20 years of R&D at the cutting edge of invisible speaker technology, the ‘i’ update to the Mobius range of loudspeakers takes the already highly-refined acoustic performance of this fully-covered loudspeaker range to new heights. With the development of brand new proprietry high frequency transducers and in combination with Amina’s patented Optidrive®, Opti-damping® and Reduced Resonance Exciter® technology, Mobius speakers continue to perform well into the ultrasonic region and now provide significantly higher sensitivity and increased low frequency extension, giving an even more open and prominent sound in the vocal range and ultimately providing even more linear performance throughout the frequency range.

Example Application

Residential audio solutions, high power multi-channel surround sound & highend commercial installations. In-wall / ceiling with 2mm plaster skim, or into cabinetry / millwork & covered with wood, leather, slate, marble etc. Can be supplied with high-impedance 100/70V transformer


Specification Mobius7i
Nominal Impedance 4 Ohms
Power Handling 75W/150W
Sensitivity (with 2mm plaster skim) 87dB 1m/2.83Vrms
Frequency Response 65Hz - 27kHz (-6db)
Useable Frequency Range 40Hz - 29kHz (+/-10dB)
Electrical Connection Blue butt-splice crimp terminals (14-16 AWG)
Dimensions 450mm x 345mm x 33mm (173/4” x 135/8” x 15/16”)
Product Weight 1.8kg (3lb 15oz)
Fixing Requirements Backbox CV345 / SW345 or Mounting blocks
In-line Protection unit APUi70C_2
Rack-Mount Protection Unit APU-RS8iC or APU-RS16iC
Warranty 10 Years
Datasheet Mobius7i Datasheet
