Amina Mobius 5iB In Wall Invisible Speaker

By Amina



Building upon R&D at the cutting edge of invisible speaker technology, the Mobius ‘iB’ range introduces an entirely new installation technology for plaster finishes.

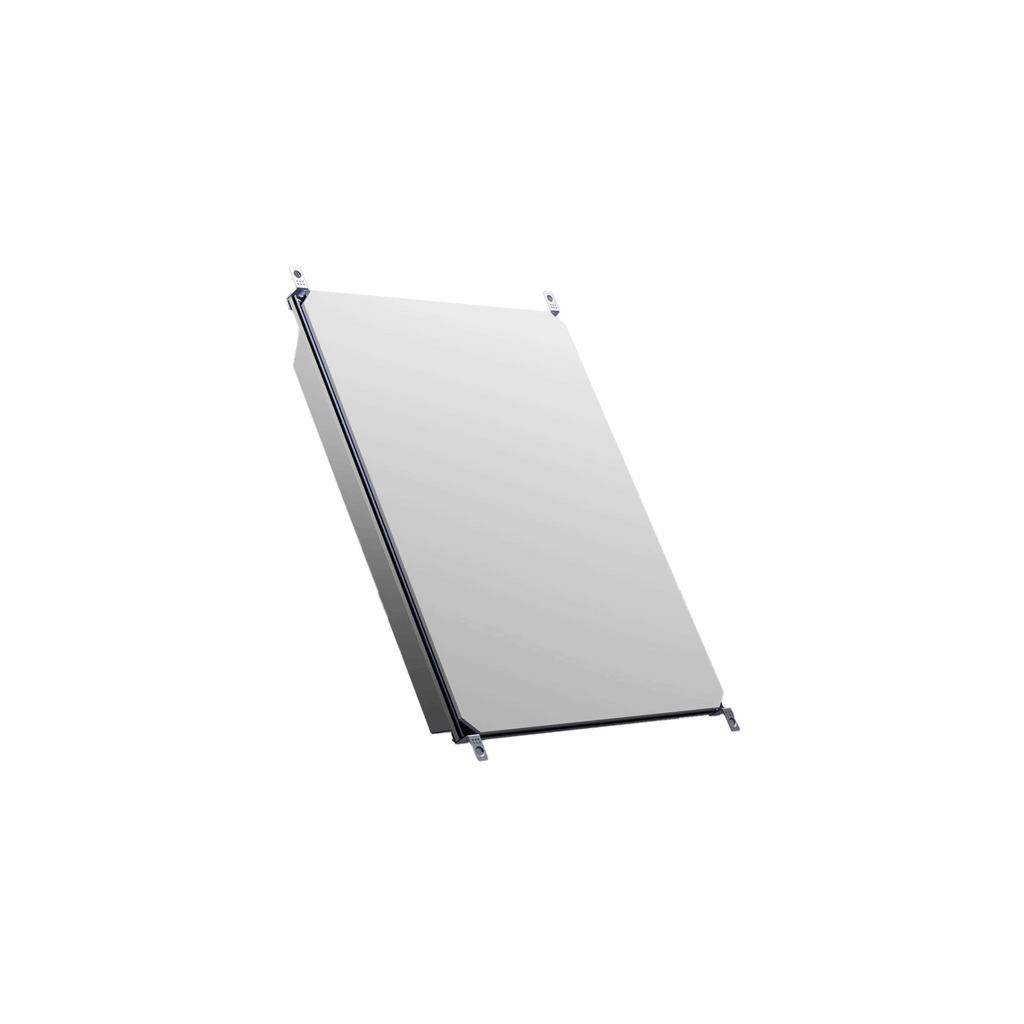

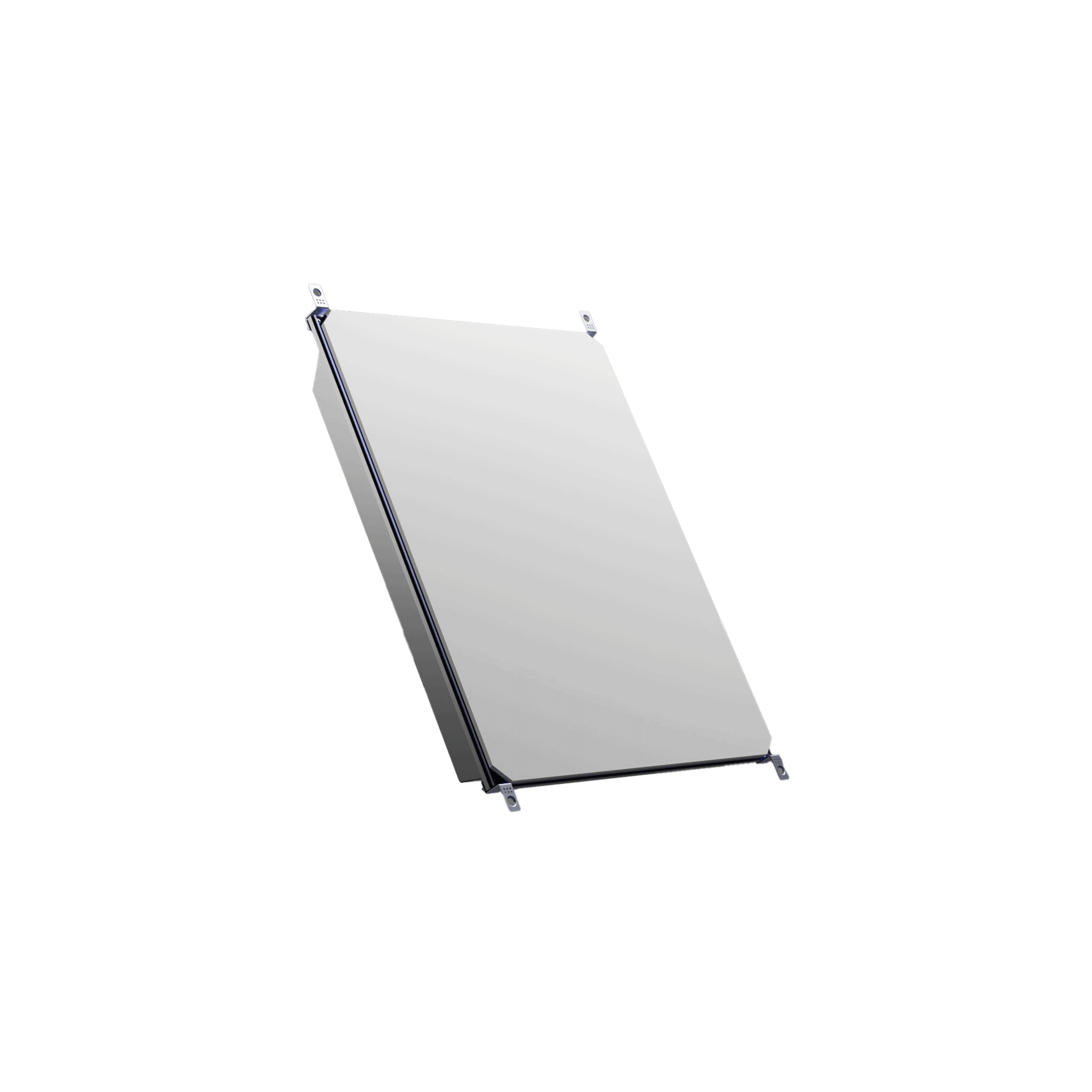

The all new integrated backbox (‘iB’) option combines any Mobius product with an acoustically tuned steel backbox and the patented Amina front mounting tab fixtures to provide a highly robust sealed unit for trouble free installation and lifelong operation. The Amina front mount process avoids any shimming requirements as of result of substrate depths, automatically ensuring the loudspeaker is at the perfect level ready for skimming, resulting a faster installation times.

First launched in 2017, the award-winning Edge series of plaster-up-to invisible loudspeakers have become synonymous with low frequency impact and a truly immersive listening experience. The ‘iBSS’ update not only provides significant acoustic upgrades, but also introduces a new installation technology for plaster finishes. The introduction of ToneRelief® panel technology combined with Amina’s patented Optidrive®, Optidamping® and Reduced Resonance Exciter® technology increases high frequency extension well into the ultrasonic region, and further improves low frequency extension and smoothness. The Edge5iBSS features an all-new integrated, sealed backbox that is acoustically tuned and protects the speaker from any potential contaminants, ensuring a trouble free installation and long life. The streamlined installation process automatically aligns the speaker to the correct depth resulting in a fast and easy installation.

Example Applications:

Plaster-finish, residential audio, mid power multi-channel surround sound & high-end
commercial installations. Install into drylining or retrofit into a plastered cavity wall / ceiling. Can be supplied with high-impedance 100/70V transformer.


Nominal impedance 4 Ohms
Power handling (100 hour continuous/peak) 50W/1000W
Sensitivity (@ 1m/2.83Vrms 90dBSPL
Frequency response (-6dB) 55Hz - 25kHz
Usable frequency range (+/-10dB) 48Hz - 26kHz
Dispersion angle 180° x 180° at specified frequency range
Electrical connection Selection of terminals (14-16 AWG)
Dimensions 452mm x 348mm x 77mm (17 13/16” x 13 11/16” x 3 1/16”)
Product weight 2.8kg (6lbs 3oz
Fixing requirements All fixings provided
In-line protection unit APUi30C, APU-RS8iC or APU-RS16iC
Manufacturer limited warranty 10 years
