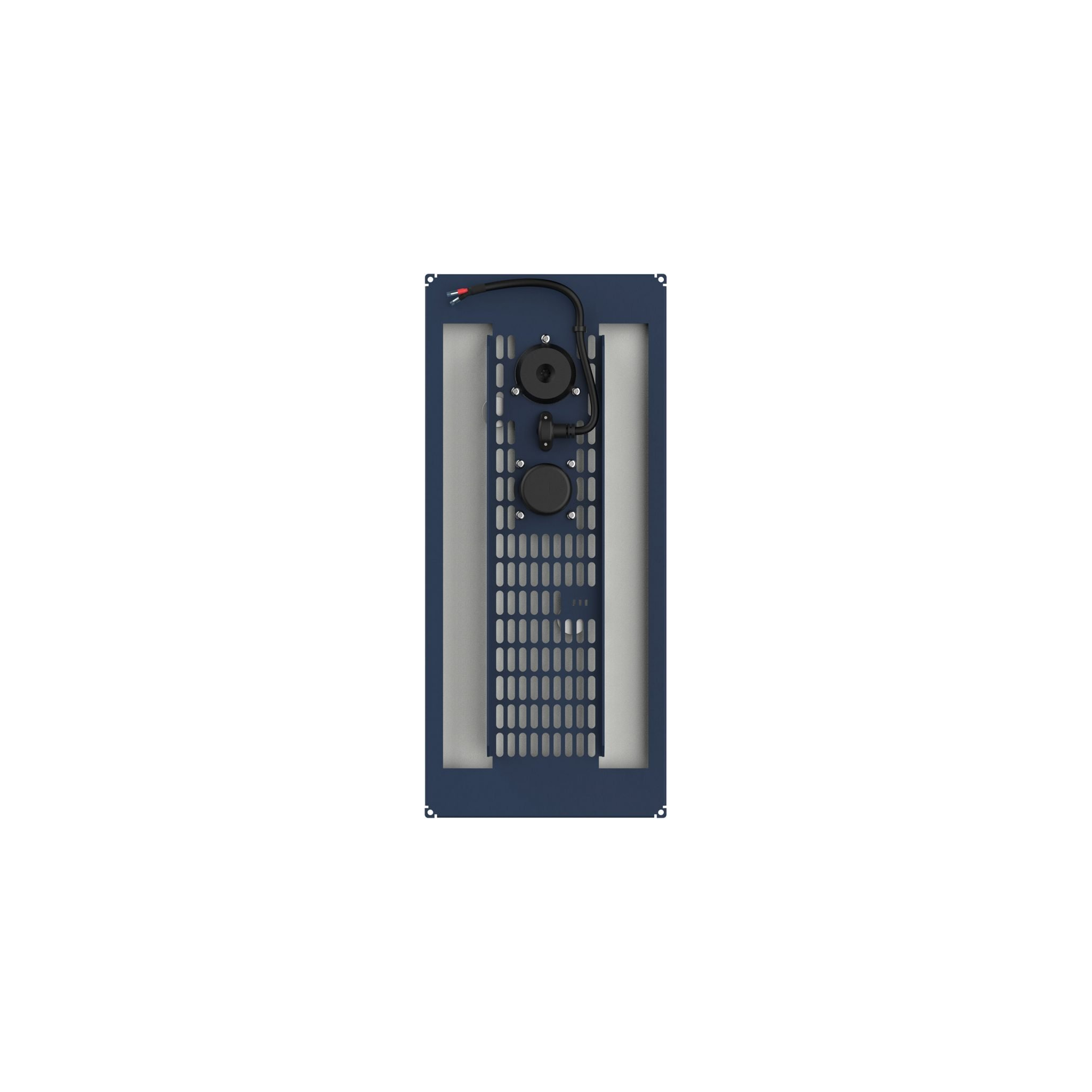

Amina Mobius 5i-S200 In Wall Speaker

By Amina


The Mobius5i/S200 provides a slimline alternative to the Mobius5i invisible loudspeaker, for use when there is limited stud/joist spacing or for use in curved walls/ceilings with a radius greater than 6m. Using the same OptiDrive and OptiDamping technology as the full-size Mobius5i and benefitting from the ‘i’ upgrade, the Mobius5i/S200 is easy to install and is rendered invisible behind a 2mm plaster skim or other material such as solid wood, veneers, leather or stone veneers such as slate. The Mobius5i/S200 is the perfect solution for aesthetically sensitive applications where space is limited.

Example Applications

Invisible audio installations with space limitations or when installing into a curved wall or ceiling. Can be supplied with high-impedance 100/70V transformer for integration into high impedance audio systems


Nominal impedance 4 Ohms
Power handling (100 hour continuous/peak) 50W/100W
Sensitivity (@ 1m/2.83Vrms) 84dBSPL (with 2mm plaster skim)
Frequency response (-6dB) 90Hz - 30kHz
Useable frequency range (+/-10dB) 65Hz - 32kHz
Dispersion angle 180° x 180° at specified frequency range
Electrical connection Blue butt-splice crimp terminals (14-16 AWG)
Dimensions 450mm x 200mm x 32mm (173/4” x 77/8” x 11/4”)
Product weight 1.1Kg (2lb 7oz)
Fixing requirements Backbox CV200/SW200 or Mounting Blocks
In-line protection unit APUi50C_2, APU-RS8iC or APU-RS16iC
Manufacturer limited warranty 10 years
