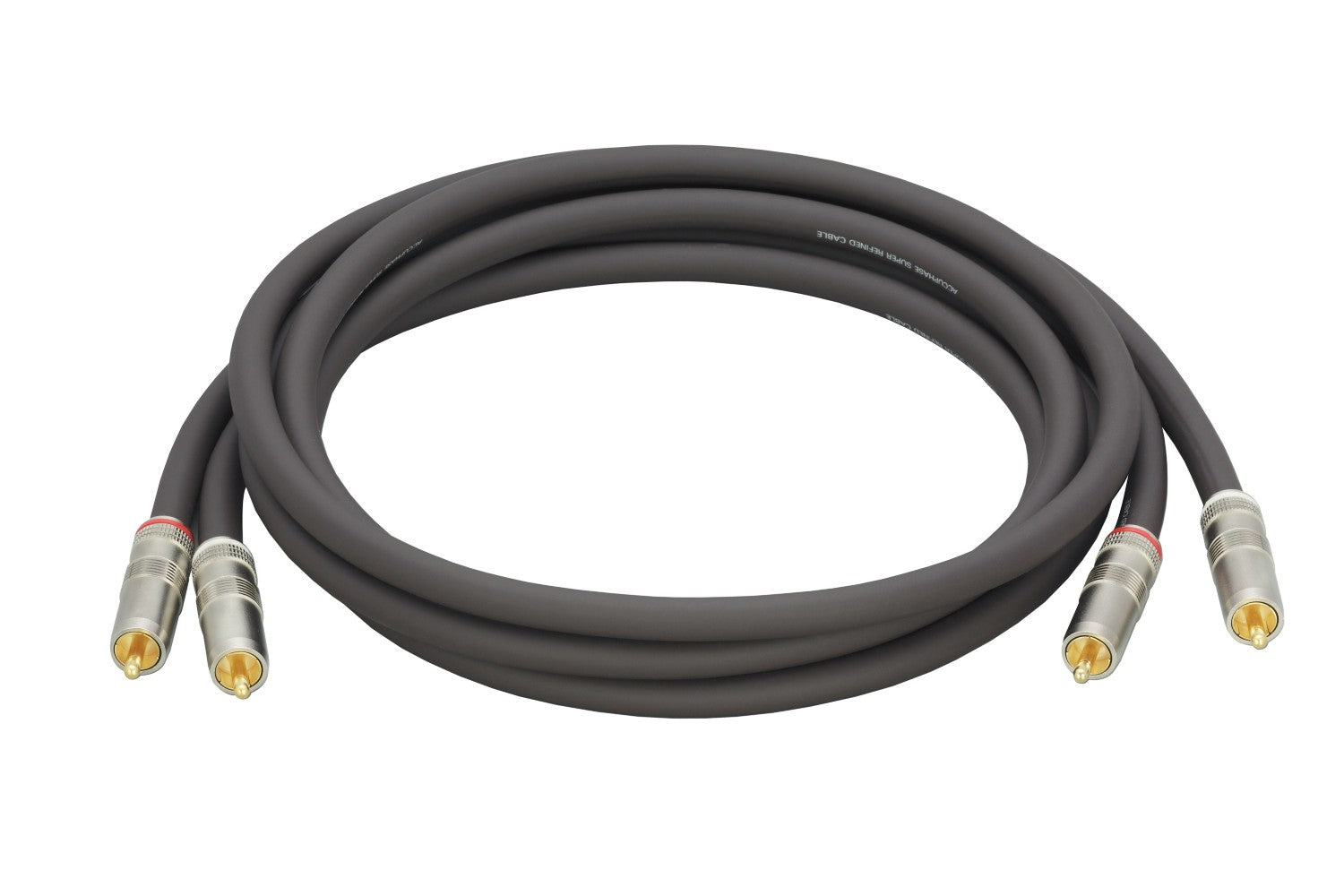

Accuphase ASL Super Refined Audio Cable
Description
ASL type (RCA-type phono plug)
Includes gold-plated phono plugs with low contact resistance and superior corrosion resistance.
By using an 8-core multi-hybrid construction with 2 sets of 4 different types of wires – including class 7N high-grade copper wire – the SR Series delivers extremely pure transmission with reduced loss at the range limits.
A high-density braid and double-layer structure with aluminum foil tape over the 192 φ 0.1 mm annealed copper wires reduces capacitance and creates excellent shielding results.
| Model number | Cable length | Plug type |
| ASL-10B | 1.0ｍ（× 2 ） | RCA-type phono plug |
| ASL-15B | 1.5ｍ（× 2 ） | RCA-type phono plug |
| ASL-30B | 3.0ｍ（× 2 ） | RCA-type phono plug |
SR Series Cable Specifications
| Phono plug | |
| Configuration | 8-core multi-hybrid construction |
| Insulator | Polyethylene |
| Exterior insulation material | PVC Dark brown φ8.7 |
| Central conductor | Class 7N high-grade copper wire + 3 types of copper wire |
| Shielded conductor | Annealed copper wire × 192 |
| Conductor resistance (mΩ/m) | 9 |
| Capacitance (pF/m) | 187.5 |
| Inductance (μH/m) | 0.51 |
Audio cables have to deliver impeccable 100% performance and quality from the device they are connected to without adding any unique character to the sound. We have successfully designed these high-quality audio cables by using carefully selected materials, pursuing an ideal cable structure, and persistent testing. The central conductor in the SR series uses an 8-core multi-hybrid structure while the OFC series utilizes a dual-core structure of stranded oxygen-free copper wires. Both series feature outer shield conductors made from densely braided ultra-fine copper wire to achieve high resistance to induction noise and extremely low transmission loss. Both the SR series and the OFC series with their superb transmission capabilities are finely balanced, strong, flexible audio cables that convey the subtleties of any sound.
