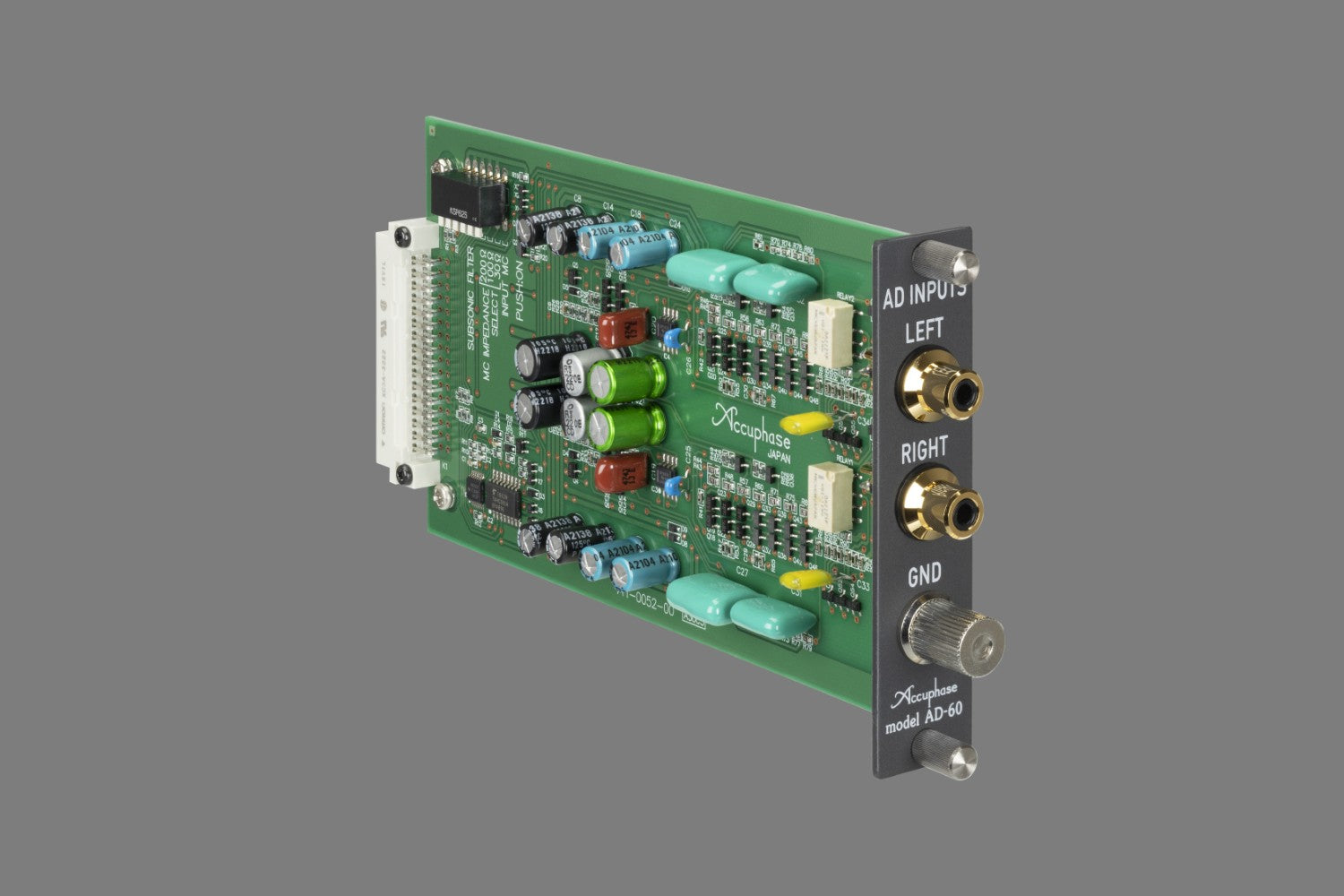

Accuphase AD-60 Phono Input Board
Please contact us for current pricing.
By Accuphase
This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description
High- performance phono equalizer amp for playback of analog records.
- MC/MM switching is possible on the front panel of the enabled device.
- Internal DIP switches control MC input impedance and subsonic filter on/off.
| MC : | Moving Coil type |
| Gain : | 66 dB |
| Input Impedance : | 30/100/200/300 ohms (selectable) |
| MM : | Moving Magnet type |
| Gain : | 40 dB |
| Input Impedance : | 47 kilohms |
| Subsonic filter : | 25Hz -12dB/octave |
GUARANTEED SPECIFICATIONS ( Measured according to IEC 60268-3 ) When attached to the C-2300.
| Switch Position | Sensitivity | S/N ratio (EIA) |
| MM | 2.5mV | 80dB |
| MC | 0.126mV | 68dB |
SUBSONIC FILTER ： 25Hz -12dB / octave
