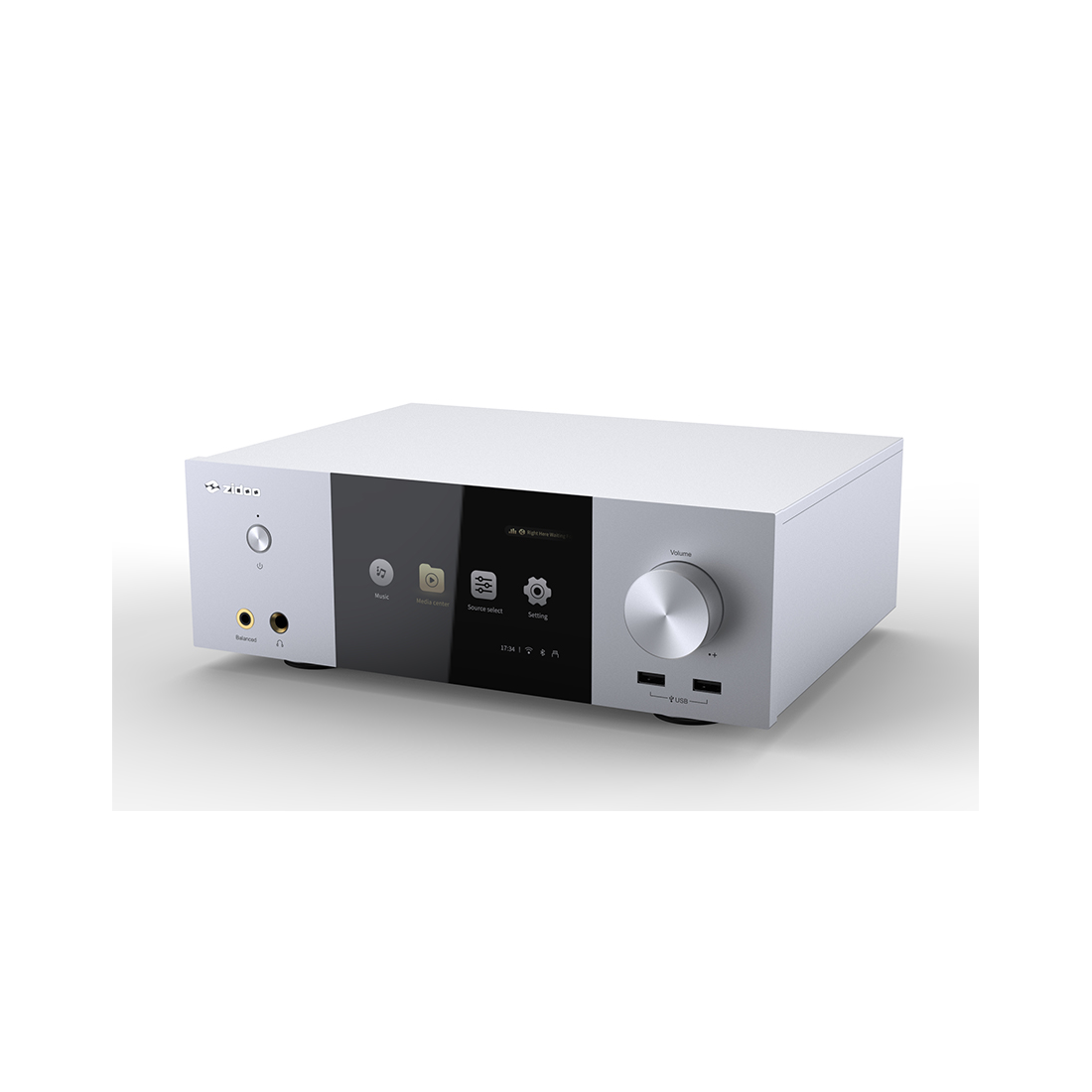

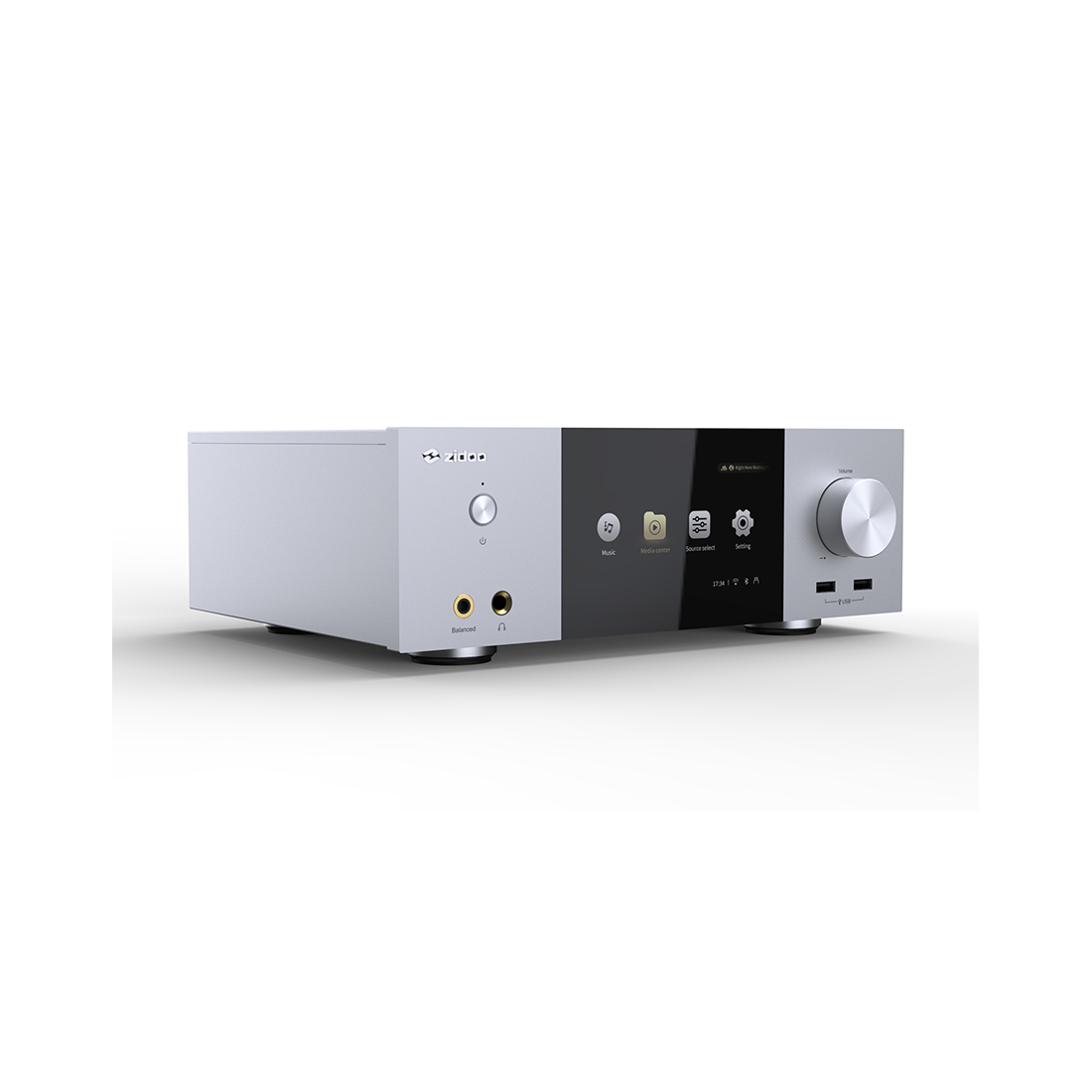

Zidoo NEO S 4K UHD Media Streaming Player

By Zidoo


NEO S is a new product which is all-round, high-performance and cost-effective
Provide excellent audio and video quality to users
NEO S is an all-in-one device with functions like HiFi music digital decoding,
streaming playback, headphone amplifier functions and movie playback
NEO S inherits NEO X's craftsmanship with aluminum thickened chassis and 5-inch OLED
Built in with SSD, dual ES9068 DAC, dual digital/analog power supply modules and toroidal power supply

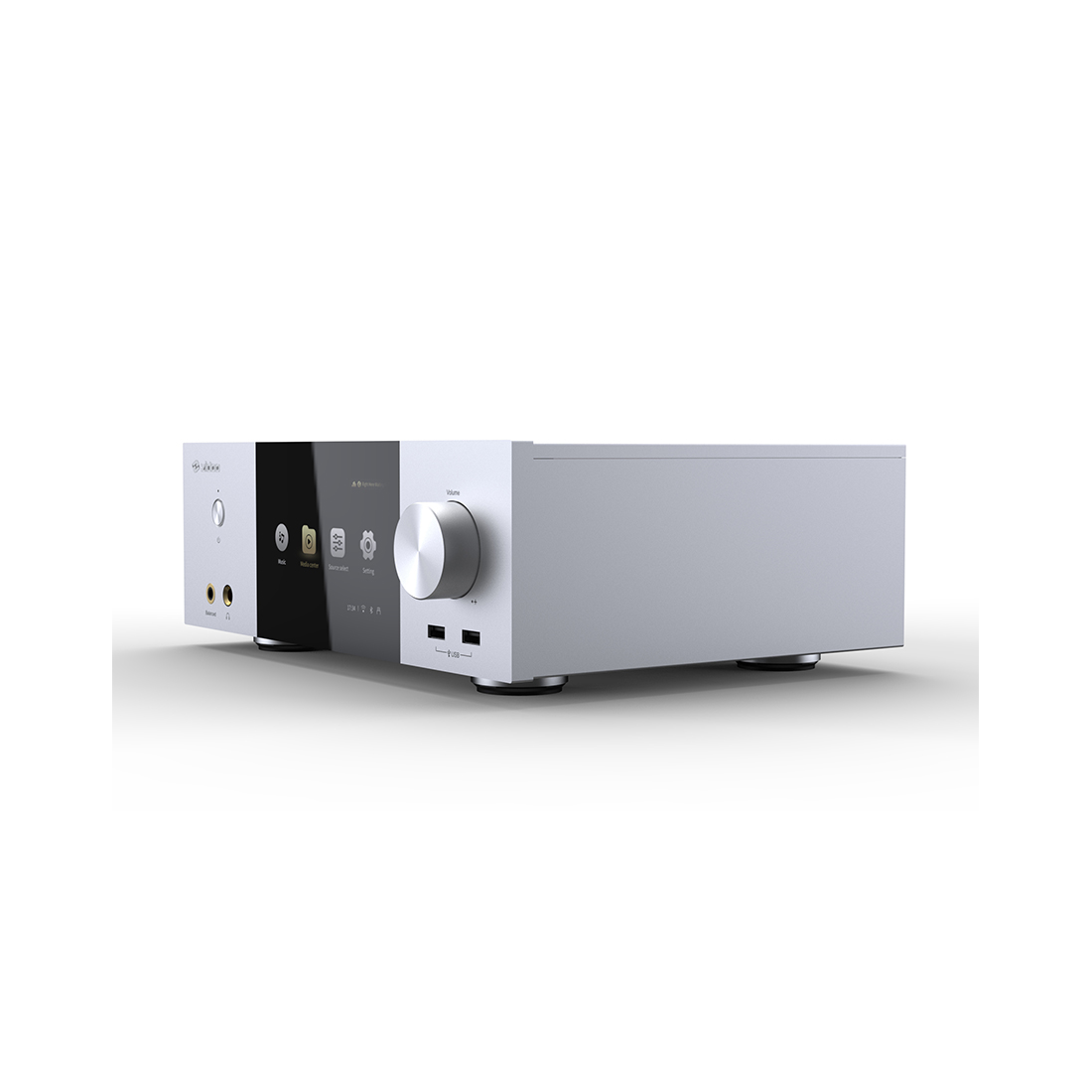

Wonderful craftsmanship

Solid chassis with aluminum alloy CNC structure

Large OLED screen

5-inch OLED HD display with touch screen

Anti-vibration design

Resonance suppressing stiffener structure

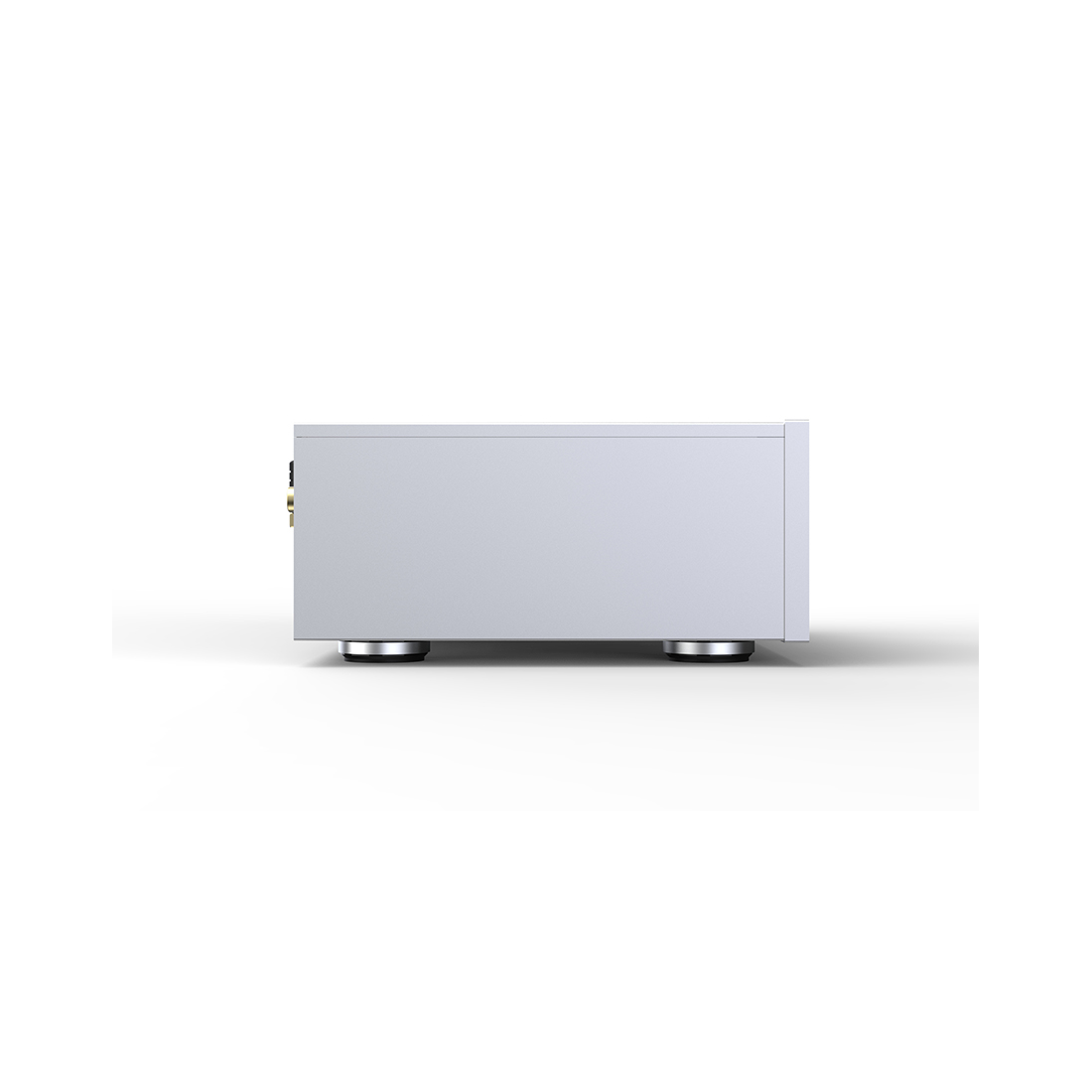

Shock-absorbing foot pads

Technological aesthetics

Beautiful modular professional circuit design
Unique shielding treatment

High Speed SSD

NEO S is equipped with a 256G high speed SSD for local music playback. High-quality music files can be easily stored, data reading is stable and fast. Heating and noise problem of traditional mechanical hard disk can be avoided

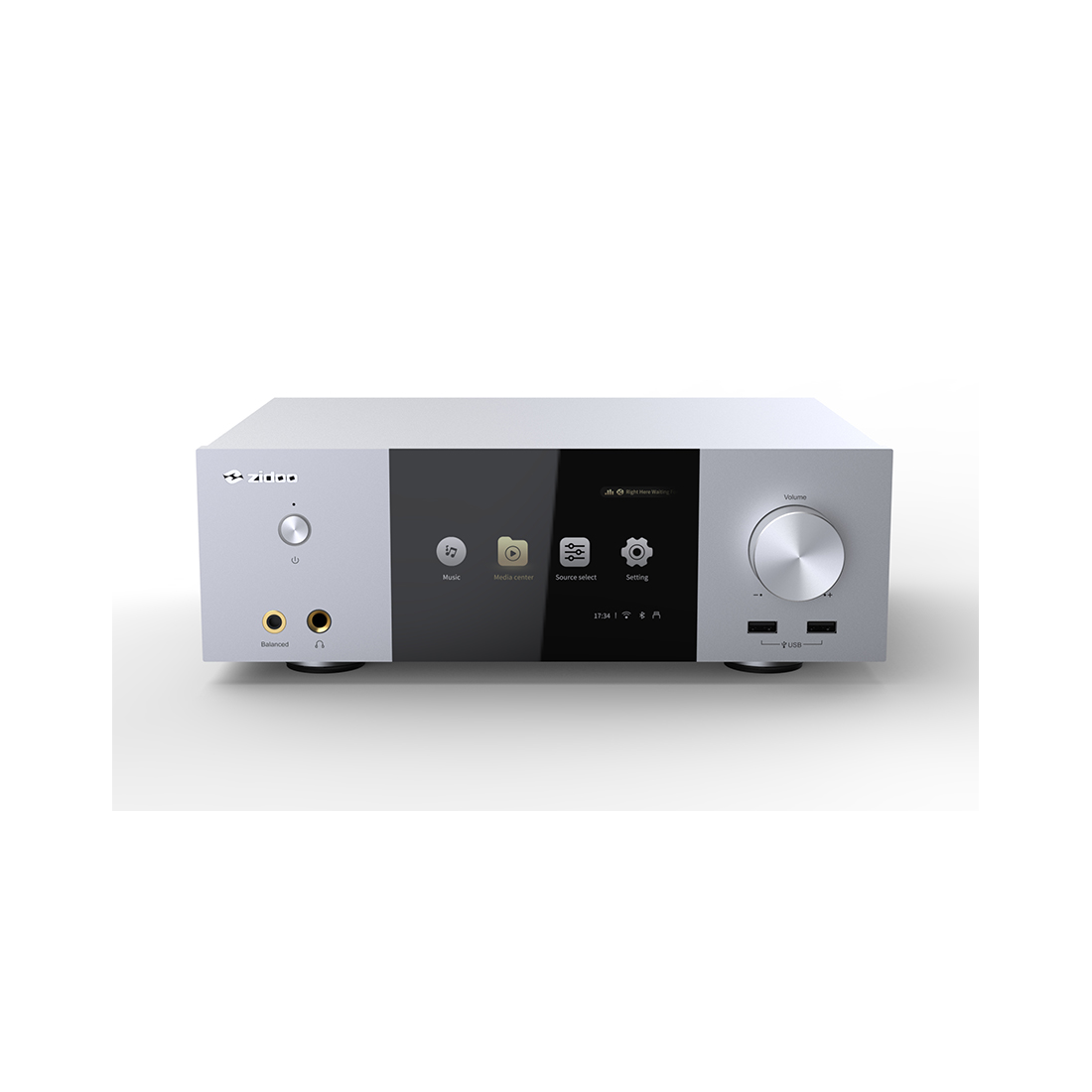

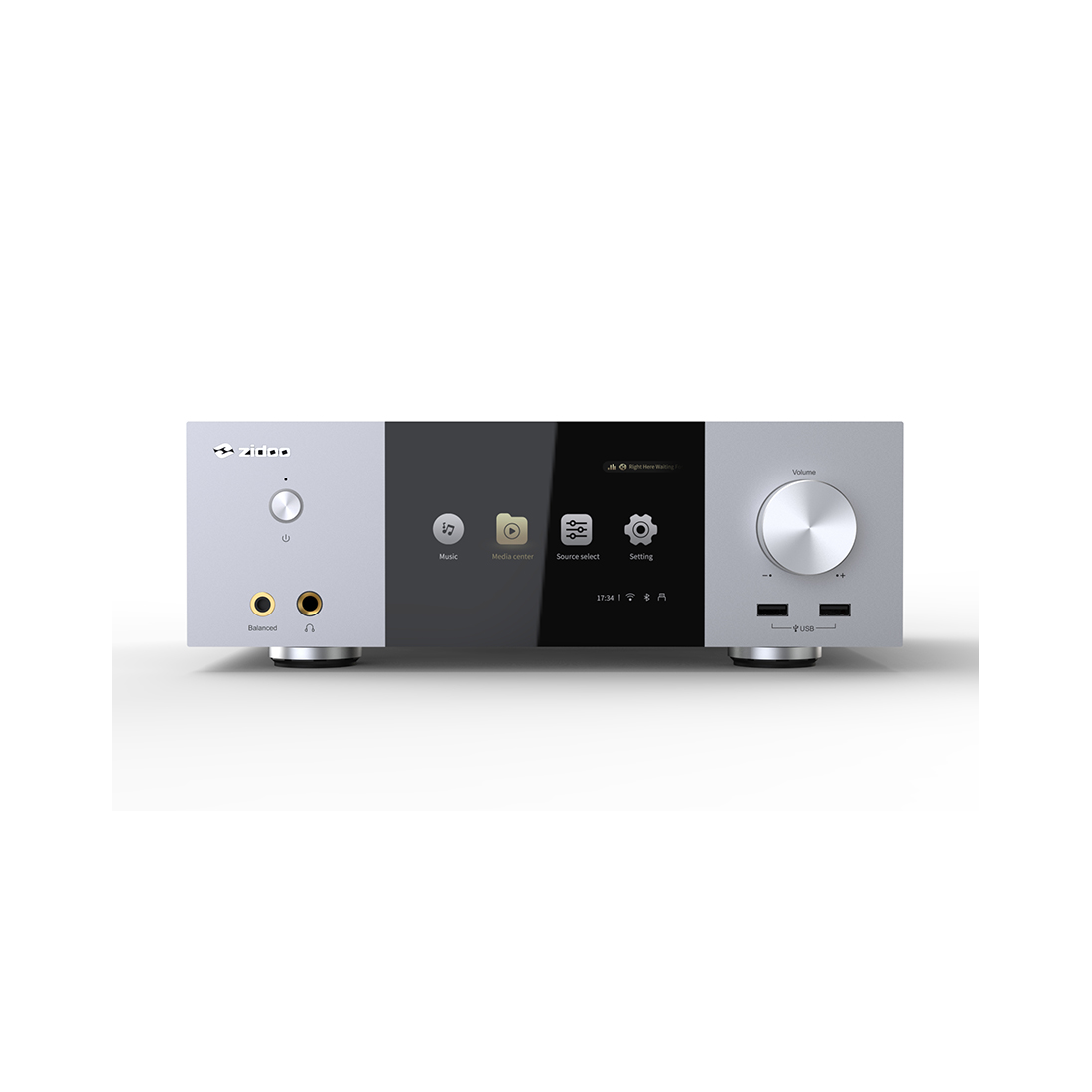

OLED Touch Screen

The 5-inch OLED high-definition colorful touch screen is beautiful embedded full-screen design. Practical operations can be done with the collaboration of knobs, such as audio source switching, volume adjustment, system setting and playback status display

Fever grade dual ES9068 DAC

NEO S firstly uses two ES9068 DAC as the core of audio decoding. Two-channel audio is decoded independently to avoid interference and get better SNR and dynamic range. Supporting up to DSD512, PCM768@32bit and three-layer 8 times expanded MQA encoding format hardware decoding

Dual Discrete Power Supplies

Separate digital and analog power supplies to eliminate interference
which significantly improves the sound purity
Linear power supply designed for analog audio circuits
which is composed of multi-winding large toroidal transformers

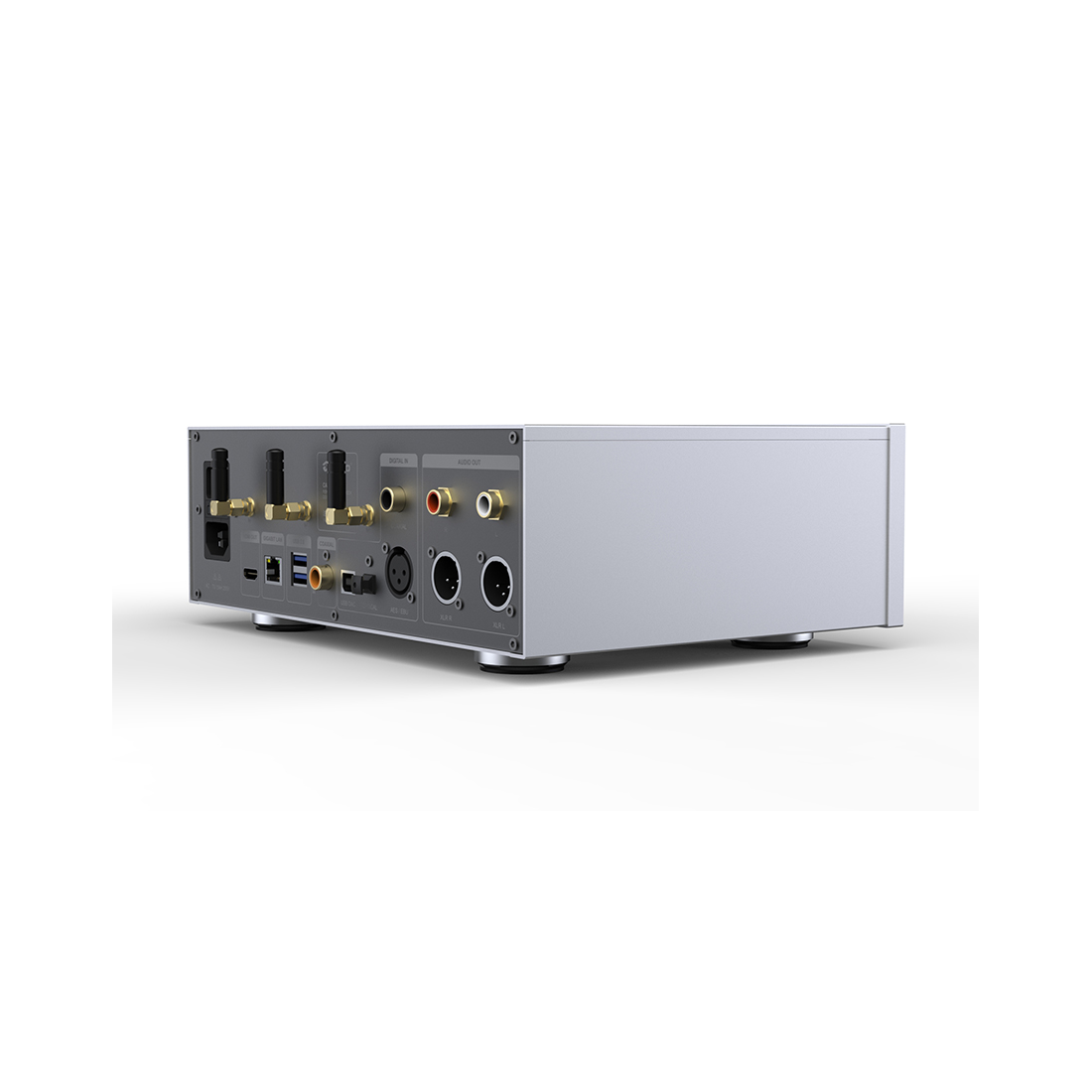

Multiple digital inputs

Multiple ports including USB DAC, Optical, Coaxial and AES/EBU input
Support various devices like turntables and CD players

Asynchronous USB DAC

NEO S is just a good solution for PC HiFi enthusiasts
USB DAC input supports asynchronous digital signal processing
Which can be used as a sound card when connected to PC

High-performance headphone amplifier

Monitor amp module is built in NEO S, 4.4 balance and 6.35 headphone jacks are available. Fully-balanced voltage design and graded amplified current provide high current thrust. Two gain modes correspond to different impedance ranges of headphone. The ultimate sound quality is comparable to desktop headphone amplifier
Also a professional USB DAC for IOS/Android phones or tablets via OTG
Perfect sound quality by the dual high-performance DAC
Switching power supply with lower ripple and magnetic leakage interference

XMOS and Dual Clock

NEO S is equipped with XMOS chip and supports asynchronous transmission
Support up to DSD512 with native DSD, DXD and 768kHz/ 32bit PCM
Dual high-precision clock oscillators for 44.1KHz and 48KHz multiplier sampling
which effectively suppresses jitter and ensures more accurate audio decoding

Fully Balanced Circuit

NEO S circuit adopts fully balanced design with better noise immunity and low distortion filtering technology. Channel separation is improved and signal is stable by eliminating the common return circuit. Buffering and amplification of multi-level operational amplifiers completely simulate signal processing path and bring natural sound quality

HiFi Components

In order to achieve the monitor-level HiFi sound quality, NEO S adopts good circuit design, immersion gold main board, 6 operational amplifiers and selected HiFi components such as NICHCON, WIMA and ELNA

Master Tape Music Playback

NEO S is a powerful music player supporting CD-quality lossless formats
Like FLAC, WAV, APE, DTS, etc.
Advanced master tape music MQA, DSD512 (SACD ISO/DFF/DSF/DSD)
And various sampling formats seamless playback

Intelligent Music Library

NEO S is good at managing music resource
Music files from network drives and local hard drive can be added conveniently
Matching and generating music library databases automatically

Multiple Music Streaming Services

NEO S supports rich network streaming music services like Airplay/DLNA/Roon; Music in smart phones, computers and tablets can be simply pushed to NEO S
Just enjoy music collection, management and playback in a easy way

Roon Ready

Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that ZIDOO network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and ZIDOO deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

Bluetooth APTX HD

We can easily enjoy music by connecting NEO S with cell phone via Bluetooth. Qualcomm flagship CSR8675 module supports APTX and LDAC lossless audio compression technology, which can overcome bandwidth barriers in standard technology. Even if audio is transmitted via Bluetooth, CD-level sound quality can be achieved

CD Ripping and Playback

NEO S supports CD ripping and playback when connecting with CD-ROM via USB port
Names of albums/songs can be smartly matched by the ID of CD via special HASH
Ripped files can be collected and managed in ZIDOO Music Player

4K UHD Image Quality

NEO S adopts RTD1619 DR hexa-core 64-bit A55 processor. In addition to efficient and stable system, it has also equipped with 4K UHD decoding and processing technology. BD UHD Blu-ray disc and self-made media files are supported, and up to 3840 x 2160 60Hz, HDR and BT.2020 wide range

HDR Technology

NEO S not only supports ordinary high dynamic range HDR10 and HLG, but also advanced technology HDR10+ and Dolby Vision. Dolby Vision metadata processing technology can provide 4000nit peak brightness and 12Bit (around 68 billion) output. Stunning brightness, contrast and natural colors bring excellent image quality

Wide Color Range

NEO S can output up to 4K 60P
Automatic resolution switching and precise frame rate (23.976) output
RGB, YVU4:4:4, 4:2:2 and 4:2:0 and other color range are supported


Model NEO S
Display 5-inch OLED HD touch screen
Chassis Aviation aluminum alloy
CPU Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU ARM Mali-G51 MP3
Internal SSD 256G SSD (M.2 SATA 3.0 2280, up to 1TB)
Audio DAC ESS 9068*2
Wi-Fi 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet RJ-45(10/100/1000Mbps)
HDMI Output 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output)
Support audio passthrough
Video Decoding 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
Audio Decoding Support true-hd HD audio passthrough, stereo PCM decoding
Built-in DAC audio decoding: support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Bluetooth Audio Input CSR8675 flagship Bluetooth audio module(BT5.0)
Support lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB Audio Input USB audio compatible system: Windows(7,10), Mac, Android
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

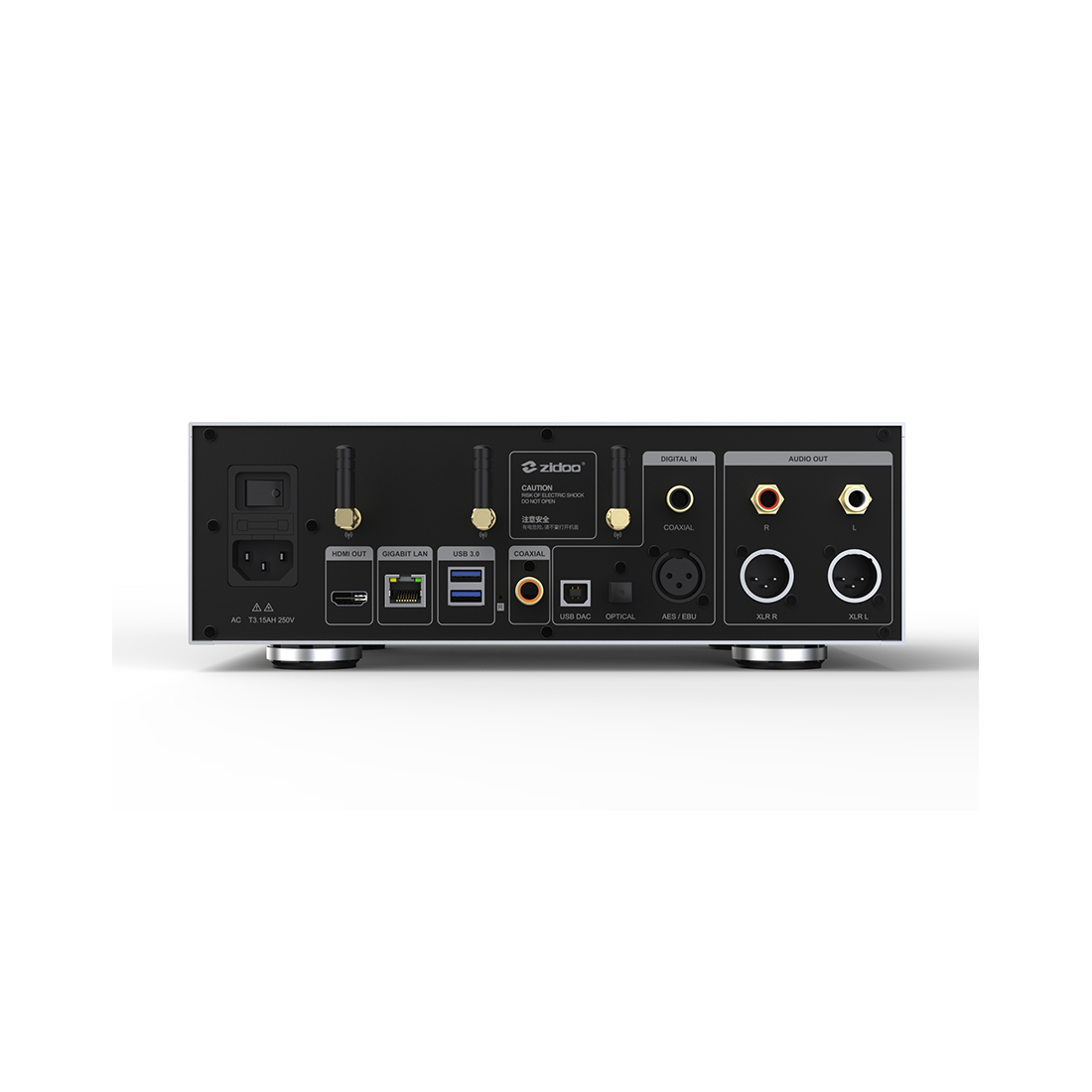

Digital Audio Input USB DAC IN, AES/EBU input, Coaxial input, Optical input
Digital Audio Output Coaxial output, HDMI output, USB Audio output, Bluetooth output
Analog Audio Output Preamp output: XLR(balanced), RCA
Headphone amplifier output: 4.4mm balanced, 6.3mm single-ended
Headphone Impedance 16-300Ω(low-gain mode: 16-32Ω; high-gain mode: 32-300Ω)
XLR(balanced) Output Output Level(Vrms): 4.1 Vrms
THD+N: -118dB
Noise: 2uVrms
SNR: 120dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -120dB(1kHz,Fs=44.1kHz)
DNR: 119dB
RCA(single-ended) Output Output Level(Vrms): 2.16 Vrms
THD+N: -116dB
Noise: 2.5uVrms
SNR: 119dB(20Hz-20kHz)
Frequency Response: ±0.258dB(20Hz-20kHz)
Crosstalk: -130dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Headphone 4.4mm Balanced Output(low-gain mode) Output Level(Vrms): 2.26Vrms
Output Power/Impedance: 310mW/32Ω
THD+N: -116dB
Noise: 1.7uVrms
SNR: 118dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -128dB(1kHz,Fs=44.1kHz)
DNR: 118dB
Headphone 4.4mm Balanced Output(high-gain mode) Output Level(Vrms): 4.1Vrms
Output Power/Impedance: 110mW/300Ω
THD+N: -118dB
Noise: 3.5uVrms
SNR: 120dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -130dB(1kHz,Fs=44.1kHz)
DNR: 119dB
Headphone 6.3mm Single-Ended Output(low-gain mode) Output Level(Vrms): 1.5Vrms
Output Power/Impedance: 138mW/32Ω
THD+N: -114dB
Noise: 3.2uVrms
SNR: 116dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -128dB(1kHz,Fs=44.1kHz)
DNR: 115dB
Headphone 6.3mm Single-Ended Output(high-gain mode) Output Level(Vrms): 2.7Vrms
Output Power/Impedance: 47mW/300Ω
THD+N: -114dB
Noise: 3.5uVrms
SNR: 118dB(20Hz-20kHz)
Frequency Response: ±0.25dB(20Hz-20kHz)
Crosstalk: -132dB(1kHz,Fs=44.1kHz)
DNR: 118dB
USB Ports USB3.0*2, USB2.0*2
Control Ports IR IN, Bluetooth, TCP/IP control(WOL)
Power Supply AC 110~240V 50/60Hz
Dimensions 213(L)*292(W)*101(H)mm
Packing List Remote control*1, Power cable*1, Antennas*3, Product manual*1
