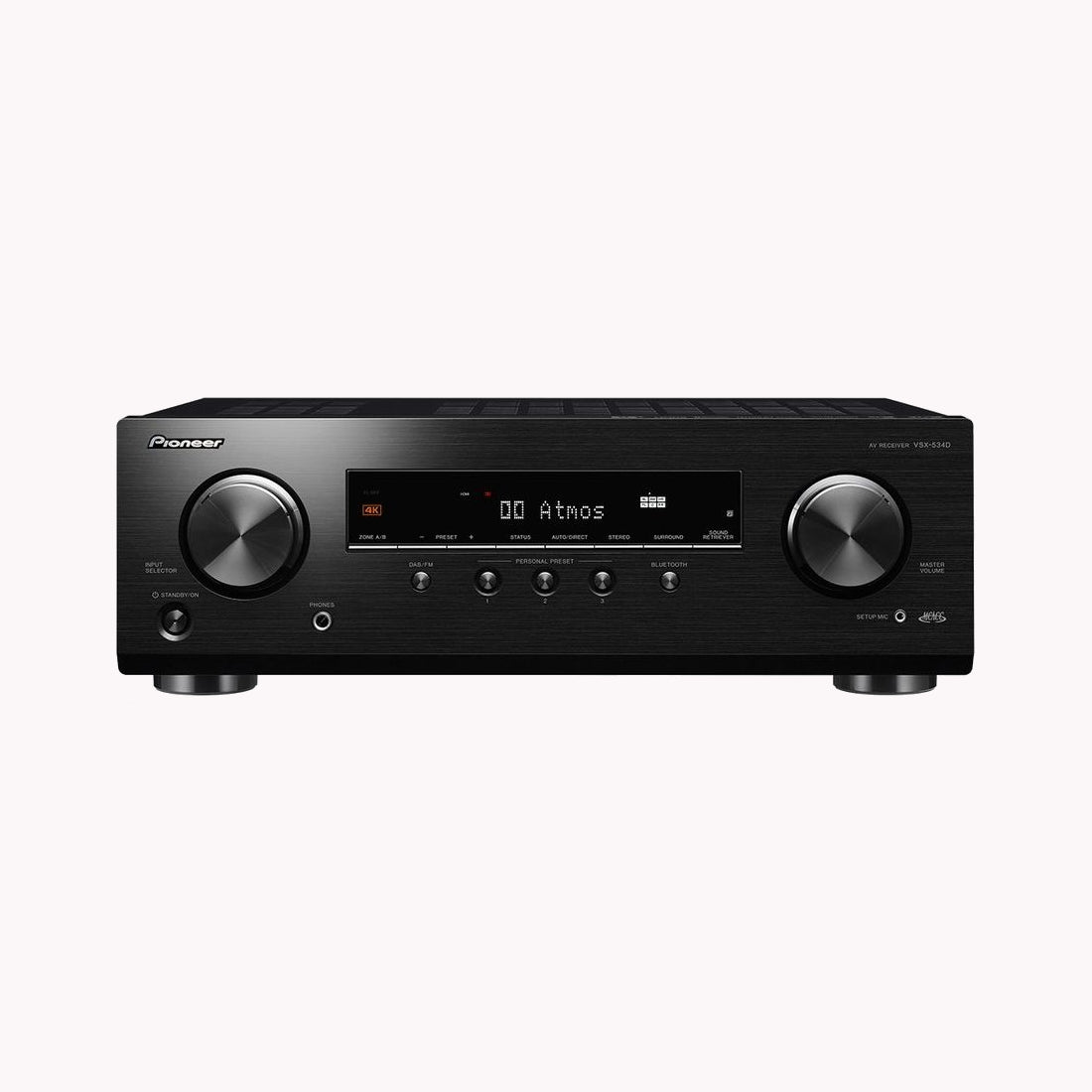

Pioneer VSX-534 AV Receiver

$699
By Pioneer

Description

The VSX-534 comes in a user-friendly new design, with 12 % slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS:X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effect with Dolby Atmos Height Virtualizer* and DTS Virtual:X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.3, so you can fully appreciate premium content such as 4K videos.

Dolby Atmos®/Dolby Surround Upmixing

The VSX-534 is compatible with 3.1.2ch configuration of the latest cinema sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X®/DTS Neural:X Upmixing

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.



Specification

Amplification

Channels: 5

Amplification Type: Direct Energy

150 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)


Audio Features

Dolby Atmos®, Dolby Surround Upmixer

DTS:X®, DTS Neural:X® Upmixer

Reflex Optimizer

Dolby Atmos Height Virtualizer*

DTS Virtual:X

Dolby® TrueHD, Dolby Digital Plus

DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express

DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)

Digital Quad-Core 32-bit DSP (Cirrus Logic)

384 kHz/32-bit D/A Conversion with AK4438 (AKM)

Audio Return Channel (ARC) on HDMI

MCACC Auto Room Tuning

  • Phase Control
  • Subwoofer EQ

Advanced Sound Retriever (2ch)

Advanced Surround Modes

  • Classical, Unplugged, Entertainment Show, Drama, Extended
  • Stereo, Extended Mono, Front Stage Surround Advance

Video Features

Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)

HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough

Dolby Vision Compatible

Ultra HD Upscaling (1080p to 4K)

3D Ready (Blu-ray Disc™, Broadcast, and Games)

Deep Colour (36-bit), “x.v. Colour”


Convenience Features

Personal Preset

Dialog Enhancement

Bluetooth® Wireless Technology (Version: 4.2 + LE, Profile: A2DP

1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in

User-Friendly GUI with System Setup Menu

On-Screen Information for Audio/Video Status

Auto Power Off in HDMI Standby Through

AM/FM Tuner 40 Presets

Sleep Timer

User-Friendly Simple Remote Control


Front Terminals

MCACC Setup MIC In

Phones 1 Out

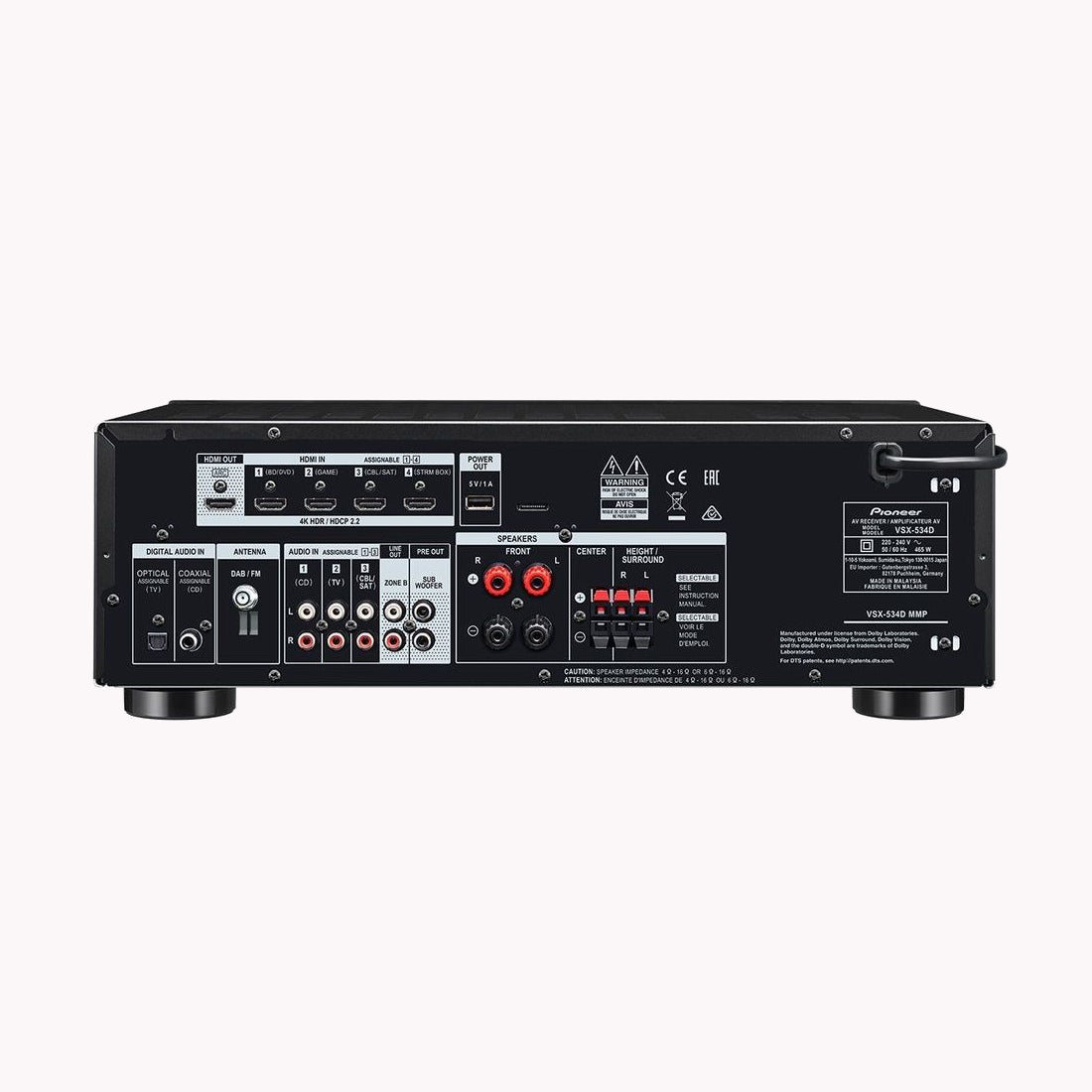

Rear Terminals

HDMI 4 In (4 Assignable)

HDMI 1 Out

USB 1 In for Streaming Dongles

Audio 3 In (Assignable)

Digital Coaxial 1 In (Assignable)

Digital Optical 1 In (Assignable)

Subwoofer 2 Pre Out

ZONE B Line Out for Wireless Headphones

Speaker 5 ch Out (FRONT, CENTER, SURROUND/HEIGHT)

FM/AM Antenna


General Specifications

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption/Standby: 465 W/0.2 W

Dimensions (W x H x D): 435 x 148 x 321 mm

Weight: 8 kg
