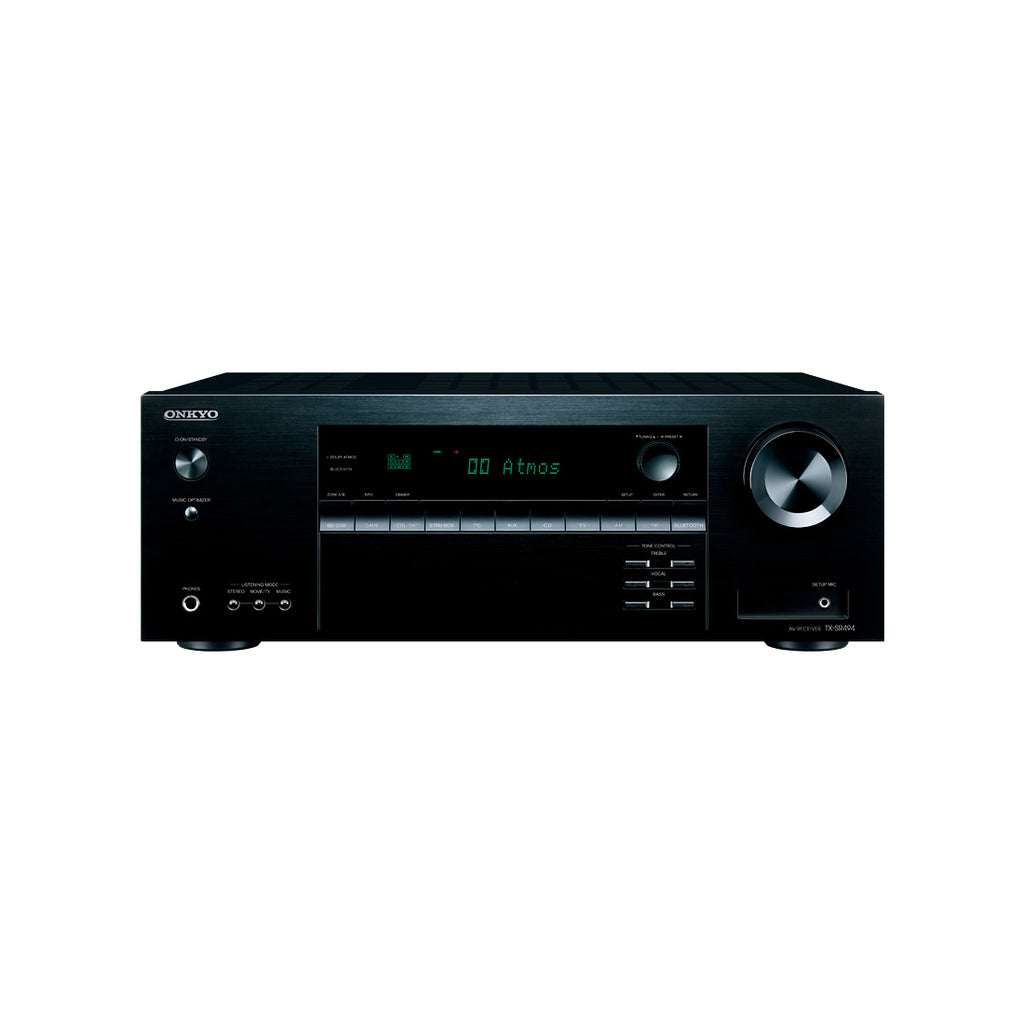

Onyko TX-SR494 AV Receiver

$999
By Onkyo

Description

From easy Bluetooth® wireless streaming to the heart-pounding thrills of Dolby Atmos® and DTS:X® soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits. Dolby Atmos Height Virtualizer* or DTS Virtual:X™ place sound overhead or behind if you don’t want height or surround speakers and both Dolby Surround® and DTS® Neural:X are on board. Rear surrounds, bi-amped front speakers, or Powered Zone B audio are also an option. AccuEQ with subwoofer EQ and AccuReflex™ for 5.2.2-ch Dolby Atmos-enabled systems clarify sound in any space. As the heart of your home theater, the TX-SR494 has HDMI® terminals supporting HDR and 4K/60p video, while the GUI with OSD over HDMI, Zone B pre-/line-out, and Vocal Enhancer function make this receiver a joy to use as well as hear.

PRODUCT HIGHLIGHTS

160 watts per channel

Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision®, BT.2020)

5.2.2-ch Dolby Atmos® and DTS:X® playback

Dolby Atmos Height Virtualizer* and DTS Virtual:X™

AccuEQ with subwoofer EQ and AccuReflex™

Discrete high-current amp system with 4-ohm drive capability

Bluetooth® technology and Advanced Music Optimizer™

Vocal Enhancer function improves voice audibility

Zone B pre-/line-out shares any audio source to components with an RCA input, such as wireless headphone docks, etc.

OSD window shows media format data for quick confirmation

* Enabled with a future firmware update.

AMPLIFIER FEATURES

High-Output Low-Noise Power Transformer

High-current 7-channel analog amplification system

Discrete high-power output transistors

Original low-impedance amp-circuit topology

VIDEO & AUDIO SUPPORT

Supports HDCP 2.2, 4K/60p, HDR (Dolby Vision, HDR10, HLG, BT.2020), 4:4:4 color-space, BT.2020, 3D Video, ARC (Audio Return Channel), DeepColor™, x.v.Color™, and LipSync via HDMI

Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master Audio™ decoding

Supports SACD (Super Audio CD) Playback via HDMI (2.8 MHz/2ch, multi-channel)

Dolby Atmos Height Virtualizer and DTS Virtual:X 3D sound processing

Dolby Surround® and DTS® Neural:X upmixing technologies

Premium 384 kHz/32-bit AKM multichannel DAC

Direct Mode for source-authentic stereo sound

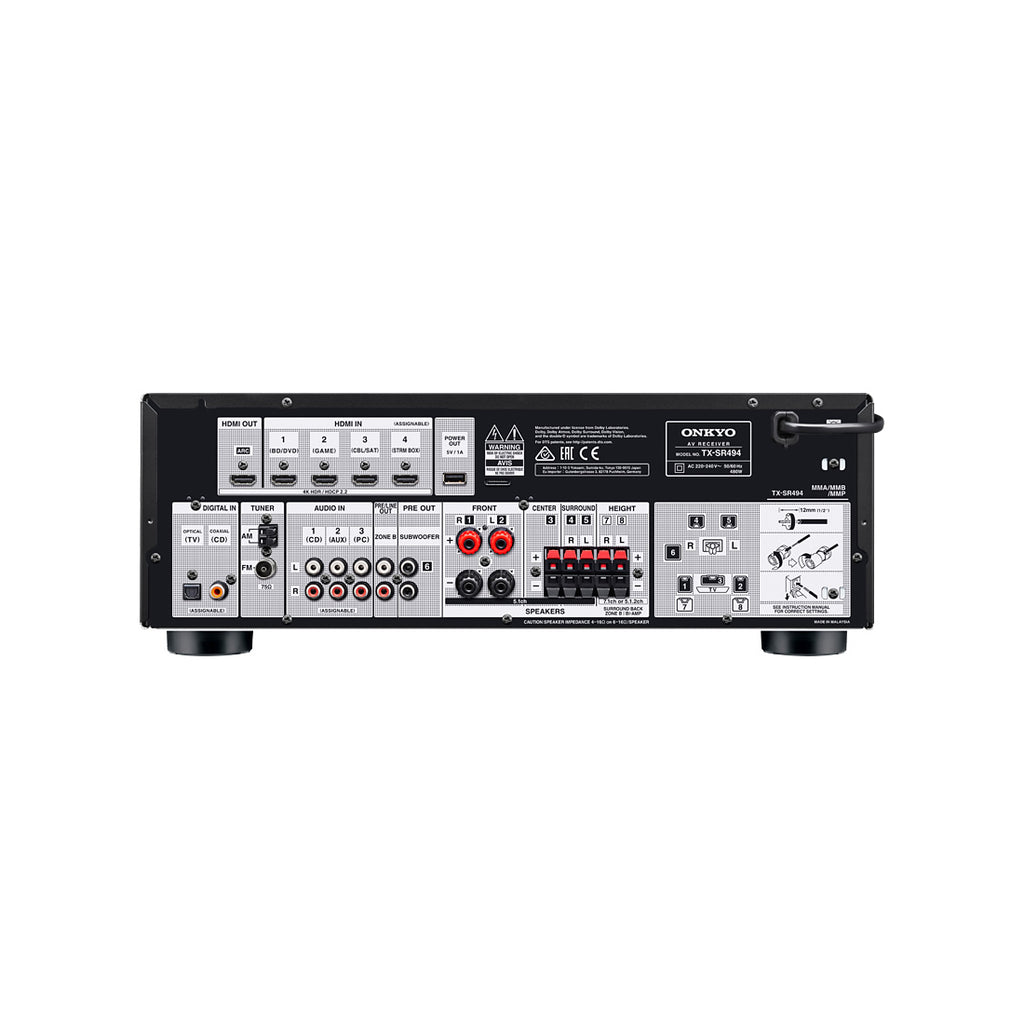

CONNECTION FEATURES

4 HDMI inputs and 1 output with ARC (Audio Return Channel)

2 digital audio inputs (1 optical and 1 coaxial, assignable)

3 analog audio inputs (assignable)

Zone B pre-/line-out

2 subwoofer pre-outs

Speaker terminals (screw-type x 2 [Front L/R], lever-type x 5)

Rear USB power supply terminal (5 V/1 A) for media streaming devices

6.35 mm headphone output (front)

3.5 mm AccuEQ setup mic input (front)

ADVANCED FEATURES

AccuEQ Room Acoustic Calibration, Subwoofer EQ, and AccuReflex

Zone B pre-/line-out shares any audio source to components with an RCA input, such as mini hi-fi systems, integrated amps, wireless headphone docks, etc.

Height/Surround Back/Powered Zone B/Speaker Bi-Amp terminals

DSP-controlled Vocal Enhancer function boosts dialog audibility via remote keys or front-panel controls

Bluetooth wireless technology supports high-quality audio streaming from phones, tablets, and PCs

Advanced Music Optimizer improves playback quality of compressed audio

GUI with OSD via HDMI features media input/output information window for easy confirmation of playback settings

1080p Full HD to 4K Ultra HD upscaling over HDMI

Quick Connection Guide on rear panel for stress-free setup

A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)

Direct Power On function switches on receiver when an input key is pressed on the remote control or front panel

HDMI passthrough function on standby

Tone controls for Front L/R channels (bass/treble)

3-Mode front-panel display dimmer (Normal/Dim/Dimmer)

AM/FM tuner with 40 random presets

Sleep timer

Simple remote control

GENERAL SPECIFICATIONS

Power Output: 160 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven), 135 W/Ch (6 ohms, 1 kHz, 1% THD, 1 channel driven, IEC)

Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Dimensions (W x H x D): 435 x 160 x 328 mm

Weight: 8.2 kg
