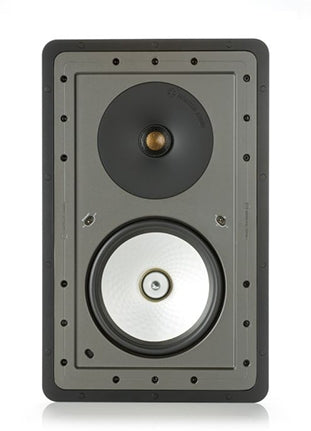

Monitor Audio Controlled Performance CP-WT380IDC In-wall Speaker Each

$899

Description

Alongside a pivoting C-CAM tweeter, the CP-WT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Key Features:

  • Pivoting C-CAM Gold Dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Product Video

Specifications:

Frequency Response 50 Hz – 25 kHz
Nominal Impedance 6 Ohms
Sensitivity (1 W @ 1 m) 89 dB
Maximum SPL 109.6 dBA
Power Handling (RMS) 120 W
Recommended Amplifier Requirements 30 – 120 W
Crossover Frequency 2.5 kHz @ 12 dB / Octave
Drive Unit Complement 2-Way, 8" C-CAM RST Cone Bass Driver, 1" C-CAM Pivoting Gold Dome Tweeter
Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch
Overall Dimensions (H x W) 472.5 x 303.5 mm (18 5/8 x 11 15/16")
Overall Depth (Including Grille) 106 mm (4 3/16")
Mounting Depth 99 mm (3 7/8")
Cut-Out Dimensions 438 x 269 mm (17 1/4 x 10 9/16")
Connection Gold Plated 'Push' Type Terminals
Fixing Type 6 Position Tri-Grip Dog Leg Fixings
Construction Material Mineral Filled ABS Plastic (RoHS 2 Compliant)
Weight 4.95 kg (10 lb 14 oz)
Pre-Construction Bracket WB10 Pre-Construction Bracket (Light Brown)
