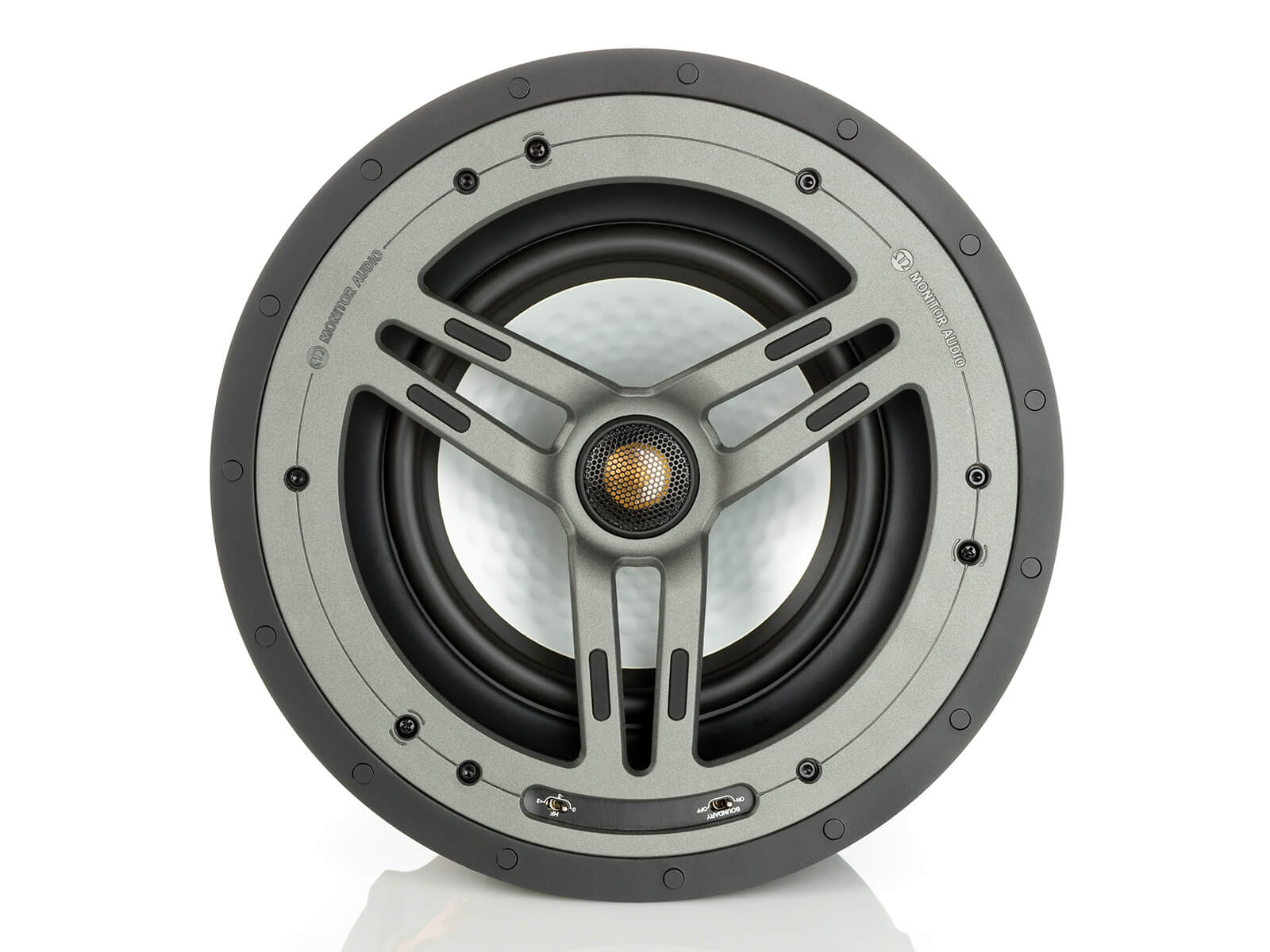

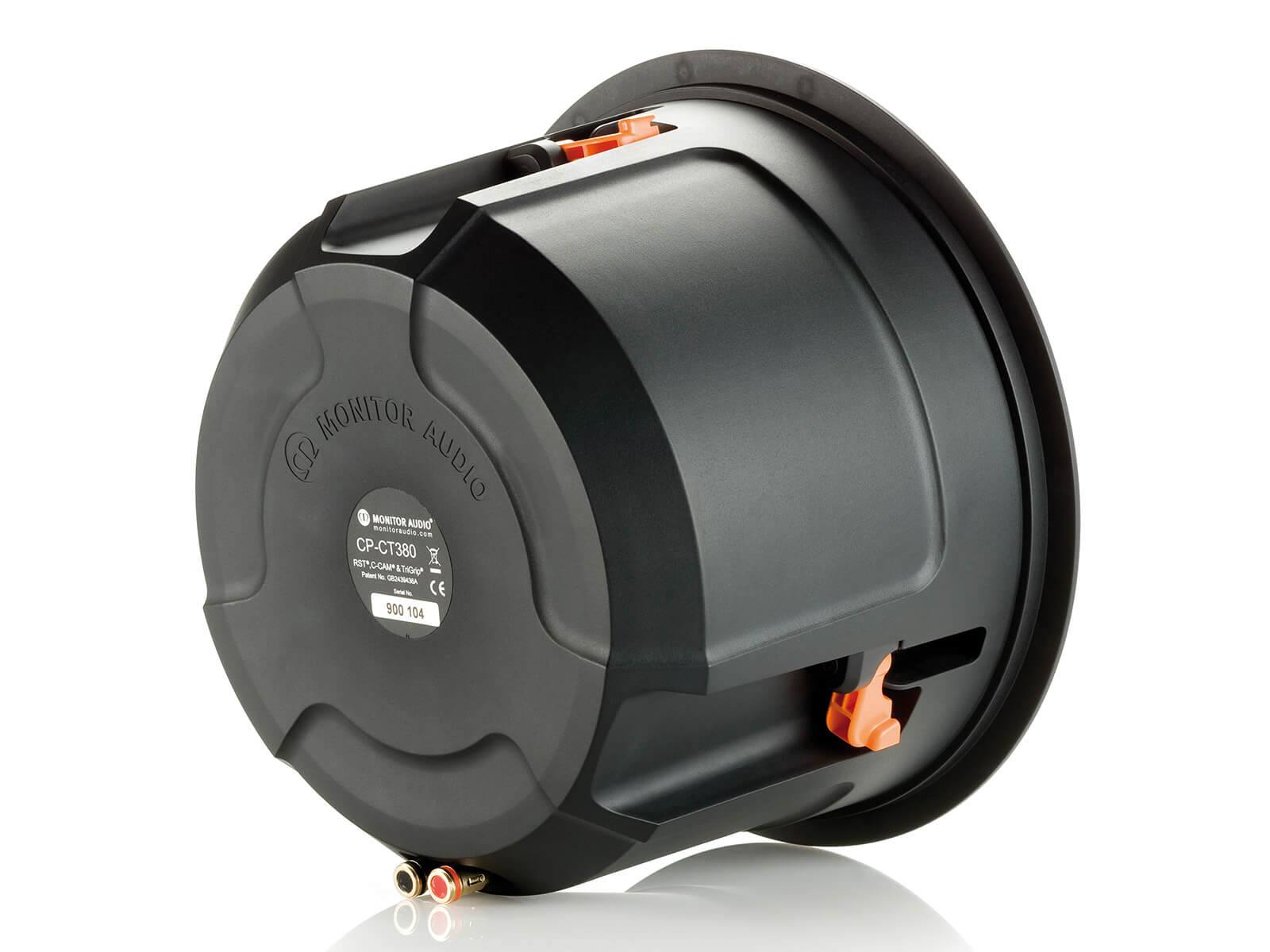

Monitor Audio Controlled Performance CP-CT380 In-ceiling Speaker Each

$699

Description

Alongside a pivoting C-CAM tweeter, the CP-CT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Specifications

Frequency Response

50 Hz – 25 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Crossover Frequency

2.5 kHz @ 12dB / Octave

Drive Unit Complement

2-Way
8" C-CAM RST cone bass driver
1"  C-CAM pivoting Gold Dome tweeter

Adjustment Controls

HF Level Switch
(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

309 mm (123/16")

Overall Depth (Including Grille)

187 mm (7 3/8")

Cut-Out Hole Diameter

274 mm (1013/16")

Mounting Depth

181 mm (71/8")

Optional Square Grille - Outer Dimensions

309 x 309 mm (123/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

3.74 kg (8 lb 4 oz)

Connection

Gold plated 'push' type terminals

Sold As

Single Unit
