McIntosh MX170

$33,995

Brand McIntosh

We are not able to sell this product online please email us or call us on +61 2 62474844

When it comes to the video requirements of a modern home theater, the MX170 home theater processor has everything you need. It has 8 HDMI inputs and 4 HDMI outputs that are powered by the newest and most powerful HDMI processors available. Each HDMI port is HDCP 2.2/2.3 and has 18Gbps of bandwidth to fully support 4K Ultra HD picture quality and full 4:4:4 color spacing. Audio Return Channel (ARC) capabilities are featured on 3 of the outputs, while the 4th features Enhanced Audio Return Channel (eARC) functionality. eARC offers improved bandwidth so higher resolution audio can be sent from your TV to the MX170 to deliver the best sound quality possible.

HDR formats HDR10, Dolby Vision and HLG are also fully supported by the MX170. When watching a video mastered in one of these formats, you’ll see a dramatic improvement in color, contrast and brightness on your screen. A special HDBaseT output is included to prevent signal loss or degradation when there is a long distance between your MX170 and the screen. It also has 3D video pass-through, so you can be right in the middle of the action when watching your favorite 3D movies.

On the audio side, the MX170 is compatible with all the leading object-based, 3D surround sound formats including Dolby® Atmos, DTS:X and Auro-3D® to give you a truly immersive theater experience. It includes sophisticated RoomPerfect room correction technology that will measure and adjust the audio output to compensate for the specific acoustic properties of your room and make every seat in the house the best seat in the house. The MX170 combined with RoomPerfect will give you a home theater surround sound system with optimized frequency response, calibrated speaker volumes, and bass control that perfectly combines your speakers with your subwoofer(s). You’ll also gain added flexibility in speaker selection and placement.

To produce this immersive home theater experience, the MX170 features balanced outputs for a 15.1 surround sound speaker configuration. This allows you to have a multitude of speakers in your home theater to create an enveloping cinematic soundstage. If you don’t have that many surround sound speakers, 4 of the outputs can be used to bi-amp some of your speakers or to drive additional subwoofers.

The MX170 comes with a full suite of digital inputs including 4 optical, 3 coaxial and 1 USB that each accept up to 24-bit/192kHz signals, plus 1 digital balanced input. There’s also a complete complement of analog audio inputs comprised of 2 balanced and 4 unbalanced inputs, a phono input and a 7.1 multichannel unbalanced input. It features some of the latest analog to digital convertor technology to maximize the audio quality of your analog sources. All analog and digital devices can be custom named to simplify system operation; their volume levels can be matched to eliminate jarring changes in volume when transitioning between sources. Bass and treble controls offer further audio fine-tuning.

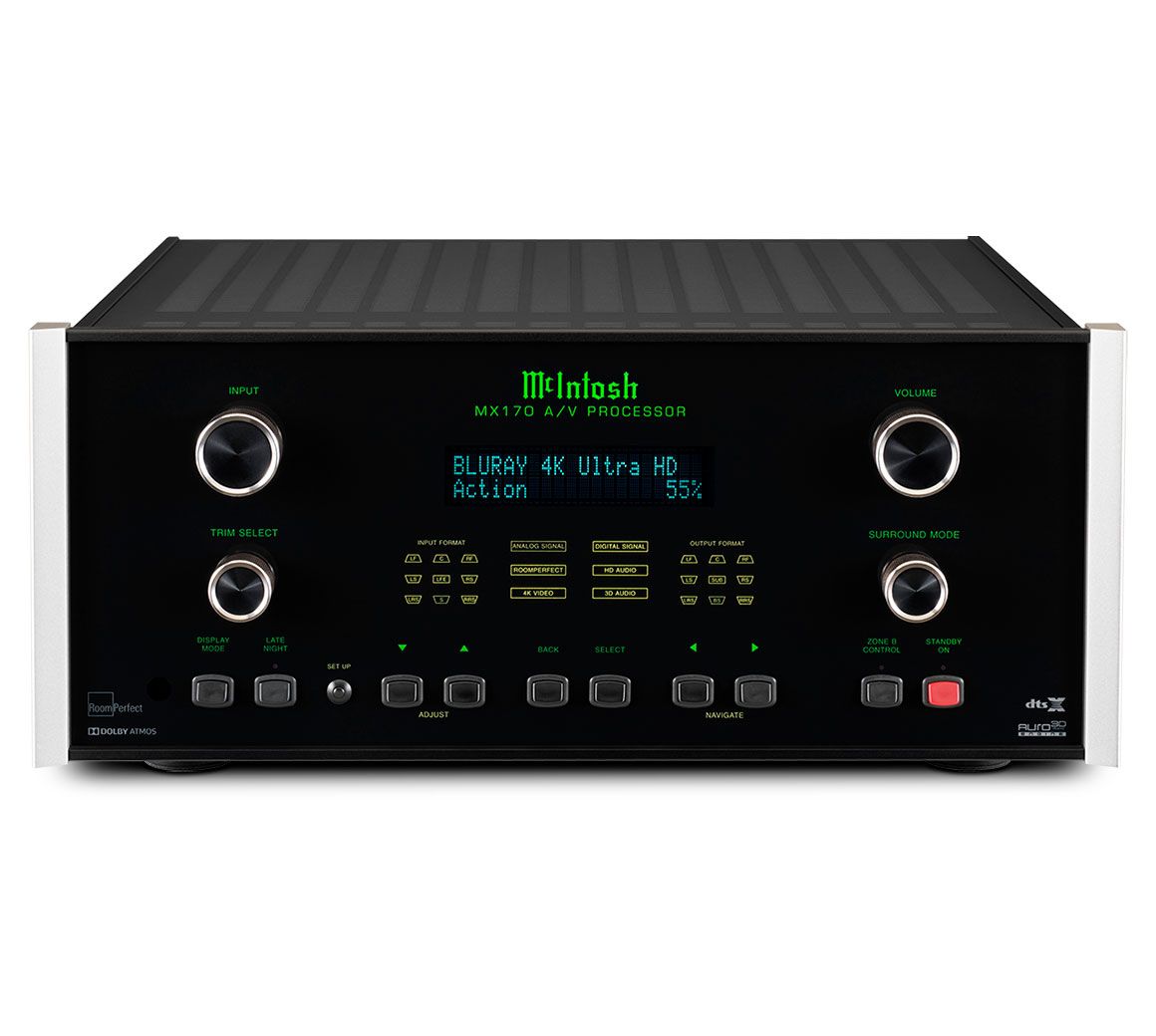

The MX170 takes advantage of the latest advancements in processing power to run cooler while performing better than any previous McIntosh home theater processor. Its easy to use and robust setup program allows for great customization and optimization based on your needs. It has the timeless and sought-after McIntosh look of a black glass front panel, control knobs, illuminated logo and custom aluminum end caps. It can be paired with a variety of amplifiers and speakers to make a complete home theater system. Contact your local dealer to learn more.

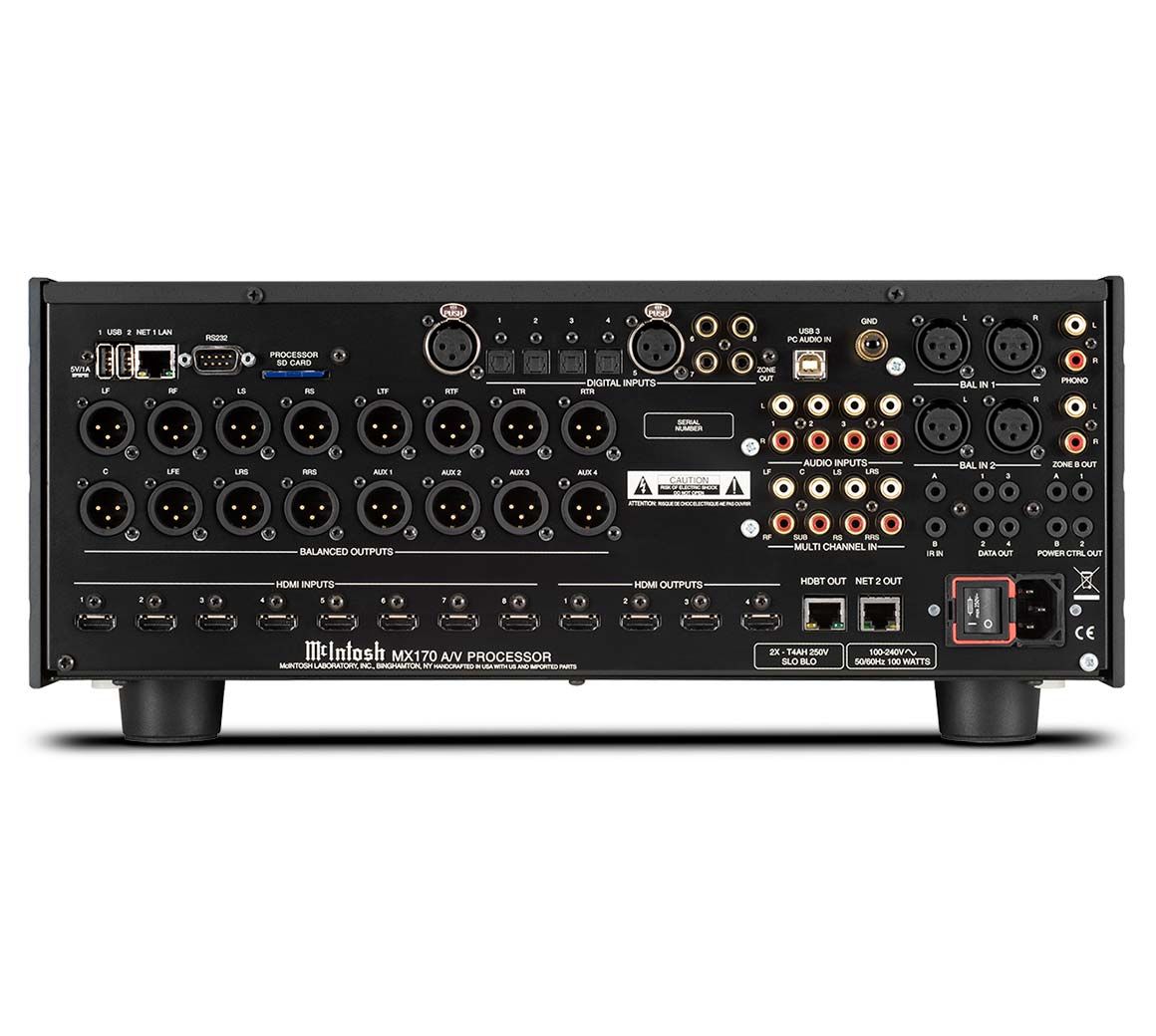

CONNECTIVITY

  • Multi-Channel Outputs Balanced
    15.1
  • Multi-Channel Inputs Unbalanced
    7.1
  • Multi-Channel Outputs Unbalanced
    0
  • Stereo Inputs Balanced
    2
  • Stereo Inputs Unbalanced
    5
    (including 1 Moving Magnet Phono)
  • Stereo Outputs Unbalanced
    1 (Zone B)
  • Digital Coaxial Input
    3
  • Digital Coaxial Output
    1 (Zone B)
  • Digital Optical Input
    4
  • AES/EBU Balanced Input
    1
  • HDMI Input
    8
    HDCP 2.2/2.3, 18Gbps, 4K Ultra HD at 50/60Hz, 4:4:4 color, High Dynamic Range (Dolby Vision, HDR10 and HLG), 3D video pass-through
  • HDMI Output
    4
    HDCP 2.2/2.3, 18Gbps, 4K Ultra HD at 50/60Hz, 4:4:4 color, High Dynamic Range (Dolby Vision, HDR10 and HLG), 3D video pass-through, (3) ARC, (1) eARC
  • HDBT Output
    1
  • USB
    2 Type A
    1 Type B for digital audio (2.0, 24-bit/192kHz Asynchronous)
  • Component Input
    0
  • Component Output
    0
  • Composite Input
    0
  • Composite Output
    0
  • Subwoofer 2 Output
    4 auxiliary outputs
  • Network Connection
    2
  • Max # of audio channels in Zone A
    16
  • Additional Zone Outputs
    Zone B: Analog and digital audio outputs
  • Advanced Connections
    Ethernet Web interface and firmware update, IP-based control

PROCESSING

  • Total Harmonic Distortion (DSP Bypass)
    0.005%
  • Dolby Processing
    Atmos/True HD/Digital, EX/ProLogic IIx
  • DTS Processing
    DTS:X/HD Master & High Res. Audio/ES/96/24, Discrete & Matrix6.1, Neo:X
  • Auro Processing
    Auro 3D, Auro-Matic, Auro 9.1, 10.1, 11.1
  • Pure Stereo DSP Bypass Mode
    No
  • Video Scaling
    No
  • High Dynamic Range (HDR)
    Dolby Vision, HDR10 and HLG

CONTROL

  • Third Party Control
    RS232, Web IP, IR Input
  • Tone Controls
    Bass and Treble with adjustable frequency
  • OSD Overlay on HDMI Output
    Yes
  • Input-Output Format Indicators
    9 in and 9 out
  • Control of McIntosh Sources
    Yes, wired with data cables

GENERAL SPECIFICATIONS

  • Channel Formats
    15.1, 11.1 (7.1.4), 7.1, 5.1, Stereo
  • DSP Room Correction
    RoomPerfect, 1/12 octave
  • Microphone and stand included
    Yes
  • Network Features
    Ethernet Control and Setup
  • Unique Crossover Frequency, Each Speaker
    Yes
  • Special Features
    Up to 64 input capability, 4 assignable auxiliary channels

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2" (44.45cm) x 7-5/8" (19.37cm) (including feet) x 19-1/2" (49.53cm) (including front panel, knobs, and rear panel connections)
  • Weight
    30 lbs (13.6 kg)
  • Shipping Weight
    54 lbs (24.5 kg)
