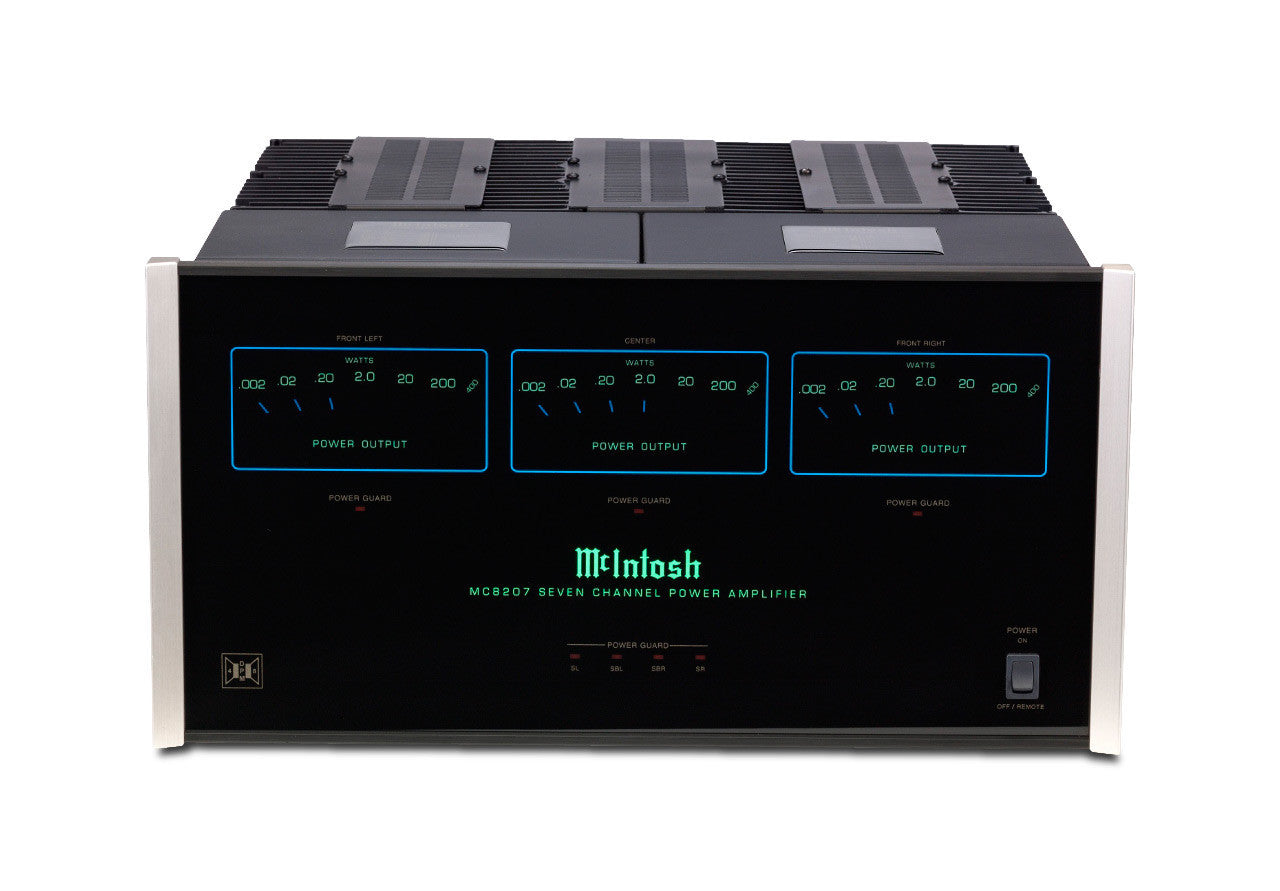

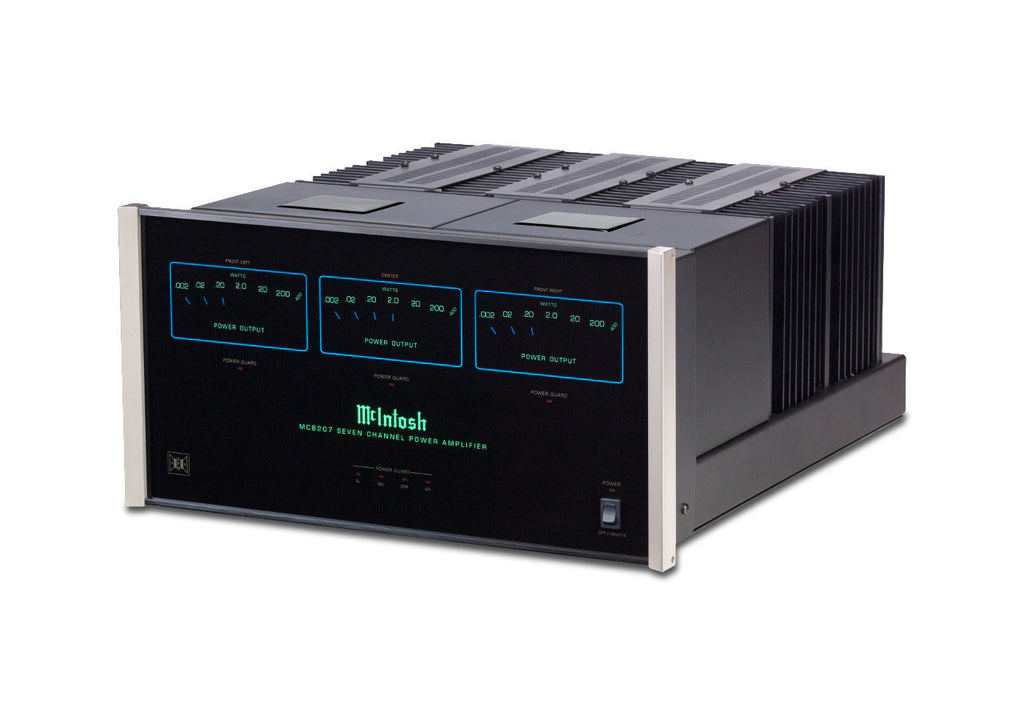

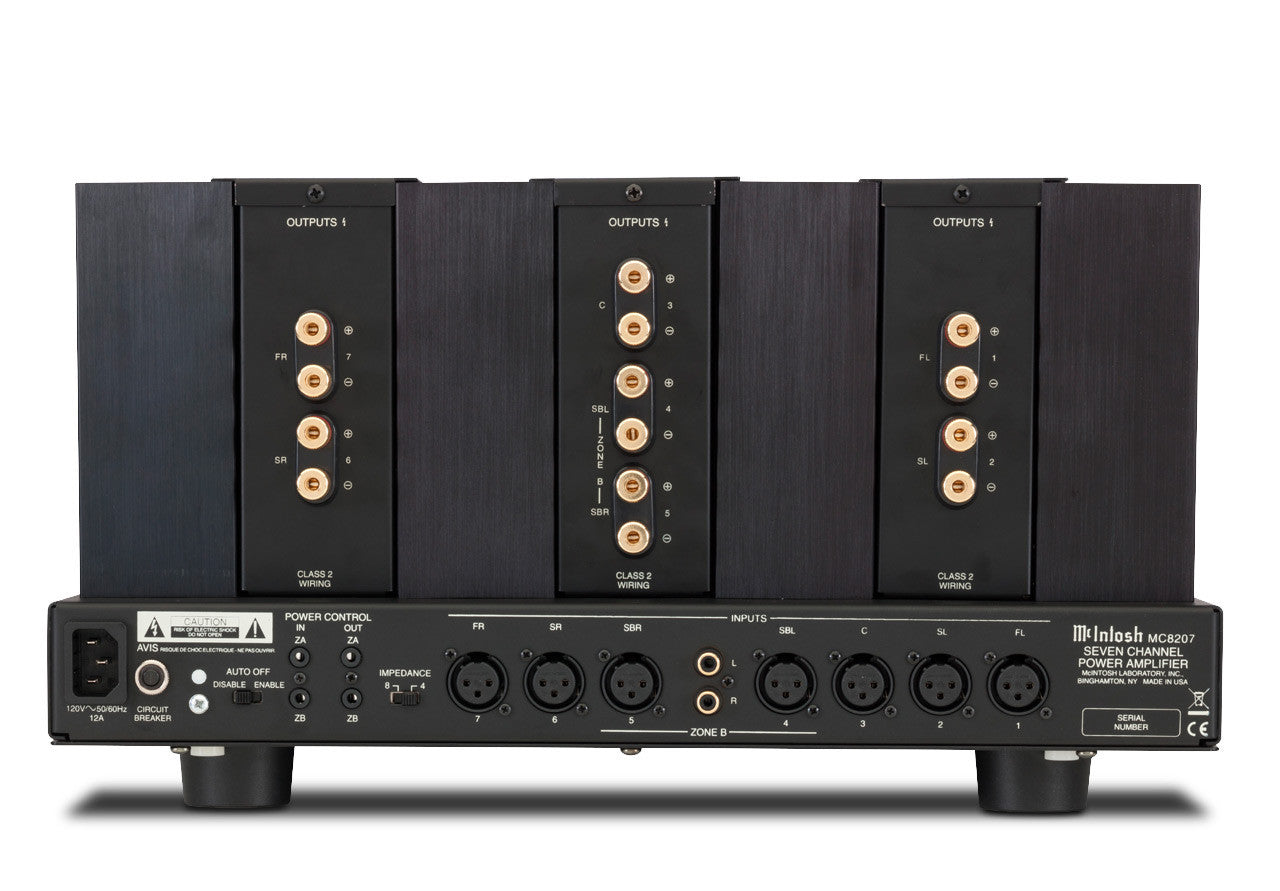

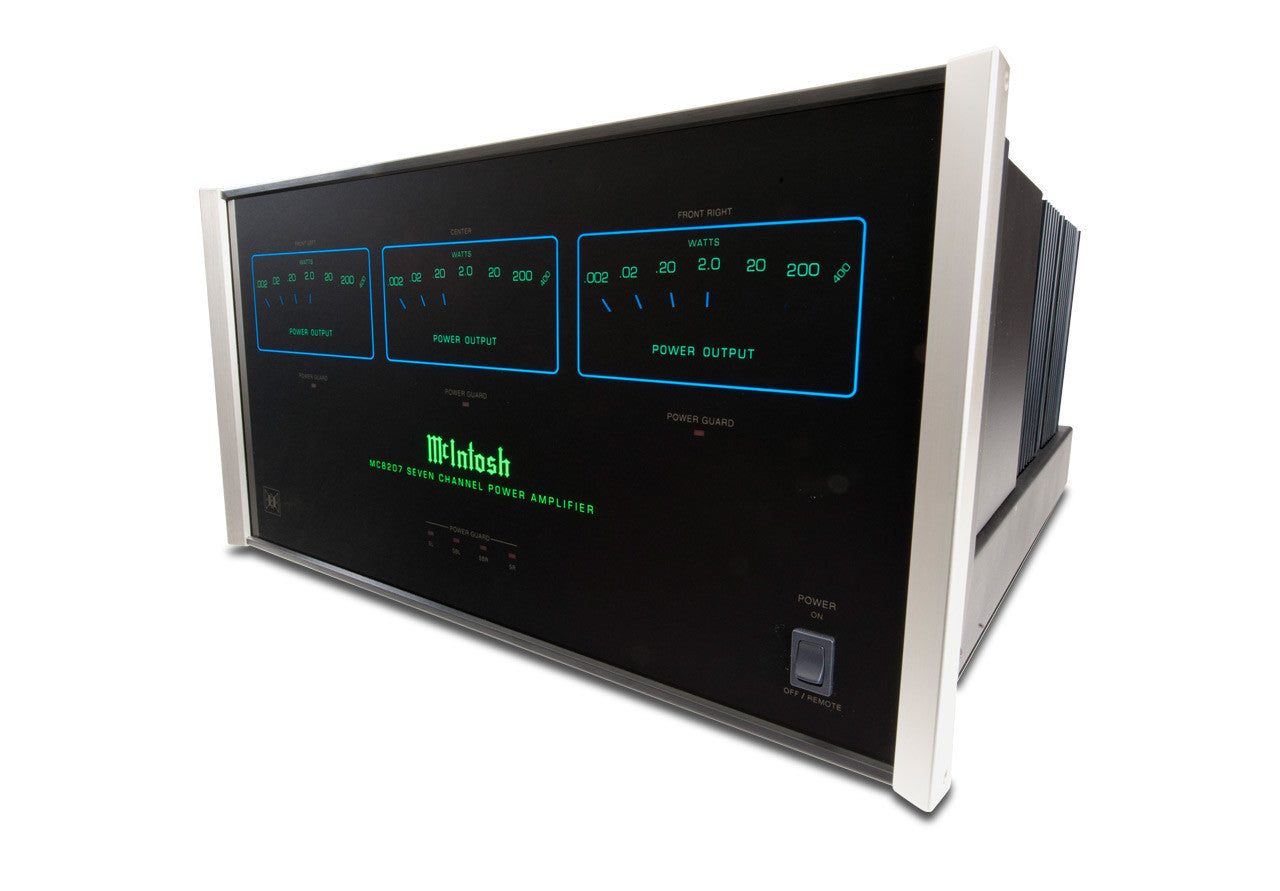

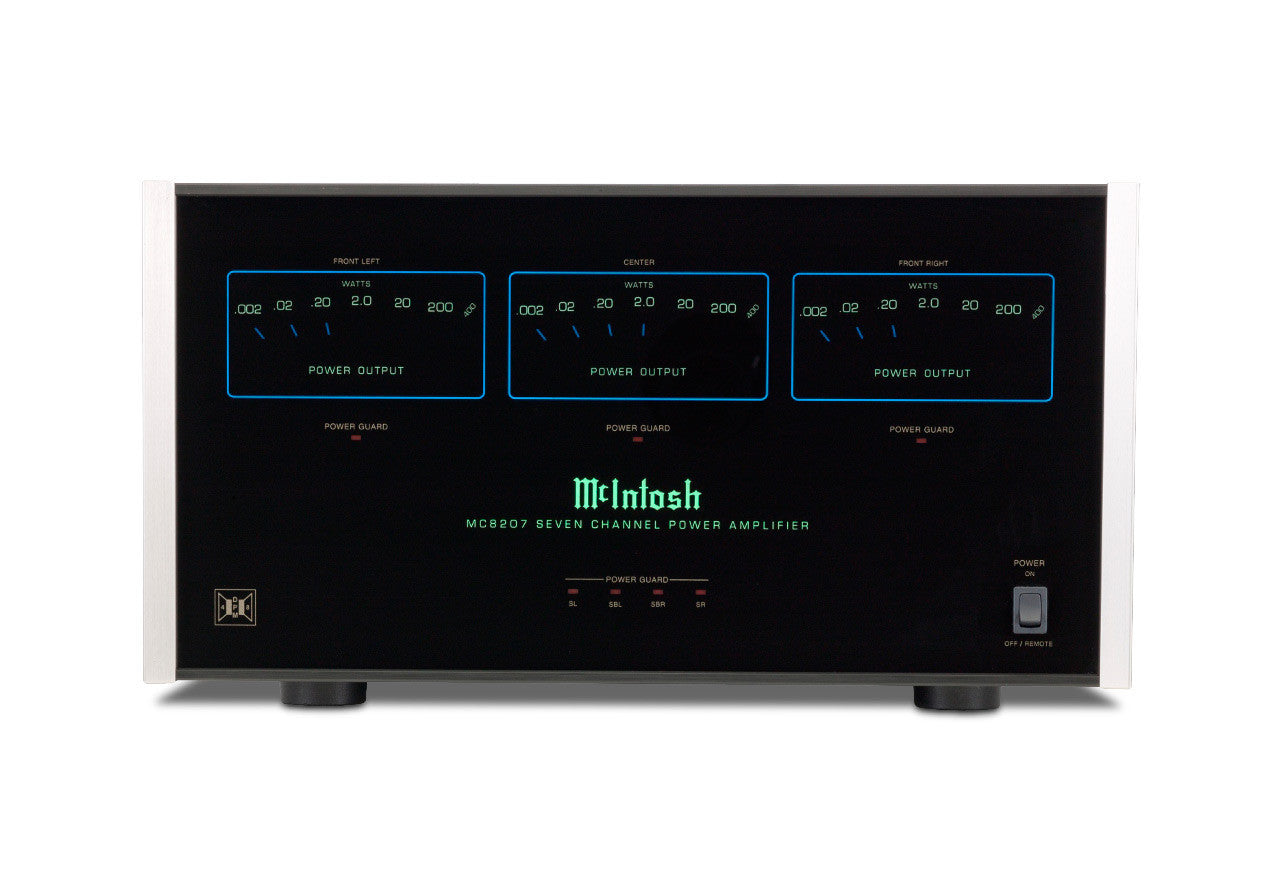

McIntosh MC8207 Multi Channel Power Amplifier
Description
MC8207 is a 7 channel amplifier designed to power the finest home theater systems. Seven channels may be used in larger rooms or five channels for the theater plus two stereo channels for powering a set of speakers in another area of the home. Immensely powerful, the high current MC8207 delivers 200 watts per channel into either 4 or 8 ohm speaker types using the McIntosh Dynamic Power Manager®. You will always have all the power you need when using MC8207.
ELECTRONIC SPECIFICATIONS
POWER OUTPUT PER CHANNEL
200W @ 4 or 8 Ohms
NUMBER OF CHANNELS
7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
TOTAL HARMONIC DISTORTION
0.005%
S/N BELOW RATED OUTPUT
112dB
DYNAMIC HEADROOM
1.7dB
DAMPING FACTOR
140
RATED POWER BAND
20Hz to 20kHz
FREQUENCY RESPONSE +0,-0.25DB
20Hz to 20kHz
FREQUENCY RESPONSE -3DB
10Hz to 100kHz
CONTROL
REMOTE POWER CONTROL
Yes, 7 or 5 + 2 Channel
MULTI CHANNEL DB25 CABLE
N/A
GENERAL SPECIFICATIONS
CIRCUIT CONFIGURATION
Push-Pull Complementary
CIRCUIT DESIGN
Transistor
MONO BRIDGE
No
MONO PARALLEL
No
AUTOFORMER
No
METERS
Yes, new style LED
METER LIGHT SWITCH
No
BALANCED INPUT
Yes
FRONT PANEL
Glass
ILLUMINATION
LED Fiber Optic
CHASSIS STYLE
Inverted
GOLD PLATED BINDING POSTS
Yes
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
WEIGHT
83 lbs (37.6 kg)
SHIPPING WEIGHT
116 lbs (52.6 kg)
