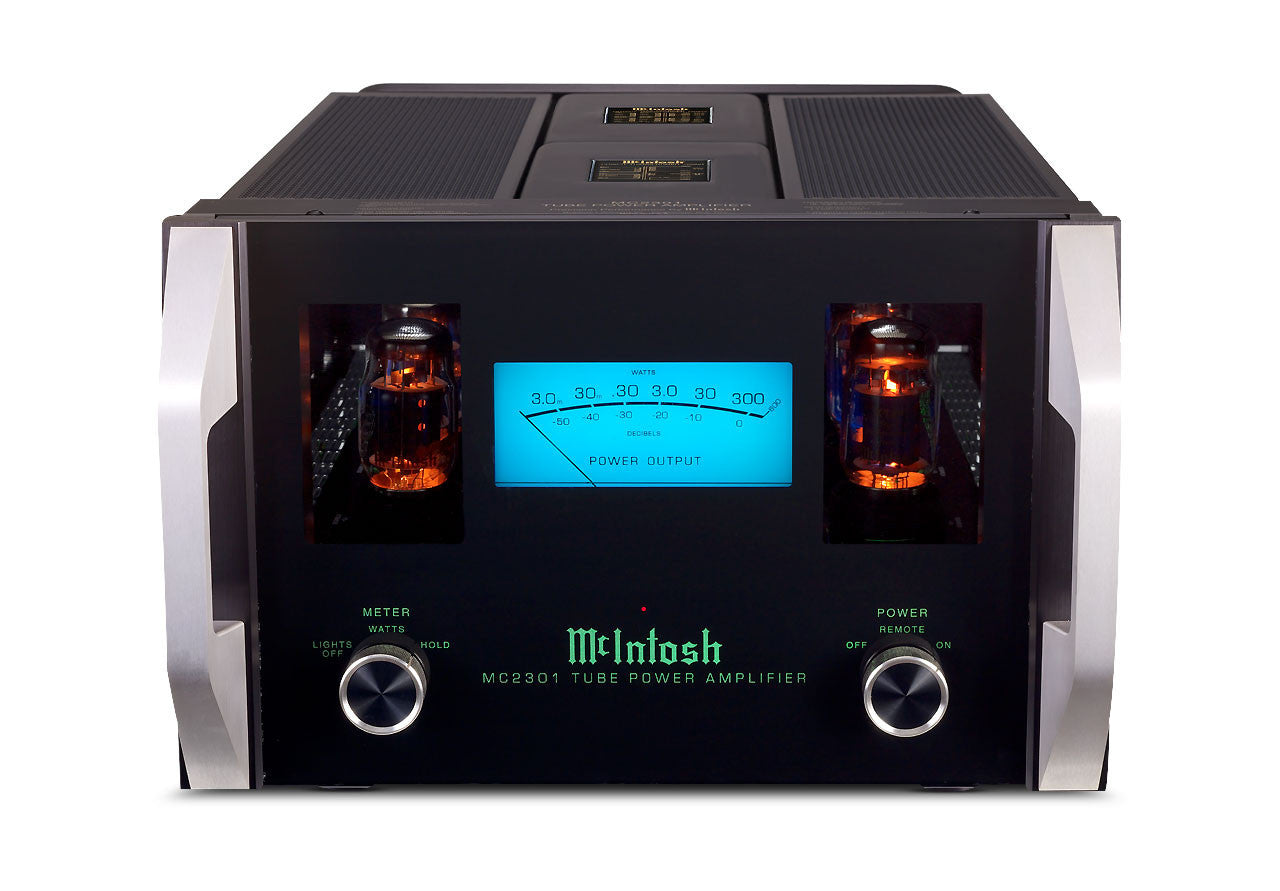

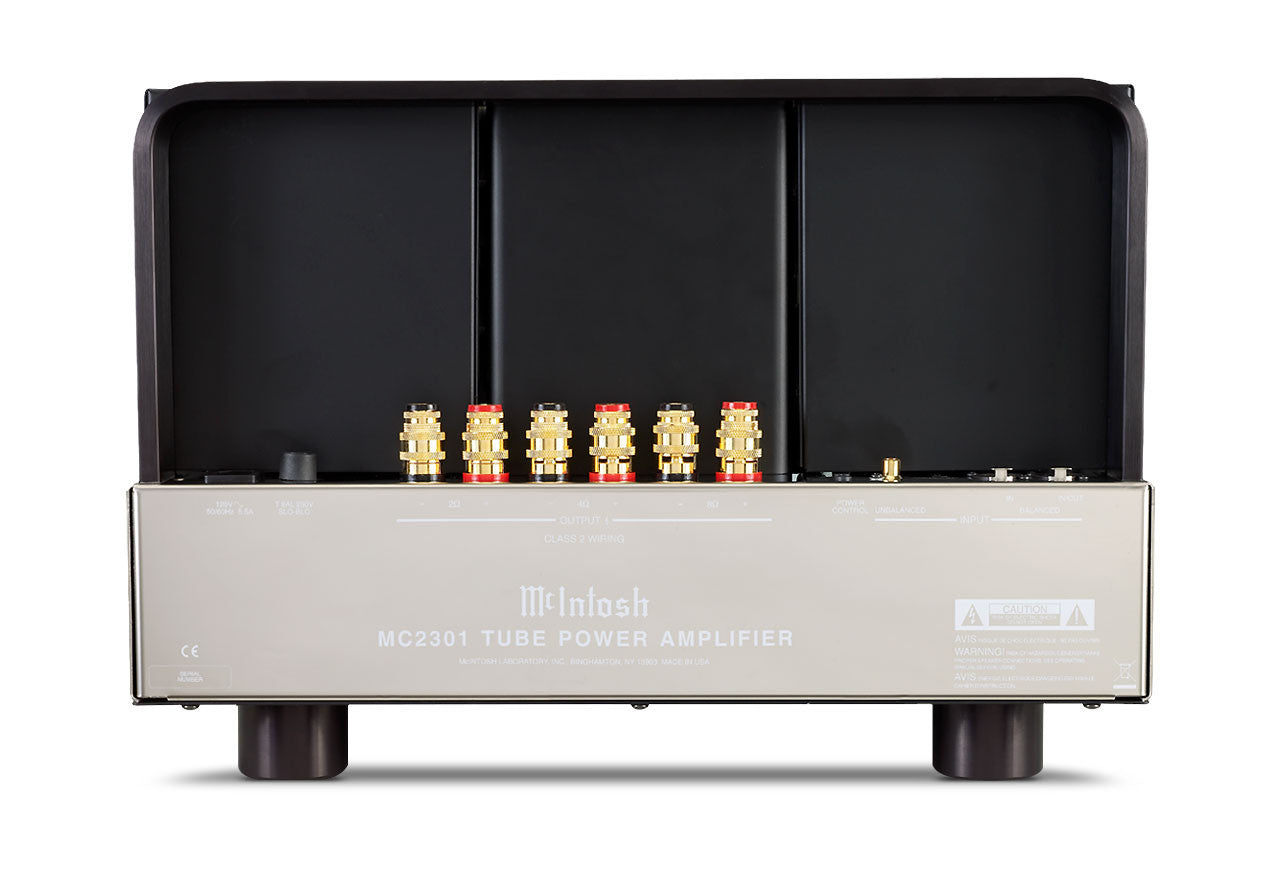

McIntosh MC2301 Power Amplifier
$28,995
By McIntosh
This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description
With 300 Watts available at 8, 4 or 2 ohms, the MC2301 provides high power to drive even the most difficult loudspeakers. From the demands of massed chorale to full-on rock and roll, the MC2301 delivers the most extraordinarily lifelike and dynamic performance ever heard from a McIntosh tube amplifier.
ELECTRONIC SPECIFICATIONS
POWER OUTPUT PER CHANNEL
300W @ 2, 4 or 8 Ohms
NUMBER OF CHANNELS
1
TOTAL HARMONIC DISTORTION
0.5%
S/N BELOW RATED OUTPUT
117dB
DYNAMIC HEADROOM
1.2dB
DAMPING FACTOR
>15 Wideband
RATED POWER BAND
20Hz to 20kHz
FREQUENCY RESPONSE +0,-0.25DB
20Hz to 20kHz
FREQUENCY RESPONSE -3DB
10Hz to 100kHz
CONTROL
REMOTE POWER CONTROL
Yes
MULTI CHANNEL DB25 CABLE
N/A
GENERAL SPECIFICATIONS
CIRCUIT CONFIGURATION
Quad Balanced, Unity Coupled
CIRCUIT DESIGN
Vacuum Tube
MONO BRIDGE
No
MONO PARALLEL
No
AUTOFORMER
Transformer
METERS
Yes
METER LIGHT SWITCH
Yes
BALANCED INPUT
Yes
FRONT PANEL
1/2" Glass with handles
ILLUMINATION
LED Fiber Optic
CHASSIS STYLE
Open Stainless Steel
GOLD PLATED BINDING POSTS
Yes, 200 amp, 3-way
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)
WEIGHT
116 lbs (52.6 kg)
SHIPPING WEIGHT
141 lbs (63.9 kg)
