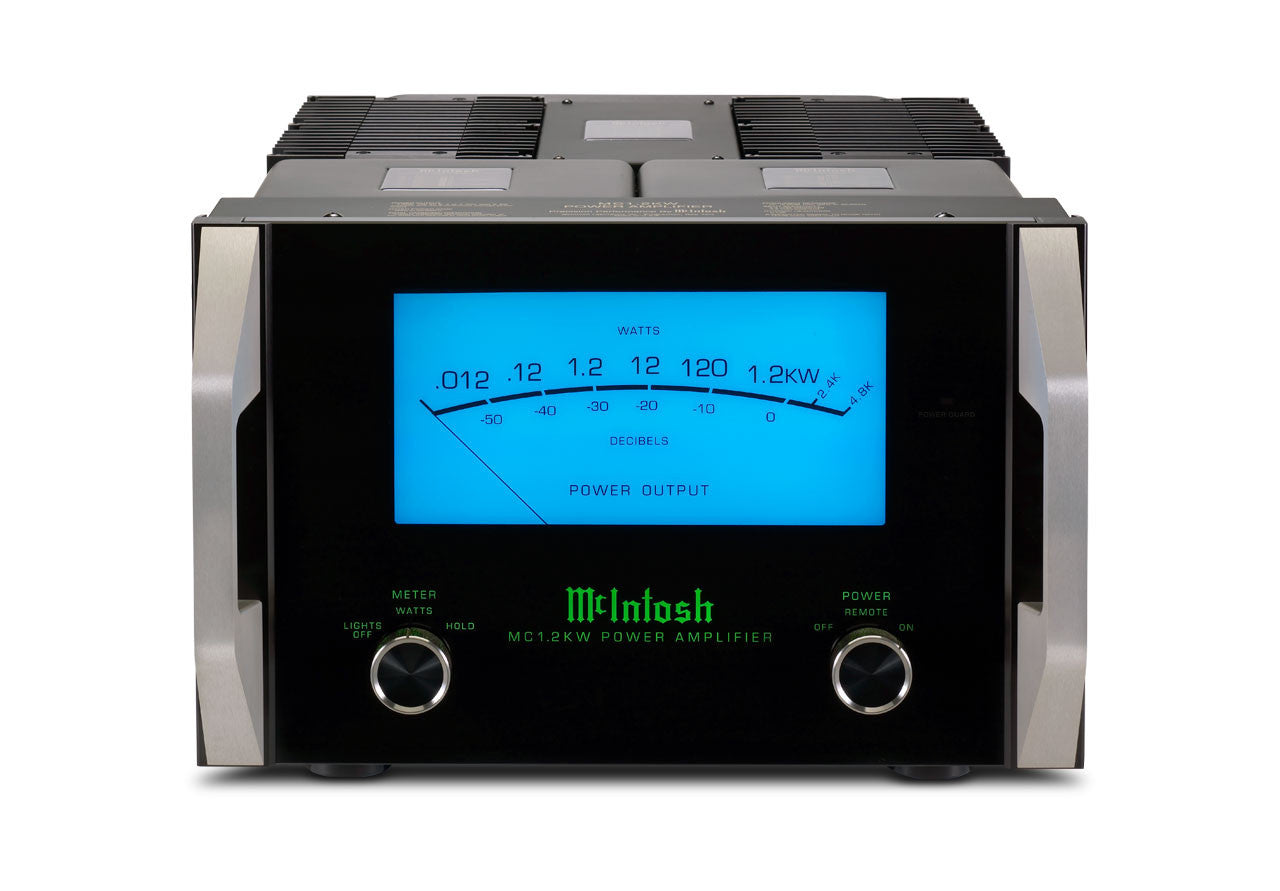

McIntosh MC1.25KW Power Amplifier
Description
The most powerful single chassis McIntosh Monaural amplifier, MC1.2KW produces a massive 1,200 watts. The MC1.2KW features the extraordinary McIntosh Quad Balanced Circuit. Each amplifier consists of two balanced amplifier circuits, the outputs of which are combined in the unique, hand-crafted McIntosh Output Autoformer. The MC1.2KW can be used with all loudspeaker types and features output connections that are optimized for 2, 4, and 8-Ohms for low distortion performance and maximum power transfer regardless of speaker type used. With features such as DC failure protection and remote power control, the MC1.2KW is an ideal marriage of power and performance.
ELECTRONIC SPECIFICATIONS
POWER OUTPUT PER CHANNEL
1200W @ 2, 4 or 8 Ohms
NUMBER OF CHANNELS
1
TOTAL HARMONIC DISTORTION
0.005%
S/N BELOW RATED OUTPUT
124dB
DYNAMIC HEADROOM
2.1dB
DAMPING FACTOR
>40 Wideband
RATED POWER BAND
20Hz to 20kHz
FREQUENCY RESPONSE +0,-0.25DB
20Hz to 20kHz
FREQUENCY RESPONSE -3DB
10Hz to 100kHz
CONTROL
REMOTE POWER CONTROL
Yes
MULTI CHANNEL DB25 CABLE
N/A
GENERAL SPECIFICATIONS
CIRCUIT CONFIGURATION
Quad Balanced
CIRCUIT DESIGN
Transistor
MONO BRIDGE
N/A
MONO PARALLEL
N/A
AUTOFORMER
Yes
METERS
Yes
METER LIGHT SWITCH
Yes
BALANCED INPUT
Yes-2
FRONT PANEL
1/2" Glass with handles
ILLUMINATION
LED Fiber Optic
CHASSIS STYLE
Open Stainless Steel
GOLD PLATED BINDING POSTS
Yes, 200 amp, 3-way
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 22" (55.88cm) (including the front panel and cables)
WEIGHT
147 lbs (66.7 kg)
SHIPPING WEIGHT
172 lbs (78 kg)
