McIntosh MAC7200 Integrated Amplifier
Description
Many music lovers choose McIntosh Integrated Amplifiers to be the backbone of their audio system or home stereo. The reason is simple: integrated amplifiers provide unbeatable value for your investment.
McIntosh Integrated Amplifiers combine the engineering and performance of their separate Preiamplifiers and Amplifiers into one chassis. By sharing a single chassis, integrated amplifiers help reduce the overall footprint of the audio system or home stereo.
McIntosh integrated amplifiers are available in various power output Wattages, and in both Solid State and Tube-type configurations. Regardless of which model you choose, you will be rewarded with years of McIntosh-quality listening pleasure.
MAC7200 Stereo Receiver
With 200 Watts per channel, 14 inputs and a high-performance AM/FM tuner, the MAC7200 Receiver is a music lover’s dream.
We’ve been making tuners since the 1950s and they are one of the hallmarks of McIntosh, with the groundbreaking MR78 FM Tuner from 1972 considered an all-time classic in the audio industry. The built-in AM/FM tuner in the MAC7200 comes from that same illustrious line of McIntosh tuners and will pick up your favorite radio stations with unparalleled clarity and a realism that is free from noise and distortion. Its advanced signal quality monitor can display the multipath and noise levels of the incoming RF signal to help fine tune antenna placement for optimal reception. Dedicated PRESET and TUNING knobs enable easy radio operation. The FM tuner includes Radio Data System (RDS) support, allowing it to display optional information sent by radio stations such as the station’s name and call letters as well as the name of the artist and song being played. It features 20 presets for each radio band as well as a remote AM antenna.

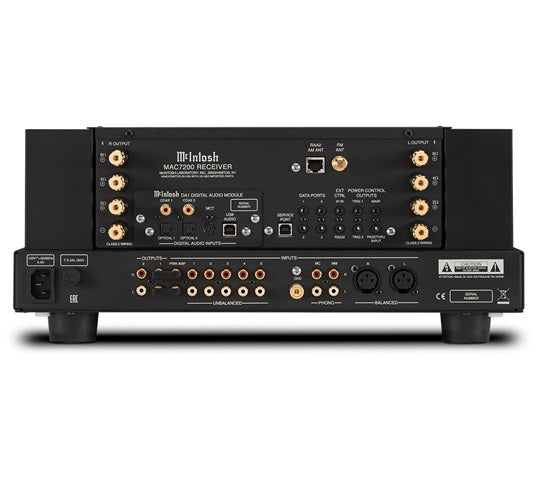

The 14 inputs are comprised of both analogue and digital input types. For analogue, there is 1 balanced and 5 unbalanced inputs plus 1 Moving Coil and 1 Moving Magnet input to connect turntables. For digital, there are 2 coaxial and 2 optical inputs, 1 USB and 1 proprietary MCT input (for use with our MCT450 SACD/CD Transport). All inputs can be given custom names for user-friendly system control and configuration. The digital inputs are contained in our DA1 Digital Audio Module; the DA1 can be replaced by future modules to easily keep the MAC7200 up to date with the latest digital audio technologies. At the heart of the DA1 is a powerful 8-channel, 32-bit Digital-to-analogue Converter (DAC) used in Quad Balanced mode. PCM signals up to 32-bit/384kHz can be played via the USB input, allowing for playback of high resolution audio up to DSD256 and DXD 384kHz levels. The coax and optical inputs support up to 24-bit/192kHz files.
Our striking Monogrammed Heatsinks™ are included and they not only make a visual statement, but they are also very efficient at dissipating heat – which is why they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so the MAC7200 is ready to go from the moment you turn it on. Other McIntosh technologies found in the MAC7200 include Autoformers to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theatre PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.

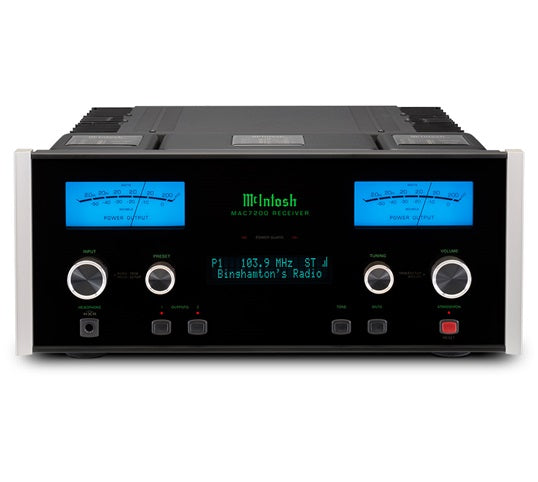

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminium end caps, control knobs and illuminated logo.
SPECIFICATIONS
POWER OUTPUT PER CHANNEL
200 Watts
SPEAKER IMPEDANCE
2, 4, or 8 Ohms
RATED POWER BAND
20Hz to 20kHz
TOTAL HARMONIC DISTORTION
0.005%
DYNAMIC HEADROOM
2dB
FREQUENCY RESPONSE +0,-0.5DB
20Hz to 20kHz
FREQUENCY RESPONSE, +0, -3DB
10Hz to 100kHz
SENSITIVITY PHONO (MOVING COIL)
0.25mV
SENSITIVITY PHONO (MOVING MAGNET)
2.5mV
SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)
0.5V/0.25V
SENSITIVITY (POWER AMP)
1.4V
SIGNAL TO NOISE RATIO (MOVING COIL)
80dB
SIGNAL TO NOISE RATIO (MOVING MAGNET)
82dB
SIGNAL TO NOISE RATIO (HIGH LEVEL)
95dB
SIGNAL TO NOISE RATIO (POWER AMP)
113dB
INPUT IMPEDANCE (BALANCED / UNBALANCED)
20K/20K
DAMPING FACTOR
>40
MAXIMUM OUTPUT (BALANCED / UNBALANCED)
8V Unbalanced
CONNECTIVITY
HEADPHONE OUTPUT
Yes, High Drivewith Headphone Crossfeed Director (HXD®)
HIGH LEVEL INPUTS UNBALANCED
5 Stereo
HIGH LEVEL INPUTS BALANCED
1 Stereo
VARIABLE OUTPUTS UNBALANCED
2 Stereo
VARIABLE OUTPUTS BALANCED
0 Stereo
DIGITAL USB INPUT
1
DIGITAL COAXIAL INPUTS
2
DIGITAL OPTICAL INPUTS
2
PHONO MOVING MAGNET
Yes (Fixed Loading)
PHONO MOVING COIL
Yes (Adjustable Loading)
AM/FM TUNER OPTION
No
HOME THEATRE PASS THROUGH
Yes
DIGITAL AUDIO SPECIFICATIONS
DIGITAL-TO-analogueUE CONVERTER (DAC) TYPE
8-channel, 32-bit/192kHz PCM/DSD, Quad Balanced
DIGITAL COAXIAL INPUT SAMPLE RATE
24-bit/44.1kHz to 192kHz
DIGITAL OPTICAL INPUT SAMPLE RATE
24-bit/44.1kHz to 192kHz
DIGITAL MCT (DIN) INPUT SAMPLE RATE
16-bit/44.1kHz (CD)
DSD64 (SACD)
DIGITAL USB INPUT SAMPLE RATE
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
CONTROL
TONE CONTROLS
Bass & Treble
TONE BYPASS AND INPUT ASSIGN
Yes
RS232 CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
REAR PANEL DATA PORTS
Yes
REAR PANEL IR SENSOR INPUT
Yes
INPUT LEVEL MATCH
Yes
GENERAL SPECIFICATIONS
DUAL LAYER CHASSIS
Yes
OUTPUT METERS
Yes
TUBE OR SOLID STATE
Solid State
POWER REQUIREMENT
240V, 50/60Hz, 4.8A
STANDBY POWER REQUIREMENT
<0.25 Watts
OUTPUT AUTOFORMER
Yes
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm) including knobs, connectors and cables
WEIGHT
75 lbs (34.1kg)
SHIPPING WEIGHT
93 lbs (42.3kg)
