McIntosh MA7200 Integrated Amplifier
Description
Many music lovers choose McIntosh Integrated Amplifiers to be the backbone of their audio system or home stereo. The reason is simple: integrated amplifiers provide unbeatable value for your investment.
McIntosh Integrated Amplifiers combine the engineering and performance of their separate Preiamplifiers and Amplifiers into one chassis. By sharing a single chassis, integrated amplifiers help reduce the overall footprint of the audio system or home stereo.
McIntosh integrated amplifiers are available in various power output Wattages, and in both Solid State and Tube-type configurations. Regardless of which model you choose, you will be rewarded with years of McIntosh-quality listening pleasure.
MA7200 Integrated Amplifier
Offering 200 Watts per channel and 14 total inputs, the space-saving MA7200 Integrated Amplifier can easily become the core of your 2-channel home audio system.

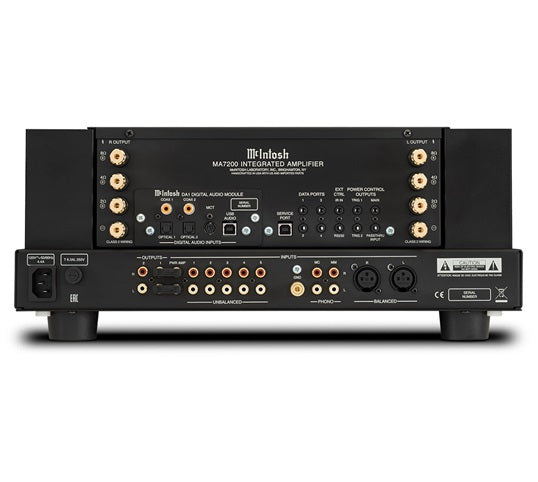

Making up its 14 inputs are 8 analogue connections (5 unbalanced, 1 balanced and 1 each of Moving Coil and Moving Magnet inputs for turntables) along with 6 digital (2 each of coaxial and optical plus 1 USB and 1 proprietary MCT for use with our MCT450 SACD/CD Transport). The digital inputs are housed in our DA1 Digital Audio Module, which can easily be replaced by future modules to keep your MA7200 current with the latest digital audio technologies. The DA1 comes with an 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. The USB input accepts PCM signals up to 32-bit/384kHz and supports up to DSD256 and DXD 384kHz for high resolution audio playback, while the coax and optical inputs will decode music up to 24-bit/192kHz. All inputs can be given custom names for user-friendly system control and configuration.
The MA7200 includes our Monogrammed Heatsinks™ which are so efficient at dissipating heat that they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so you can enjoy the MA7200’s full sonic capabilities from the moment you turn it on. The MA7200 is full of other McIntosh technologies including Autoformers to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard®, Sentry Monitor™, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts.

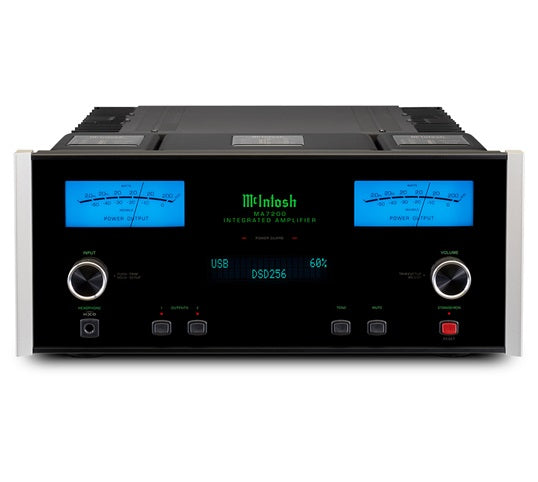

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminium end caps, control knobs and illuminated logo.
SPECIFICATIONS
POWER OUTPUT PER CHANNEL
200 Watts
SPEAKER IMPEDANCE
2, 4, or 8 Ohms
RATED POWER BAND
20Hz to 20kHz
TOTAL HARMONIC DISTORTION
0.005%
DYNAMIC HEADROOM
2dB
FREQUENCY RESPONSE +0,-0.5DB
20Hz to 20kHz
FREQUENCY RESPONSE, +0, -3DB
10Hz to 100kHz
SENSITIVITY PHONO (MOVING COIL)
0.25mV
SENSITIVITY PHONO (MOVING MAGNET)
2.5mV
SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)
0.5V/0.25V
SENSITIVITY (POWER AMP)
1.4V
SIGNAL TO NOISE RATIO (MOVING COIL)
80dB
SIGNAL TO NOISE RATIO (MOVING MAGNET)
82dB
SIGNAL TO NOISE RATIO (HIGH LEVEL)
95dB
SIGNAL TO NOISE RATIO (POWER AMP)
113dB
INPUT IMPEDANCE (BALANCED / UNBALANCED)
20K/20K
DAMPING FACTOR
>40
MAXIMUM OUTPUT (BALANCED / UNBALANCED)
8V Unbalanced
CONNECTIVITY
HEADPHONE OUTPUT
Yes, High Drivewith Headphone Crossfeed Director (HXD®)
HIGH LEVEL INPUTS UNBALANCED
5 Stereo
HIGH LEVEL INPUTS BALANCED
1 Stereo
VARIABLE OUTPUTS UNBALANCED
2 Stereo
VARIABLE OUTPUTS BALANCED
0 Stereo
DIGITAL USB INPUT
1
DIGITAL COAXIAL INPUTS
2
DIGITAL OPTICAL INPUTS
2
PHONO MOVING MAGNET
Yes (Fixed Loading)
PHONO MOVING COIL
Yes (Adjustable Loading)
AM/FM TUNER OPTION
No
HOME THEATRE PASS THROUGH
Yes
DIGITAL AUDIO SPECIFICATIONS
DIGITAL-TO-ANALOGUE CONVERTER (DAC) TYPE
8-channel, 32-bit/192kHz PCM/DSD, Quad Balanced
DIGITAL COAXIAL INPUT SAMPLE RATE
24-bit/44.1kHz to 192kHz
DIGITAL OPTICAL INPUT SAMPLE RATE
24-bit/44.1kHz to 192kHz
DIGITAL MCT (DIN) INPUT SAMPLE RATE
16-bit/44.1kHz (CD)
DSD64 (SACD)
DIGITAL USB INPUT SAMPLE RATE
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
CONTROL
TONE CONTROLS
Bass & Treble
TONE BYPASS AND INPUT ASSIGN
Yes
RS232 CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
REAR PANEL DATA PORTS
Yes
REAR PANEL IR SENSOR INPUT
Yes
INPUT LEVEL MATCH
Yes
GENERAL SPECIFICATIONS
DUAL LAYER CHASSIS
Yes
OUTPUT METERS
Yes
TUBE OR SOLID STATE
Solid State
POWER REQUIREMENT
240V, 50/60Hz, 4.8A
STANDBY POWER REQUIREMENT
<0.25 Watts
OUTPUT AUTOFORMER
Yes
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm) including knobs, connectors and cables
WEIGHT
75 lbs (34.1kg)
SHIPPING WEIGHT
93 lbs (42.3kg)
