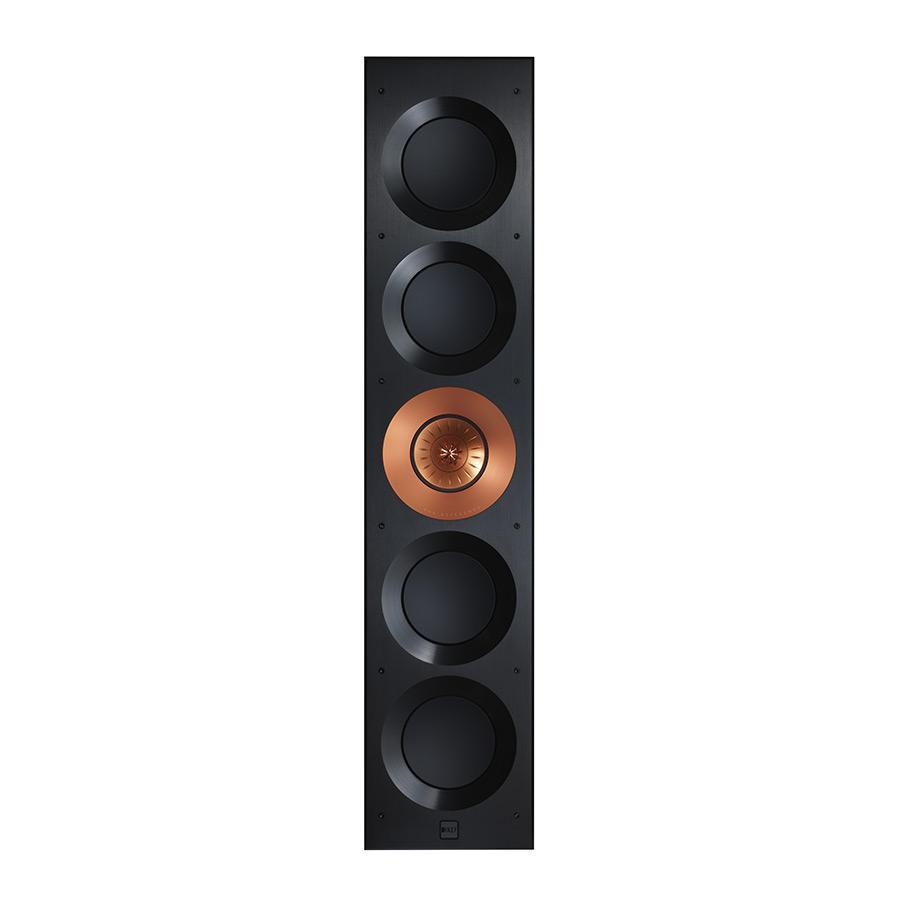

KEF Ci5160REF-THX In-Wall Speaker Each

$17,000
By KEF

Description

Features KEF’s patented Uni-Q driver array

The standards of architectural speakers have been reset forever. We introduce the in-wall KEF Ci5160REF-THX - the newest addition to THE REFERENCE family, meeting KEF’s standards for Extreme Theatre as well as THX Ultra Certification.

Ci5160REF-THX

The Ci5160REF-THX is engineered with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 125mm (5 inch) MF/HF Uni-Q driver array with 25mm (1 inch) vented aluminium dome tweeter and four 160mm woofers.

Uni-Q driver array

At the heart of the Ci5160REF-THX is the 11th generation of the KEF’s signature innovation: the Uni-Q point source MF/HF driver array. With a 25mm vented aluminium dome tweeter at the exact acoustic centre of a 125mm mid-range driver, both act as a single source that floods the listening space evenly with a flawless natural sound field.
Select a property

Bass drivers

Like everything else about THE REFERENCE, the bespoke 160mm LF driver optimised for use in-wall, is a class apart. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are superb.
Select a property

Crossover

KEF engineers computer-modelled the ideal crossover networks before exhaustively auditioning every high-grade component to select those with the lowest distortion and the smoothest response. Perfectionism takes time, but the difference is clear. Nothing is overlooked – the HF and LF crossovers are even mounted on separate boards to minimise crosstalk.
Select a property

Specifications:

Model Ci5160REF-THX
Nominal Impedance
Sensitivity (2.83V/ 1m) 90dB (2.83V/ 1m)
Frequency response (±6dB)
open-backed
40Hz - 28kHz (±6dB) open backed
Crossover frequency 400Hz, 2.8kHz
Drive units
LF
MF
HF
4 x 160mm (6.5 in.)
160mm (6.5 in.)
25mm (1 in.) Uni-Q
Recommended Amplifier Power 40 - 500W
Product external dimensions
(H x W x D)
1070 x 230 x 105.7 mm
(42.13 x 9.06 x 4.16 in.)
Cut-out dimensions
(H x W)
1052 x 209mm (41.42 x 8.23 in.)
Net Weight 22.0 kg (48.5 lbs)
Mounting depth from surface 99mm (3.9 in.)
