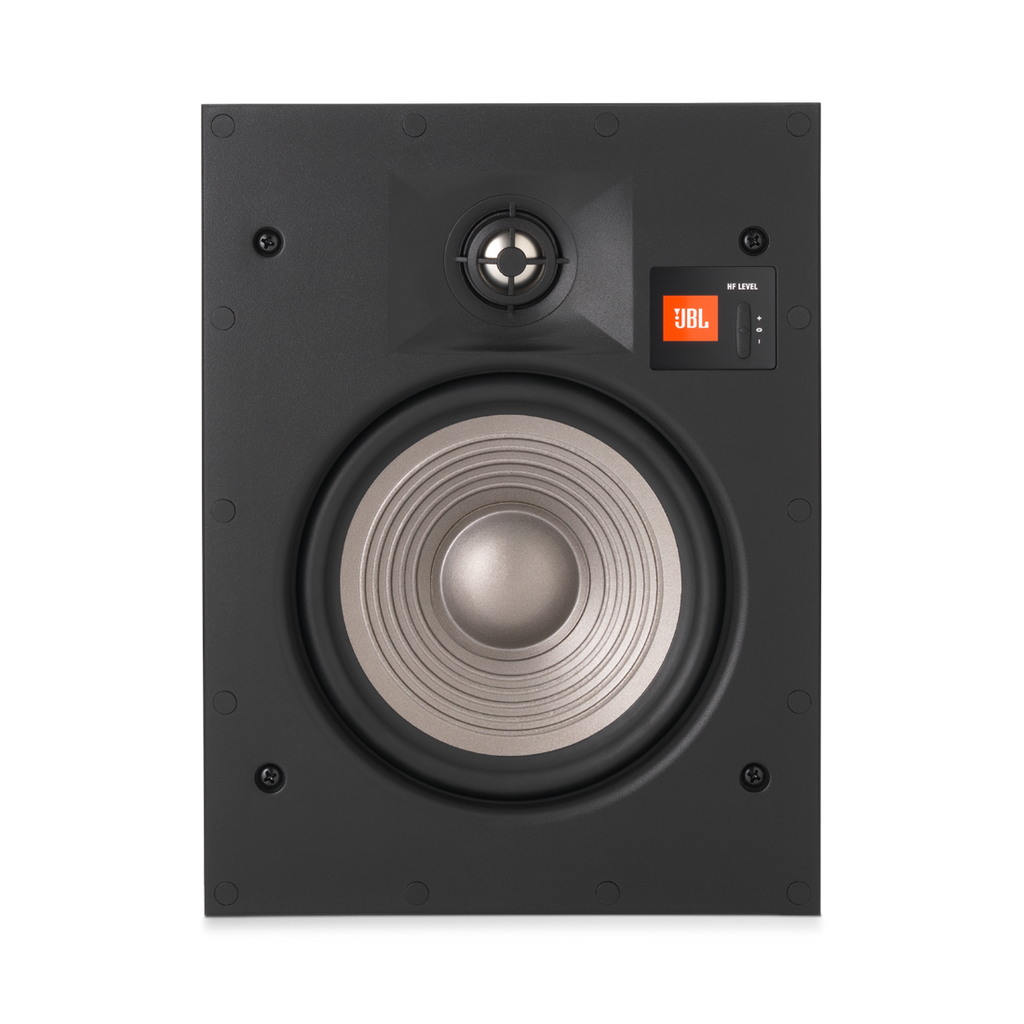

JBL Studio 2 6IW In Wall Speaker



Stealthy sound that shines

If you're planning a custom-installed audio system, check out JBL's Studio 2 6IW. This high-quality in-wall speaker produces engaging sound without taking up any floor space.

Use a pair of the Studio 2 6IWs for a stealthy in-wall stereo system, or as the left- and right-channel speakers in a JBL surround sound system.


  • 6-1/2" Polyplas® woofer
  • 1" CMMD® (Ceramic Metal Matrix Diaphragm) Lite tweeter
    • tweeter is aimable to direct high frequencies toward you
    • three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room's acoustics
  • frequency response: 38-20,000 Hz
  • recommended amplifier power: 80 watts RMS
  • impedance: 8 ohms
  • sensitivity: 86 dB
  • includes paintable magnetic grille
  • cutout dimensions: 7-5/16"W x 9-13/16"H
  • overall dimensions: 8-3/8"W x 10-7/8"H
  • mounting depth: 3-5/8"
  • warranty: 5 years

Adjust the sound to your space

This speaker pairs a 6-1/2" woofer with a 1" tweeter for tight, clean bass and smooth, dynamic highs. You can even aim the tweeter toward your seat for the best sound.

A three-position tweeter level control lets you cut or boost high-frequency output to ideally suit your room's acoustics.

Born from JBL's storied audio heritage

The Studio 2 Series' distinctive sound was modeled after JBL's legendary M2 Master Reference Monitor — one of the best speakers they ever created. JBL's proprietary HDI (High Definition Imaging) waveguide technology helps this speaker deliver optimum sound quality throughout your room.


Tweeter Size 1
Midrange Size N/A
Woofer Size 6.5
Speaker Shape Rectangle
Cutout Width 7.3125
Cutout Height 9.8125
Power Range (Watts) up to 80
Sensitivity 86 dB
Impedance (Ohms) 8
Frequency Response 38-20kHz
Parts Warranty 5 Years
Labor Warranty 5 Years
