Denon AVC-X8500H AV Receiver

$6,990
By Denon

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description
*NOTE - FOR A LIMITED TIME ONLY PURCHASE THE DENON AVC-X8500H AND RECEIVE A FREE DENON HOME 350 WIRELESS SPEAKER*


AVC-X8500H

The Denon Flagship AVC-X8500H powers the next generation of home theater with the world’s first 13.2 channel AV Amplifier that supports the latest immersive audio formats, including Dolby Atmos, DTS:X and Auro-3D. Built-in HEOS technology supports Amazon Alexa* and takes music listening to the next level with wireless whole-home audio.
* The Amazon Alexa feature becomes available in Spring 2018. Availability varies by country.

POWERFUL 13.2 CHANNEL HOME THEATRE EXPERIENCE

The AVC-X8500H ushers in a leading-edge home theatre experience with 13 channels of built-in amplification to enable premium 3D surround sound up to 7.2.6 without external amplification and supports latest 4K Ultra HD picture standards.

BLOCKBUSTING 3D-SOUND

Surround yourself in cinema-grade sound from literally any direction.

SOUND IN THE RIGHT PLACE

Immerse yourself in multi-dimensional audio with Dolby Atmos. Enjoy a 7.1.6 or 9.1.4 surround sound speaker system with as many as 6 overhead speakers or Dolby Atmos elevation speakers for the ultimate home theatre experience.

BE CLOSER TO THE ACTION

DTS:X™ immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favourite movies. The included DTS Neural:X™ gives your movies, games and music a realism unmatched by traditional 5.1 surround sound.

FEEL THE POWER OF LIFE-LIKE SOUND

Auro-3D provides an immersive surround sound experience thanks to dedicated height and overhead channels, in addition to traditional channels supporting up to a 13.2 configuration. Formatting identifies sound objects individually and projects them to different spaces in your listening environment, creating an immersive, three-dimensional sound stage. Auro-3D will be enabled via a future firmware update at no additional charge.

FUTUREPROOF IN ANY WAY

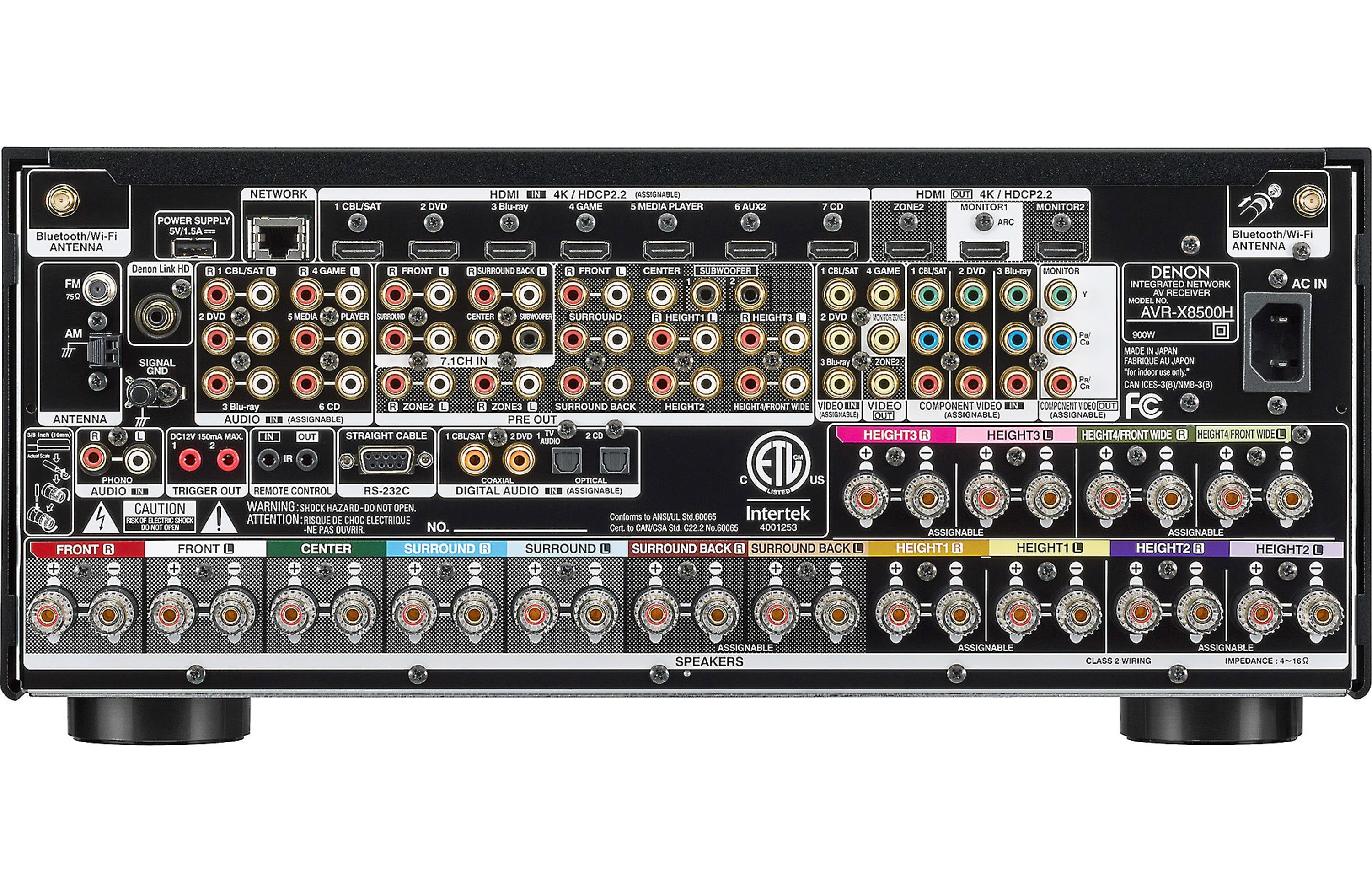

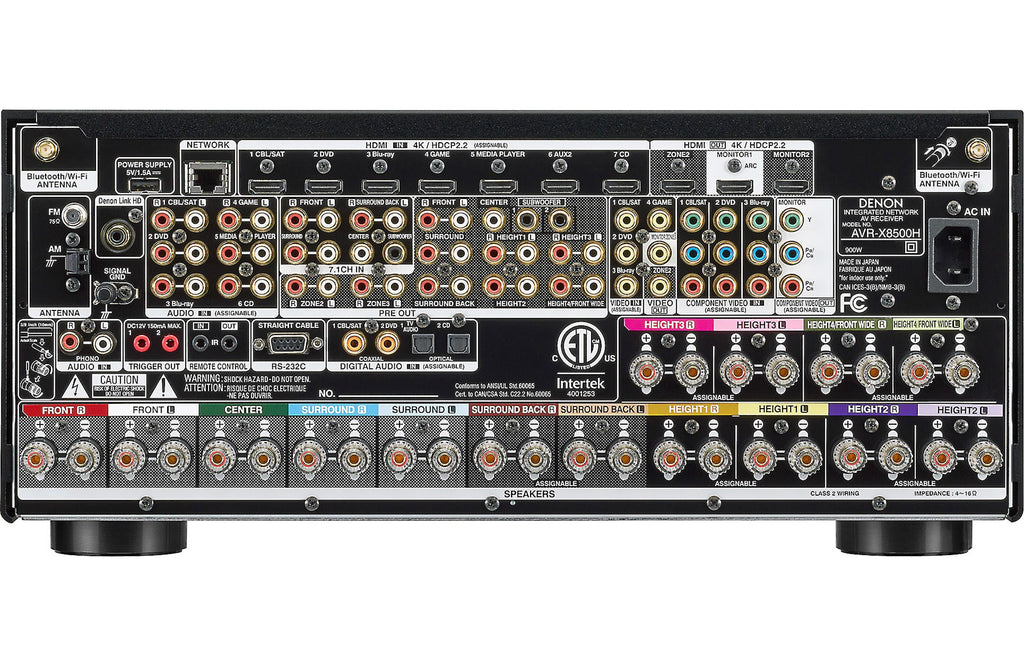

All eight HDMI inputs (including one on the front) and three HDMI outputs feature HDCP 2.2 compatibility and the latest HDMI specifications, including 4K Ultra HD 60Hz video, 4:4:4 Pure Colour sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through support. It is even ready for Enhanced Audio Return Channel (eARC) for 3D audio playback through TV apps. The eARC feature will be enabled via a future firmware update.

BREATHE NEW LIFE INTO LEGACY SOURCES

The AVC-X8500H boasts an advanced video processor to upscale existing lower resolution video from any analog or digital source to true 4K. With three HDMI outputs, you can even connect a TV and a projector in the main room, while playing back different content on a second zone screen.

NEXT GENERATION VIDEO FORMATS

The AVC-X8500H supports High Dynamic Range (HDR) video format. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and colour. HLG offers HDR technology over broadcast content.

Specifications:

Audio section

Power amplifier

Rated out­put:

Front:

150 W + 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.)

190 W + 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Cen­ter:

150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.)

190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Sur­round:

150 W + 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.)

190 W + 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Sur­round back / Height1 / Height2 / Height3 / Height4/Front wide:

150 W + 150 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.)

190 W + 190 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Dy­namic power:

170 W x 2-chan­nel (8 Ω/ohms)

280 W x 2-chan­nel (4 Ω/ohms)

Out­put con­nec­tors:

4 – 16 Ω/ohms

Analog

Input sen­si­tiv­ity:

200 mV

Fre­quency re­sponse:

10 Hz – 100 kHz — +1, –3 dB (Di­rect mode)

S/N:

102 dB (IHF–A weighted, Di­rect mode)

Dis­tor­tion:

0.005 % (20 Hz – 20 kHz) (Di­rect mode)

Rated out­put:

1.2 V

Digital

D/A out­put:

Rated out­put — 2 V (at 0 dB play­back)

Total har­monic dis­tor­tion — 0.008 % (1 kHz, at 0 dB)

S/N ratio — 102 dB

Dy­namic range — 100 dB

Dig­i­tal input:

For­mat — Dig­i­tal audio in­ter­face

Phono equalizer

Input sen­si­tiv­ity:

2.5 mV

RIAA de­vi­a­tion:

±1 dB (20 Hz to 20 kHz)

S/N:

74 dB (IHF-A)

Dis­tor­tion fac­tor:

0.03 % (1 kHz, 3 V)

Video section

Standard video connectors

Input/out­put level and im­ped­ance:

1 Vp-p, 75 Ω/ohms

Fre­quency re­sponse:

5 Hz – 10 MHz — 0, –3 dB

Color component video connector

Input/out­put level and im­ped­ance:

Y sig­nal — 1 Vp-p, 75 Ω/ohms

PB / CB sig­nal — 0.7 Vp-p, 75 Ω/ohms

PR / CR sig­nal — 0.7 Vp-p, 75 Ω/ohms

Fre­quency re­sponse:

5 Hz – 60 MHz — 0, –3 dB

Tuner section

[FM]

[AM]



(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10 –15 W)



Re­cep­tion fre­quency range:

87.5 MHz – 107.9 MHz

520 kHz – 1710 kHz

Ef­fec­tive sen­si­tiv­ity:

1.2 μV (12.8 dBf)

18 μV

50 dB sen­si­tiv­ity:

MONO ― 2.8 μV (20.2 dBf)



S/N ratio:

MONO ― 70 dB (IHF–A weighted, Di­rect mode)

STEREO ― 67 dB (IHF–A weighted, Di­rect mode)

Dis­tor­tion:

MONO ― 0.7 % (1 kHz)

STEREO ― 1.0 % (1 kHz)

Wireless LAN section

Net­work type (wire­less LAN stan­dard):

Con­form­ing to IEEE 802.11a/b/g/n
(Wi-Fi® com­pli­ant) ∗1

Se­cu­rity:

WEP 64 bit, WEP 128 bit

WPA/WPA2-PSK (AES)

WPA/WPA2-PSK (TKIP)

Used fre­quency range:

2.4 GHz, 5 GHz

The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.

Bluetooth section

Com­mu­ni­ca­tions sys­tem:

Blue­tooth Spec­i­fi­ca­tion Ver­sion 3.0 + EDR (En­hanced Data Rate)

Trans­mis­sion power:

Blue­tooth Spec­i­fi­ca­tion Power Class 1

Max­i­mum com­mu­ni­ca­tion range:

Ap­prox. 98.4 ft/30 m in line of sight ∗2

Used fre­quency range:

2.4 GHz

Mod­u­la­tion scheme:

FHSS (Fre­quency-Hop­ping Spread Spec­trum)

Sup­ported pro­files:

A2DP (Ad­vanced Audio Dis­tri­b­u­tion Pro­file) 1.2

AVRCP (Audio Video Re­mote Con­trol Pro­file) 1.5

Cor­re­spond­ing codec:

SBC

Trans­mis­sion range (A2DP):

20 Hz – 20,000 Hz

The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.

General

Power sup­ply:

AC 120 V, 60 Hz

Power con­sump­tion:

900 W

Power con­sump­tion in standby mode:

0.1 W ∗

Power con­sump­tion in CEC standby mode:

0.5 W

*When “Network Control” in the menu is set to “Off In Standby” and “HDMI Pass Through” is set to “Off”.

For purposes of improvement, specifications and design are subject to change without notice.
