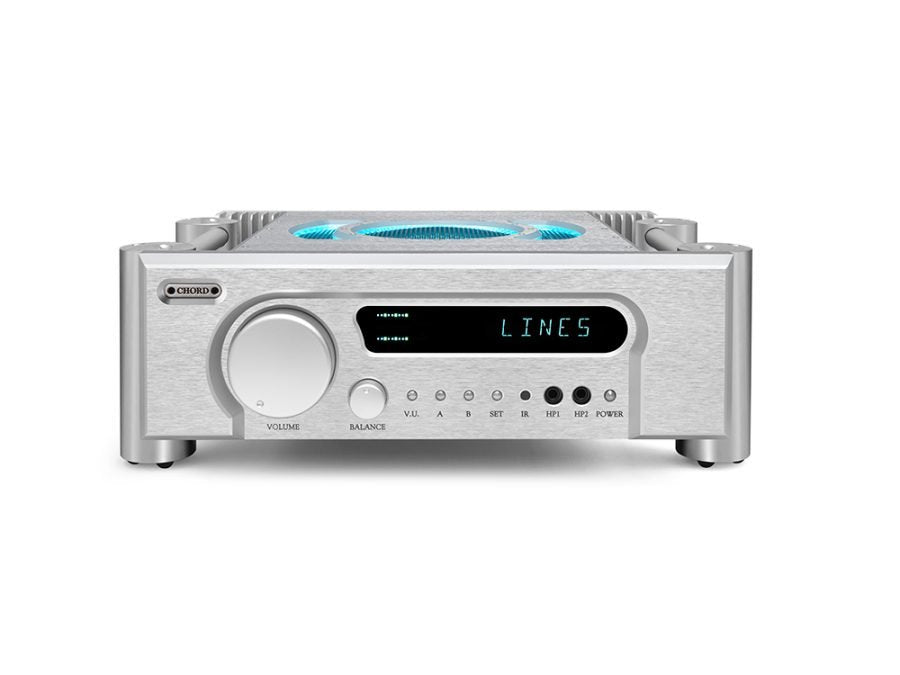

Chord Ultima Pre 2 Stereo Preamplifier

$30,800

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

Featuring unrivalled connectivity and minimal colouration, the ULTIMA PRE 2 can be the hub of your Hi-Fi system without taking anything away from the incoming signal.

The fully modernised ULTIMA PRE 2 is built to complement stereo systems of the highest order and represents the finest Chord Electronics engineering inside and out.

Just as a preamplifier should, the ULTIMA PRE 2 adds nothing to the original waveform and instead preserves it with zero colouration. This is thanks to our latest advances in switch-mode power supply design, developed from aerospace technologies, and our ultra-low-noise proprietary solid-state circuitry which is both carefully shielded and equipped with premium system components. As a result, the ULTIMA PRE 2 is able to achieve unprecedented noise floor performance of -130dB, meaning your source will always sound like your source and nothing else.

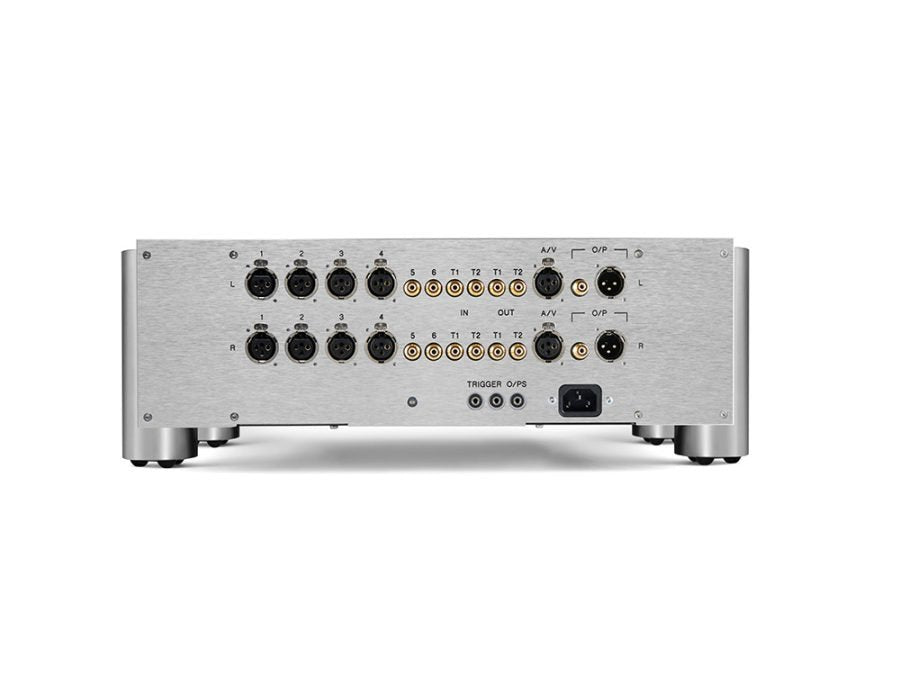

Where connectivity is concerned, the ULTIMA PRE 2 has hi-fi systems (and more!) covered. Featuring eight inputs, four stereo pairs of XLRs for balanced connections and another four RCA for unbalanced connections, each of these can be gain-matched and individually selected. For outputs, a single stereo pair is available via XLR or RCA, to accommodate a single stereo amplifier such as the ULTIMA 5 or a pair of mono blocks such as the ULTIMA 3s. Naturally, headphone users are catered for, too, for personal and late-night listening with the addition of a high-resolution 6.35mm output on the front fascia.

Where system-triggering is important, (allowing the simultaneous start-up of connected equipment from a single button-press), the ULTIMA PRE 2 is equipped with three outputs which should be more than enough for most systems.

Features:

Inputs & Outputs:

8 Stereo Inputs and 1 Stereo Outputs

  • 4x Stereo Balanced XLR Inputs – Line In 1, Line In 2, Line In 3, and Line In 4
  • 4x Stereo Unbalanced RCA Inputs – Line In 5, Line In 6, Tape 1, Tape 2
  • 1x Stereo Output – Either via Balanced XLR or Unbalanced RCA
  • 2x Stereo Outputs – RCA unattenuated for recording loop
  • 1x Stereo Balanced XLR AV Bypass Input

Specifications:

Frequency Range:

2.5Hz – 200kHz +/- 3dB

Total Harmonic Distortion:

0.002% 20Hz – 20kHz

Intermodulation Distortion:

-115dB on all inputs

Signal to Noise Ratio:

-120dB on all inputs

Channel Separation:

20Hz @ 100dB, 1kHz @ 95dB, 10kHz @ 90dB, 20kHz @ 85dB

Channel Balance:

0.01dB

Input Max Voltage:

17v RMS Balanced – 8.5v RMS Unbalanced

Output Max Voltage:

17v RMS Balanced – 8.5v RMS Unbalanced

Output Offset:

0mV (Both Channels)

Potentiometer Performance:

0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel)

Nominal Gain:

All inputs subject to six levels of switchable gain – x0.5, x1, x1.5, x2, x2.5, and x3

Input Impedance:

100 kΩ Balanced – 50 kΩ Unbalanced

Output Impedance:

100Ω (Short Circuit Protected)

Operating Voltage:

85v – 270v AC (50Hz – 60Hz) Auto Switching

Power Consumption:

30w

Dimensions Without Integra Legs:

420mm (w) x 355mm (d) x 133mm (h)

Dimensions With Included Integra Legs:

480mm (w) x 355mm (d) x 173mm (h)

Weight:

18kG
