Chord Qutest DAC
Brand Chord Electronics
Qutest is our ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.
Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernise ageing digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminium billet. The Qutest PCB nestles within a shallow cavity in the solid aluminium chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

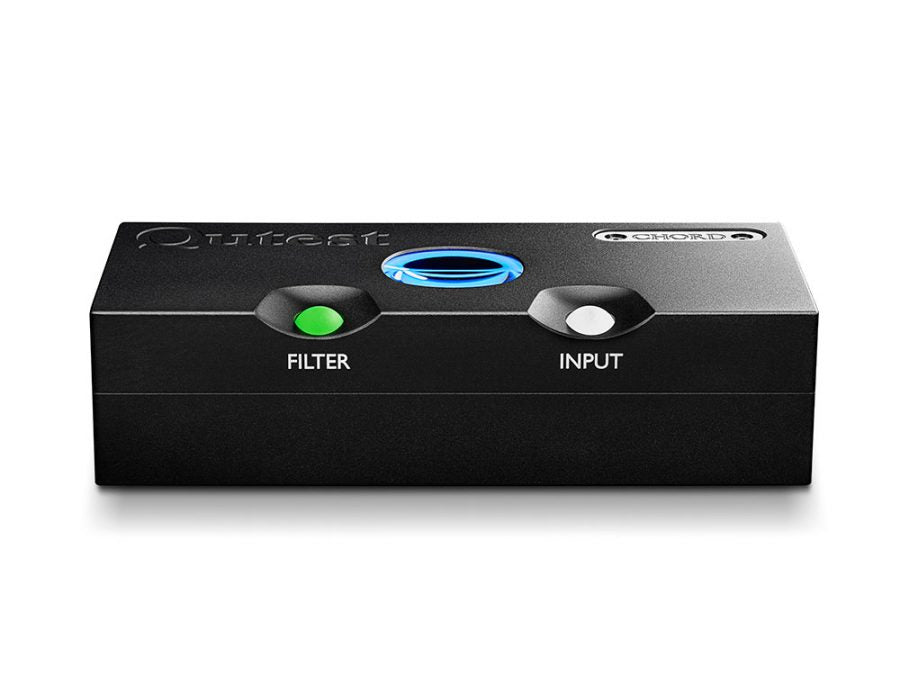

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.

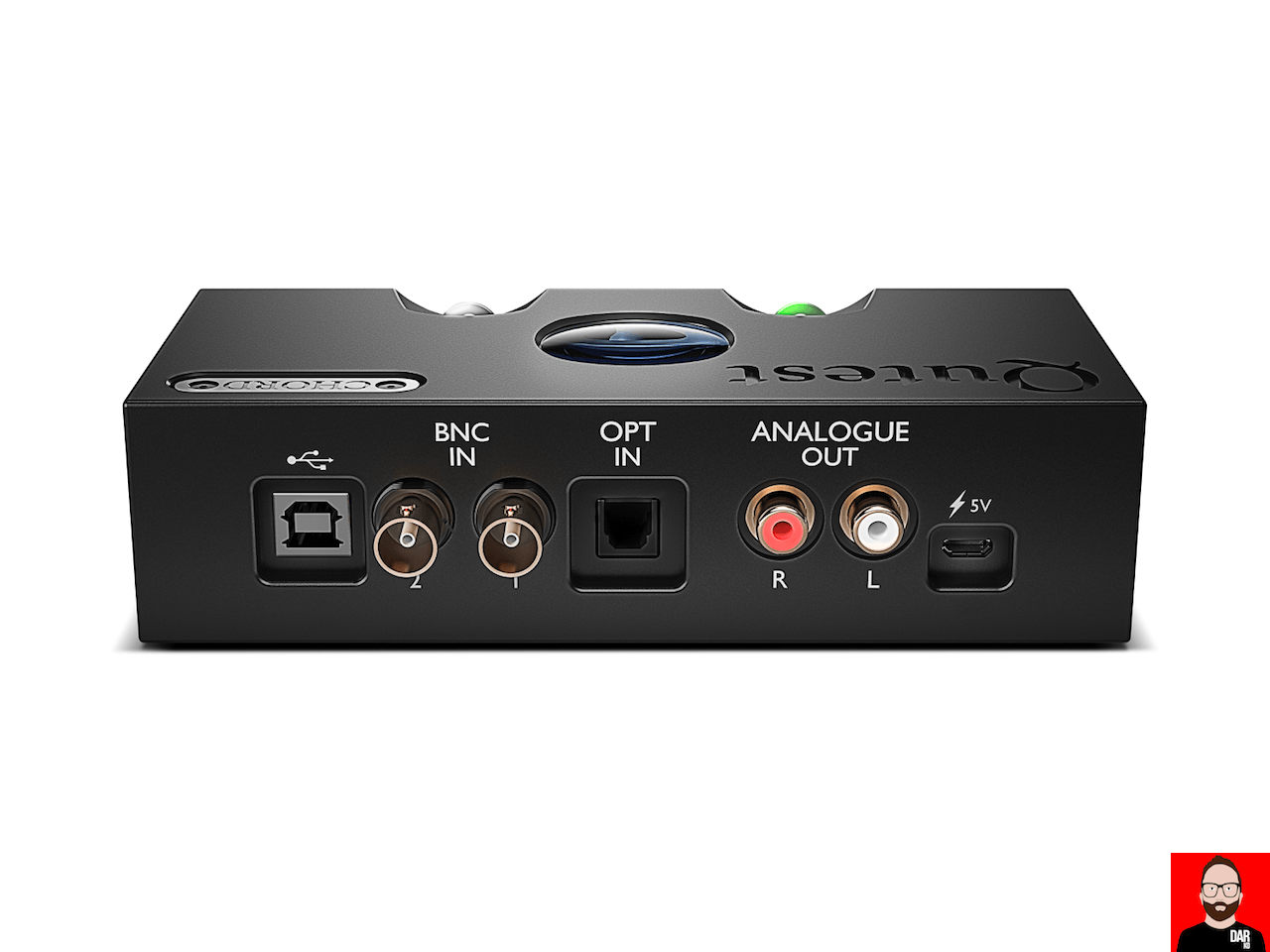

The Qutest is uniquely equipped to bring the benefits of Chord Electronics’ acclaimed proprietary hardware and software technology to a wide range of connected devices. It features a galvanically isolated USB-B, optical and dual coaxial digital inputs, giving an instant upgrade to everyday audio devices plus the ability to modernise ageing digital source components. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution 768kHzcapable dual-data digital inputs for connection to Chord Electronics’ devices including the 705/768kHz-ready MScaler-technology BLU MKII digital/CD transport.
Qutest has been designed for static use within home audio and desktop hi-fi systems. The new design benefits from 5V Micro USB powering which offers improved flexibility over its predecessor. Qutest offers support for up to 32-bit/768kHz PCM and DSD512 via its galvanically isolated USB-B input, 24-bit/384kHz PCM and DSD128 via coaxial
(BNC) and 24-bit/192kHz data on Optical TOSLink. DSD64 to DSD 256 is supported via DoP and ASIO native DSD format is also supported up to 512.
Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
Pulse array: 10 element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
THD: <0.0001% 1kHz 3v RMS 300Ω
THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ wighted (reference 2.5v)
Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
Channel separation: 138dB at 1kHz 300Ω
Dimensions: 41mm (H) x 160mm (W) x 72mm (D)
Boxed Weight: 1500g
