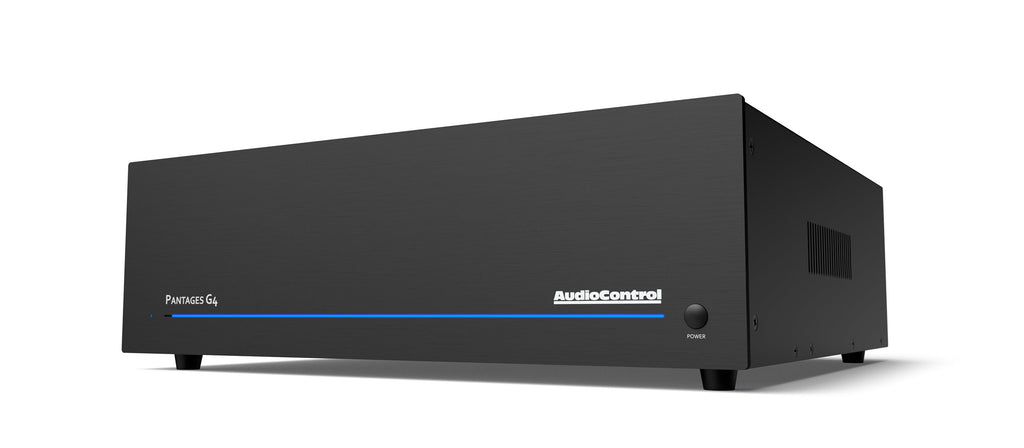

AudioControl Pantages G4 Multi Channel Power Amplifier
Description
5 Channel Power Amplifier
Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.
Features
- Award winning theater amplifier technologies
- Five channel home theater amplifier
- Multi-mode operation: 5 channel, 3.1 channel, 3 channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged on select channels
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry

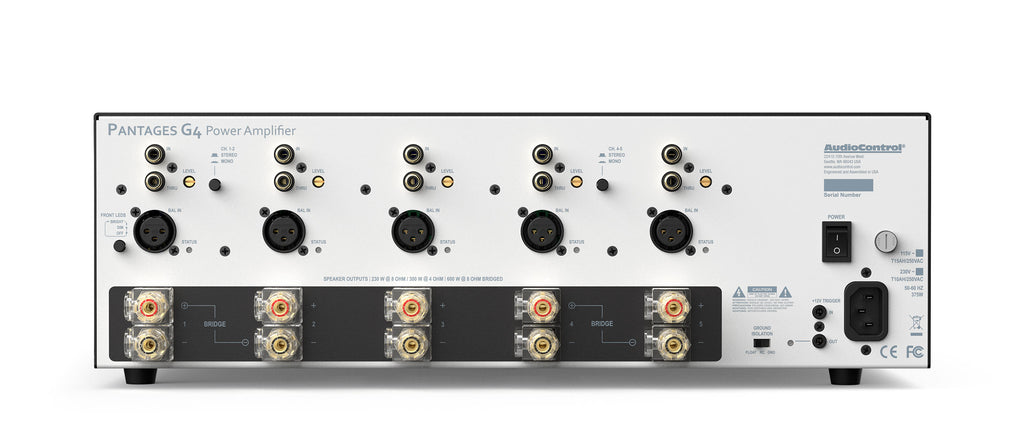

- 5-way Binding Posts
- Unbalanced RCA inputs with pass through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Perfect paired with AudioControl’s home theater preamplifiers
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Pantages G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Pantages G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as standalone critical listening power amplifier, the Pantages G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theater.
Specifications:
| INPUTS | |
| Inputs | 5 RCA Unbalanced, 5 XLR Balanced |
| Input Sensitivity | 1.42 Vrms for full output |
| Maximum Input Voltage | 2.7 Vrms |
| Input Impedance | 100 kΩ |
| OUTPUTS | |
| Amplifier Channels | 5 |
| Power Output (8Ω) | 230 watts per channel |
| Power Output (4Ω) | 300 watts per channel |
| Power Ouput (8Ω Bridged Mono) | 600 watts |
| Minimum Speaker Load: | 4Ω |
| PERFORMANCE | |
| Damping Factor | >450 |
| Total Harmonic Distortion | 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz) |
| Signal to Noise | >102dB, A-wtd ref Full Output |
| Frequency Response | 10 Hz -20 kHz ±1dB |
| CONTROL | |
| Remote Power Trigger | +12 VDC or Dry Contact Closure |
| GENERAL | |
| Power Consumption (Standby) | < 2W |
| Power Consumption (Idle) | 38W |
| Power Consumption (loud listening level) | 263W |
| Power Consumption (maximum) | 1500W |
| BTU/Hour Output (Standby) | 5.6 BTU/hr |
| BTU/Hour Output (Idle) | 129 BTU/hr |
| BTU/Hour Output (1/8th power, loud listening level) | 313 BTU/hr |
| BTU/Hour Output (maximum) | 1791 BTU/hr |
| WEIGHTS & DIMENSIONS | |
| Dimensions | 17”W x 16.5”D x 3.5”H (2U) |
| Weight | 38.0lbs 17.2kg) |
