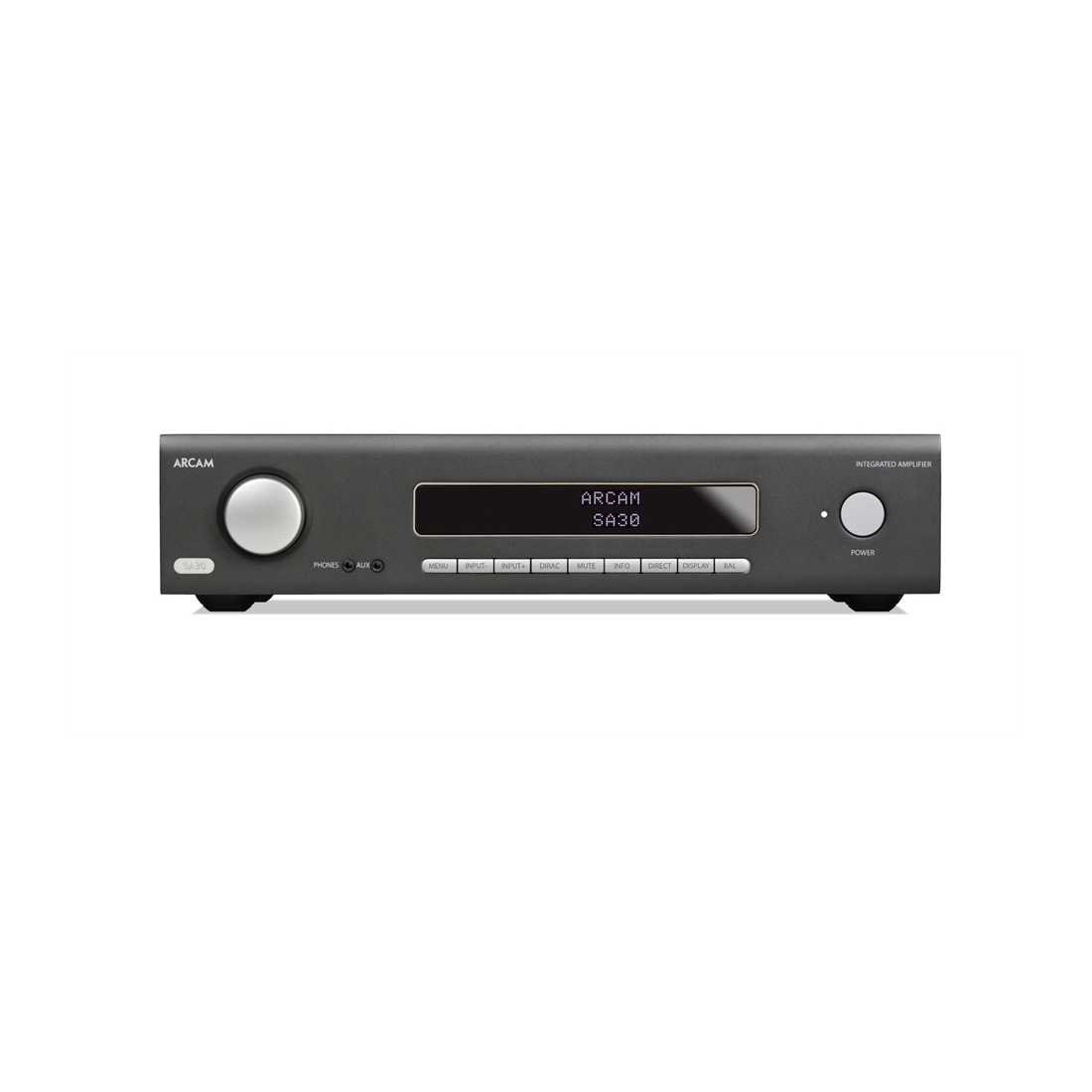

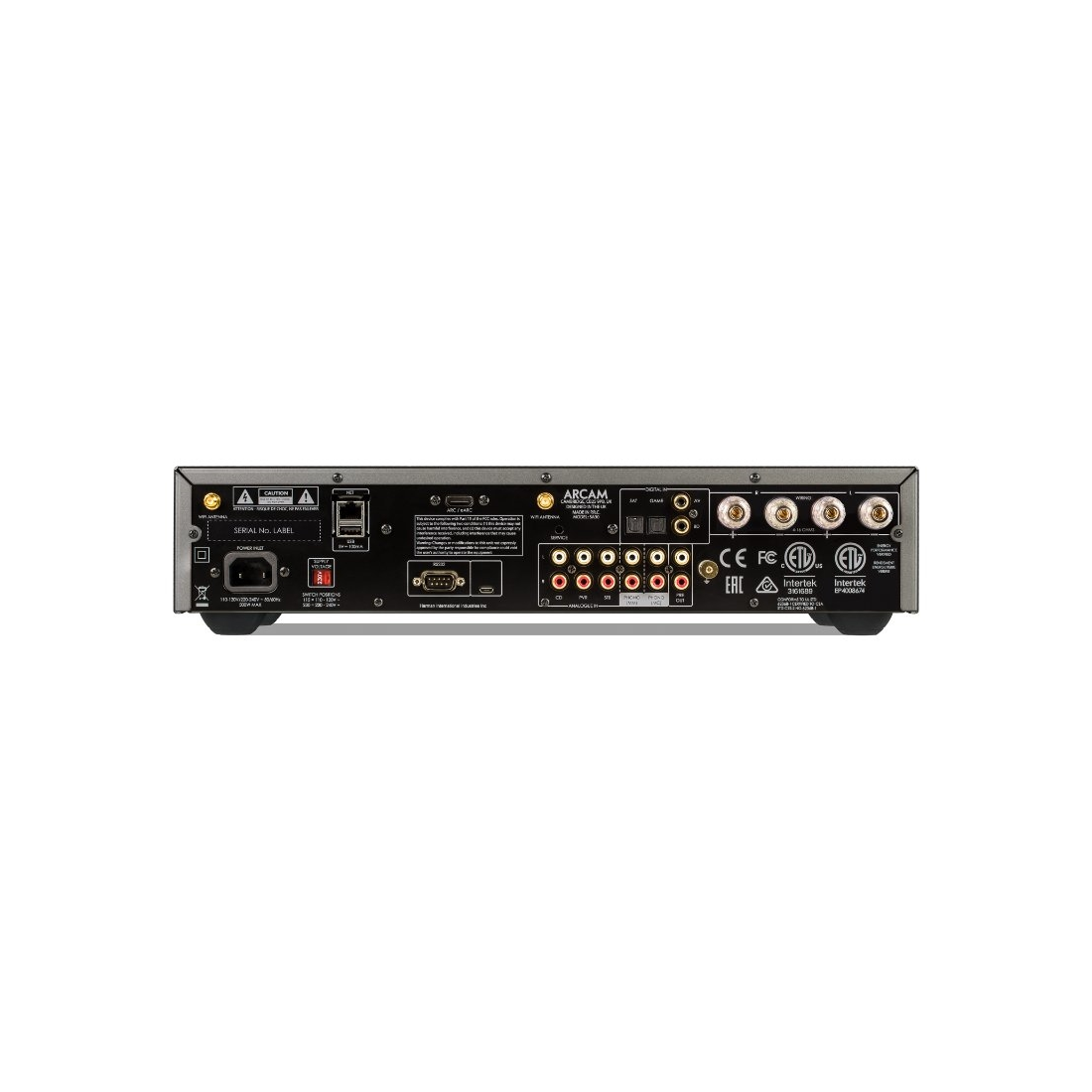

Arcam SA30 Integrated Amplifier
Description
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.
SA30
The new Arcam SA30 integrated amplifier sports 120 watts of Class G amplification for impeccable sound, control and efficiency.
This latest product from the HDA range has the same new sleek fascia and casework as the rest of the HDA range and houses an extensive feature list. Firstly, there is a dedicated switchable MM/MC phono input befitting a high end performance amplifier. The SA30 also comes supplied with 4x digital inputs (2x co-axial and 2x S/PDIF), plenty to connect all those digital audio devices. The SA30 is equipped with the ESS Sabre ESS9038 32-bit high-end DAC. There are 4x analogue inputs are available for legacy connectivity and even a HDMI ARC enabled input is on hand. There’s also a comprehensive I/P control suite, including Control4 and Crestron compatibility.
Devotees of the latest high resolution digital audio systems will welcome the SA30’s support for MQA as offered by the likes of TIDAL Masters. The SA30 is also ROON ready and its ROON end point status means that it is all set to receive audio from ROON’s digital music player and library system.
Finally, the SA30 comes with full Dirac Live room correction (3 profiles available) to ensure the best possible sonic results.
- Class G amplification for impeccable sound and efficiency
- 120W of power per channel into 8Ω, 220W into 4Ω
- 5 analogue inputs including switchable MM/MC PHONO input
- 4 digital inputs
- 1 ARC input
- GoogleCast, Airplay 2, uPnP Streamer
- Roon endpoint
- MQA supported
- 3 Dirac EQ profiles (input assignable)
- 32-bit DAC,Sabre ESS9038K2M
- Full I/P control including Control4 and Crestron
- Total harmonic distortion + noise = 0.002%
Specifications:
| Frequency Response | 20Hz – 20kHz ± 1dB |
| Nominal Sensitivity | 1V |
| Input Impedance | 10kΩ |
| Power output both channels driven | 120W into 8Ω, 220W into 4Ω |
| Maximum Input | 6Vrms |
| Signal/Noise ratio (A-wtd) 50W, ref. 1V input |
120dB |
| Mains Voltage | 110-120V or 220-240V, 50-60Hz |
| Maximum Power Consumption | 800W |
| Dimensions W x H x D (including feet, control knob and speaker terminals) |
433x100x323mm |
| Weight | 12kg |
| Packaged Weight | 14kg |
