Eversolo DMP-A6 Master Edition + AMP-F2 Preamplifier and Power Amplifier Pack

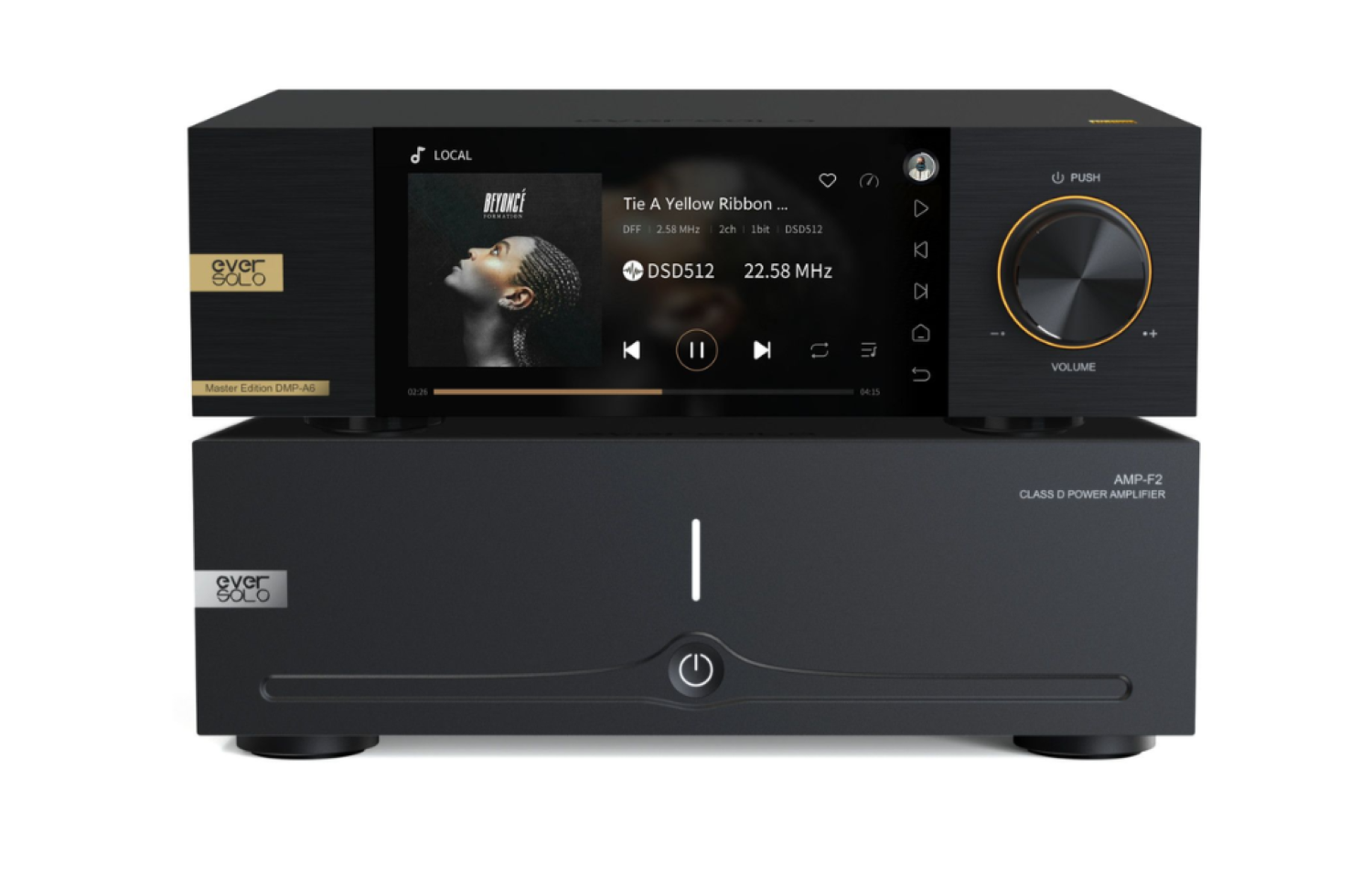

The AMP-F2 is specifically designed to match the size of the DMP-A6 creating a formidable mini system when stacked together.

AMP-F2

The Eversolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in California. The size is a perfect match for the DMP-A6 / DMP-A6 Master / DAC-A8

Functional overview

• 250W RMS at 4Ω(1%THD,per channel)145W RMS at 8Ω(1%THD,per
  channel)
• 2 channel Class D power amplifier
• Bridgeable for mono applications
• Developed in collaboration with Starke Sound

DMP-A6 Master Edition

Eversolo presents the DMP-A6 Master Edition. The Master Edition features several upgrades over the original DMP-A6 including upgraded oscillators in the form of two ACCUSILICON FEMTOSECOND oscillators with greater noise reduction and improved jitter and an upgraded OPA1612 op-amp with ultra-low noise and low distortion (1KHz 0.000015%). Additionally, the case gets special gold badging on the faceplate.

Functional overview

• Solid aluminium alloy chassis, brushed panel.
• Quad-core ARM Cortex-A55 professional processor.
• 6" large LCD colour touchscreen, easy control.
• Based on Android 11, deeply tailored system.
• 4GDDR+32GeMMC large memory for masses of applications.
• Support M.2 NVME 3.0 SSD (not included), up to 4TB.
• 2xES9038Q2M DAC for independent stereo decoding.
• Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.
• The 3rd generation XU316 for higher performance and processing speed.
• Dual femtosecond clocks, ultra-low phase noise, ultra-low jitter clock synchronization processing, purer output.
• Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.
• 2x DOH chips, support HDMI DSD Native and D2P multi-channel output(Up to 5.1).
• Qualcomm QCC5125 Bluetooth 5.0 module .
• Low noise, high quality power supply, providing pure power source for audio circuits.
• Support mastering audio formats DSD (.dsf/.dff/.iso/.dst), APE, FLAC, WAV, MQA, etc.
• Support 2-channel and Multi-channel Gapless playback(FLAC,WAV)
• Personalised music management,  and music data matching.
• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.
• Support Direct audio in 3rd party APPs (Apple Music hi-res direct output).
• Full decoding and rendering support for MQA on Optical, Coaxial and USB input etc.
• Support USB, Optical, Coaxial, HDMI digital audio Bit-perfect output.
• Support external USB optical drive for CD disc playback and CD ripping.
• Music services Tidal, Qobuz, Highresaudio, Amazon etc.
• Support Roon ready, Tidal Connect, etc.
• Support music playback from  DLNA.
• Support NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN.
• Support built-in SMB network media sharing service for easy local media sharing.
• Exclusive mobile APP for Android/IOS mobile phones and tablets.

Specs
